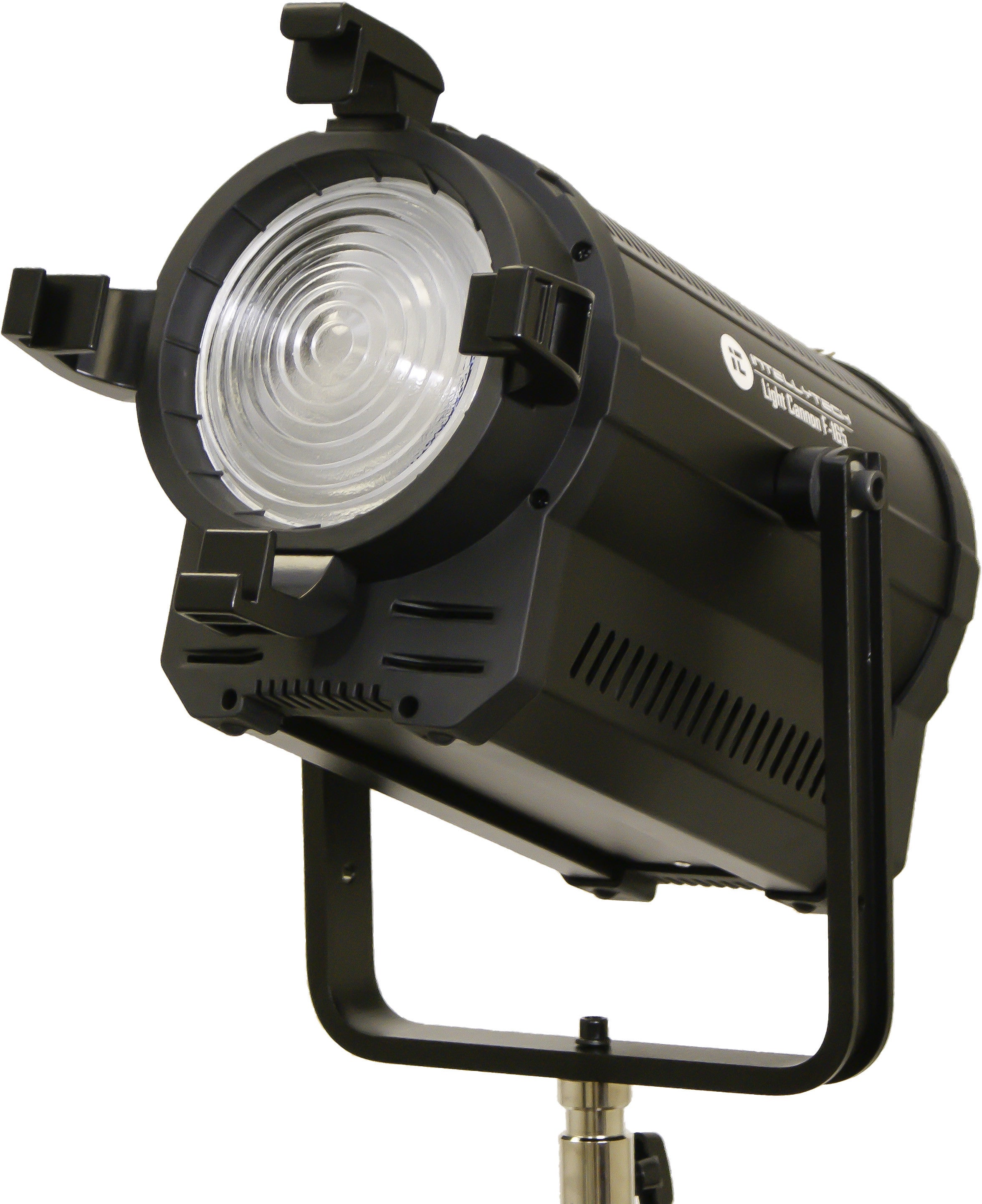

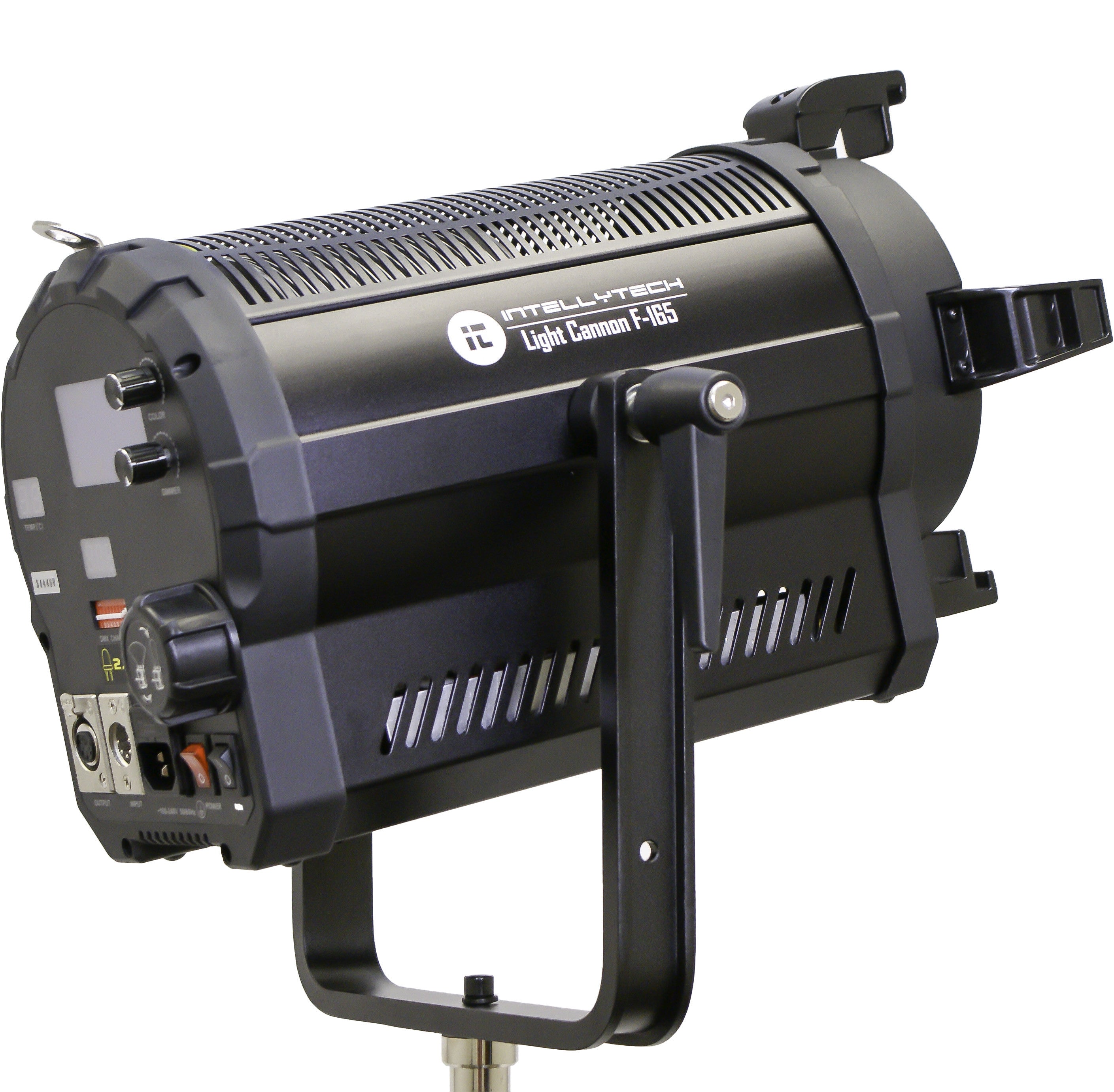

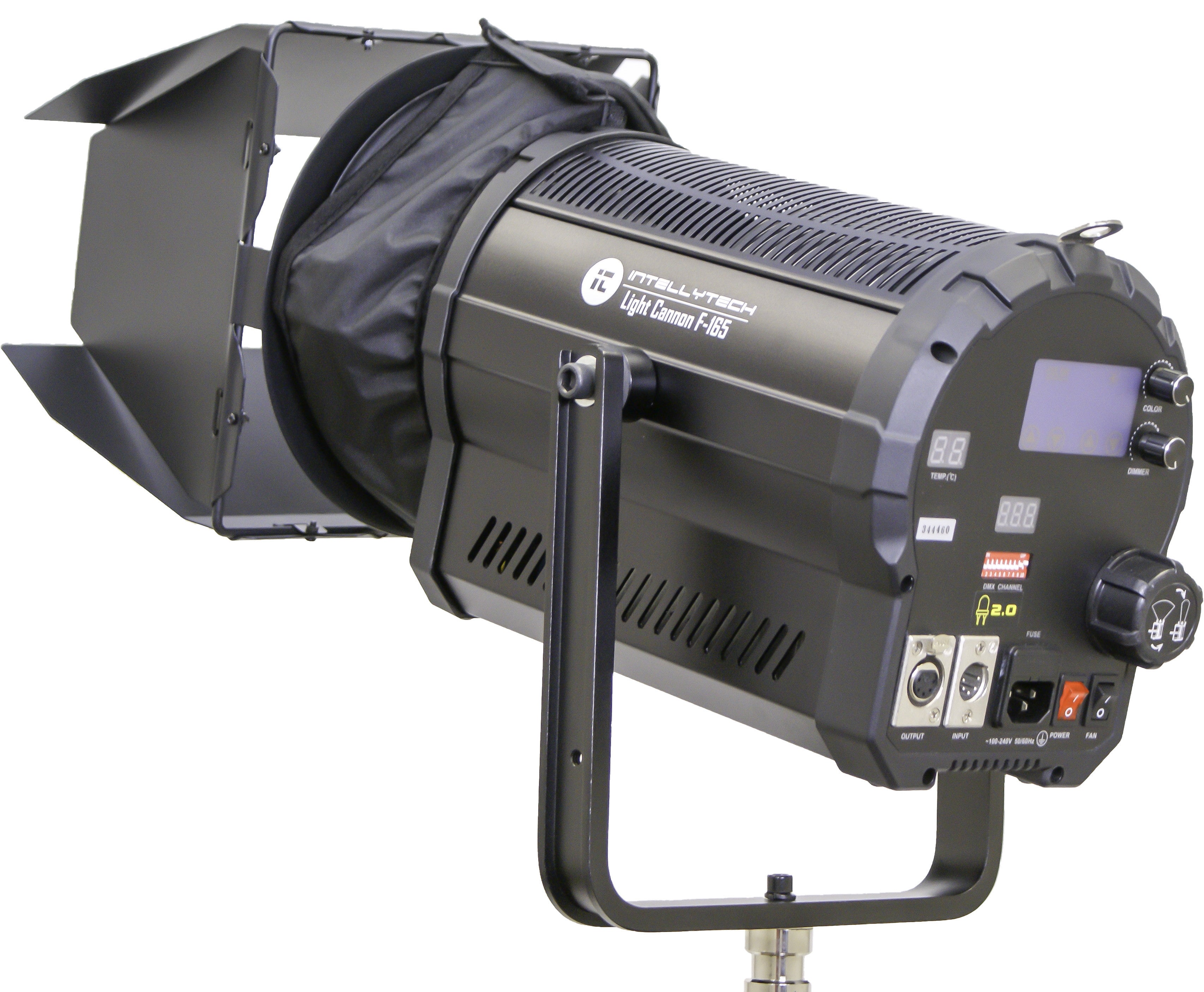

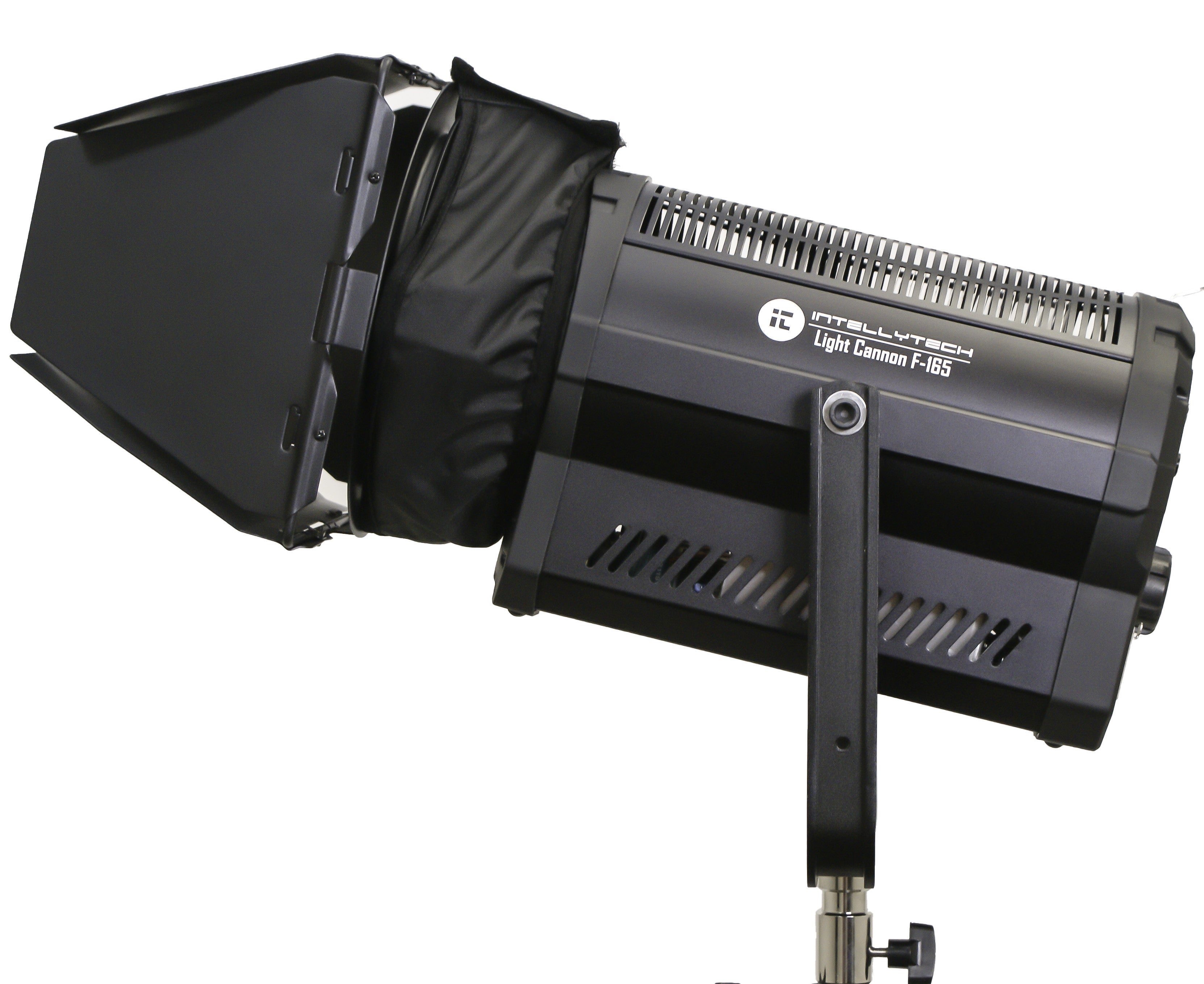

Light Cannon - F-165 Bi-Color - Portable, High Output 165W LED 5" Fresnel - W/ DMX

Light Cannon - F-165 Bi-Color - Portable, High Output 165W LED 5" Fresnel - W/ DMX



  • Item Number: 173000
  • 165 Watt, 5" Fresnel LED Light
  • Bi-Color - 3000k-8000k and anywhere in between
  • Choose to have fan on or off via switch. Very quiet with fan on and double the output. When fan is off, the output is reduced to 50% and is totally silent.
  • DMX Operational - Aluminum Frame
  • 15-50 Degree Capability
  • 12.75" (length) x 7" (width) x 8.5" (height). 10 pounds

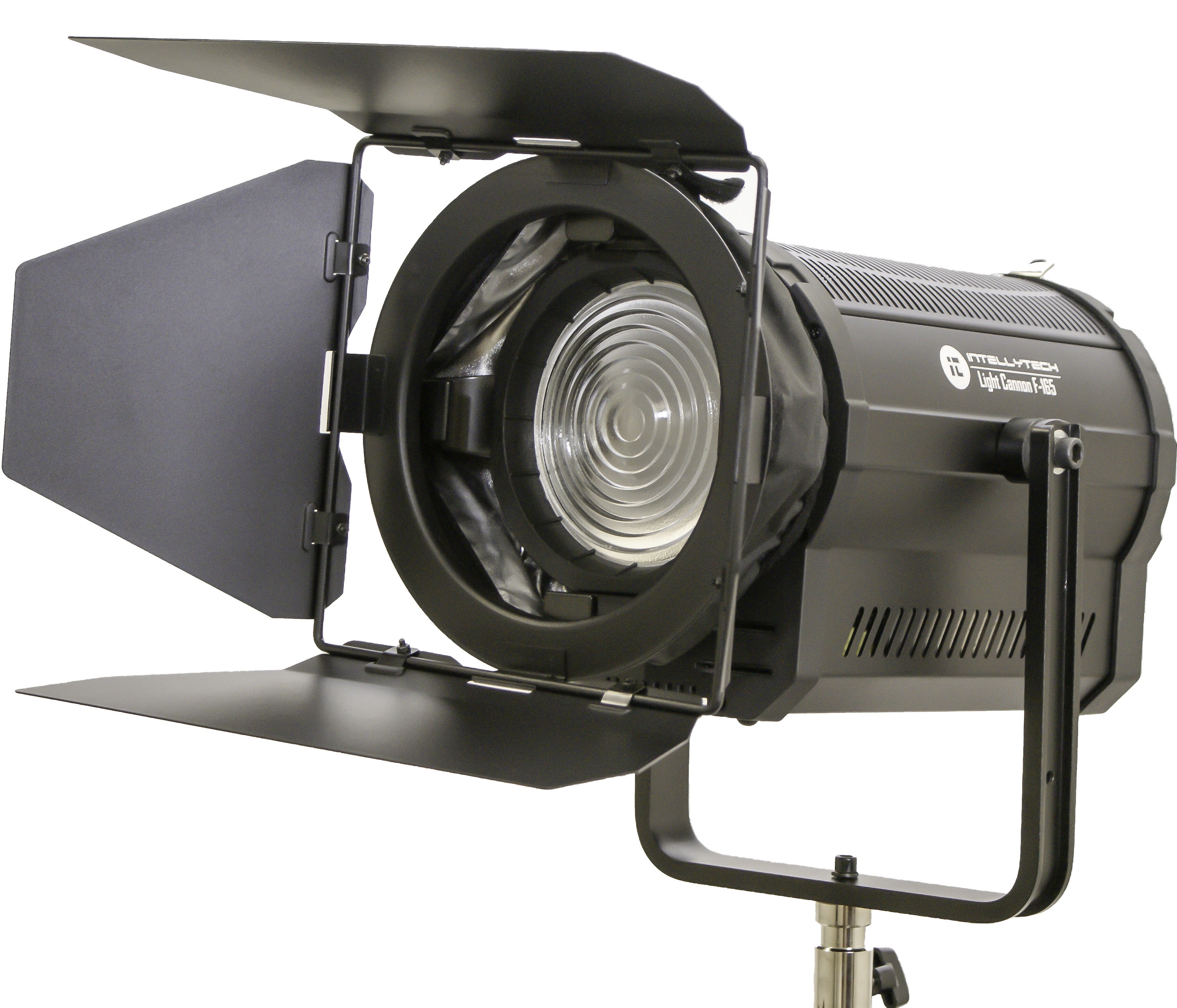

The F-165 Light Cannon is the perfect light for those looking for lots of power in a compact and portable package. It provides the user with an impressive amount of light via its 165 Watt LED Output. The Light Cannon Series' unique design allows the light to be placed back 10, 20, 30, 40 feet back and beyond due to its amazingly long throw. It's actually equivalent to a 1,000 Watt Quartz light but remains completely cool and has considerably more features and controls. The Light Cannon Bi-Color Series has a super wide color range from 3000k - 8000k making it perfect for today's high-end video cameras. The F-165 provides the user with a high degree of control via the light's focusable fresnel lens and barn-door combination. The light can be transferable anywhere from 20 degrees to 70 degrees and the barn-doors allow you to further shape your light. It provides a powerful, high quality light output and creates beautiful color rated at 95-99 CRI at various degrees in its 3,000-8000k range. This unit is the ideal combination of classic Fresnel characteristics and all the advantages of the latest LED technology. Read more below the pictures.
Additional Info

Hybrid Cooling

The Light Cannon series have a fan that can be turned on or off by the flick of a switch. When on, the unit has 100% power and the fan is very quiet. When the fan is turned off, the unit is completely silent and the output is reduced by 50%. The LED life span also reaches up to 50'000+ hours of use equivalent to 15 years of day by day use / 10 hours a day.

Strong & Lightweight Metal Frame

The metal body housing is made using strong, lightweight, and attractive aluminum with an amazing fit and finish, made for years of use in a professional environment. The metal is similar to the look, finish and feel of an Apple computer. The high strength tilt lock provides extremely secure locking, eliminating movement and slippage and ensuring that the fixtures will stay where you put them.

DMX Control

The Intellytech LED Fresnel Light Cannon are equipped with built in DMX 512 controller, allowing for the brightness and color temperature (on bi-color models) to be controlled remotely from a console making them perfect for TV studio installations, theaters, stages or conference rooms.

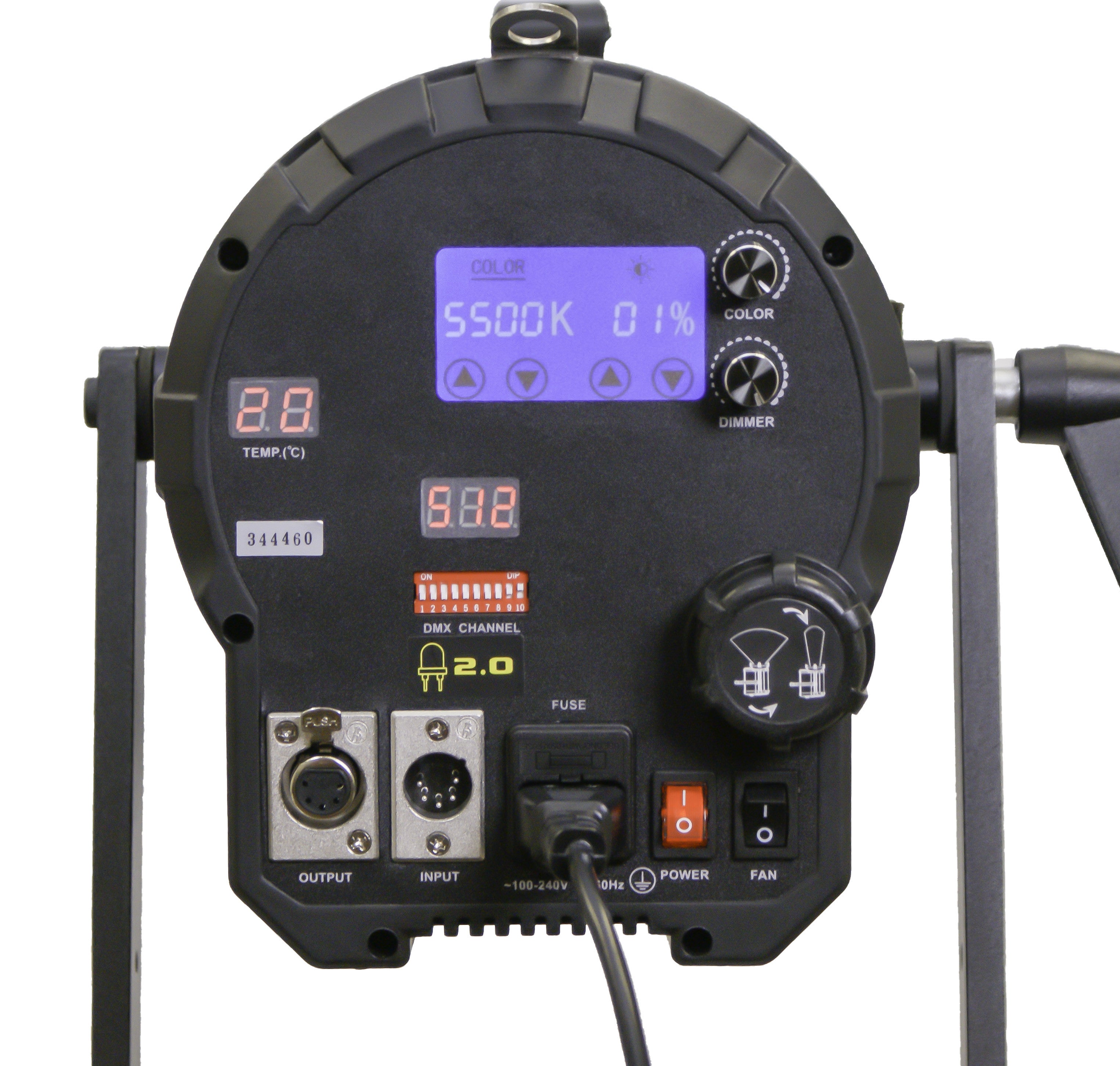

LCD Display

The Bi-Color Light Cannon's have a high-end, LCD Touch-Screen providing the user with a high degree of control and plenty of information. Select the color temperature or brightness level using the LCD screen or by using the control knobs. The LCD provides the user with information regarding the Brightness Level, Color Temperature, DMX Channel, and Internal Temperature.

High Output

Whether shooting in spot or flood mode, the F-165 provides the user with an extremely high output of 165 Watts. The Light Cannon Series are capable of filming large areas. They can be used outdoors in daylight with impressive results.

Ultra Wide Color Range & High CRI

The F-165 is a "fully tune-able" white light source, too, allowing you to match existing fixtures from a warm 3,000K to a blue 8,000K. The on-board controller allows manual intensity control from 0-100%. All of the functions can be controlled via DMX, an ideal feature for broadcast studios. On top of that the light is rated at a CRI of 95-99 to render beautiful and accurate colors on all ends of the spectrum


*Shooting slow motion? No problem! The Light Cannon LED series are flicker free and tested at 3'000 fps. The voltage is universal and works from 110v-240v.

Key features:
- LED power: 165W
- 3,000k-8,000k daylight color temperature
- adjustable beam angle spot 15° - flood 50°
- dimming 100% to 0% with no color shift
- high CRI/TLCI 95-99: colors are rendered with high accuracy
- 5" lens diameter
- flicker free at high speed shooting rates.
- high efficiency thermal design
- Choose to have fan on or off
- 50'000+ rated LED life
- built-in DMX controller with XLR 5P connectors
- LCD Screen showing color temp and dimmer controls. (please note the single color versions don't have the blue LCD screen but have smaller digital displays instead)
- mechanical spot-flood mechanism
- wide array of accessories available
- yoke bar - rotatable
- sturdy aluminum housing for many years of use
- worldwide voltage compatible: AC 110V-240V 50 / 60 Hz ; DC 24V
- weight: 10 pounds
- dimensions: 12.75" length x 7" width x 8.5" height
source type led - fresnel
operation mode manual - light stand
power 165 watts
voltage DC 24V / AC 100-240V
color temperature Bi-Color 3000k-8000k and anywhere in-between
lens diameter 5 Inches
beam angle degree 15-50
number of LED -
DMX 512 controller yes
dimming range 100%-0%
battery mount -
mounting Standard 5/8" (16mm spigot)
power cable length 9.75 feet
power plug type U.S.
lamp dimensions (HxWxL) Inches 12.75" (length) x 7" (width) x 8.5" (height).
weight 10 pounds
material aluminum
color black
compliance CE
*These ratings are taken when at 5,500k which is the brightest setting


Spot (15 Degrees)

Flood (50 Degrees)


1 Meter

21,400 Lux / 1,990 FC

5,230Lux / 486 FC


6 Feet

8,850 Lux / 822 FC

1,560 Lux / 145 FC


9 Feet

4,030 Lux / 374 FC

781 Lux / 73 FC


12 Feet

2,300 Lux / 213 FC

464 Lux / 44 FC
