The Mega-8FC LiteCloth 3.0 is a full color RGBWW 3'x5' LED Mat & Softbox Kit. The LED Mat folds down to just 14"x16"1". This unique design allows the user to create broad, bright, natural looking light that can be setup fast and travel small.
The full kit includes an LED mat, softbox, frame, mounting hardware, control box and power cables that fits inside the included carrying case measuring in at 46"x19"x9".
Specs:
-Full Color RGBWW
-G/M Color Correction + HSI / RGB Controls
-3,000k-9,999k W/ Synced G/M Correction
-400W

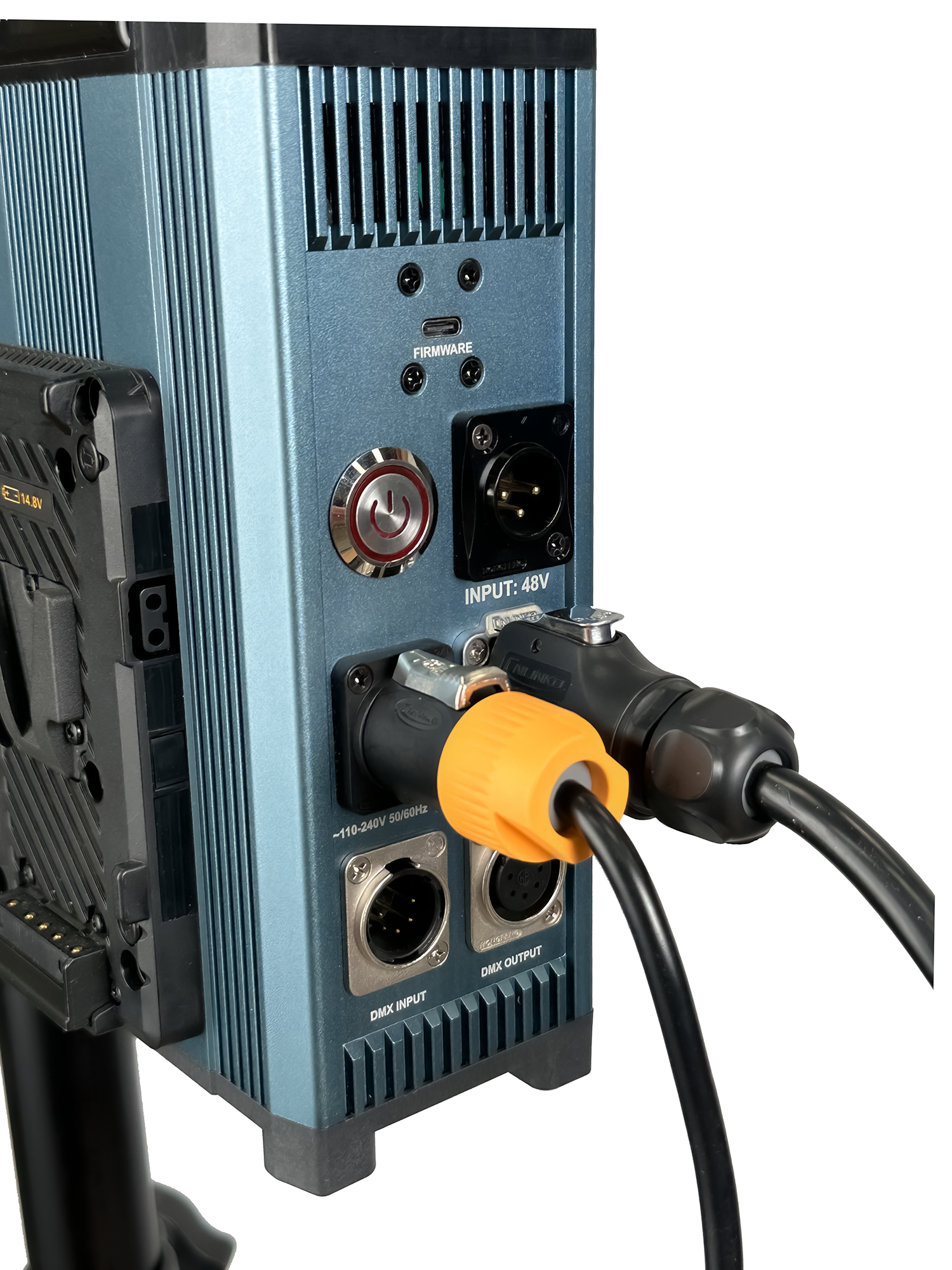

-DMX Control via wired DMX (5 Pin). Additionally, has USB-C Port that can power wireless DMX transmitters or any device up to 2W
-Can be controlled via our free LiteSync+ App available on iOS and Android.
Sold as a full kit including:

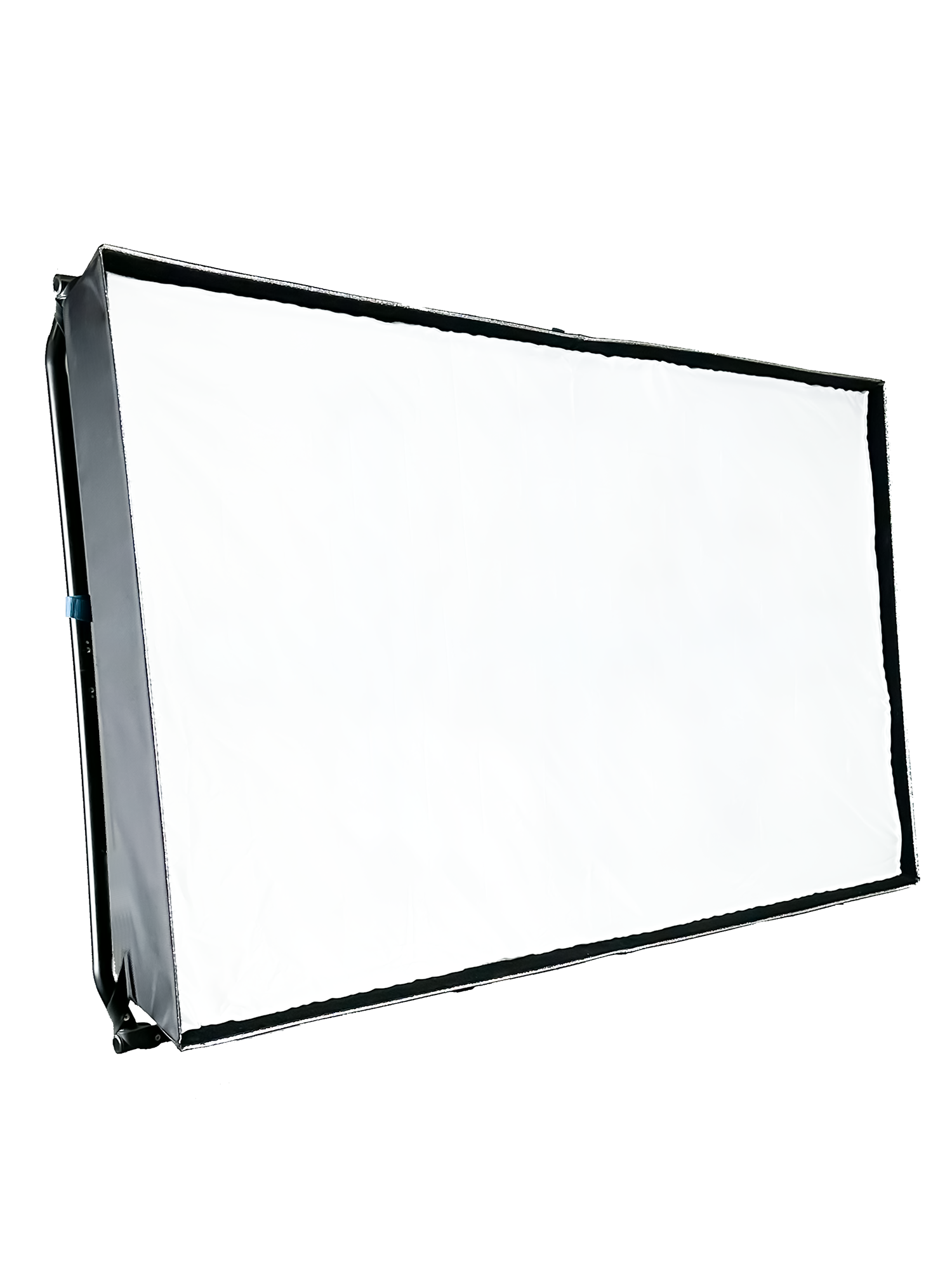

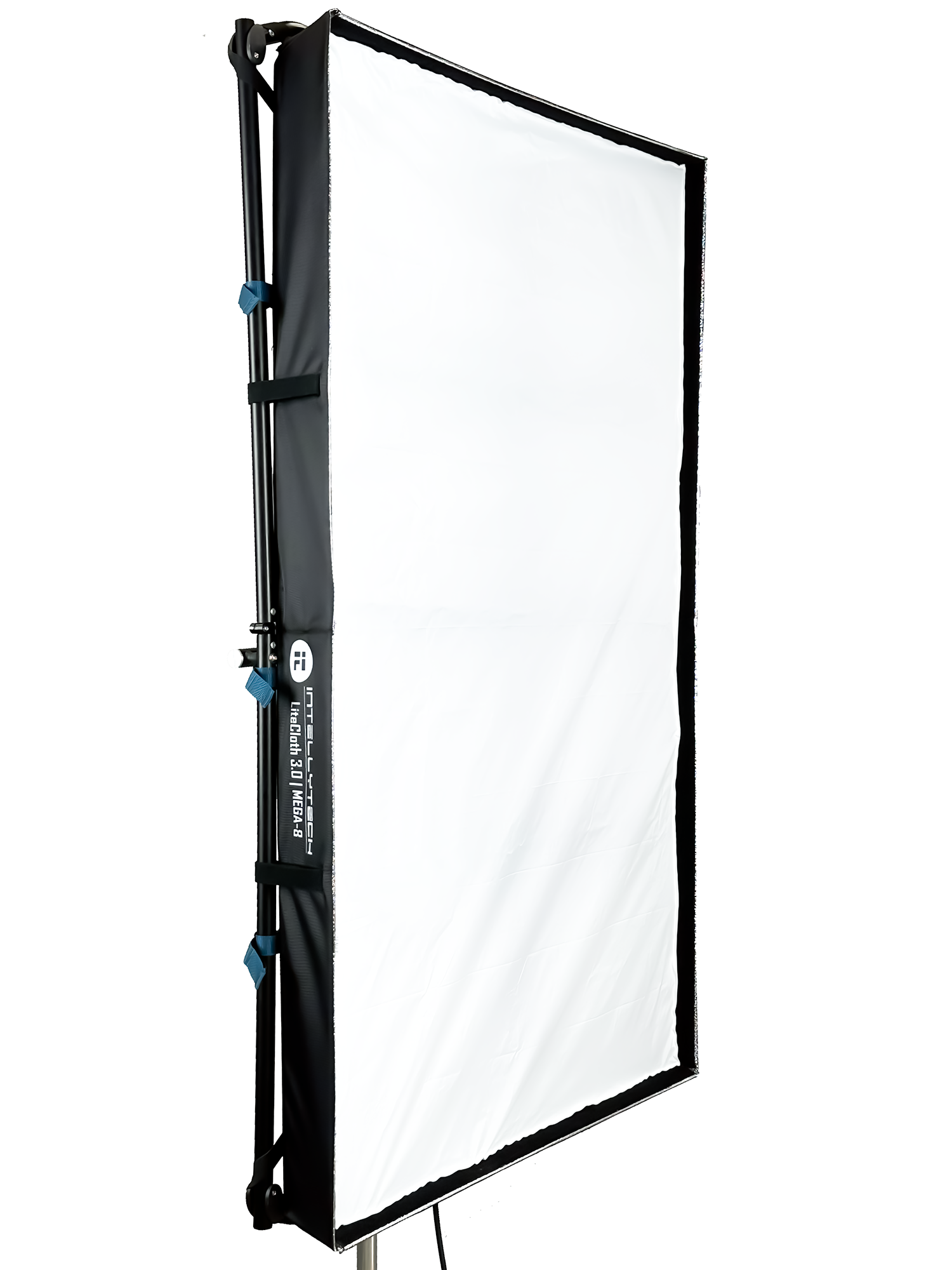

-Softbox with 1/2 stop diffuser & grid

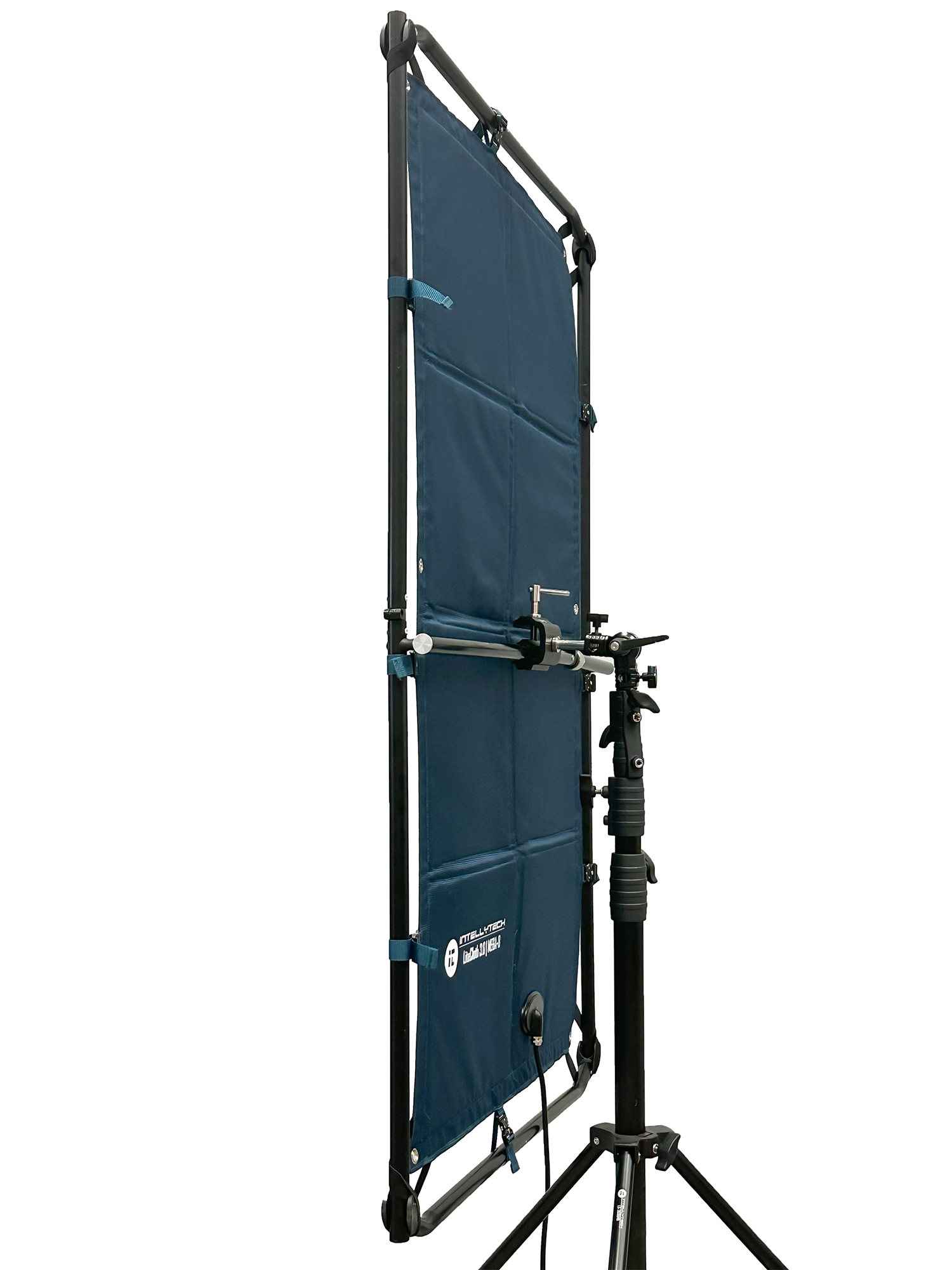

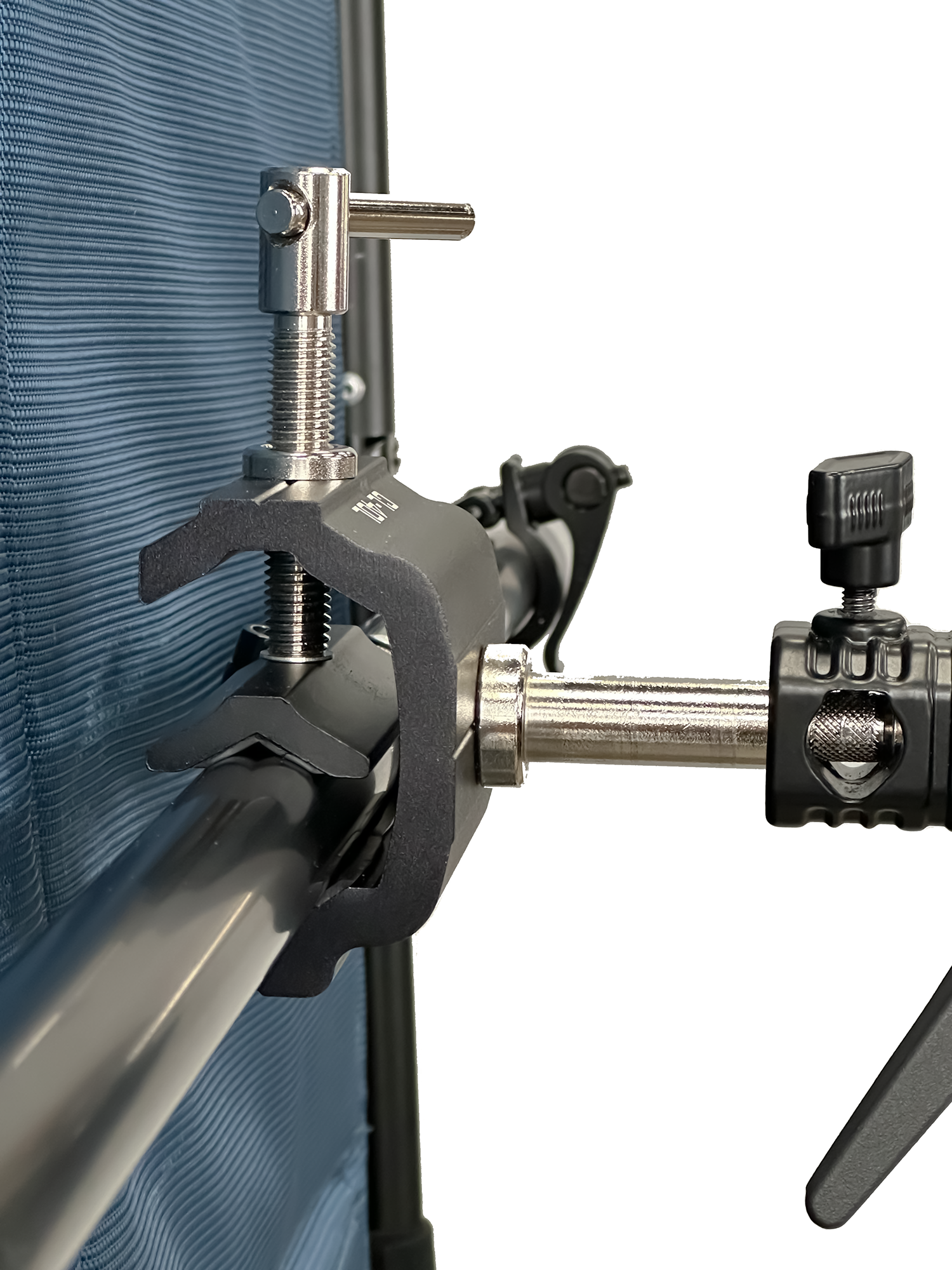

-Frame with 5/8" clamp (16mm)
-Battery plates (v-mount or gold mount)

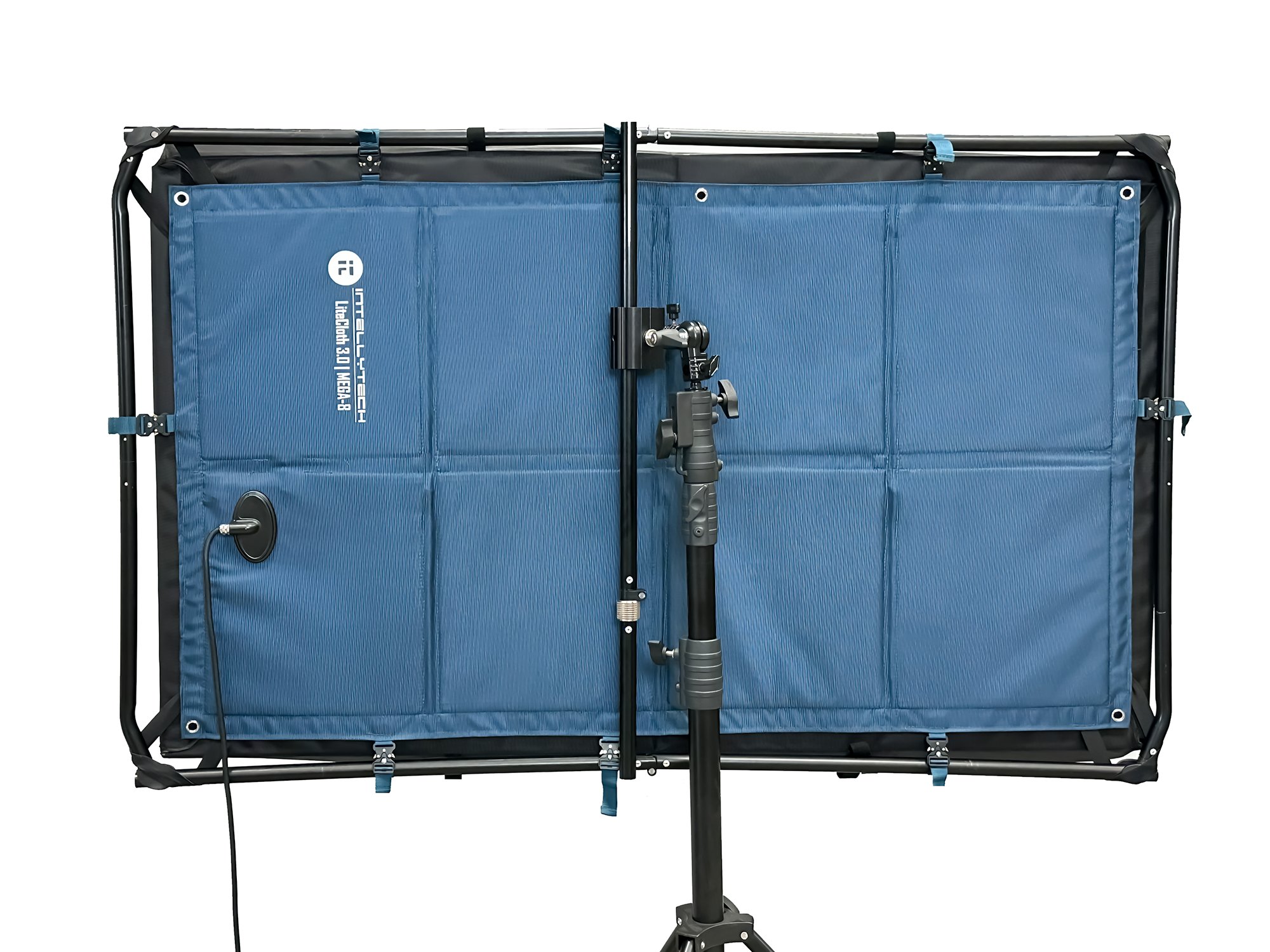

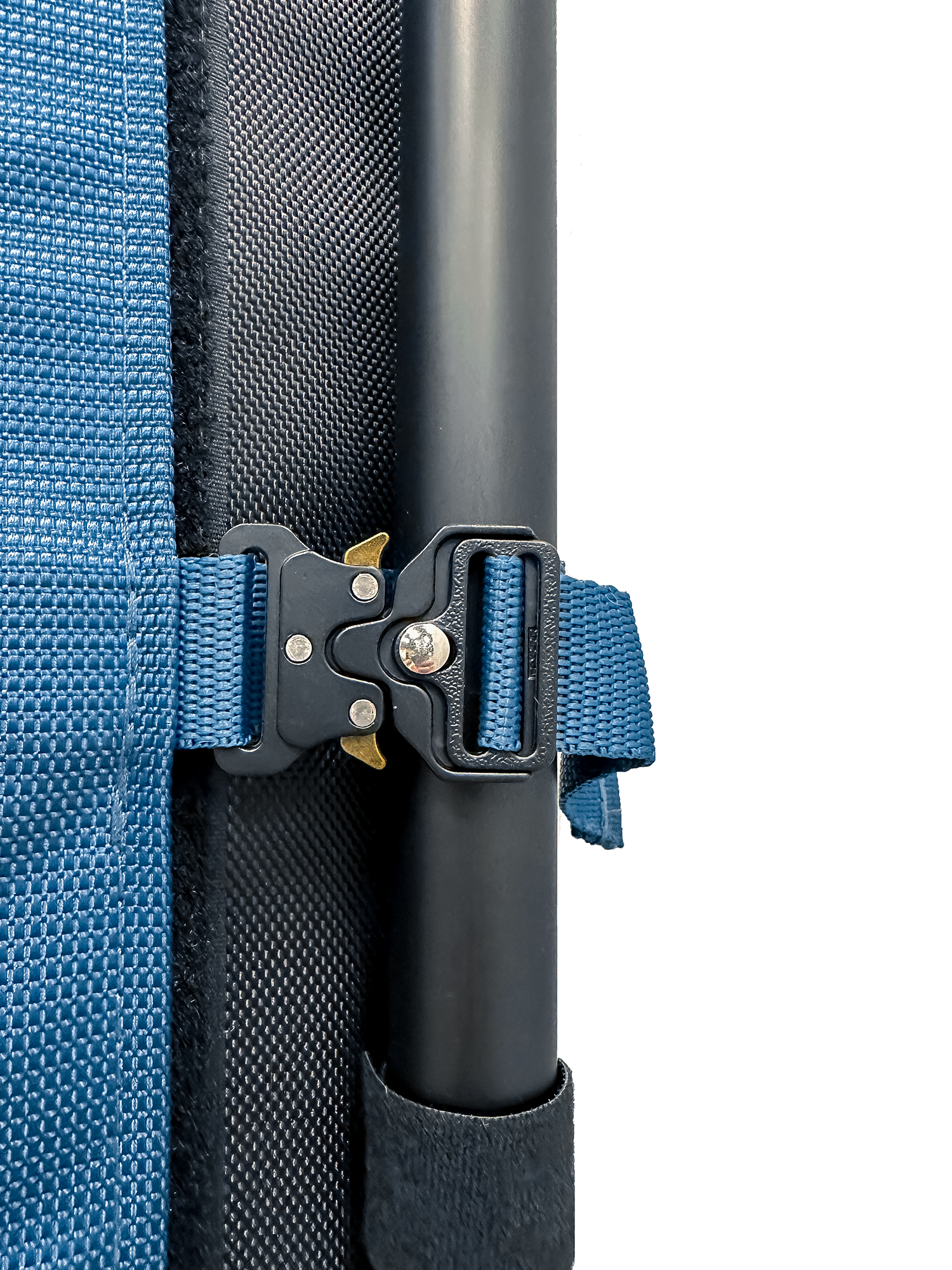

-LED Mat w/ buckles and straps

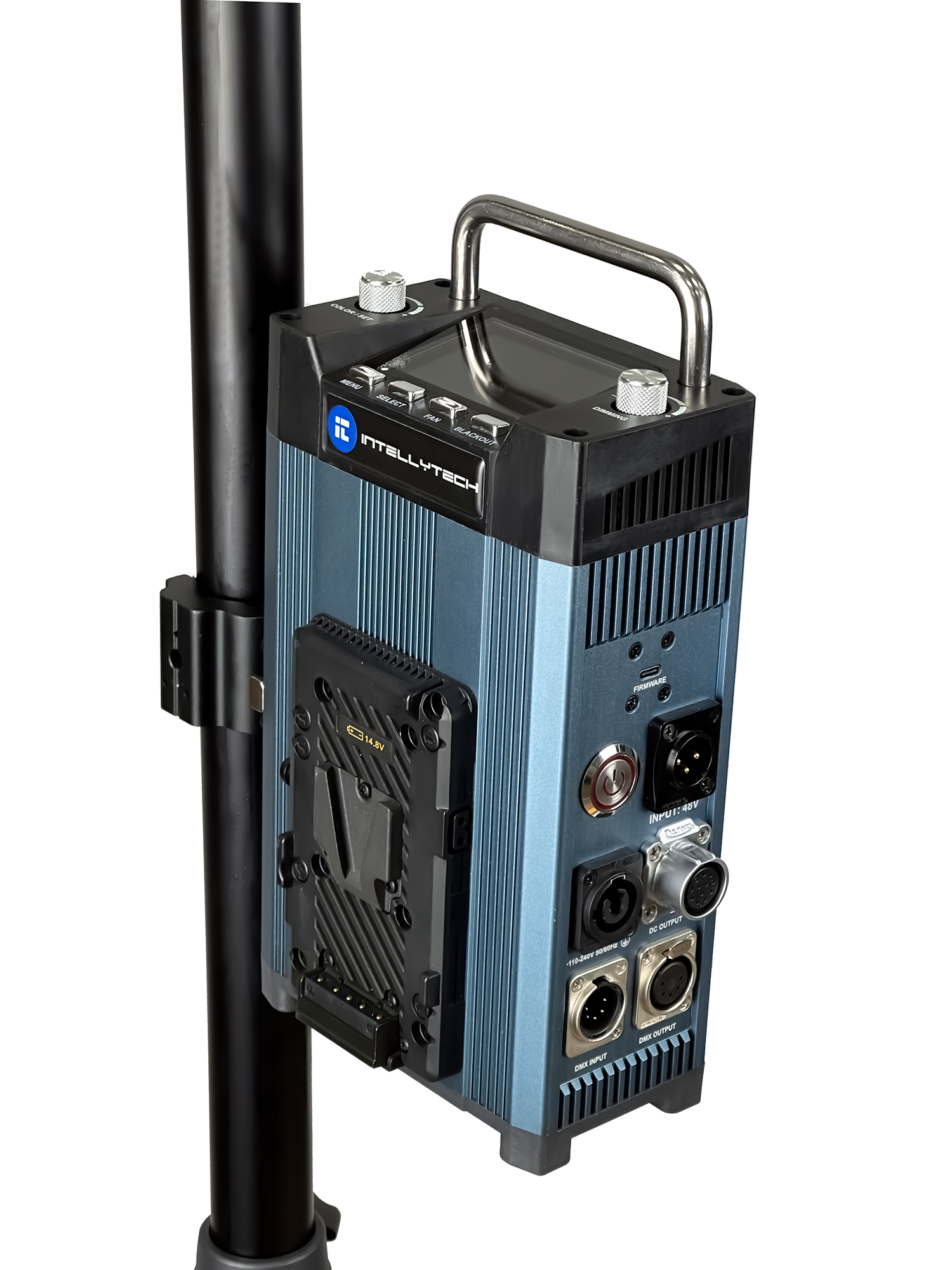

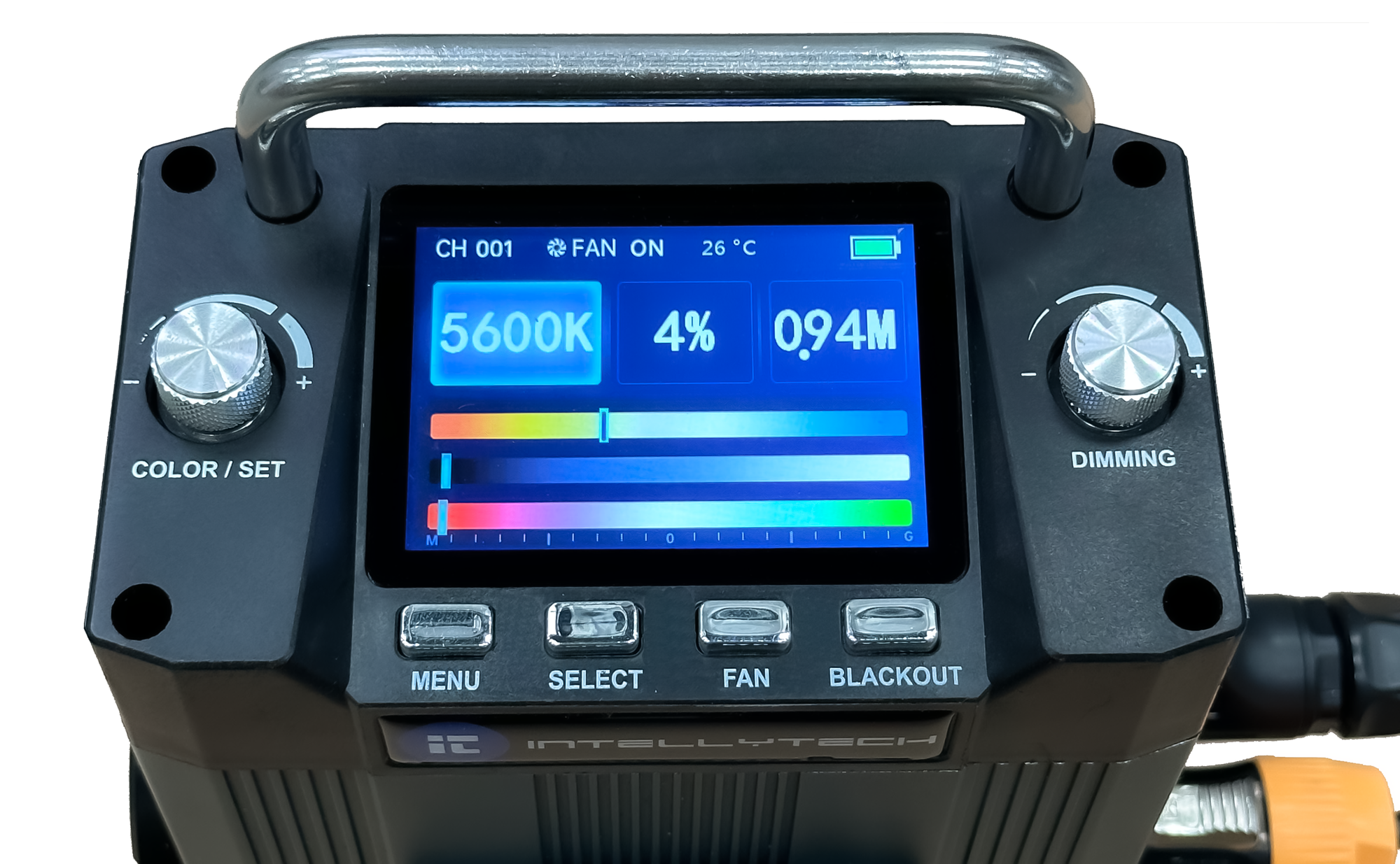

-Control Box
-Carrying case
Dimensions:
-Included Softbox: 3'x 5' x 5"

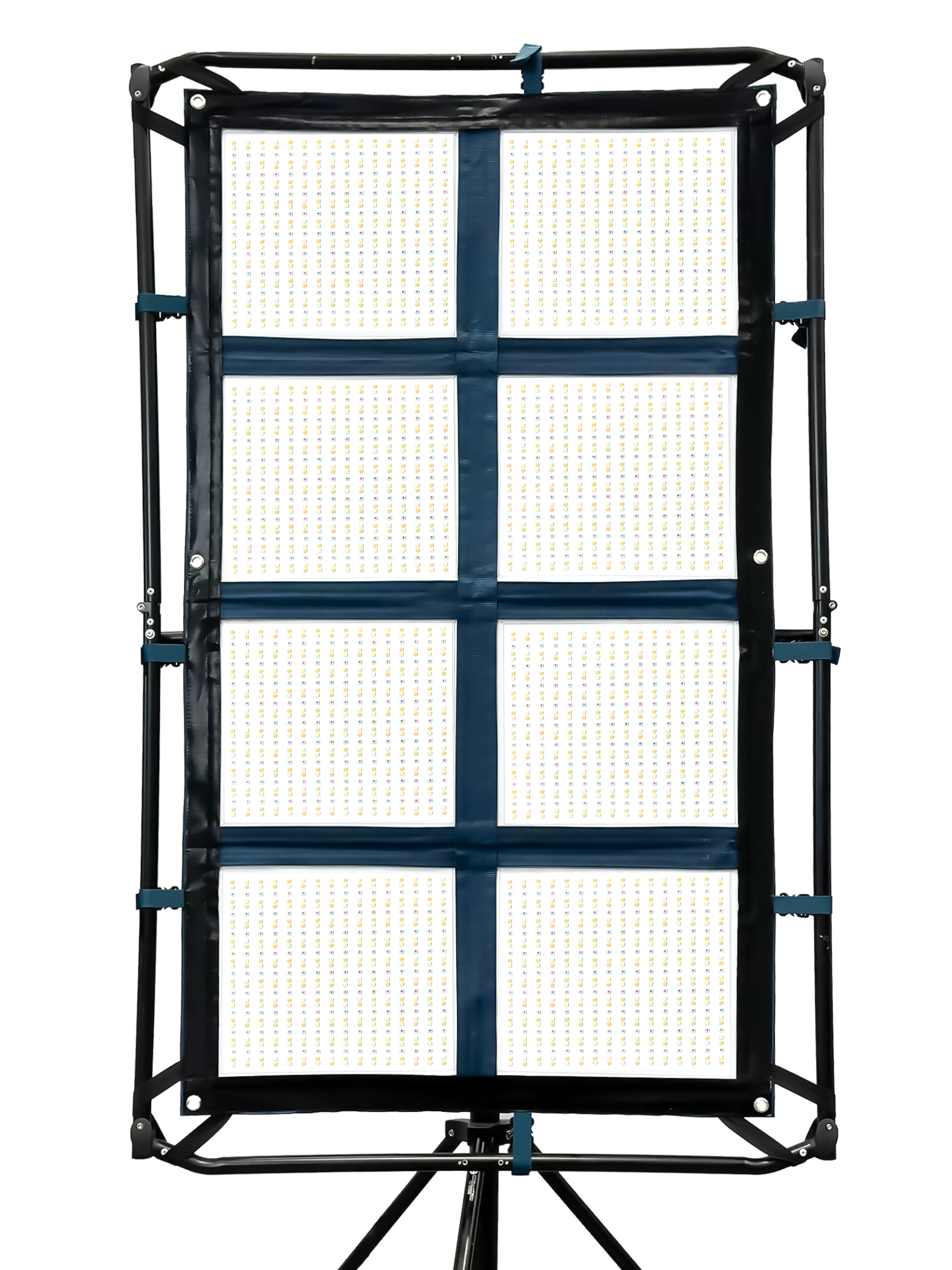

-LED Mat: 2'9" x 4'9"
-LED Mat Folded: 14" x 16" x 1"

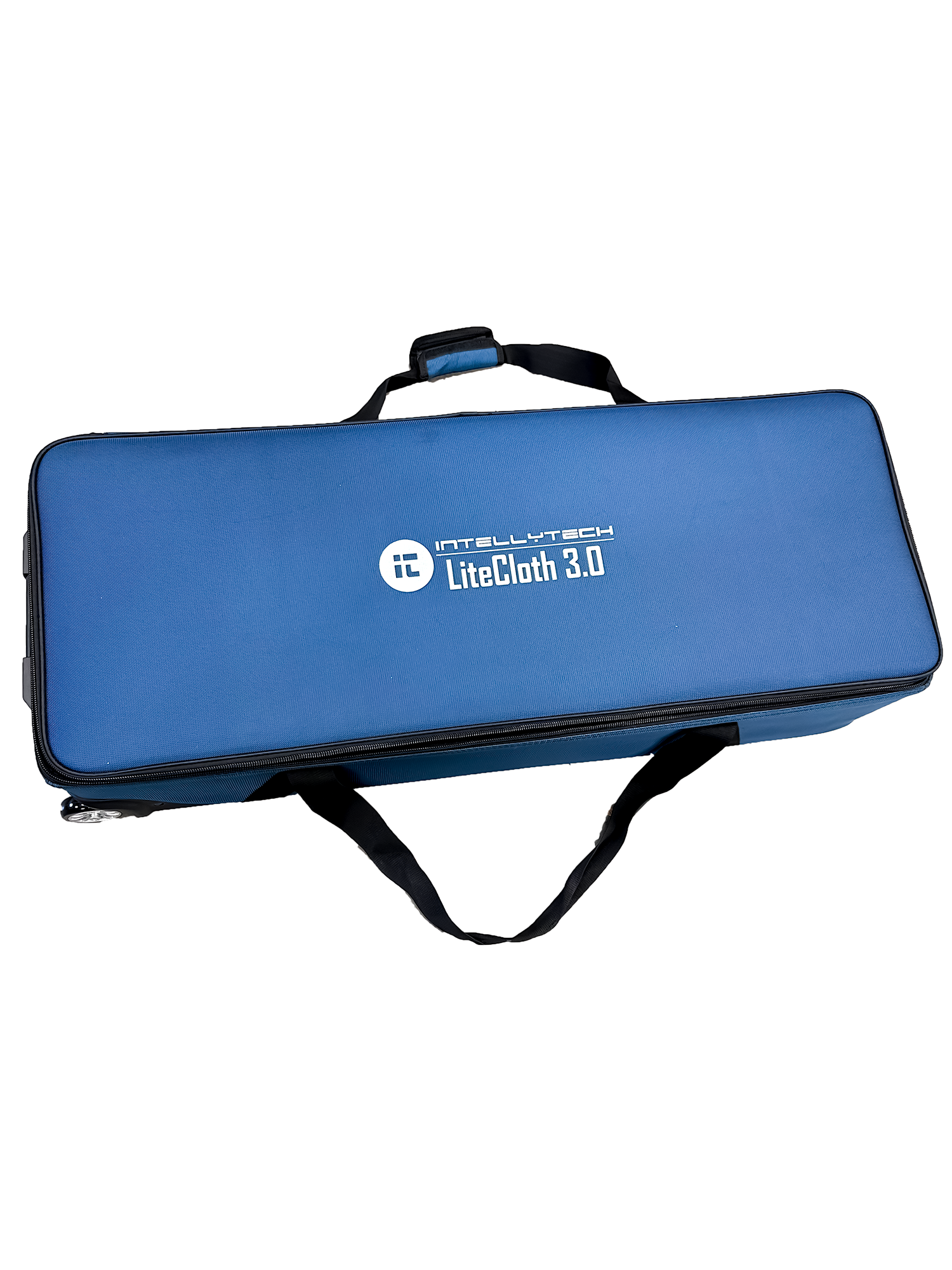

-Carrying Case: 46" x 16" x 9" (46 Pounds fully packed)
Output Photometrics:
Color Temperature
|
1M
|
2M
|
3M
|
3000K
|
12,000 lux / 1115 fc
|
3,580 lux / 332 fc
|
1,540 lux / 143 fc
|
5600K
|
13,000 lux / 1208 fc
|
4,000 lux / 372 fc
|
1,690 lux / 157 fc
|
9999K
|
13,900 lux / 1291 fc
|
4,190 lux / 389 fc
|
1,540 lux / 143 fc
|
RGBWW Advantage - Intellytech is the first company to produce an RGBWW unit with identical output to it's bi-color model.
Highly Accurate CRI / TLCI / SSI / TM-30 Ratings:
Color Temp.
|
CRI
|
TLCI
|
SSI
|
TM-30
|
3,200k
|
97
|
99
|
86
|
95 RF / RG 101
|
5,600k
|
97
|
99
|
74
|
95 RF / RG 101
|
Weight:
Items mounted to Light Stand / Boom Arm
-
LED Mat: 6.6 Pounds (2.94kg)
-
Frame W/ Included Clamp: 5.4 Pounds (2.44kg)
-
5" Deep Softbox W/ Diffuser Attached: 5.4 Pounds (2.44kg)
-
Total = 17.4 Pounds (7.8kg)
Remaining Items
-
Control Box: 6.2 Pounds (2.8kg)
-
Included Carrying Case Fully Packed W/ Included Accessories: 46 Pounds (20.8kg)
OPTIONAL ACCESSORIES to further reduce the weight for overhead shots, users can remove the included 5" softbox and use these lighter, optional accessories:
A) Optional Pancake Lantern & Skirt: 1.6 pounds
or
B) Optional Pop-Up Diffuser & Grid (2.6 pounds w/ diffuser. 3.6 pounds w/ grid added)
