2 Light Kit - LiteCloth LC-160 2.0 - 2x2 Foldable LED Mat Kit

Download the Android LiteSync App (coming later for Apple)
U.S. Patent No. 10,734,441

LC-160 2.0. Now Faster, Stronger, and Smarter.

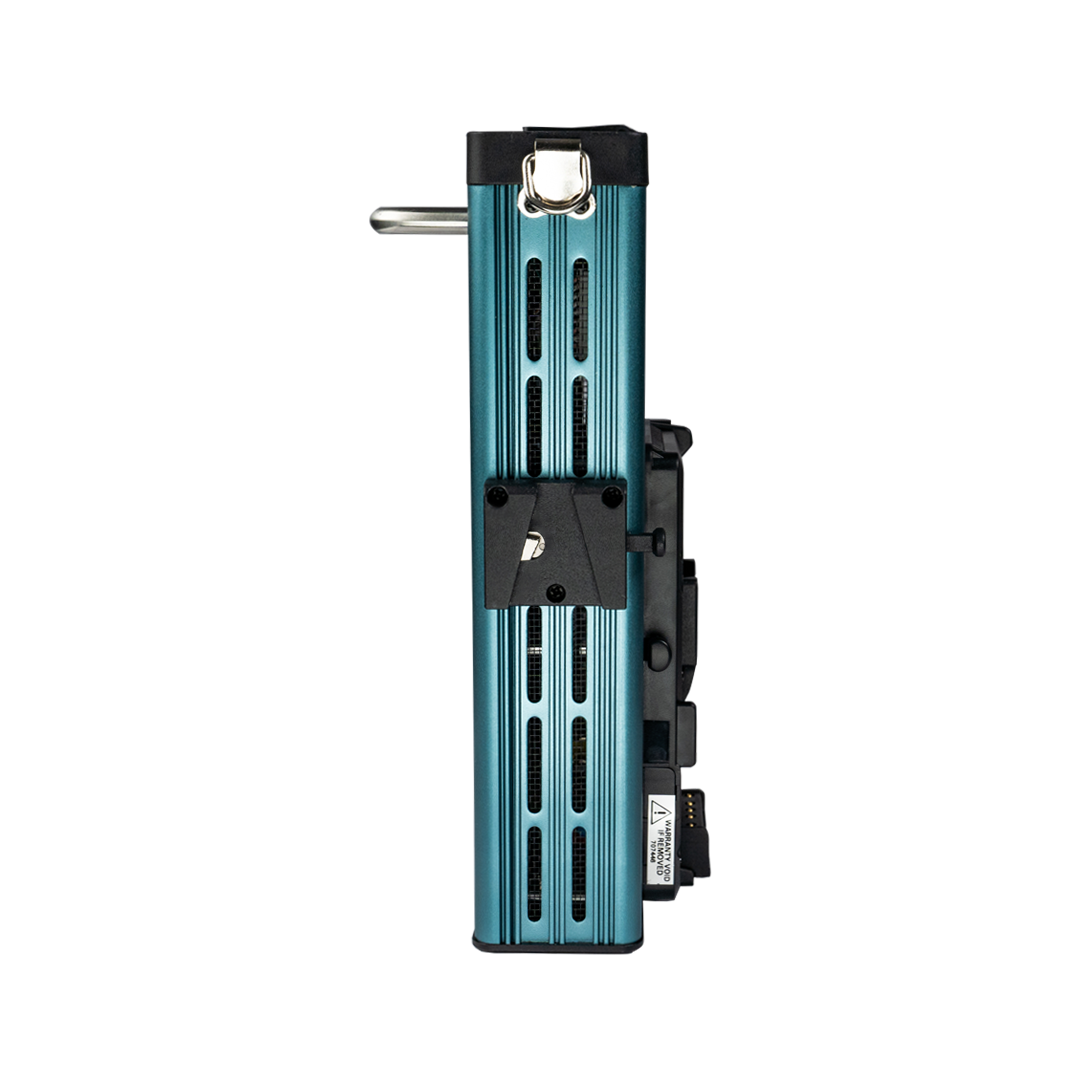

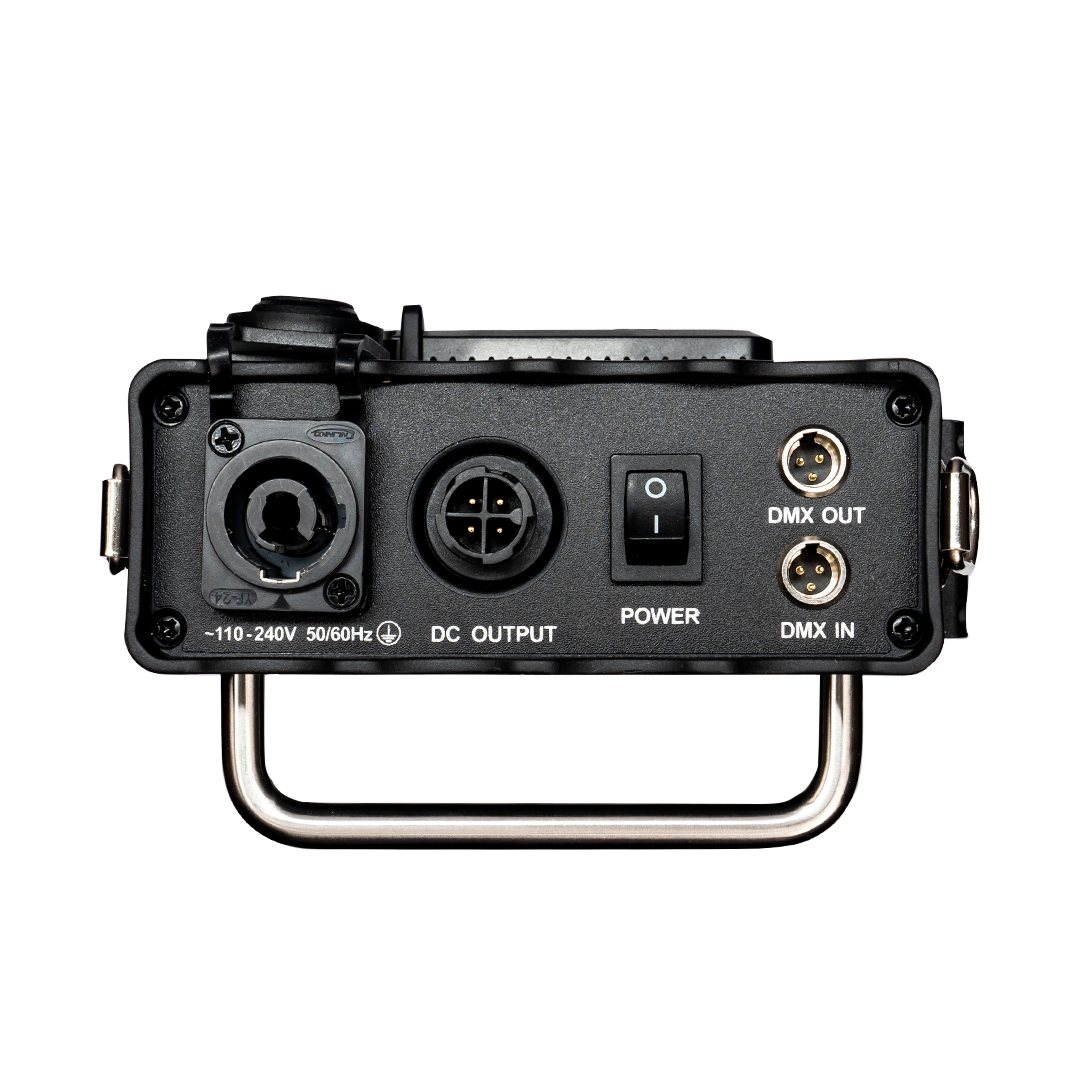

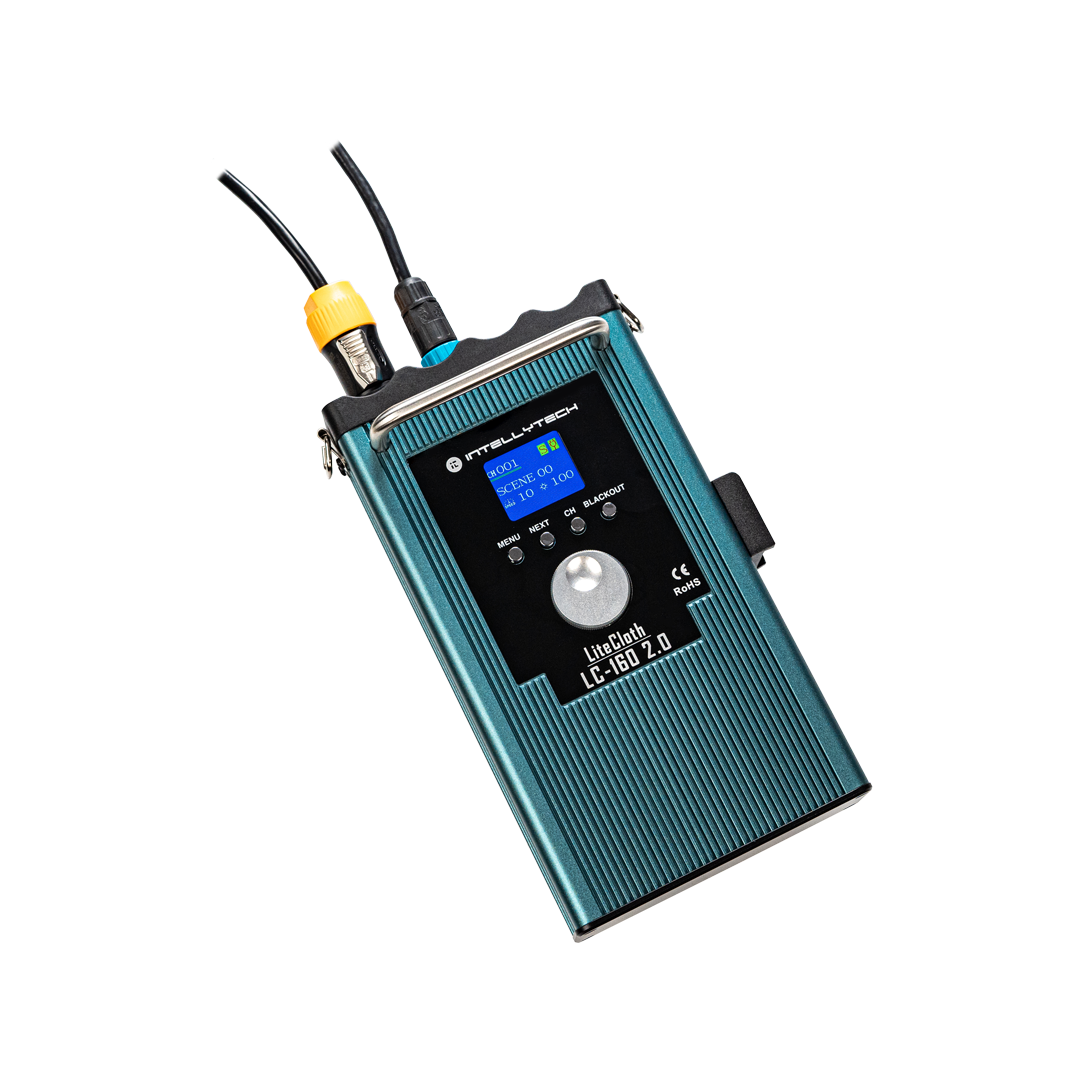

  • New All-in-one Control Box - The new 2.0 LiteCloth controllers now have the AC built-in, allowing for a faster and simpler setup. Weight - 3 pounds. Dimensions - 9.25" x 5" x 2"

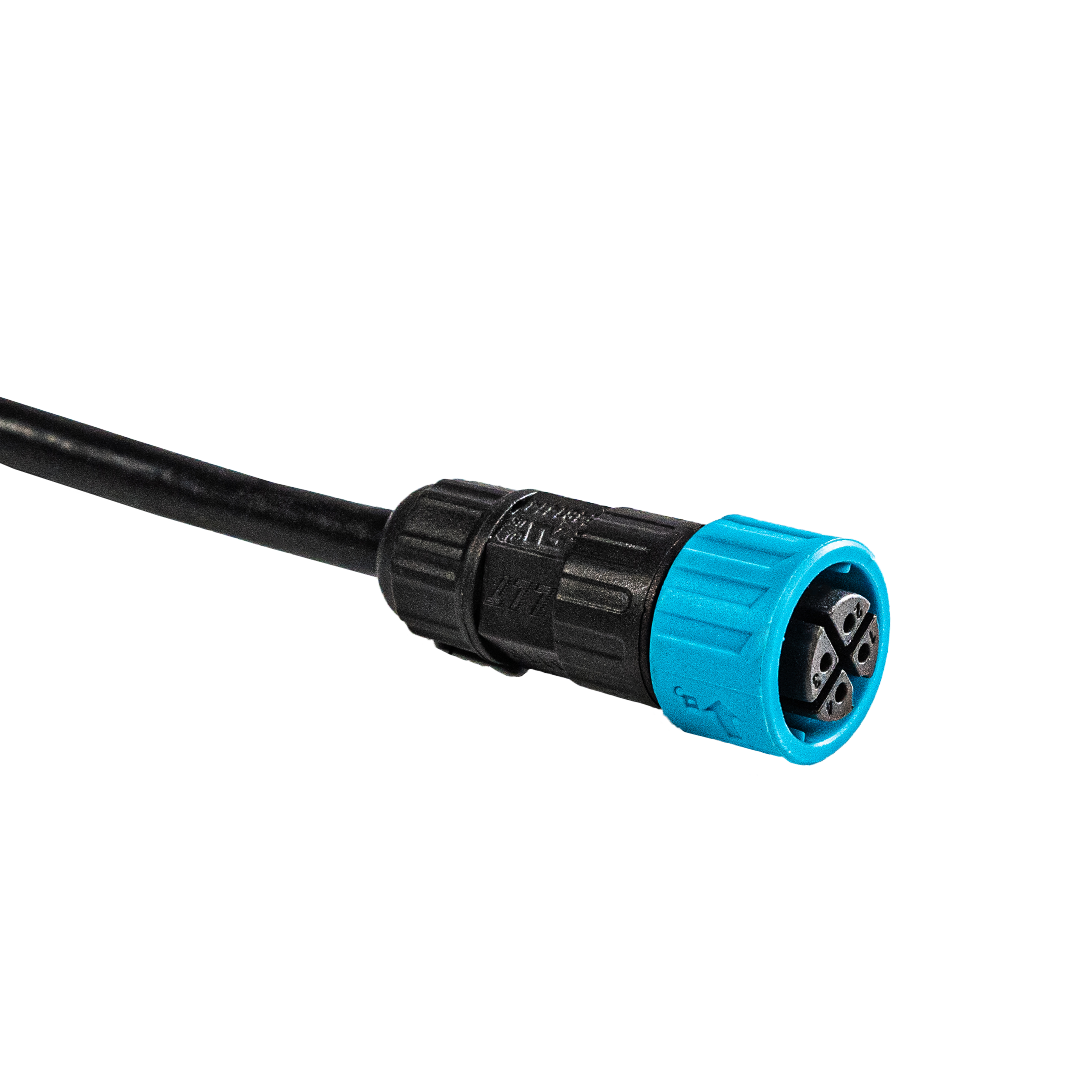

  • Upgraded Cable System - Thread-lessClick in and out for fast, precise and secure connections. This applies to the 4 pin cable on the LED mat as well as the PowerCON cable for AC power.
  • Effects Mode Added - Built with 9 different effects. Each effect can be programmed according to speed and intensity.
  • Bluetooth for App Control - Control a single light or groups of lights via the Intellytech LiteSync app.
  • Grommets - For peace of mind and additional mounting options, each LC-160 2.0 if fitted with 8 high-strength metal grommets. Also included are 2 grommet ties as an optional mounting point between your LiteCloth and your bracket.
Includes

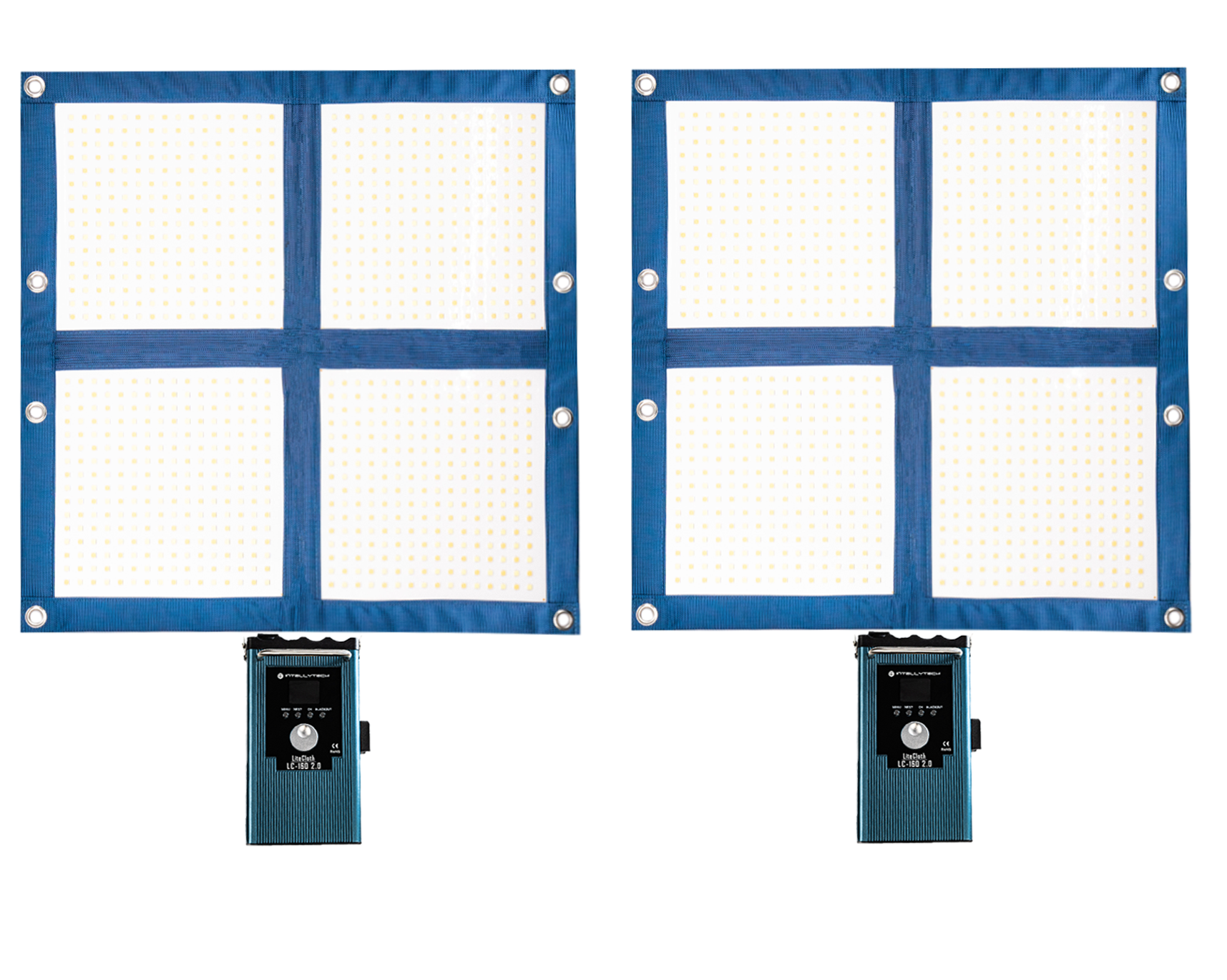

  • 2x 2x2 LED Mats

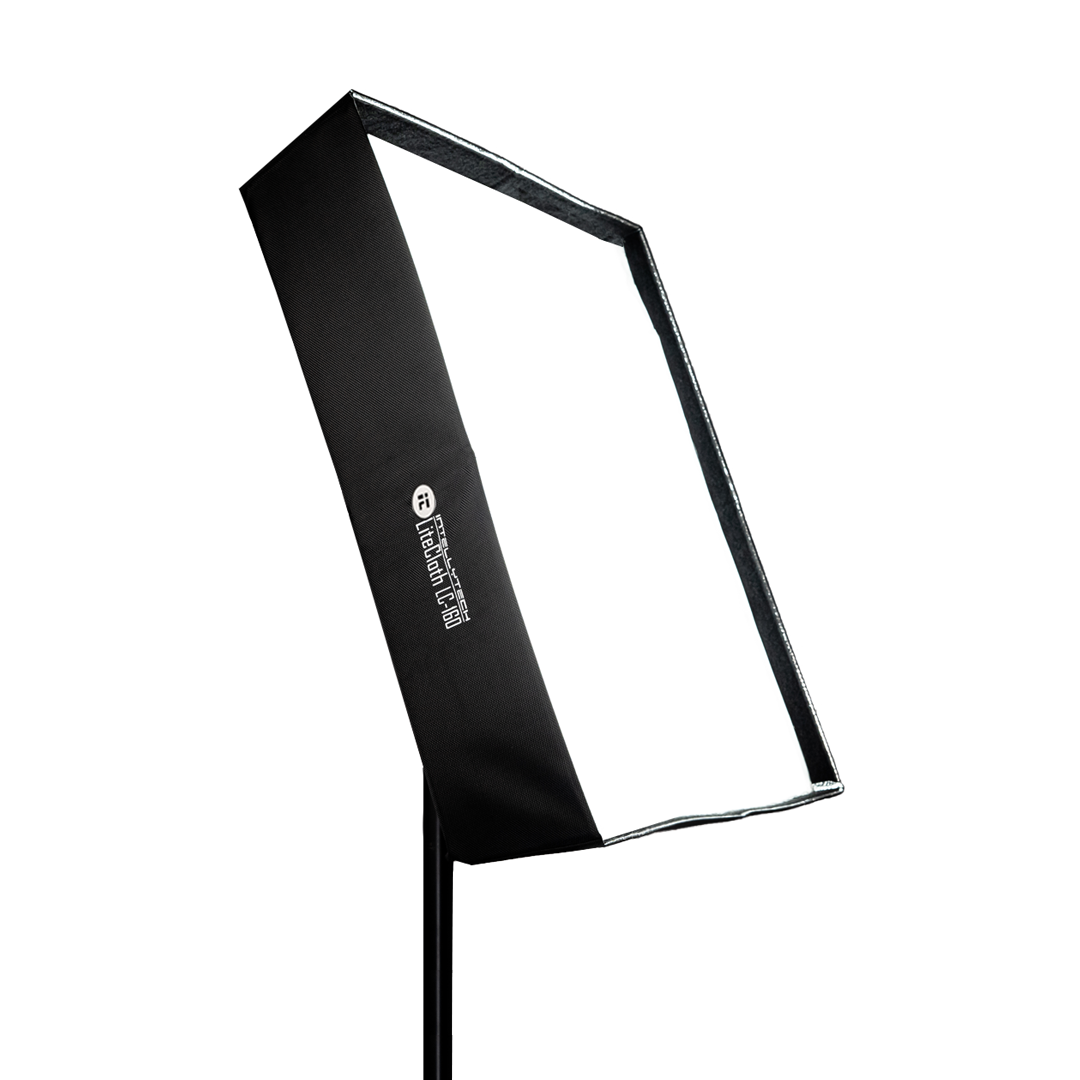

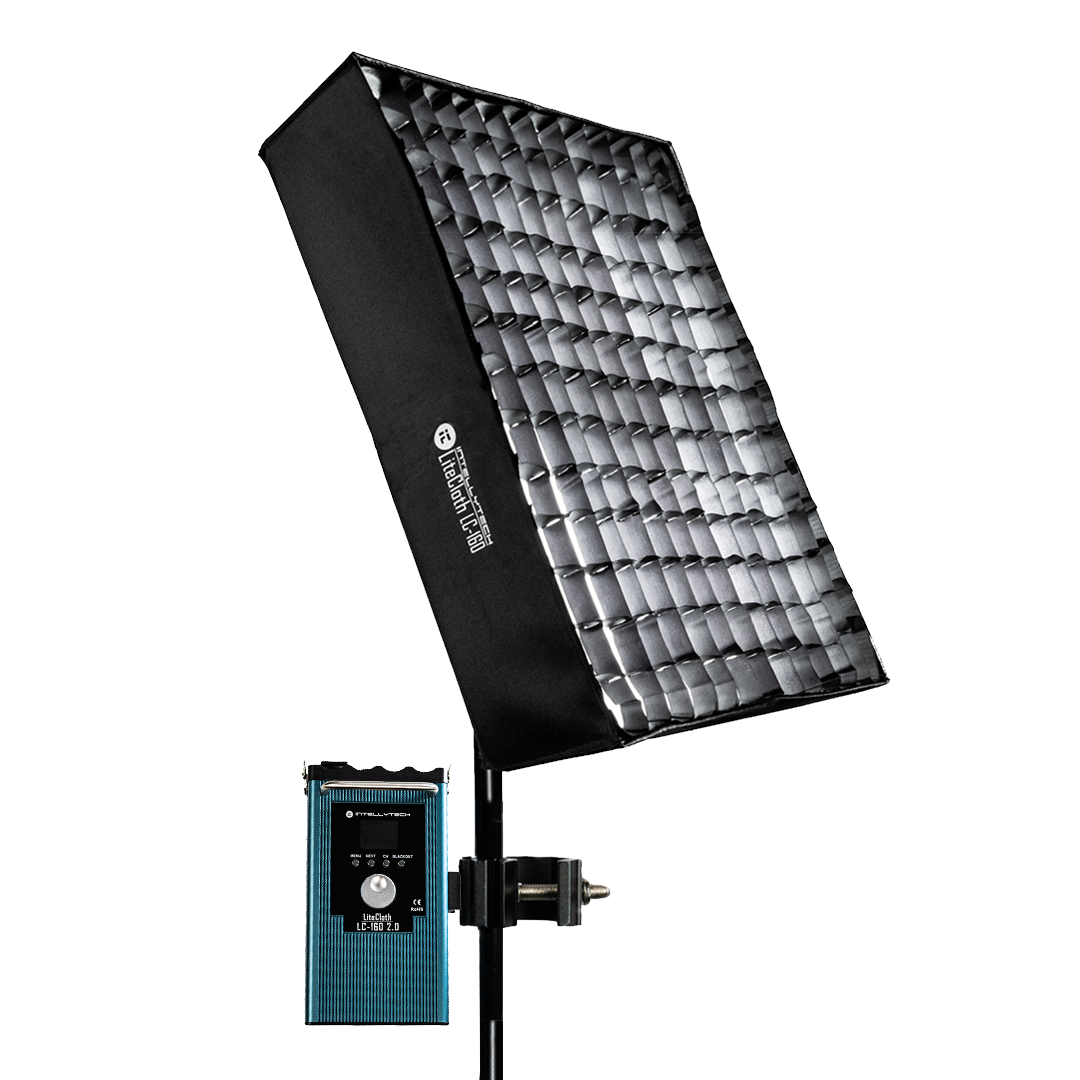

  • 2x Softbox W/ Diffuser & Grid
  • 2x Mounting Bracket & Double Jointed Silver Stud

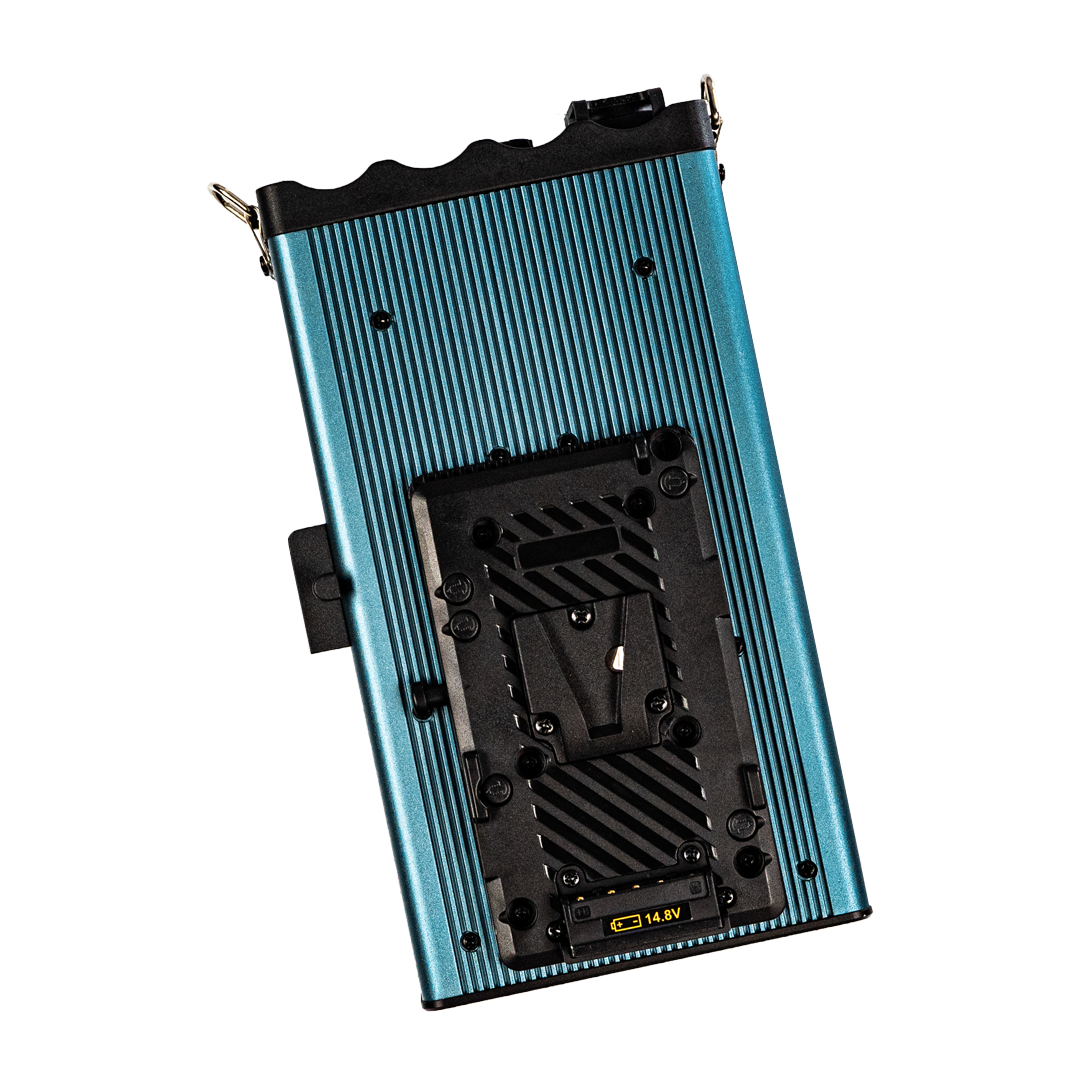

  • 2x All-In-One Controller W/ V-Mount OR Gold Mount Battery Plate (choose one) -  Works Universally 100-240V.

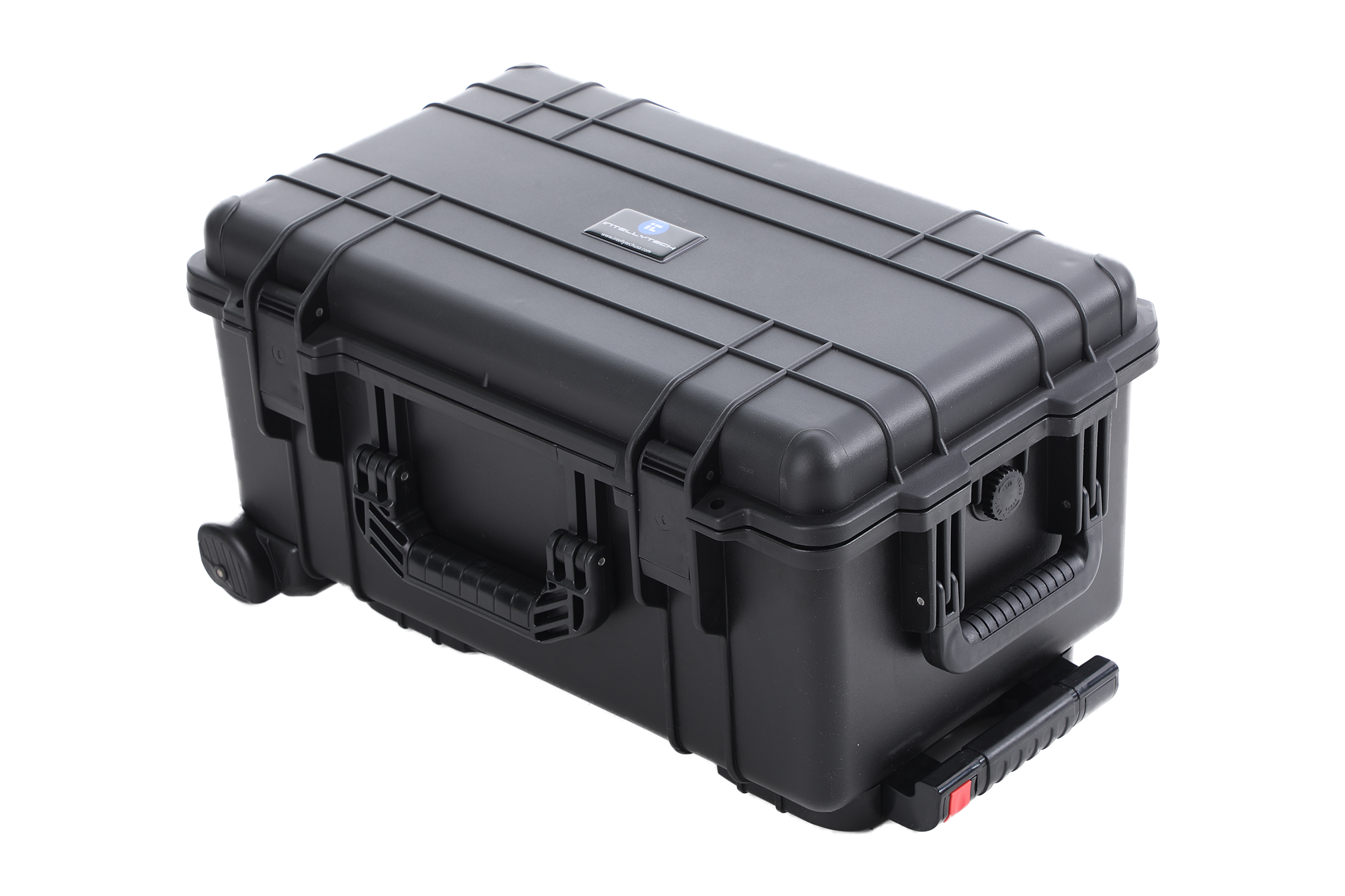

  • Hard, Crushproof Case with wheels and retractable handle to fit all of the included accessories - 21x14x11", 34 pounds fully loaded.
  • 2x Grommet Tie Sets

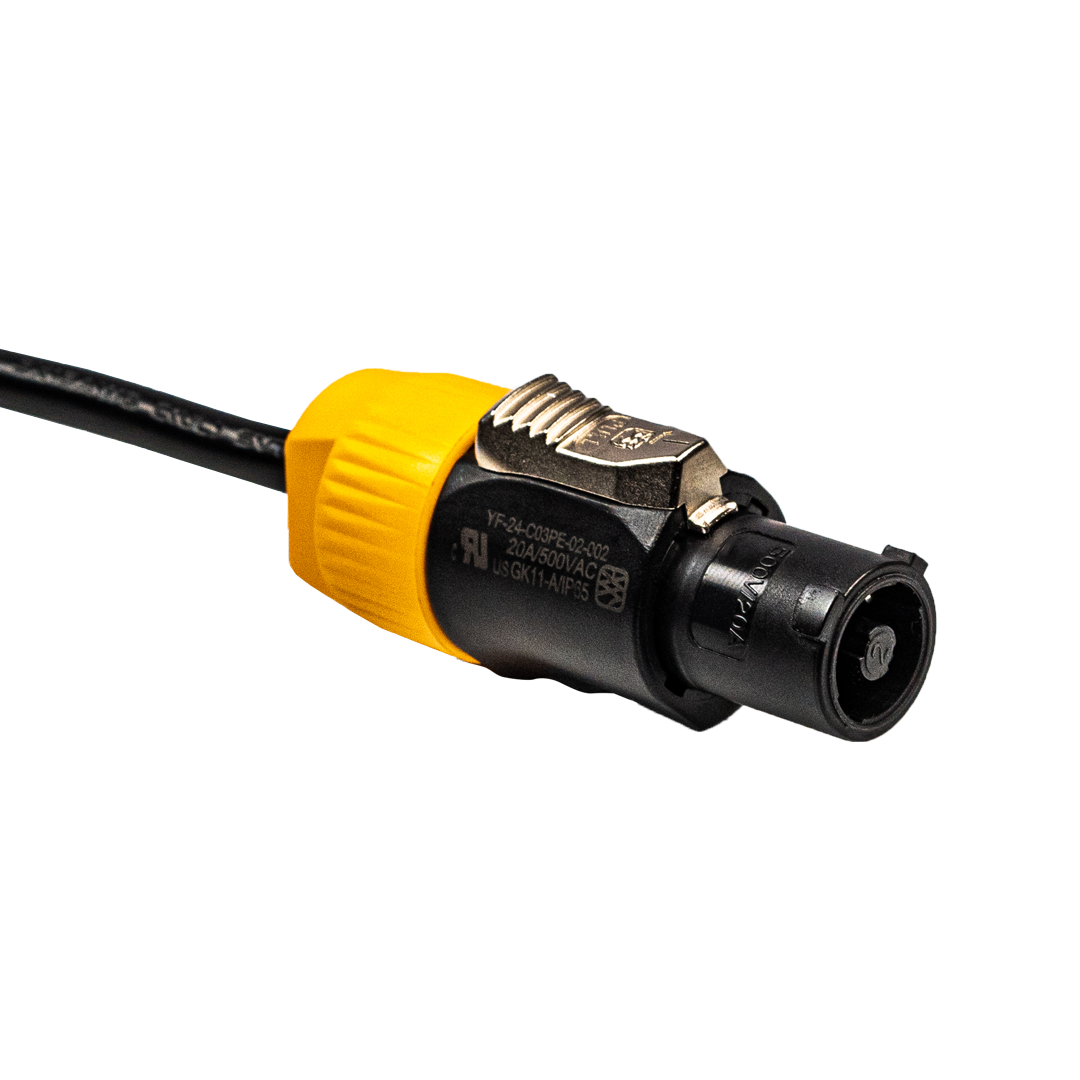

  • 2x PowerCON Power Cable

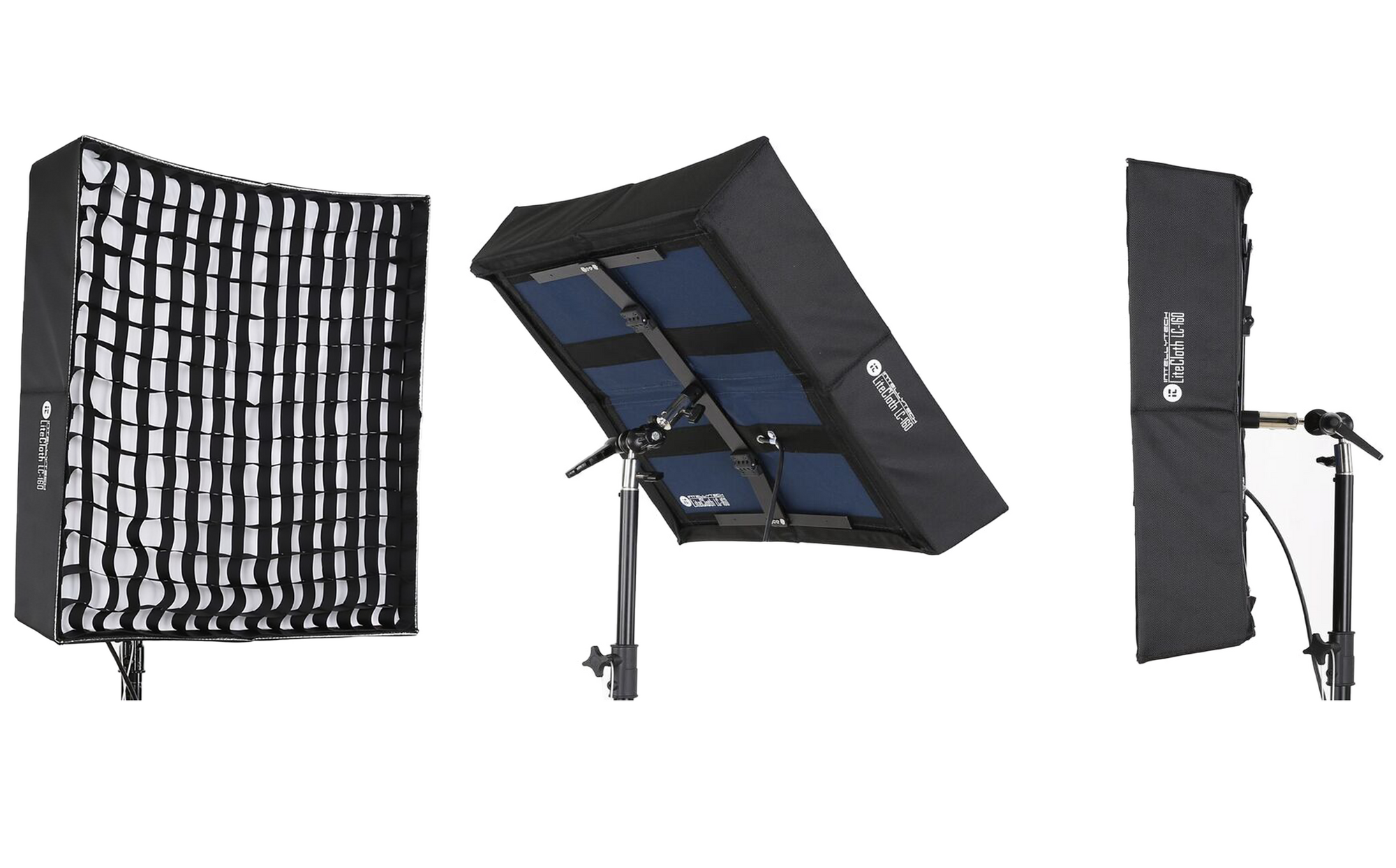

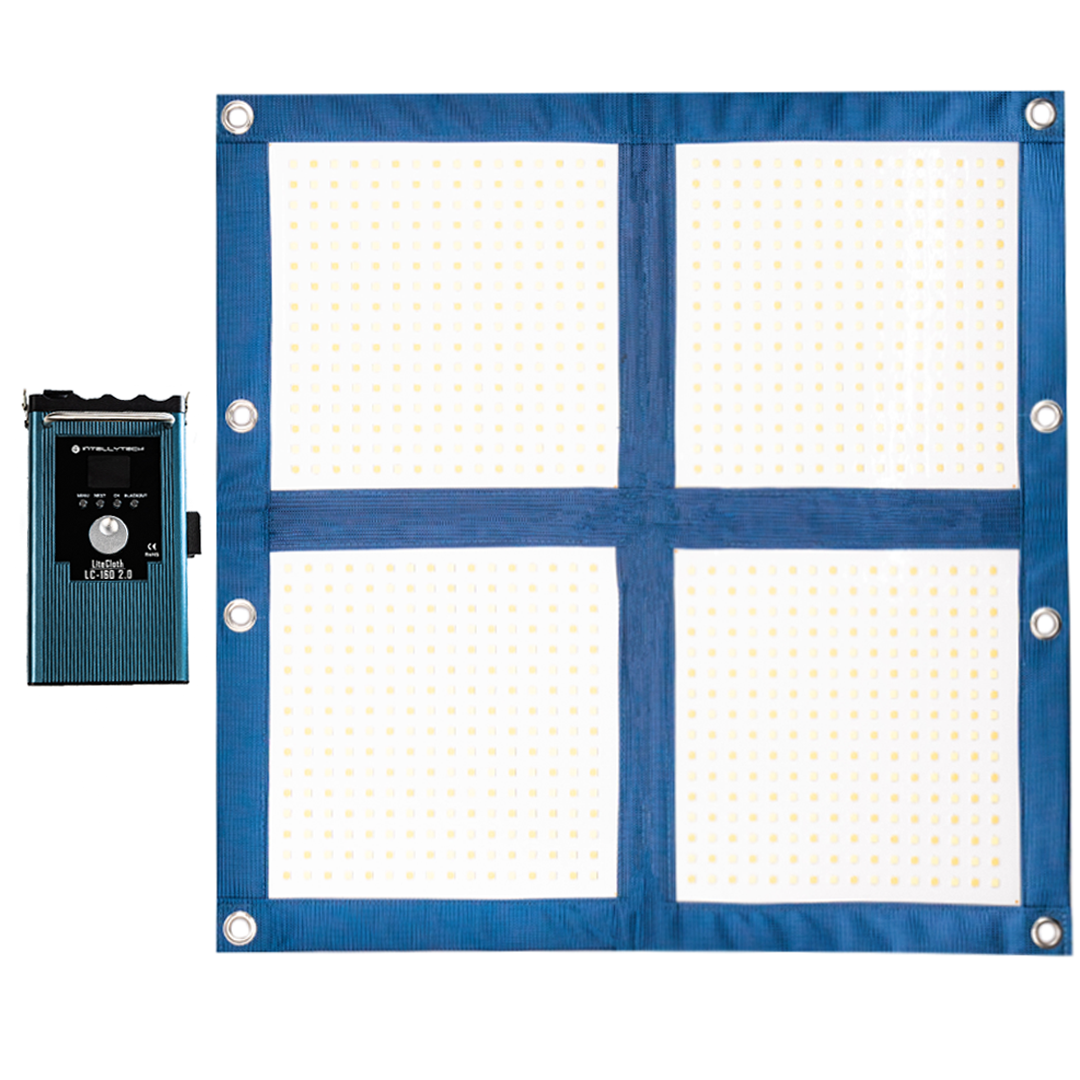

Overview - The LC-160 2.0 is a 160 Watt, 2x2 LED Mat weighing just 2.5 pounds that folds down to a 12"x12" square. This unique design allows the user to create, broad, bright, natural looking light that can be setup fast and travel small.

  • Tremendous Output - Reaching 160 Watts, the LC-160 is equivalent to a 1,500 Watt Tungsten Soft Light. Even without using the including softbox, the LC-160 creates a vast spread that will wrap around your subject.

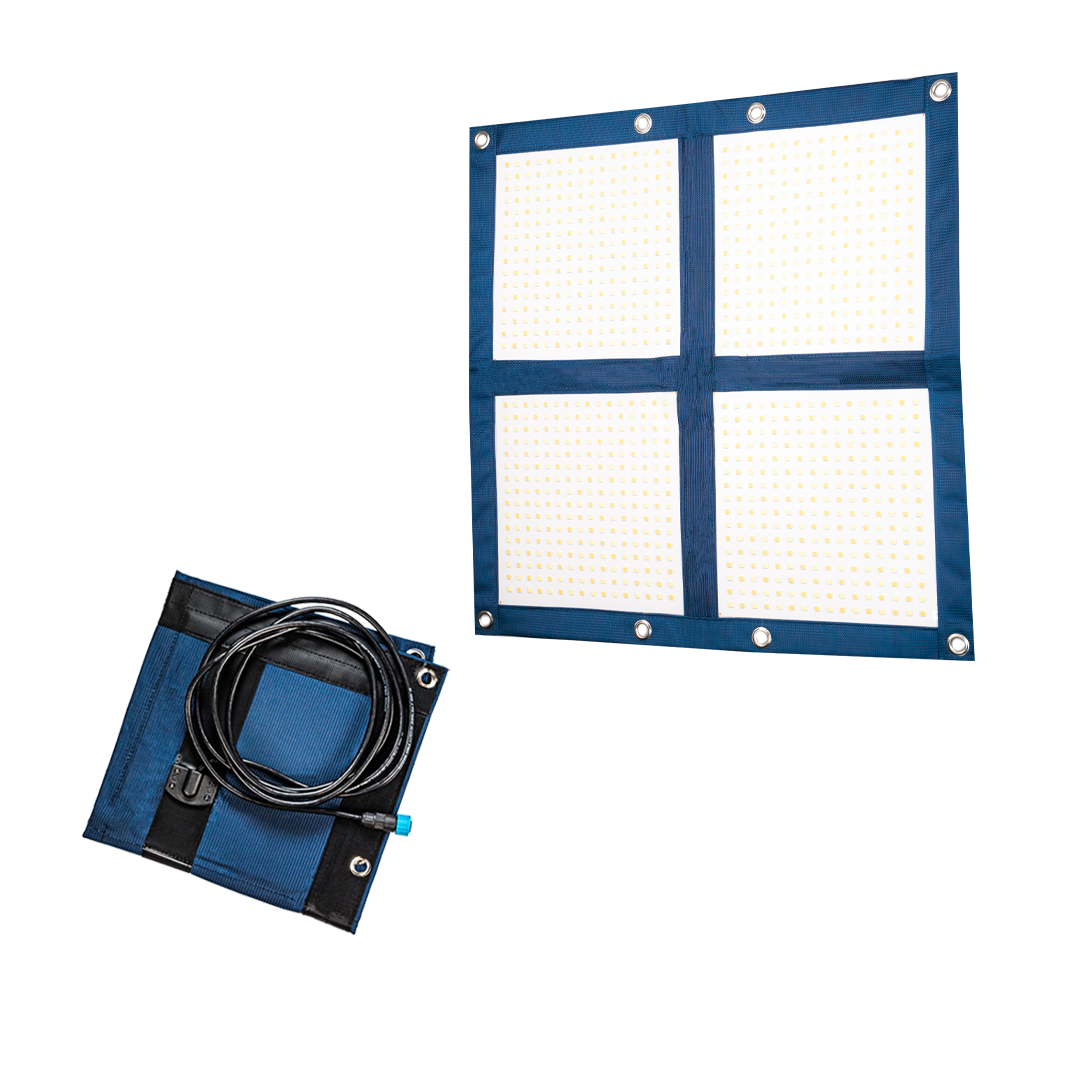

  • Folding DesignThe LC-160 has a firm backing behind the Mat, but can also fold down at its collapsible cross sections.  This unique form factor allows for the light to be mounted in seconds without the need for a giant metal frame or x-bracket. In addition, users can now travel with a 2'x2' Light Kit that takes up less space than a conventional 1'x1' panel.

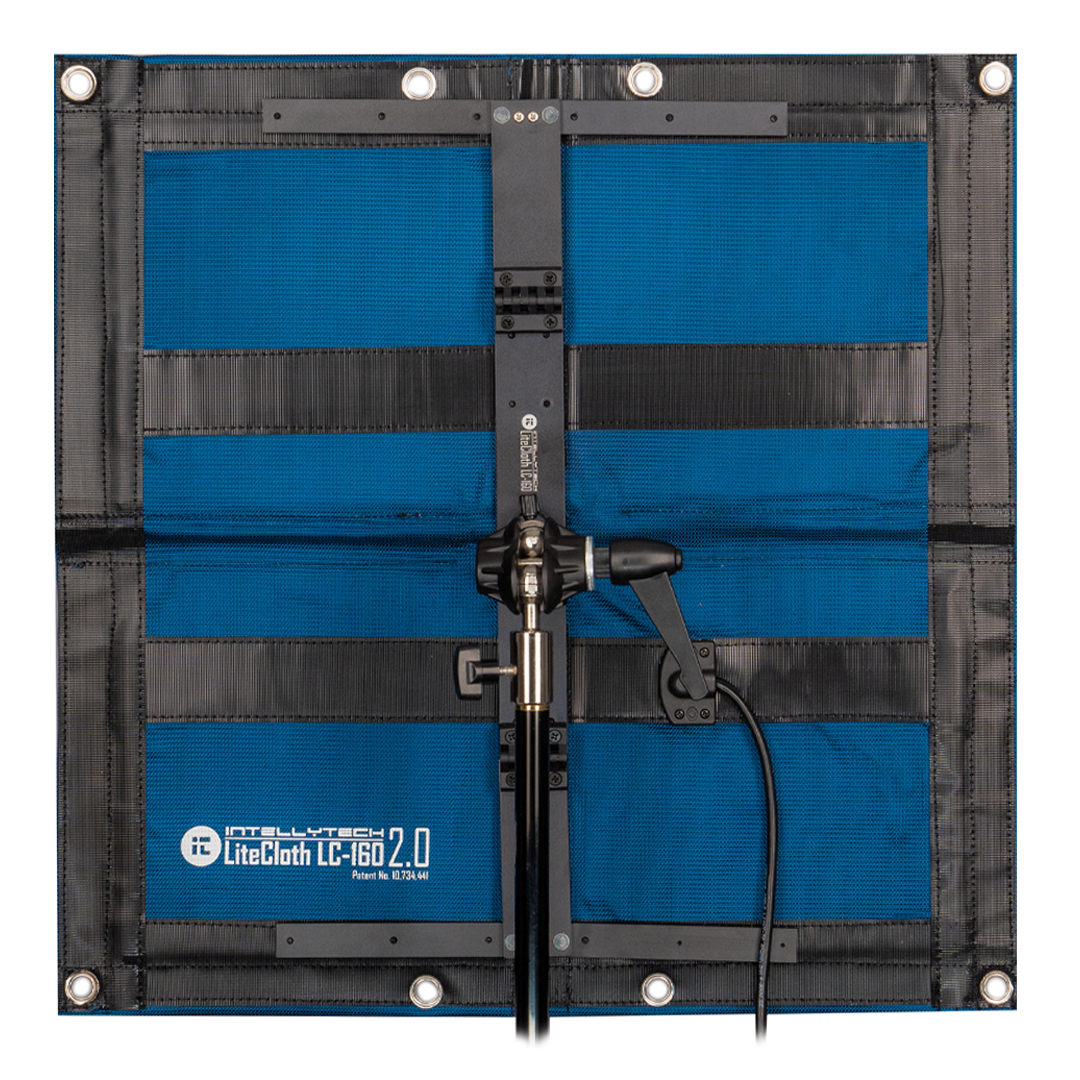

  • Quick & Intuitive Mount - The included Mount securely attaches to the rear of the Mat via a special high-strength Velcro. It attaches in seconds and is extremely secure. Like the Mat, the Mount also folds down allowing it to pack easily into the carrying case.
  • Immense Color Range with High Accuracy - Set the LC-160 anywhere from 3,000K-10,000K with excellent color rendition (CRI/TLCI 95+). On top of having greater creative control, this vast color range also gives the user close to 100% output from 3,500k-9,500k. All of the Bi-Color LED's are always on throughout this range, eliminating the worry for output loss on a bi-color fixture.
  • Bluetooth Control - Control your LiteCloth via apps like Intellytech LiteSync
  • Wireless Control - An optional Wireless Controller can control up to 100 LC-160's
  • DMX Ready - The LC-160 can be controlled via DMX (512) for those looking to setup inside of a studio. The user can control both brightness and output either via a 512 DMX controller or via the optional Wireless Controller.
  • Power Options - Power the light via AC or battery. Choose either V-Mount or Gold Mount battery plate.  Works Universally 100-240V.



Photometrics
Output Ratings: **The LC-160 produces broad, natural light as if shooting through a silk or softbox. The output measured directly in the center of the light will be as bright as the output measured on the edge of the light.
Distance Mixed Color Temp. 3,000k 10,000k
3 Feet 5,725 Lux / 532 FC 4,500 Lux / 418 FC 5,250 Lux / 488 FC
6 Feet 1,510 Lux / 140 FC 1,230 Lux / 114 1,470 Lux / 137 FC
9 Feet 772 Lux / 72 FC 656 Lux / 61 FC 722 Lux / 67 FC

Accurate CRI and TLCI Ratings:
Color Temperature CRI  TLCI
3,000k 97 98
5,600k 95 99
10,000k 94 93
