Item Number: 176012 (AB) / 176013 (V)
Rugged Series, Strong Shell, Strong Grip, Built to Last.

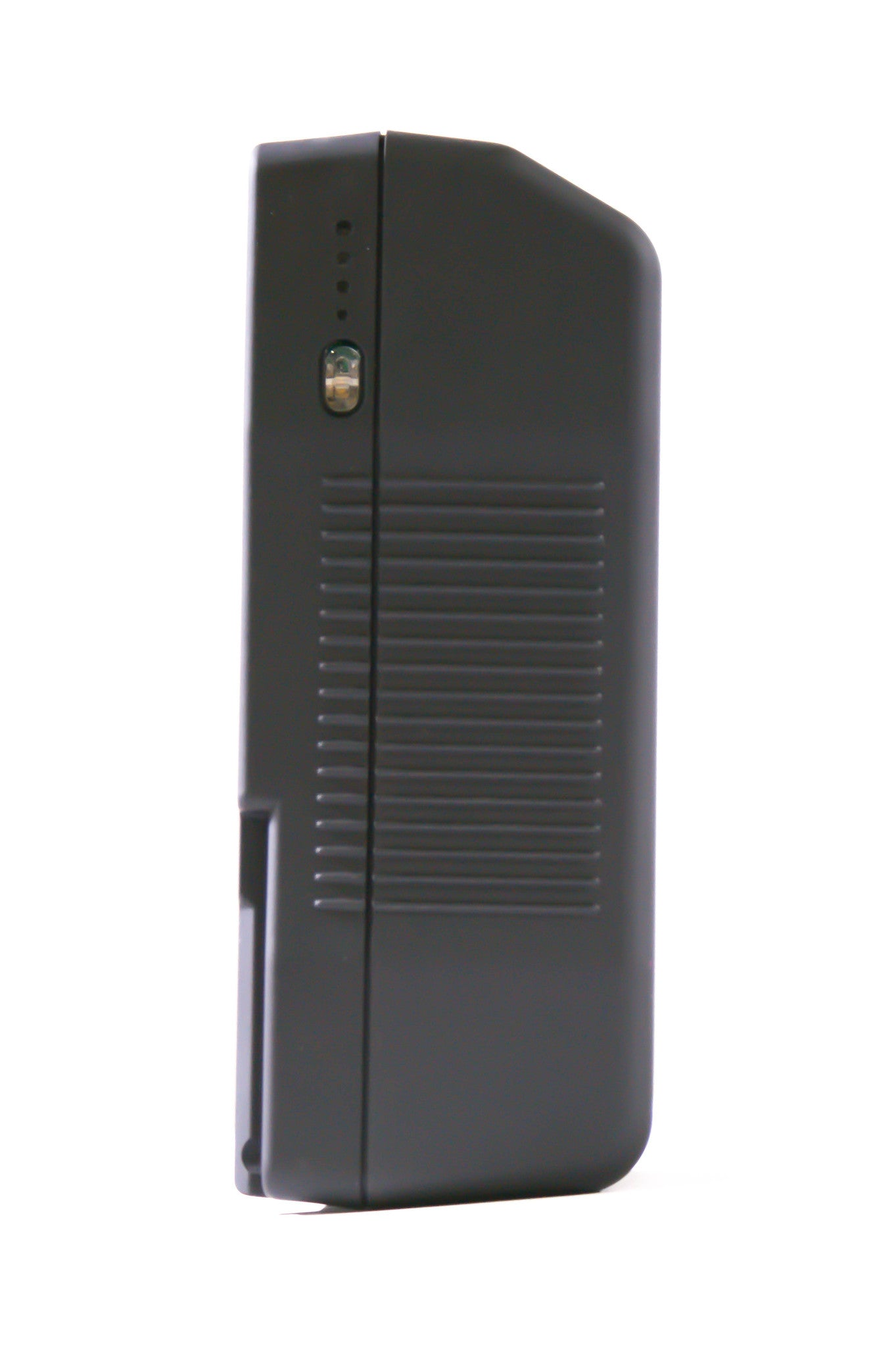

The 190Wh Rugged Series is the second largest battery in the line-up. It is a medium/large sized battery for jobs needing a good amount of power. When you hold the battery in your hand, it's clear that it is a solid, quality product. The Rugged Series strong shell is made with a protective, rubber-like coating making it impact resistant. This protects the interior connections and cells while also providing the user with a firm grip. The battery is built with Grade A, Samsung Lithium Ion Cells assuring a long, robust life without any memory-effect. A 4 segment LED gauge is located on the side confirming the remaining battery life by the push of a button.

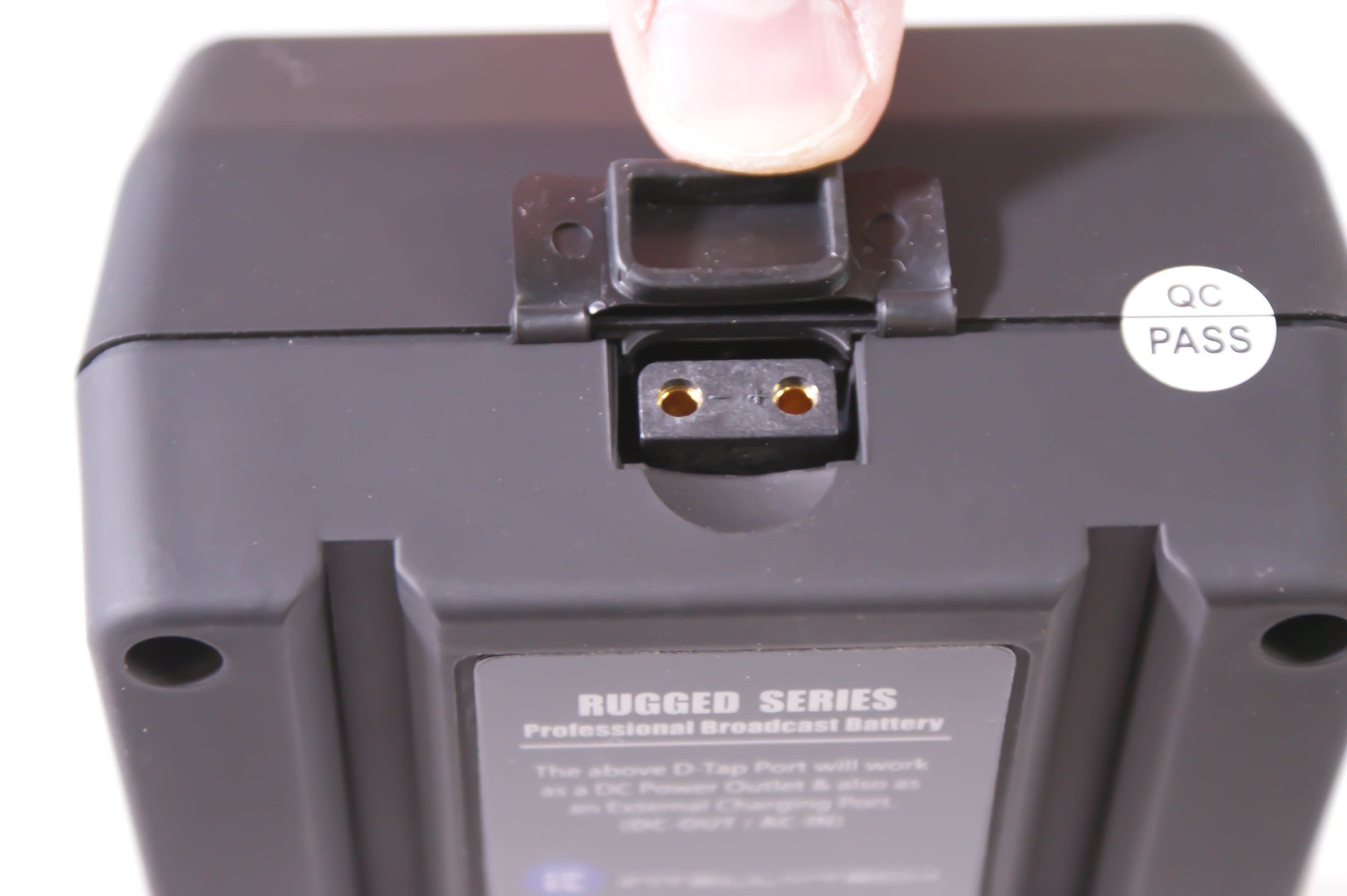

A D-Tap / P-Tap power output port is located on the top of the battery allowing the user to power a second source up to 50 watts. The D-Tap / P-Tap operates at a 14.8V nominal voltage and is electronically and independently protected against shorts and overload.

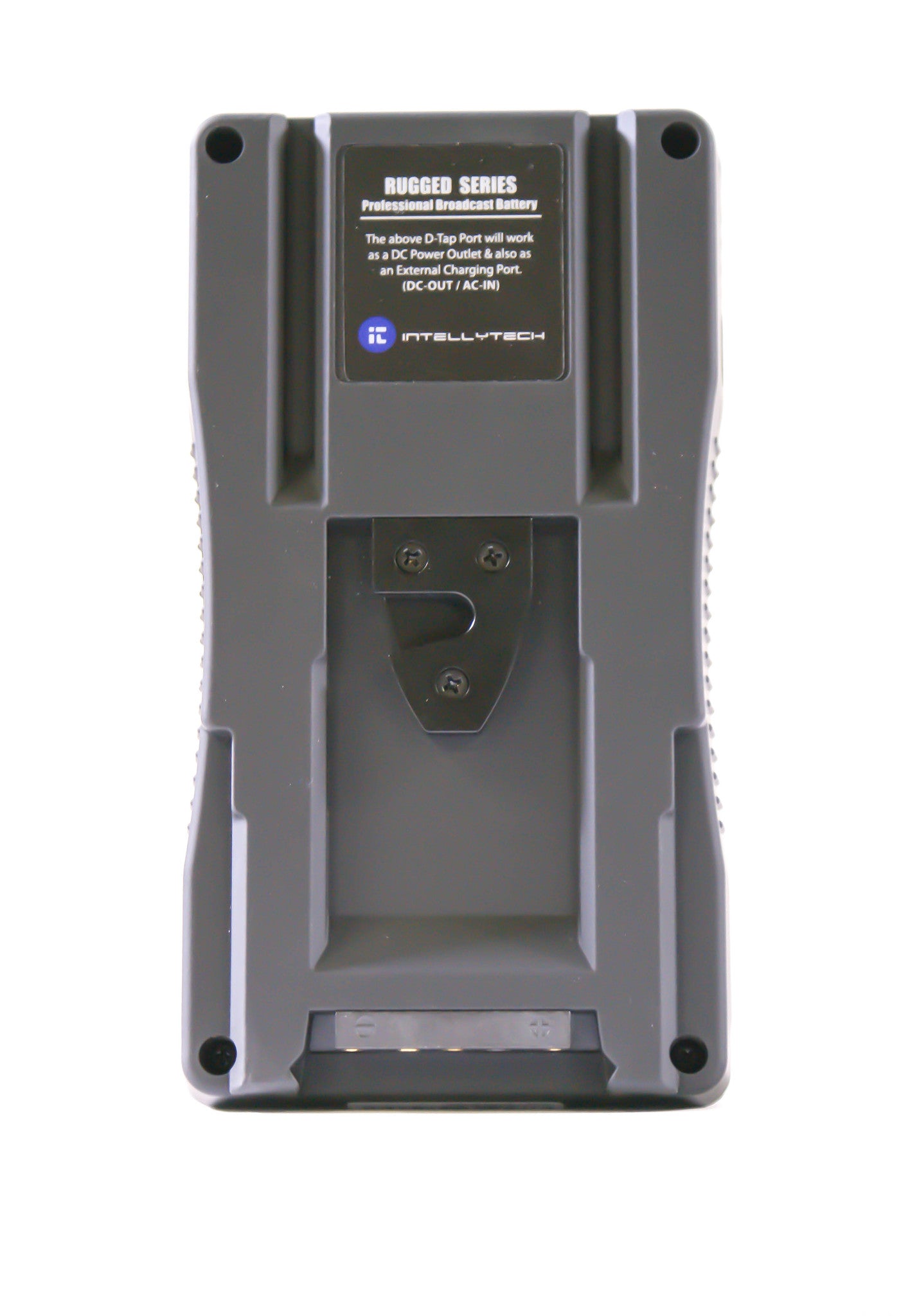

Mount: Anton Bauer Gold Mount or V-Mount
Watt Hour: 190Wh (14.8V), Full voltage : 16.8+/-0.1 V
Working Temp: -30C - +60C. Charging Temp: 0C-40C
Size: 6.25 x 3.1 x 2.5 Inches
Weight: 2.9 Pounds
Warranty: 18 Months
30 Watt Camera - Approximately 6.25-6.5 Hours
45 Watt Camera - Approx. 6-6.25 Hours
50 Watt LED Light - Approx. 5.5-5.75 Hours
100 Watt LED Light - Approx. 2.9
