2 Light Kit - LiteCloth LC-100 2.0 - 1x2 Foldable LED Mat Kit

U.S. Patent No. 10,734,441

LC-100 2.0. Now Faster, Stronger, and Smarter.

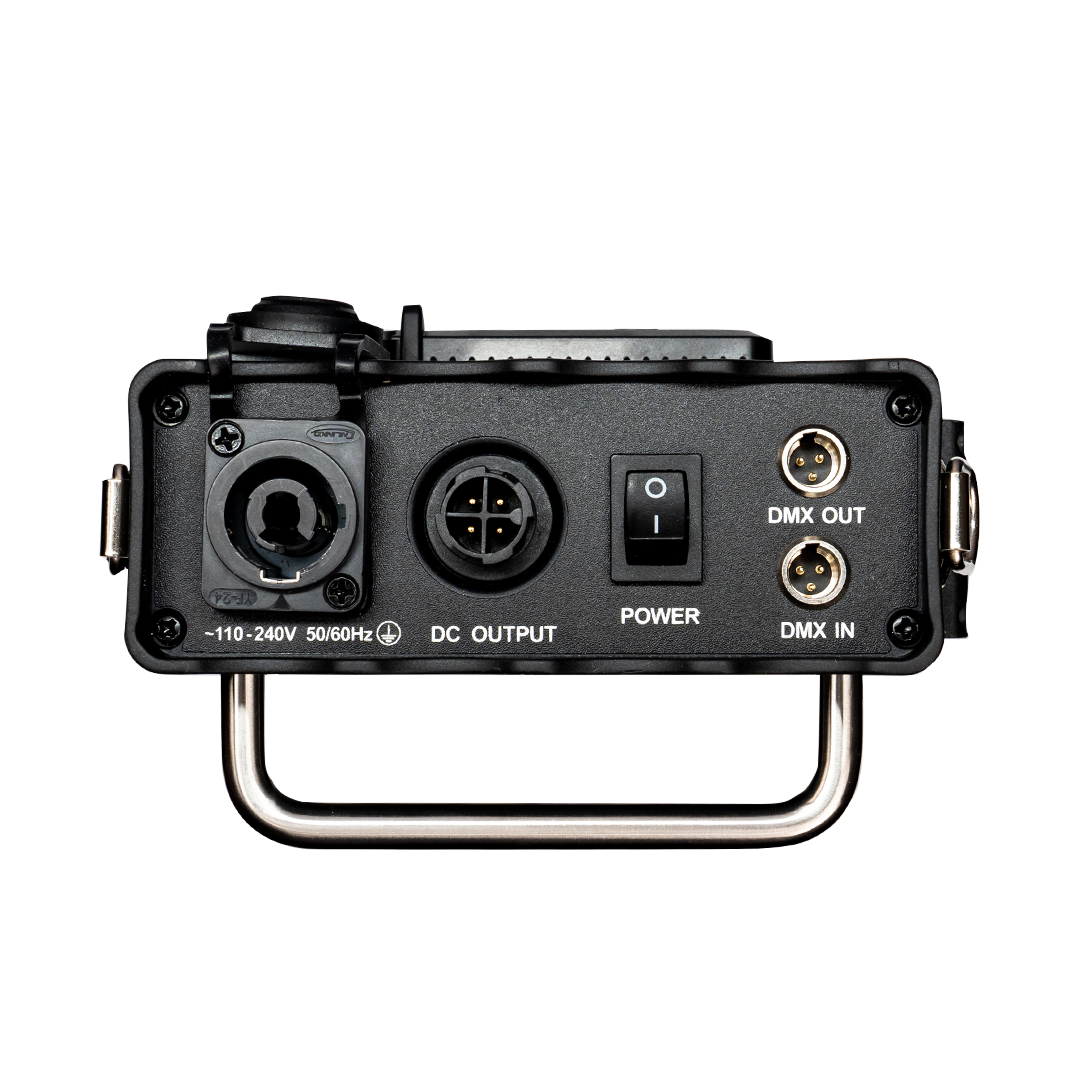

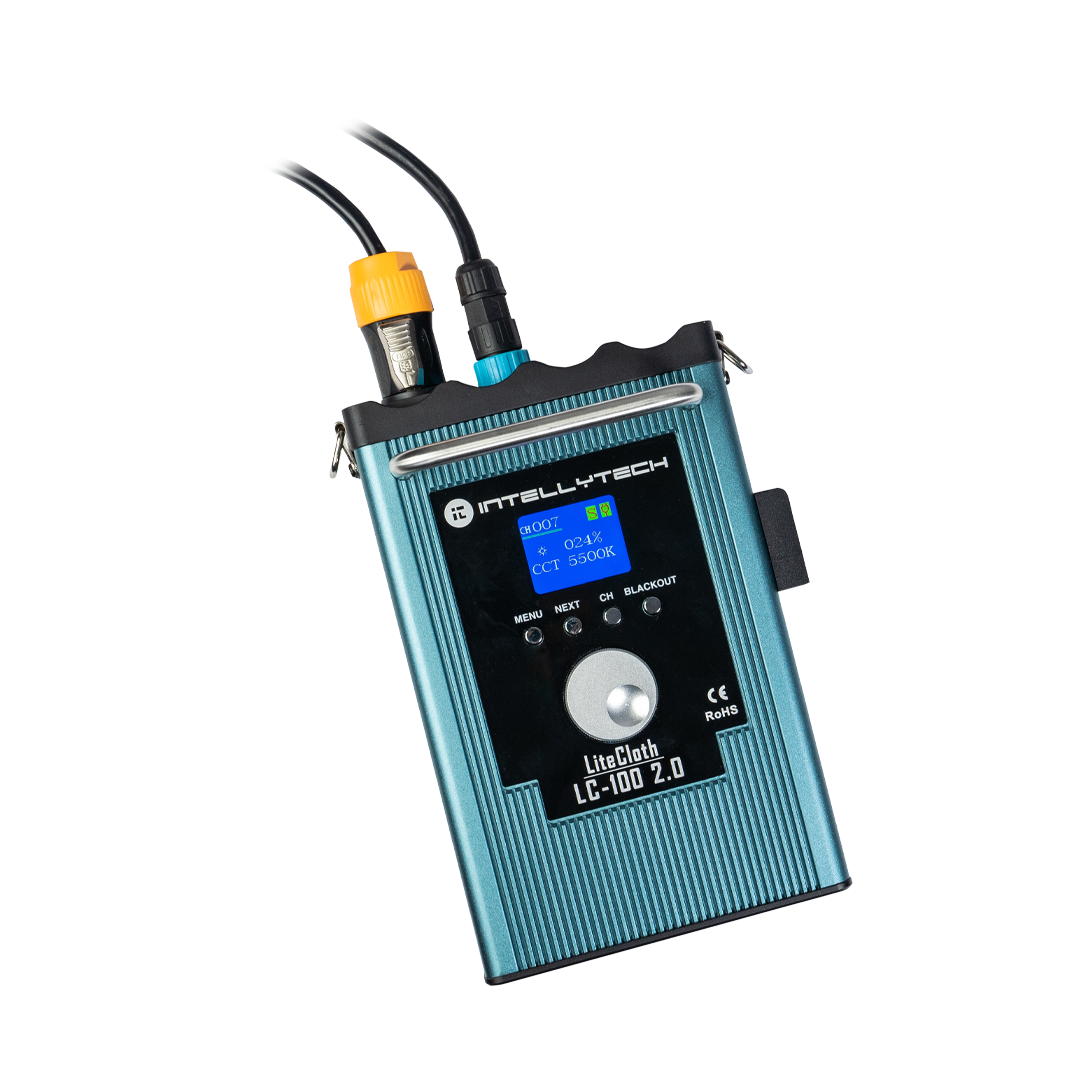

  • New All-In-One Control Box - The new 2.0 LiteCloth controllers now have the AC built-in, allowing for a faster and simpler setup. Weight - 3 pounds. Dimensions - 8" x 5" x 2"

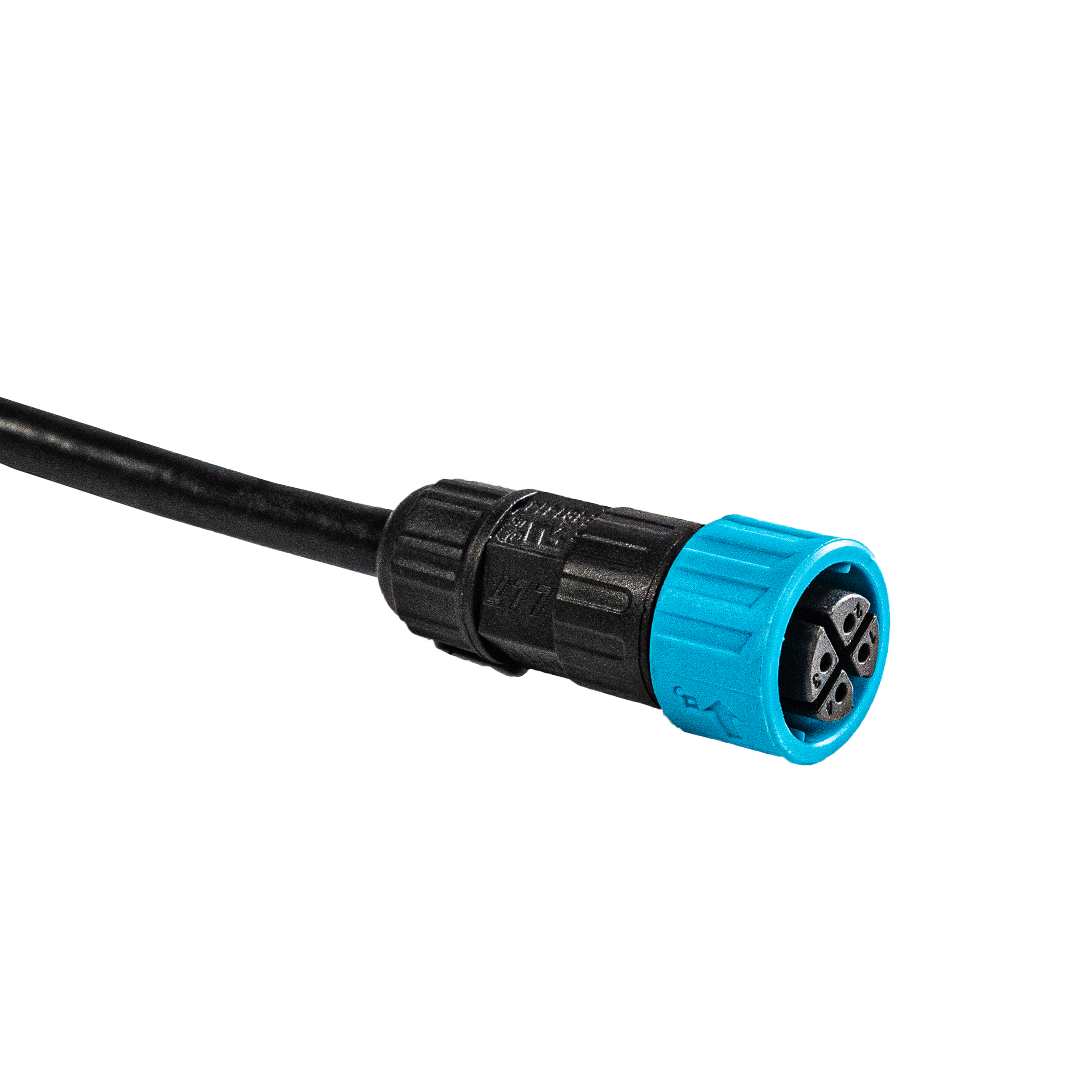

  • Upgraded Cable System - Thread-lessClick in and out for fast, precise and secure connections. This applies to the 4 pin cable on the LED mat as well as the PowerCON cable for AC power.
  • Effects Mode Added - Built with 9 different effects. Each effect can be programmed according to speed and intensity.
  • Bluetooth for App Control - Control a single light or groups of lights via the Intellytech LiteSync app.

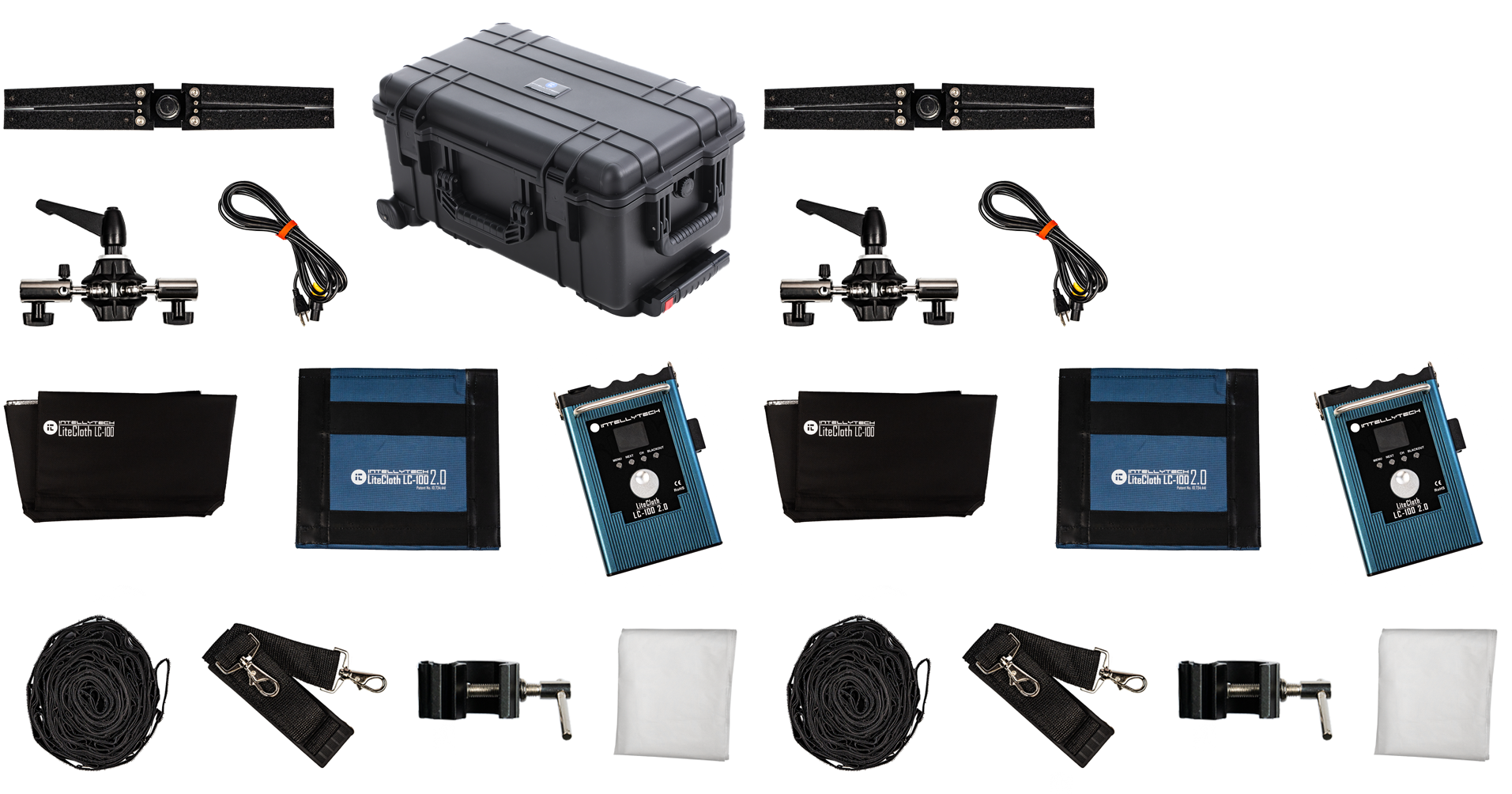

Sold As a Full Kit Including:

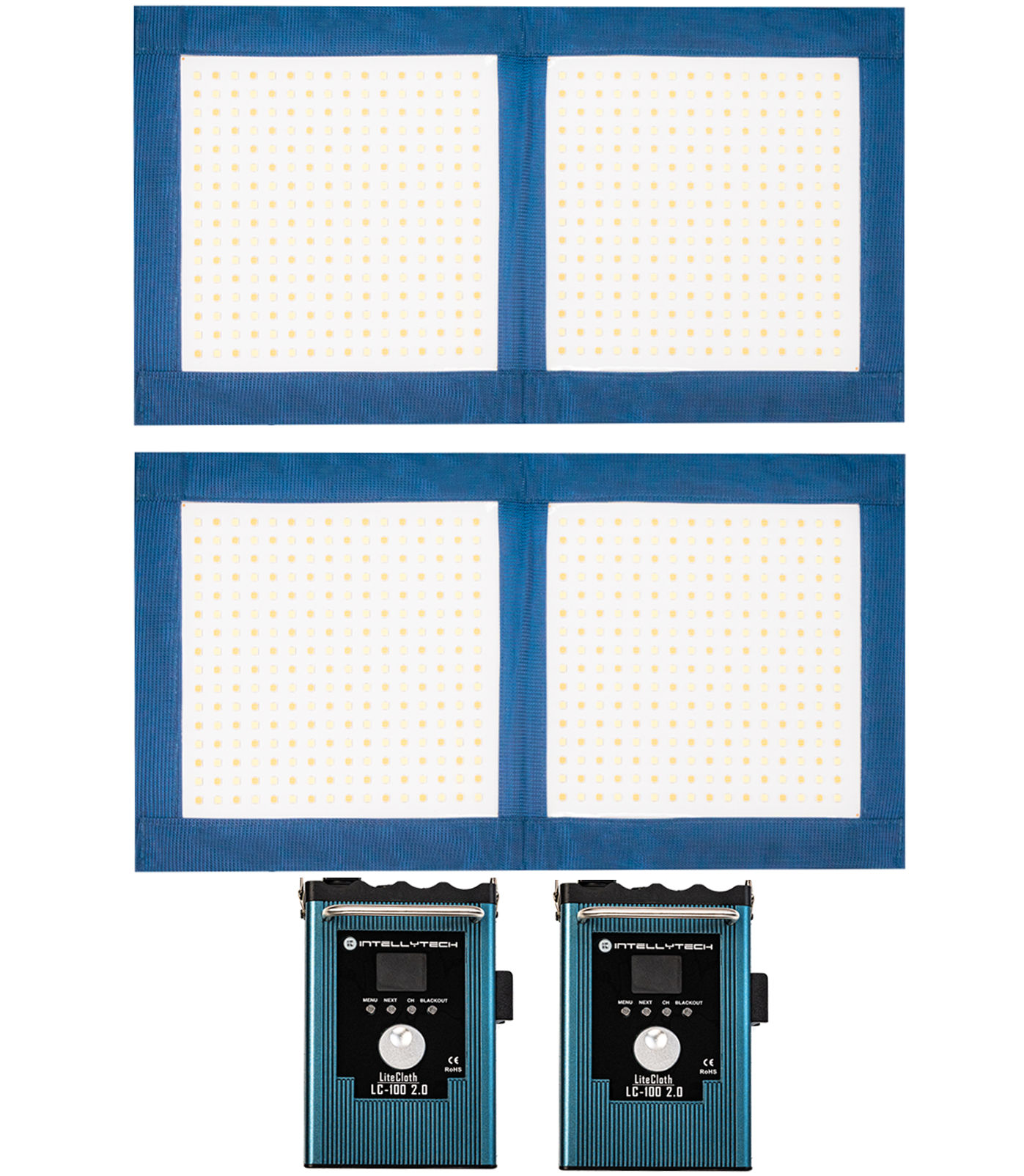

  • 2x 1x2 LED Mat (100 Watts)

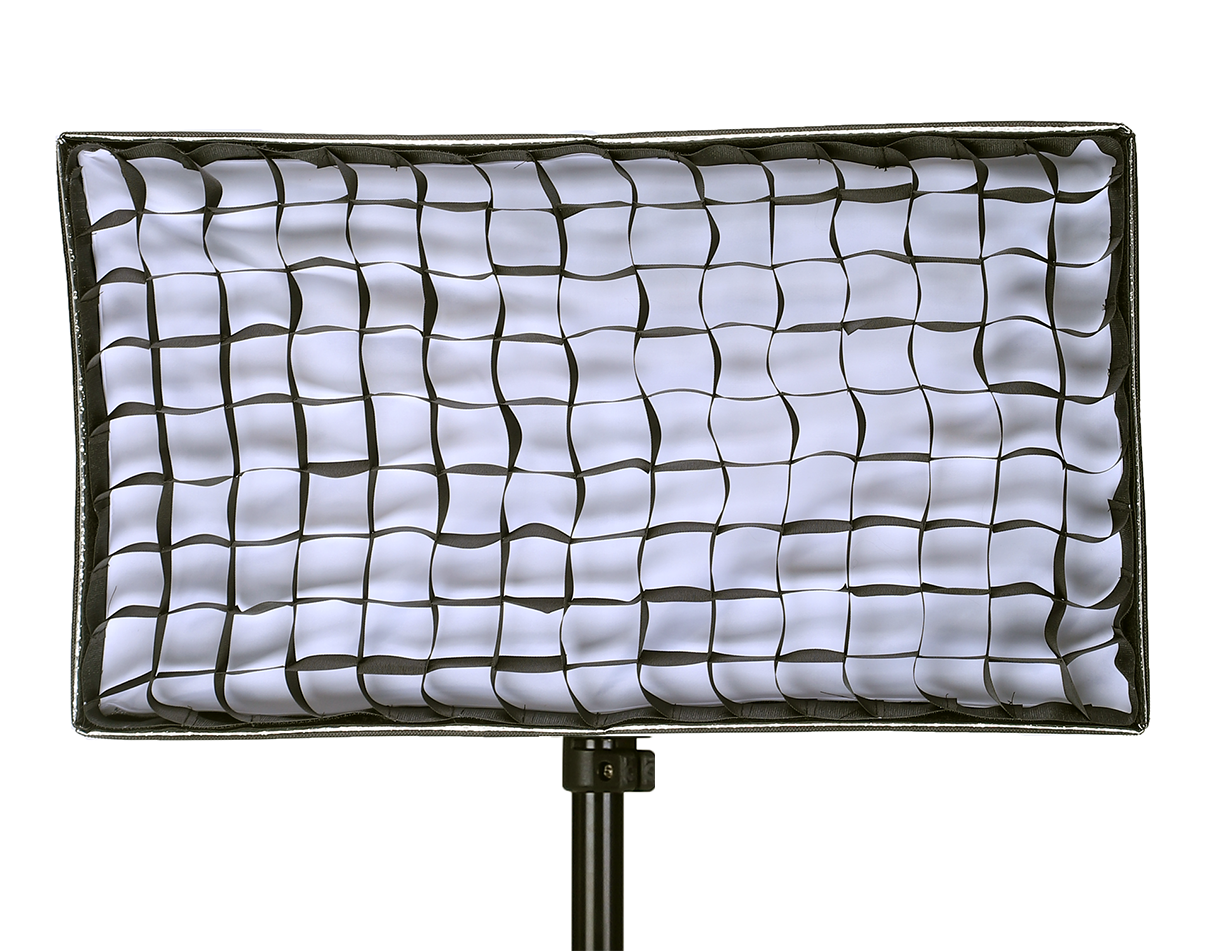

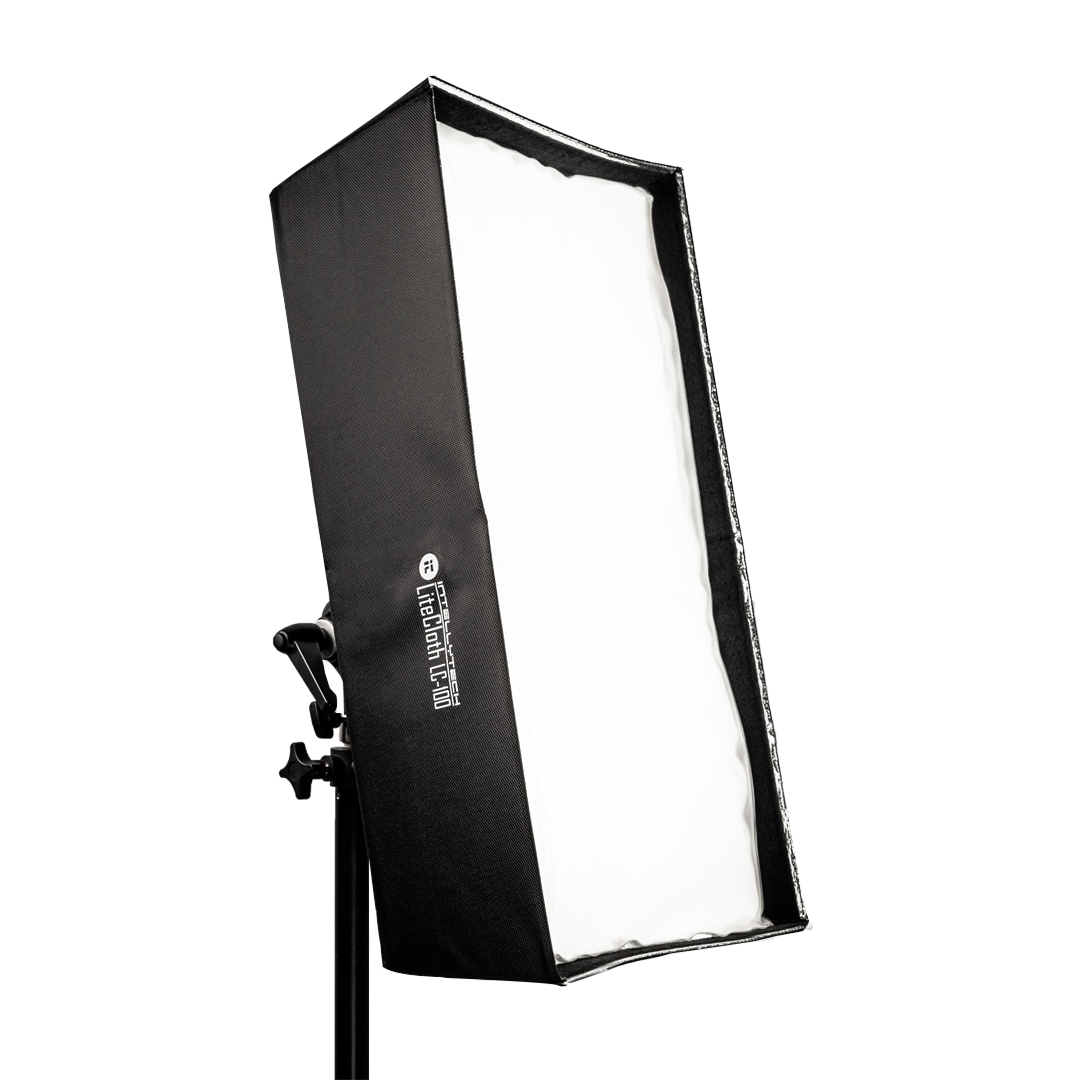

  • 2x Softbox W/ Diffuser & Grid
  • 2x Mounting Bracket
  • 2x Controller W/ V-Mount Or Gold Mount Battery Plate (Choose One) - Works Universally 100-240V

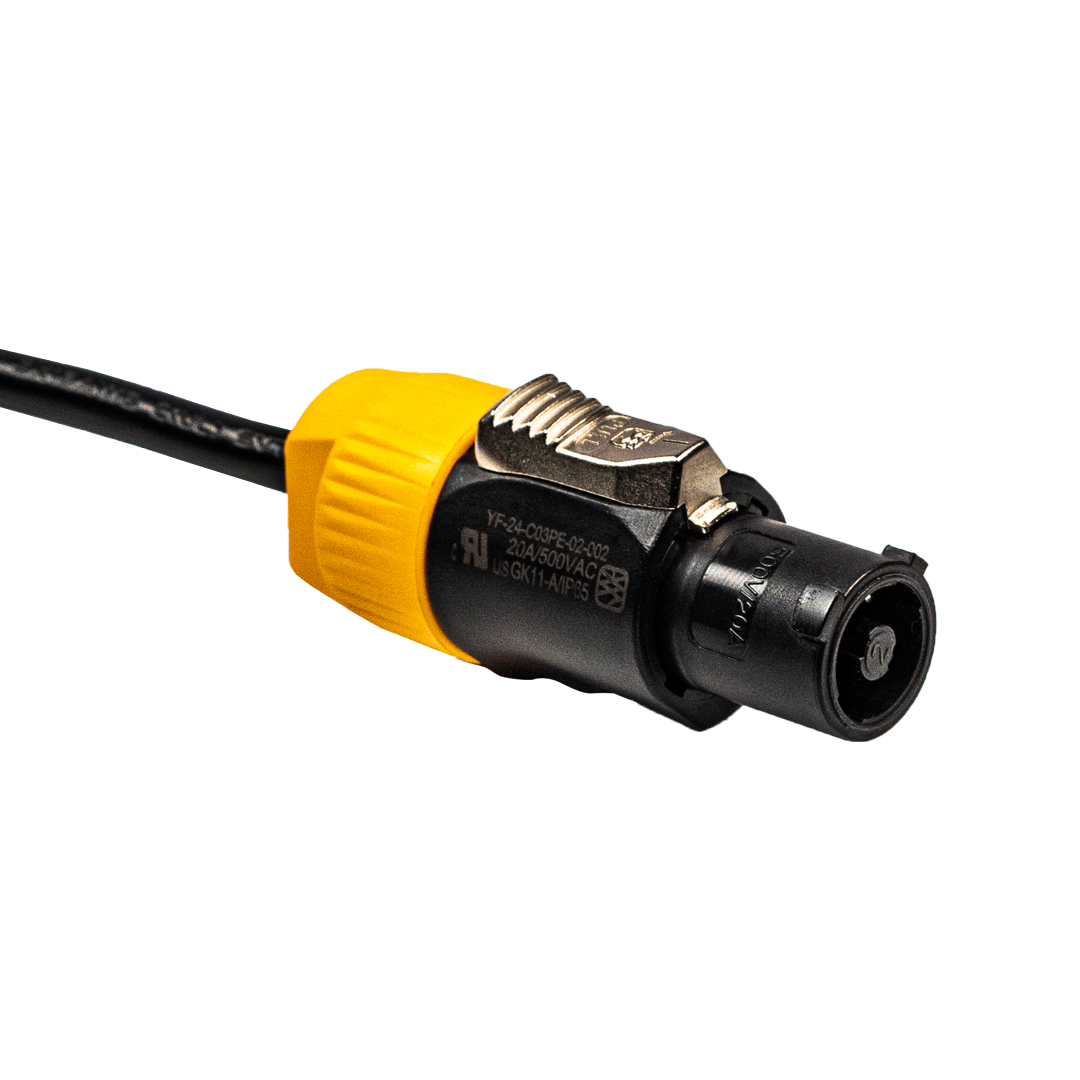

  • 2x PowerCON Power Cable

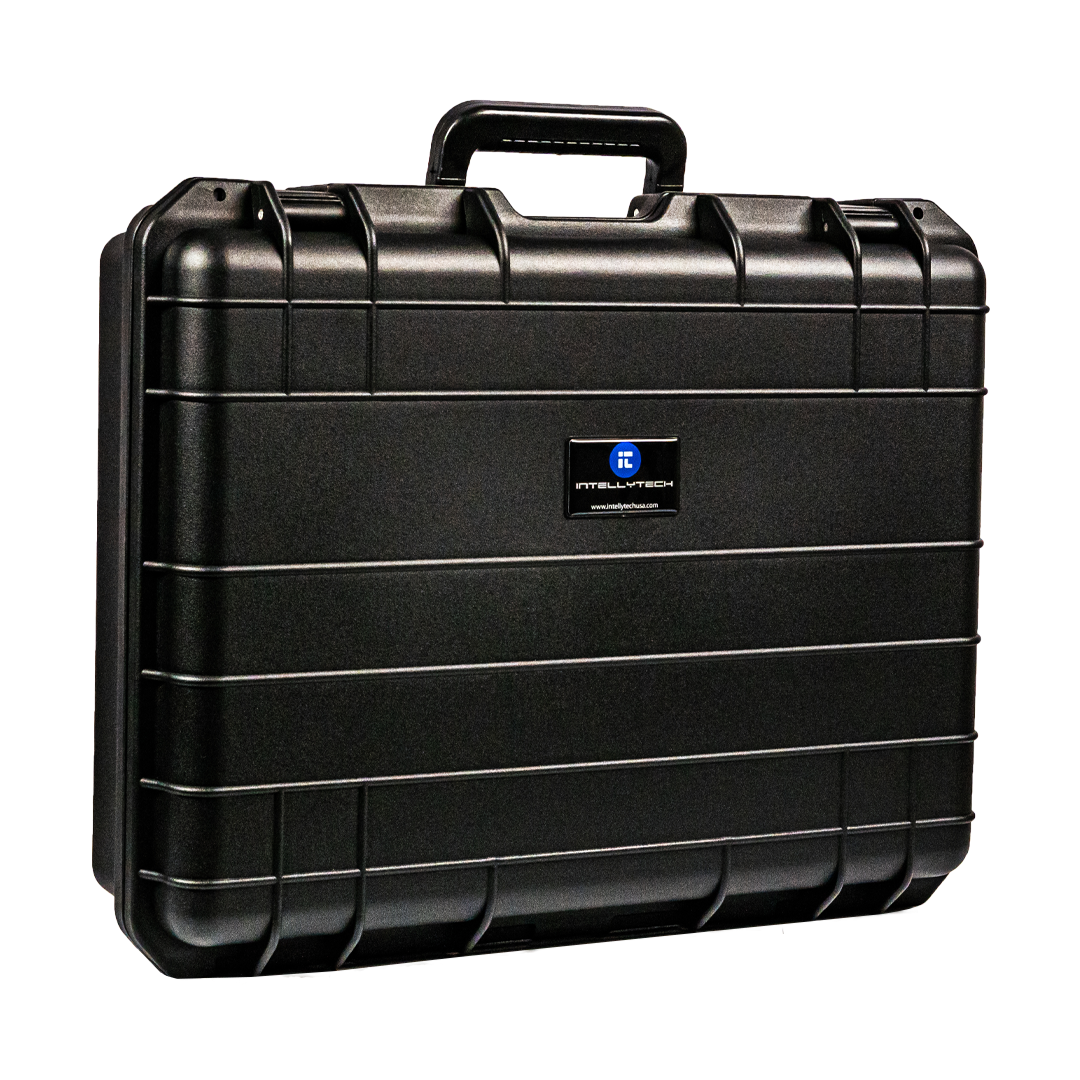

  • Hard Case W/ Foam Molding to hold all of the above inside - 18x16x4.5", 30 pounds fully loaded

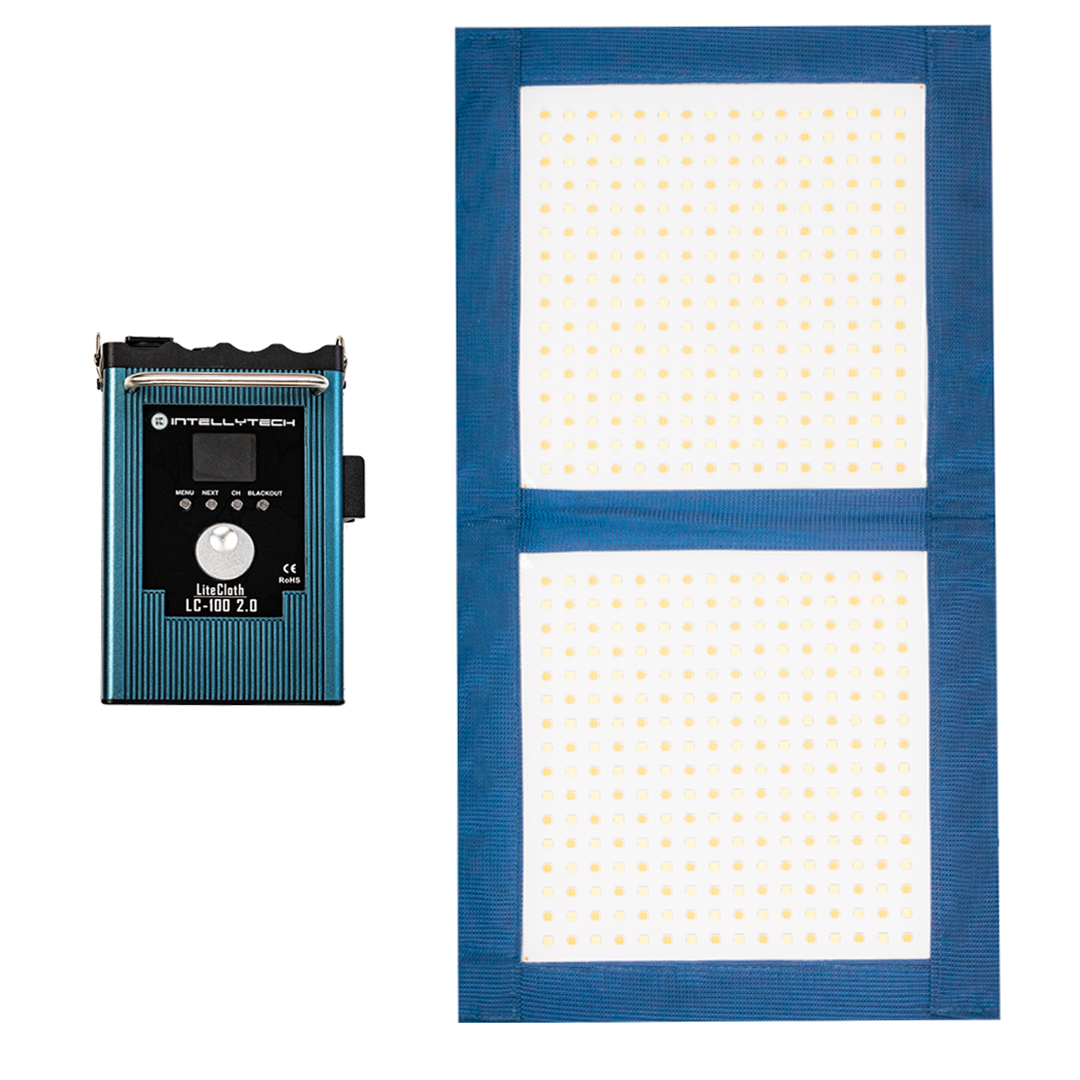

Overview - The LC-100 2.0 is a 100 Watt, 2 Pound, 1x2" LED Mat that folds down to a 12"x12" square. This unique design allows the user to create, broad, bright, natural looking light that can be setup fast and travel small.

Tremendous Output - Reaching 100 Watts, the LC-100 is equivalent to a 1,000 Watt Tungsten Soft Light. Even without using the including softbox, the LC-100 creates a vast spread that will wrap around your subject.

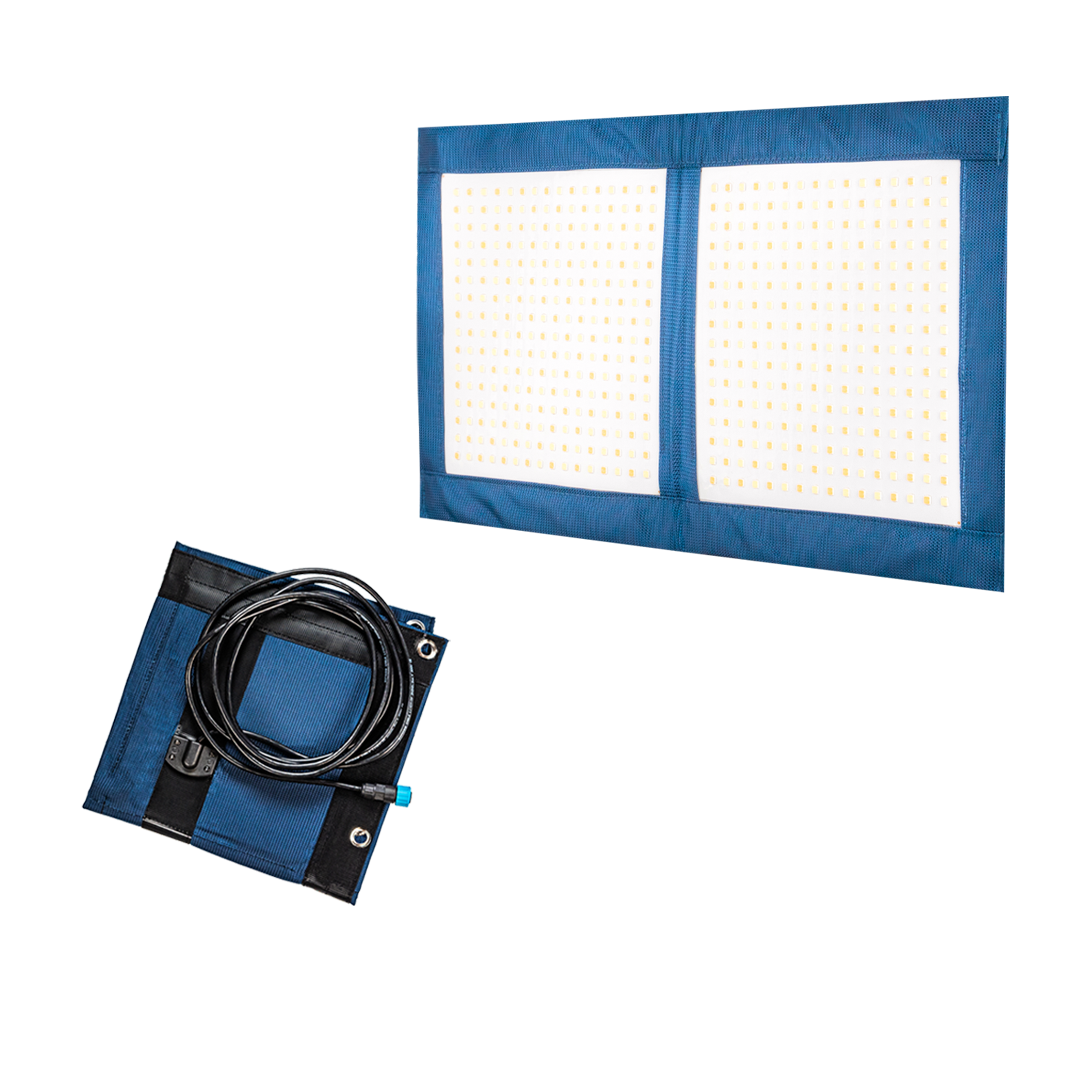

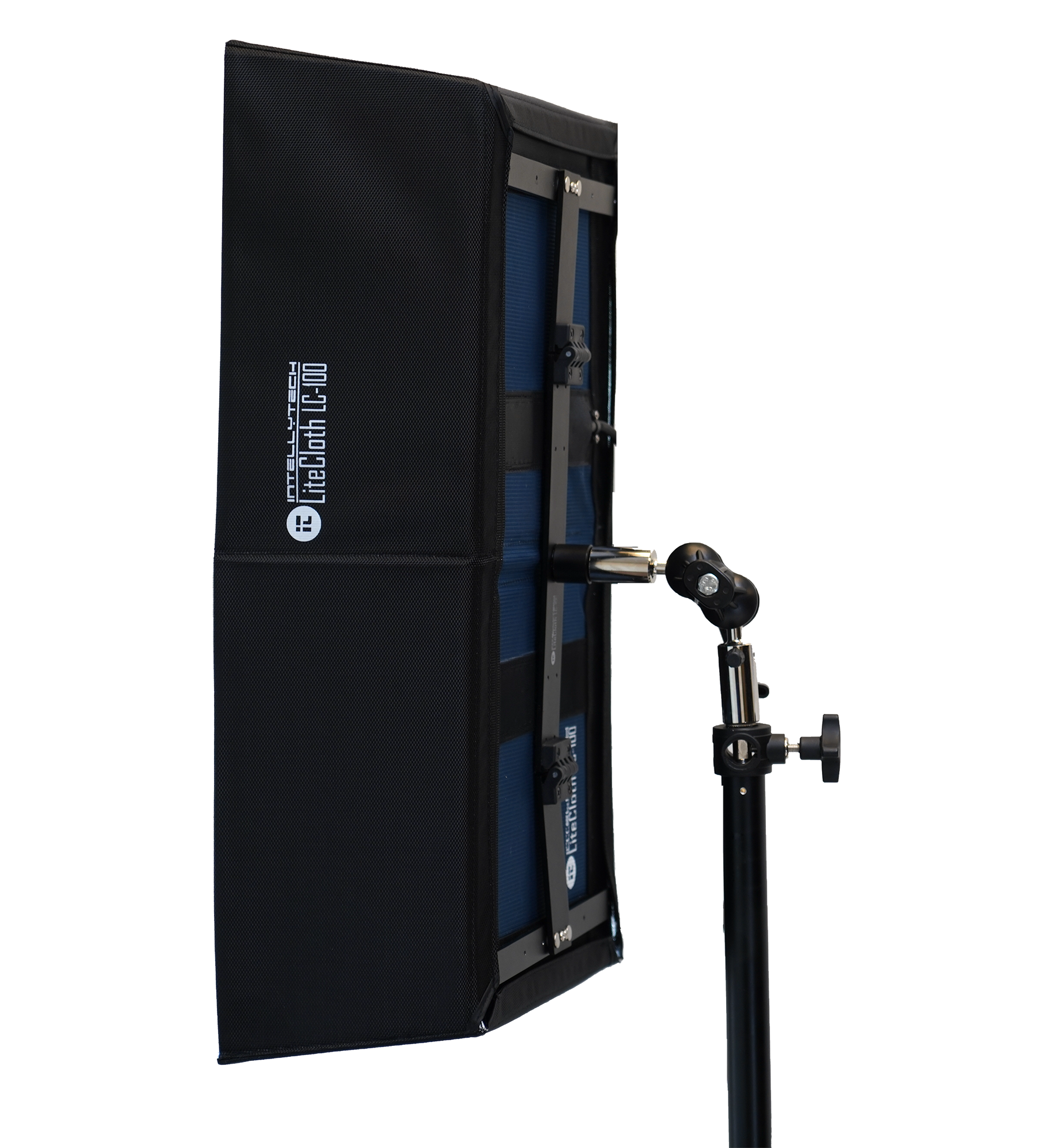

Folding DesignThe LC-100 has a firm backing behind the Mat, but can also fold down at its collapsible cross section.  This unique form factor allows for the light to be mounted in seconds without the need for a giant metal frame or x-bracket. In addition, users can now travel with a 1'x2' Light Kit that takes up less space than a conventional 1'x1' panel.

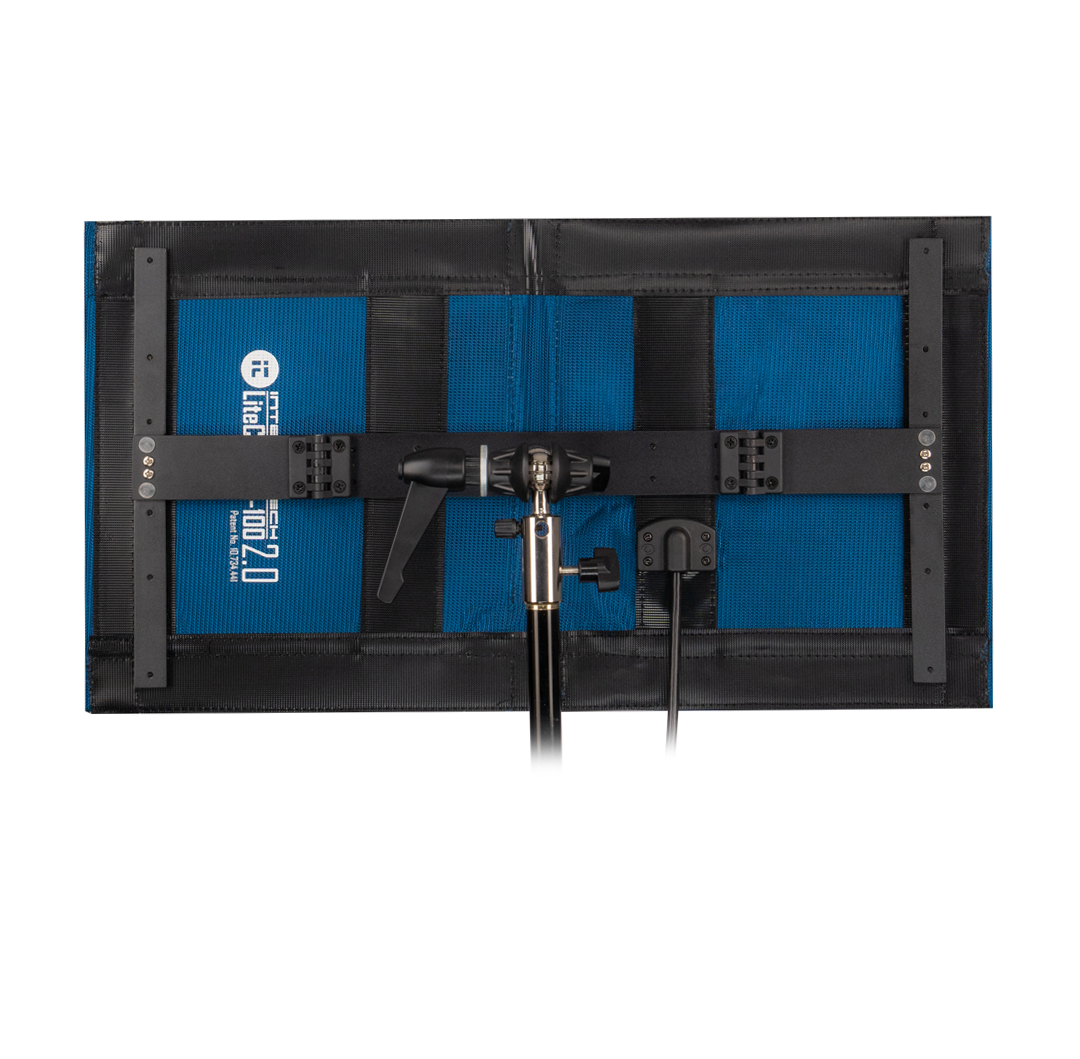

Quick & Intuitive Mount - The included Mount securely attaches to the rear of the Mat via a special high-strength Velcro. It attaches in seconds and is extremely secure. Like the Mat, the Mount also folds down allowing it to pack easily into the carrying case.

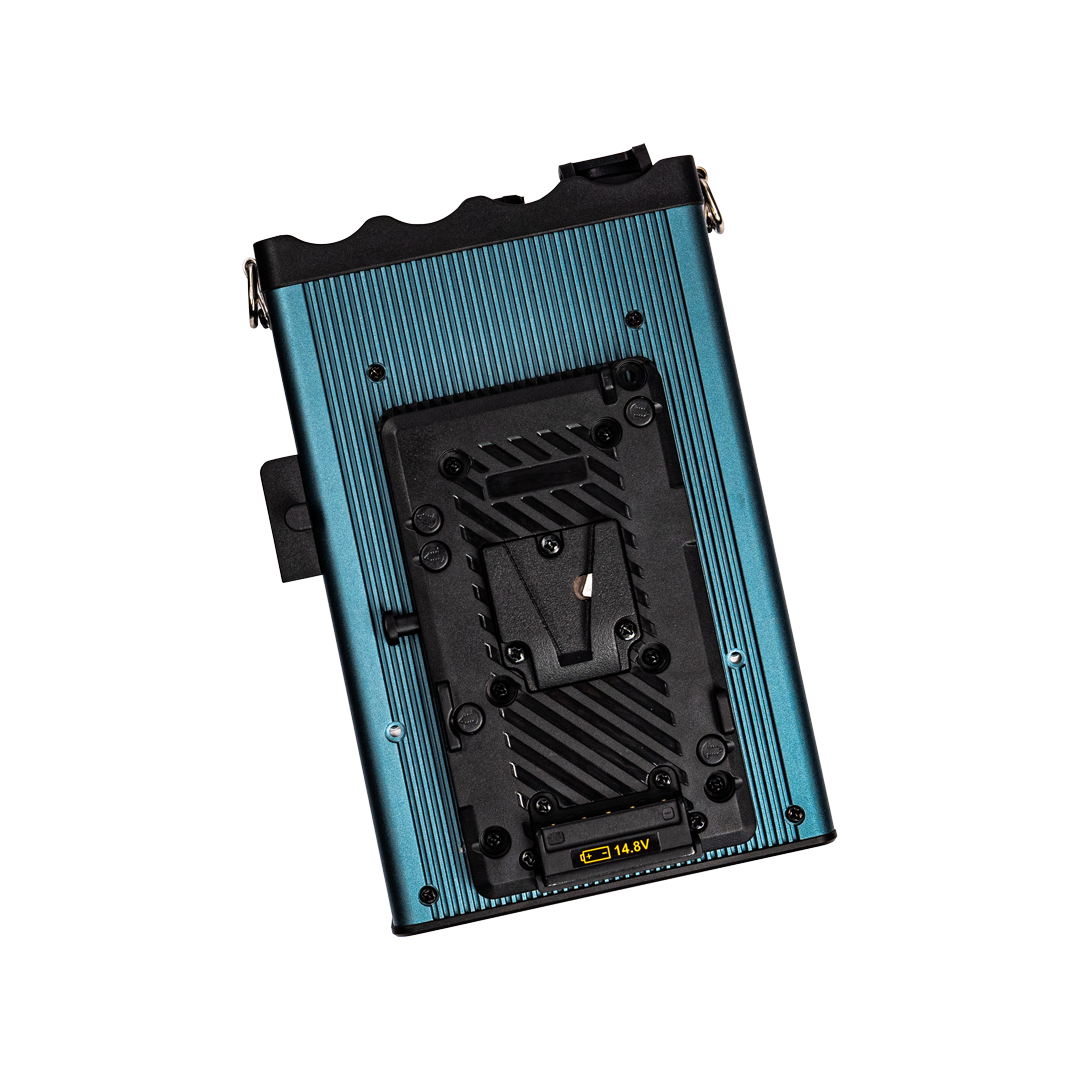

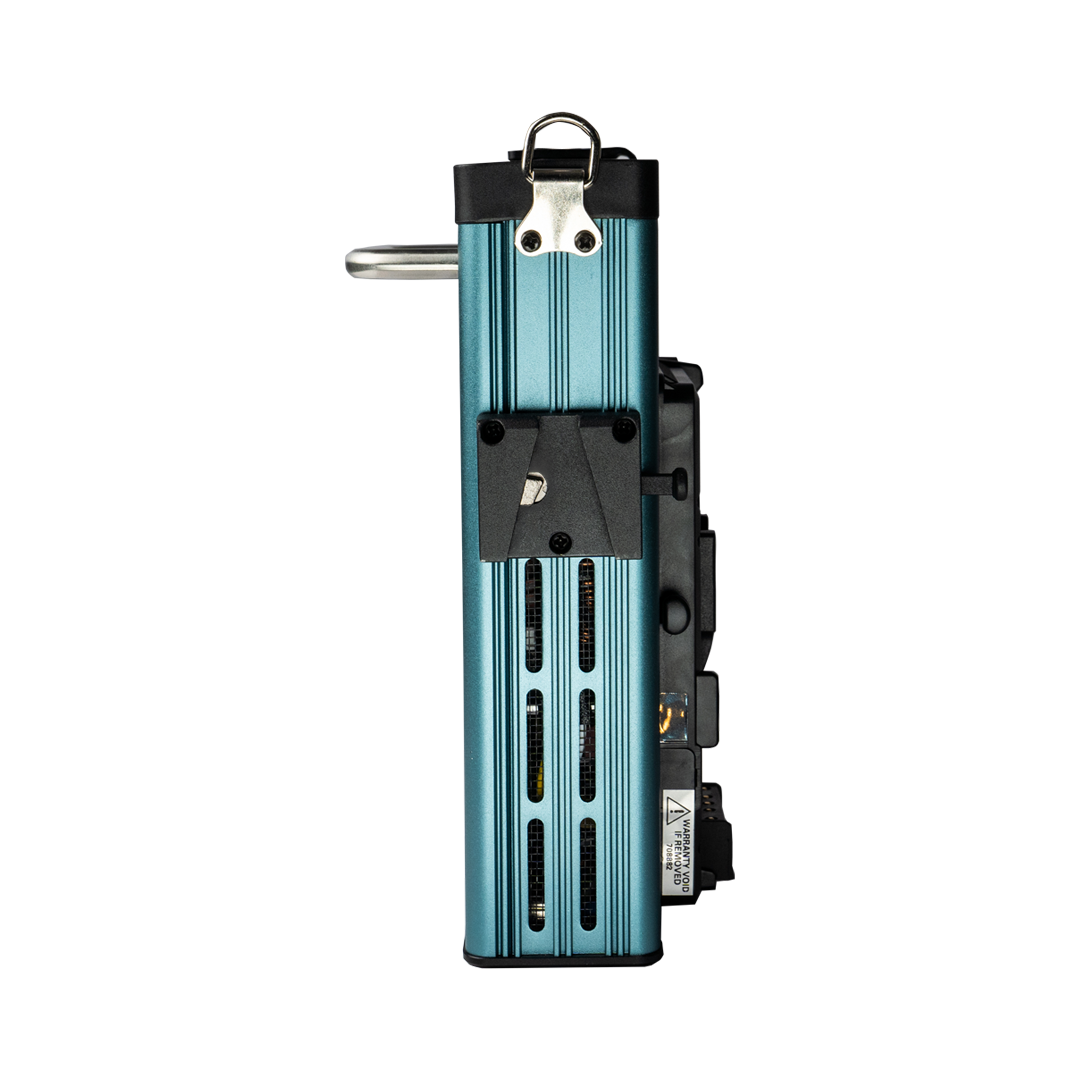

Power Options - Power the light via AC or battery. Choose either V-Mount or Gold Mount battery plate. Works Universally 100-240V.

Quick Specs:
  • Consumes 100 Watts. Equivalent to 1,000W Tungsten Soft Light.
  • Bi-Color W/ 3,000k-10,000k Color Range.
  • Dimmable from 0-100%
  • Can be controlled with bluetooth, DMX or optional remote


Distance Mixed Color Temp. 3,000k 10,000k
3 Feet 3,040 Lux / 282 FC 2,660 Lux / 247 FC 2,820 Lux / 262 FC
6 Feet 795 Lux / 74 FC 670 Lux / 62.3 FC 776 Lux / 72 FC
9 Feet 244 Lux / 23 FC 217 Lux / 21 FC 227 Lux / 21 FC
Accurate CRI and TLCI Ratings:
Color Temperature CRI  TLCI
3,000k 97 98
5,600k 95 99
10,000k 94 93
