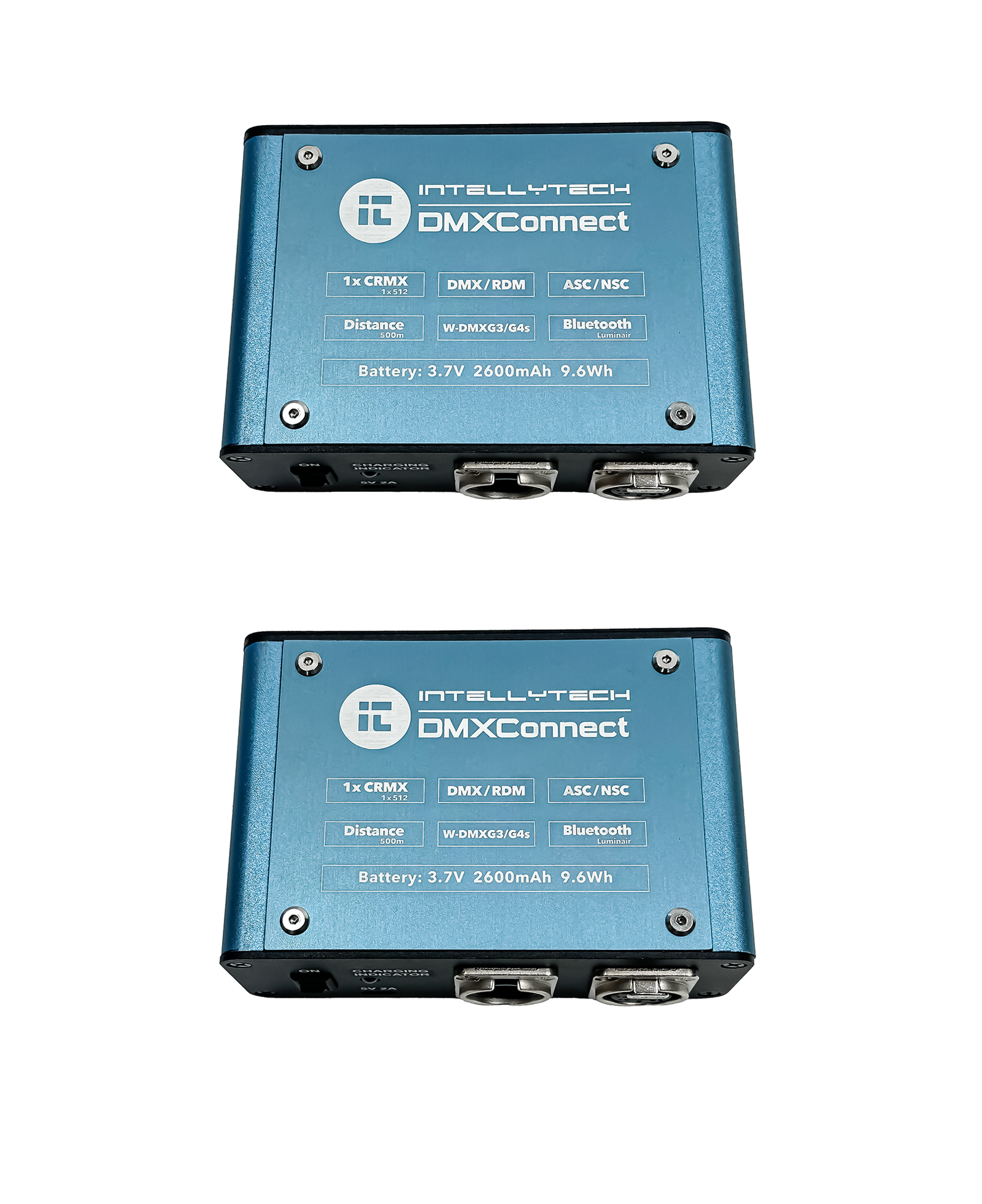

2 Piece DMXConnect Kit - Wireless CRMX / DMX Transceiver

This is a kit containing 2x DMXConnect. DMXConnect allows users to integrate CRMX, DMX, RDM, ASC, NSC, Bluetooth Luminair, and W-DMX G3/G4s to any device with a DMX port. It features a built-in battery that can last up to 6 hours and acts as a transceiver (transmitter or receiver).

DMXConnect Instruction Manual Downlaod

Dimensions:

• 5x3.5x2" (inches)
• 1.1 Pound

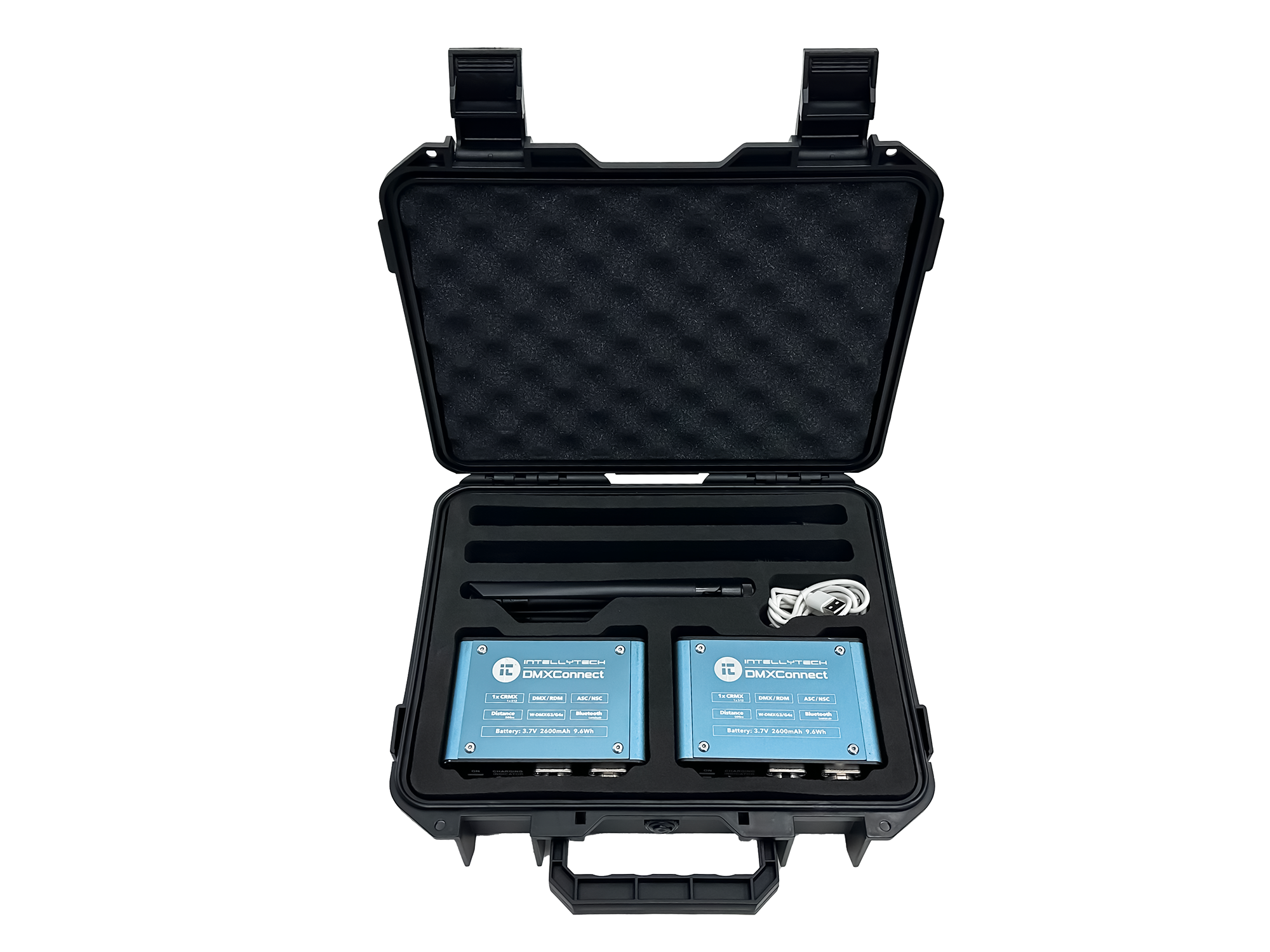

Includes:

• 2x DMXConnect Transceiver
• 2x 5 Pin DMX Cable
• 2x Built-In Battery (3.7V, 2600mAh, 9.6Wh)
• 2x Charging Cable USB-A to USB-C
• 2x optional and removable antennae (to extend range)
• 1x Hard Carrying Case

Key Features:

CRMX Lumenradio Wireless 1x512 Channel: DMXConnect instantly adds Lumenradio's CRMX to any device. It supports up to 512 DMX channels into any lighting setup with a DMX port.

DMX, Full-duplex RDM: Experience full-duplex communication with the DMXConnect's support for DMX and RDM, ensuring smooth and efficient data transmission and remote device management.

ASC, NSC Communication Protocol: DMXConnect is compatible with ASC and NSC communication protocols, providing versatility and compatibility with various lighting systems and controllers.

Wireless DMX Signal G3/G4s: Enjoy the flexibility of wireless DMX signal transmission with G3/G4s technology, offering stable and interference-free performance in any environment.

Wireless Range of 500 Meters: DMXConnect boasts an impressive wireless range of up to 500 meters, allowing for reliable long-distance communication without the need for extensive cabling.

With the DMXConnect Wireless Transceiver, you get a reliable and high-performance wireless DMX solution for your lighting and stage production needs. For anyone wanting to add CRMX to a light, this allows users to instantly do that. Its advanced features and robust design make it an ideal choice for professionals seeking top-tier performance and versatility in their wireless communication system.

Indicator Light Status:

TX : Signal Transmission Mode

RX : Signal Receiving Mode

RF_LINK : Signal Transmission Or Receiving Status

LINK : Device Connection Status

STATUS : Output/receiving Status

RDM : RDM Operating Status

DMX : DMX Operating Status

Specification:

Charging Standard : 5V 3A Type-C

Battery Capacity : 9.3Wh

Standby Power Consumption : 0.57Wh

Standby Time : 15h

Working Time : 6h

Size : 88 x 93 x 40mm
