Light Cannon - F-165 5500k - Portable, High Output 165W LED 5" Fresnel - W/ DMX

Taxes and shipping calculated at checkout
SKU: 173001
Out of stock - Contact us to order on Back-Order
Light Cannon - F-165 5500k - Portable, High Output 165W LED 5" Fresnel - W/ DMX

Stock Notification

Get notified when this product is available again

Light Cannon - F-165 5500k - Portable, High Output 165W LED 5" Fresnel - W/ DMX

Light Cannon - F-165 5500k - Portable, High Output 165W LED 5" Fresnel - W/ DMX



  • Item Number: 173001
  • 165 Watt, 5" Fresnel LED Light
  • 5500k Daylight, 95 CRI
  • Choose to have fan on or off via switch. Very quiet with fan on and double the output. When fan is off, the output is reduced to 50% and is totally silent.
  • DMX Operational - Aluminum Frame
  • 15-50 Degree Capability
  • 12.75" (length) x 7" (width) x 8.5" (height). 10 pounds

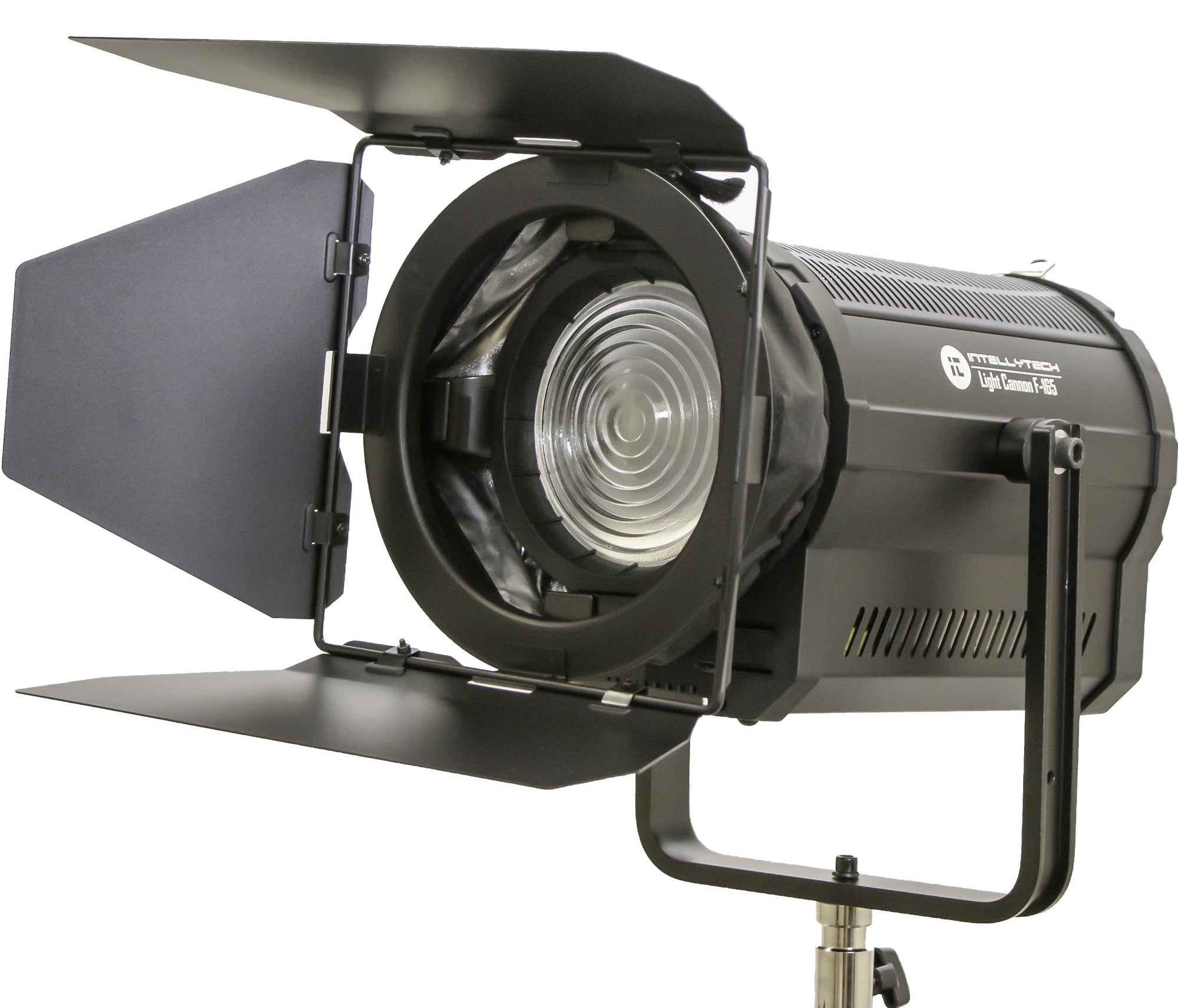

The F-165 Light Cannon is the perfect light for those looking for lots of power in a compact and portable package. It provides the user with an impressive amount of light via its 165 Watt LED Output. The Light Cannon Series' unique design allows the light to be placed back 10, 20, 30, 40 feet back and beyond due to its amazingly long throw. It's actually equivalent to a 1,000-1,250W Tungsten light but remains completely cool and has considerably more features and controls. The F-165 provides the user with a high degree of control via the light's focusable fresnel lens and barn-door combination. The light can be transferable anywhere from 20 degrees to 70 degrees and the barn-doors allow you to further shape your light. It provides a powerful, high quality light output and creates beautiful color rated at 95 CRI. This unit is the ideal combination of classic Fresnel characteristics and all the advantages of the latest LED technology. Read more below the pictures
Additional Info



Hybrid Cooling

The Light Cannon series have a fan that can be turned on or off by the flick of a switch. When on, the unit has 100% power and the fan is very quiet. When the fan is turned off, the unit is completely silent and the output is reduced by 50%. The LED life span also reaches up to 50'000+ hours of use equivalent to 15 years of day by day use / 10 hours a day.

Strong & Lightweight Metal Frame

The metal body housing is made using strong, lightweight, and attractive aluminum with an amazing fit and finish, made for years of use in a professional environment. The metal is similar to the look, finish and feel of an Apple computer. The high strength tilt lock provides extremely secure locking, eliminating movement and slippage and ensuring that the fixtures will stay where you put them.

DMX Control

The Intellytech LED Fresnel Light Cannon are equipped with built in DMX 512 controller, allowing for the brightness and color temperature (on bi-color models) to be controlled remotely from a console making them perfect for TV studio installations, theaters, stages or conference rooms.

Digital Display

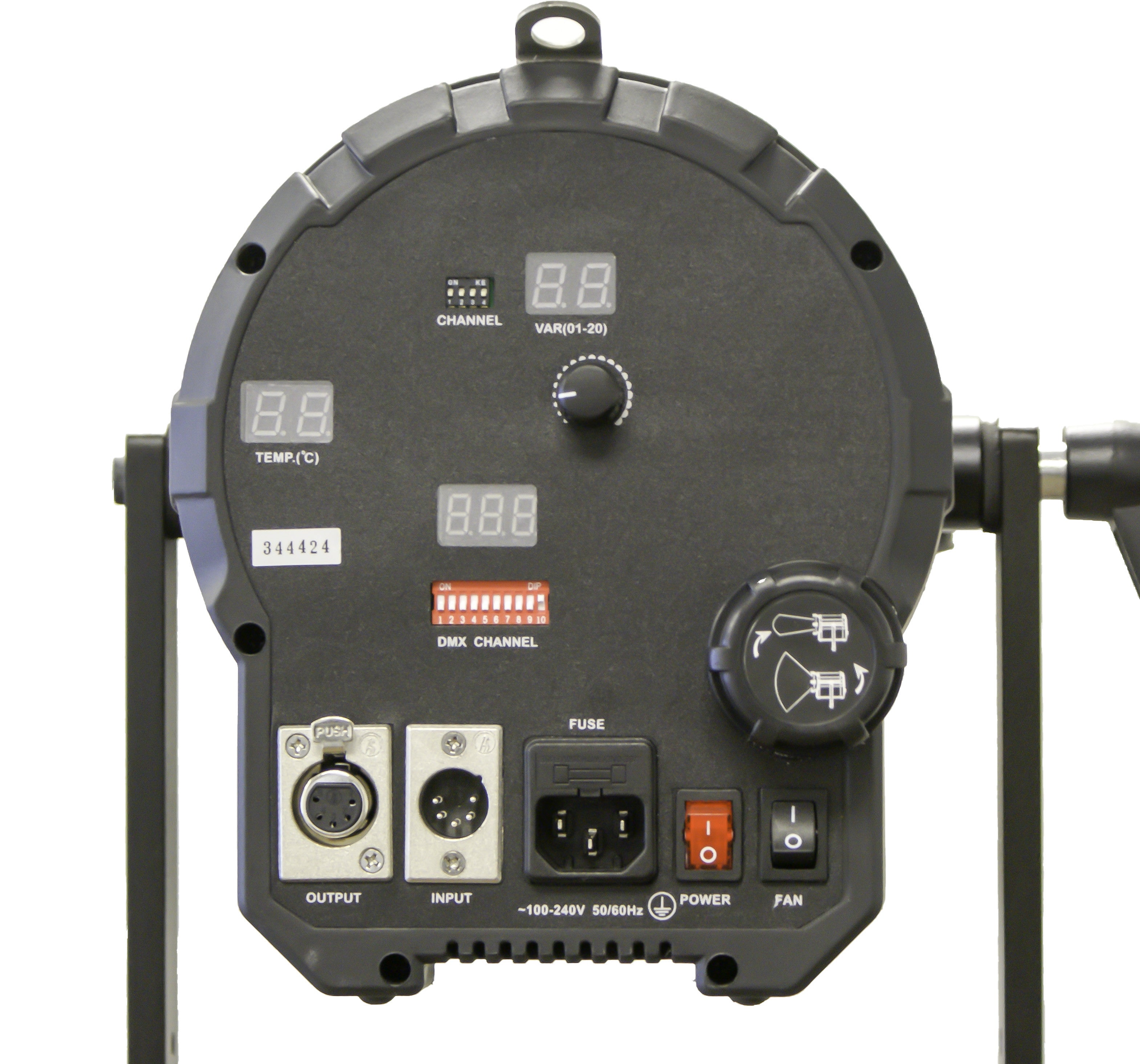

The single color Light Cannon's have 3 digital displays providing the user with the Brightness Level, DMX Channel, and Internal Temperature.

High Output & CRI

Whether shooting in spot or flood mode, the F-165 provides the user with an extremely high output of 165 Watts. The Light Cannon Series are capable of filming large areas while generating no heat. They can be used outdoor's in daylight with impressive results. The light is rated at 95+ to render beautiful and accurate images.

*Shooting slow motion? No problem! The Light Cannon LED series are flicker free and tested at 3'000 fps. The voltage is universal and works from 110v-240v.


Key features:
- LED power: 165W
- 5500k Daylight Color Temperature W/95 CRI/TLCI Rating
- Adjustable Beam Angle: Spot 15° - Flood 50°
- 0-100% Dimming
- 5" Glass Fresnel Lens
- Flicker Free @ High-Speed Shooting Rates
- High Efficiency Thermal Design
- Choose to have Fan On / Off
- 50'000+ LED Life
- Built-in DMX
- Mechanical Spot-Flood Mechanism
- Wide Array of Available Accessories
- Yoke Bar - Rotatable
- Sturdy Aluminum Housing
- Worldwide Voltage Compatible: AC 110V-240V 50 / 60 Hz ; DC 24V
- Weight: 10 pounds
- Dimensions: 12.75" length x 7" width x 8.5" height
20 Degrees 1 Meter / 20,540 Lux 6 Feet / 4,735 Lux 12 Feet / 1,170 Lux
70 Degrees 1 Meter / 6,090 Lux 6 Feet / 2,705 12 Feet / 442 Lux
Source Type led - fresnel
Operation Mode manual - light stand
Power 165 watts
Voltage DC 24V / AC 100-240V
Color Temperature 5500k Daylight
Lens Diameter 5 Inches
beam angle degree 20-70
number of LED -
DMX 512 controller yes
dimming range 100%-0%
battery mount -
mounting Standard 5/8" (16mm spigot)
power cable length 9.75 feet
power plug type U.S.
lamp dimensions (HxWxL) Inches 12.75" (length) x 7" (width) x 8.5" (height).
weight 10 pounds
material aluminum
color silver and black
compliance CE
