Light Cannon - F-165 Bi-Color AC/DC - Battery & AC Power High Output 165W LED 5" Fresnel - W/ Wifi

Taxes and shipping calculated at checkout
SKU: 173010
Battery Plate: V-Mount
Out of stock - Contact us to order on Back-Order
Light Cannon - F-165 Bi-Color AC/DC - Battery & AC Power High Output 165W LED 5" Fresnel - W/ Wifi
Battery Plate: V-Mount

Stock Notification

Get notified when this product is available again

Light Cannon - F-165 Bi-Color AC/DC - Battery & AC Power High Output 165W LED 5" Fresnel - W/ Wifi

Light Cannon - F-165 Bi-Color AC/DC - Battery & AC Power High Output 165W LED 5" Fresnel - W/ Wifi




  • Please note that this product has been discontinued and is replaced by the newer X-100 which delivers the same output in a more portable form factor. It can be found HERE.
  • Item Number: 173010 (V-Mount) / 173016 (Gold Mount)
  • Choose to have fan on or off via switch. Very quiet with fan on and double the output. When fan is off, the output is reduced to 50% and is totally silent.
  • Wifi - Control via Android or iOS App
  • 15-50 Degree Capability
  • 12.75" (length) x 7" (width) x 8.5" (height). 10 pounds
  • AC/DC Version can be powered via V-Mount / Gold Mount battery or AC. Please note that your battery must be able to accept a power load of 165 Watts. Generally, a battery must be greater than 165Wh. Be sure to check your  batteries maximum capacity prior to use. All of our 190Wh batteries or above will work with this unit.

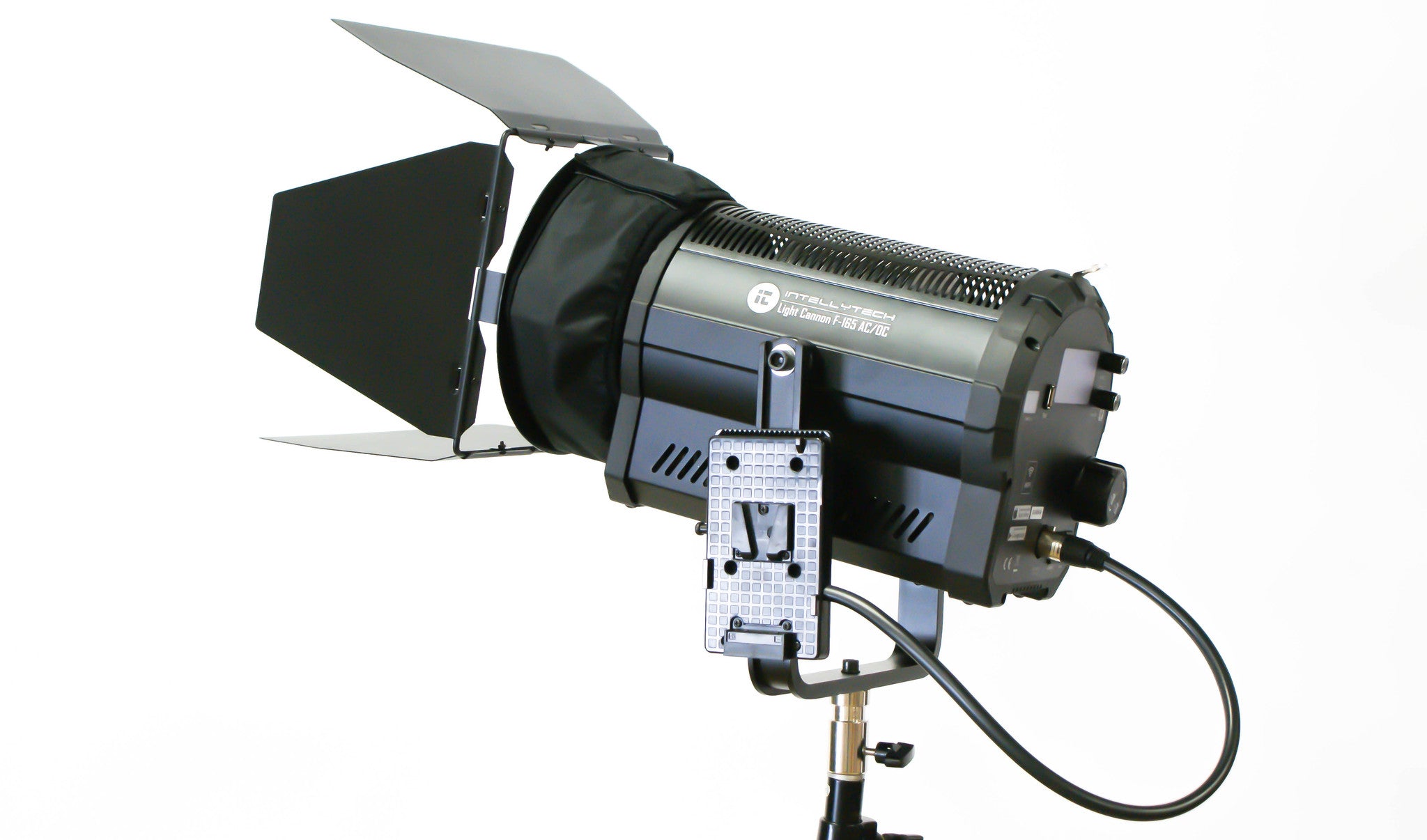

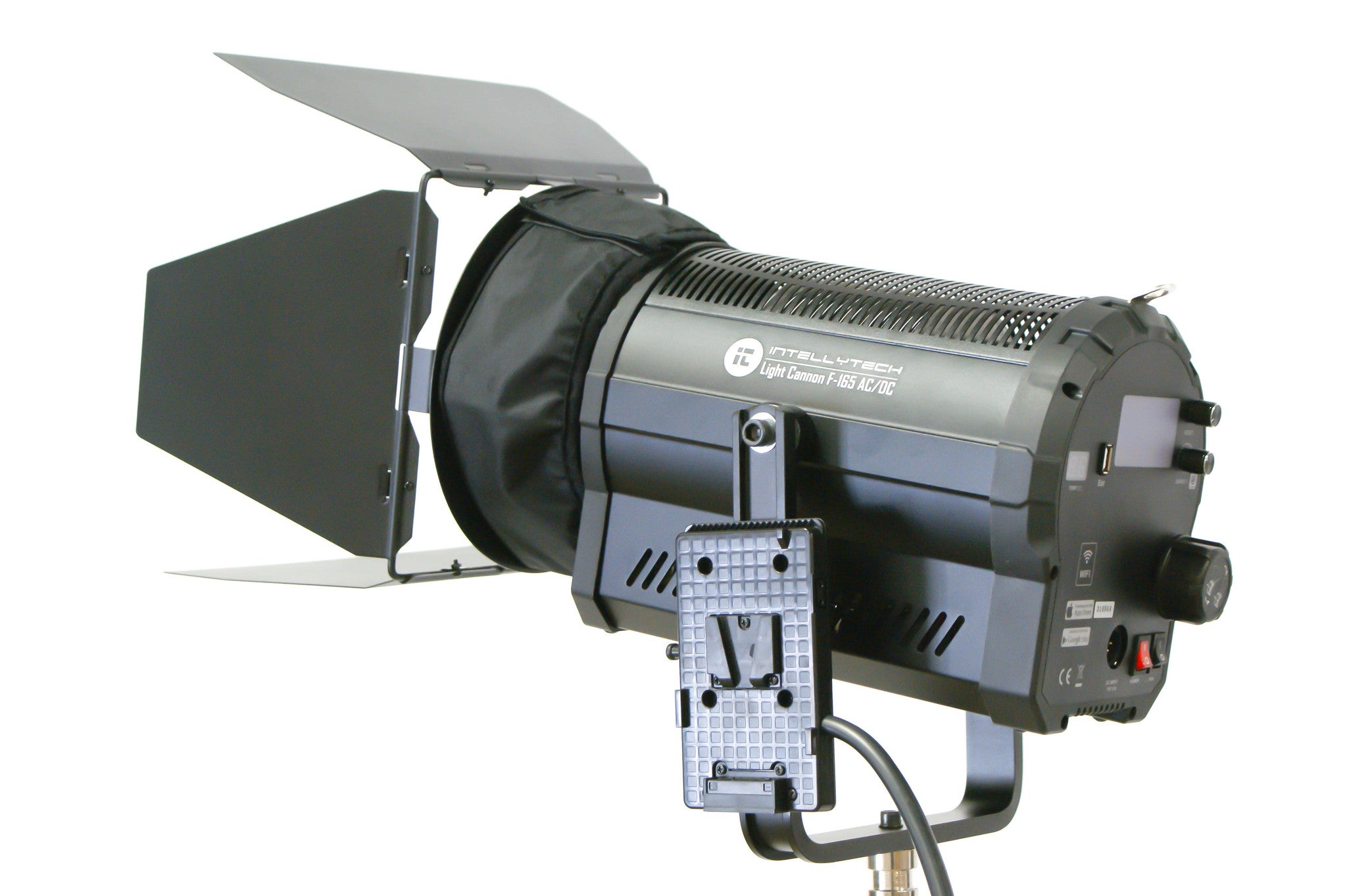

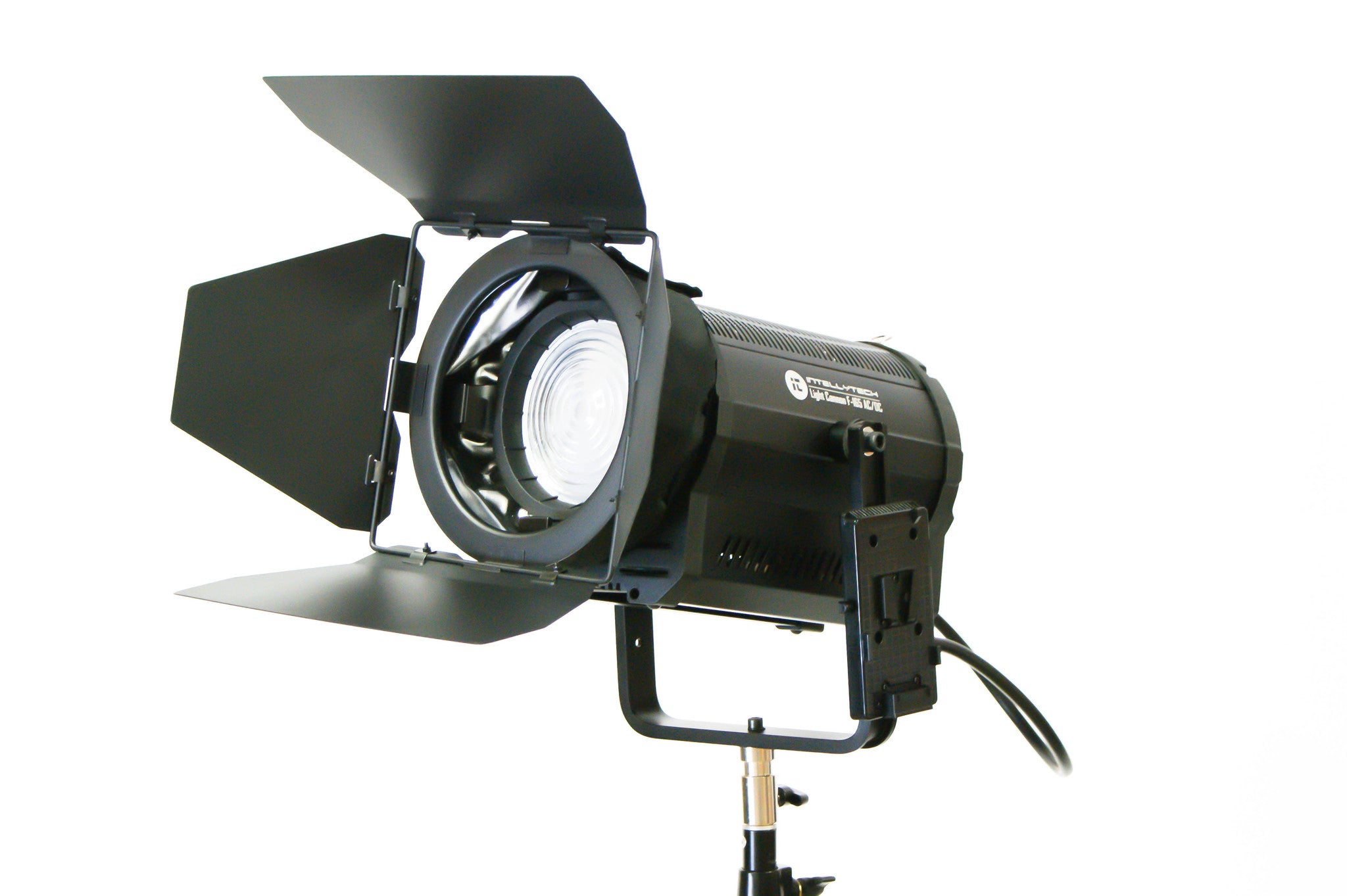

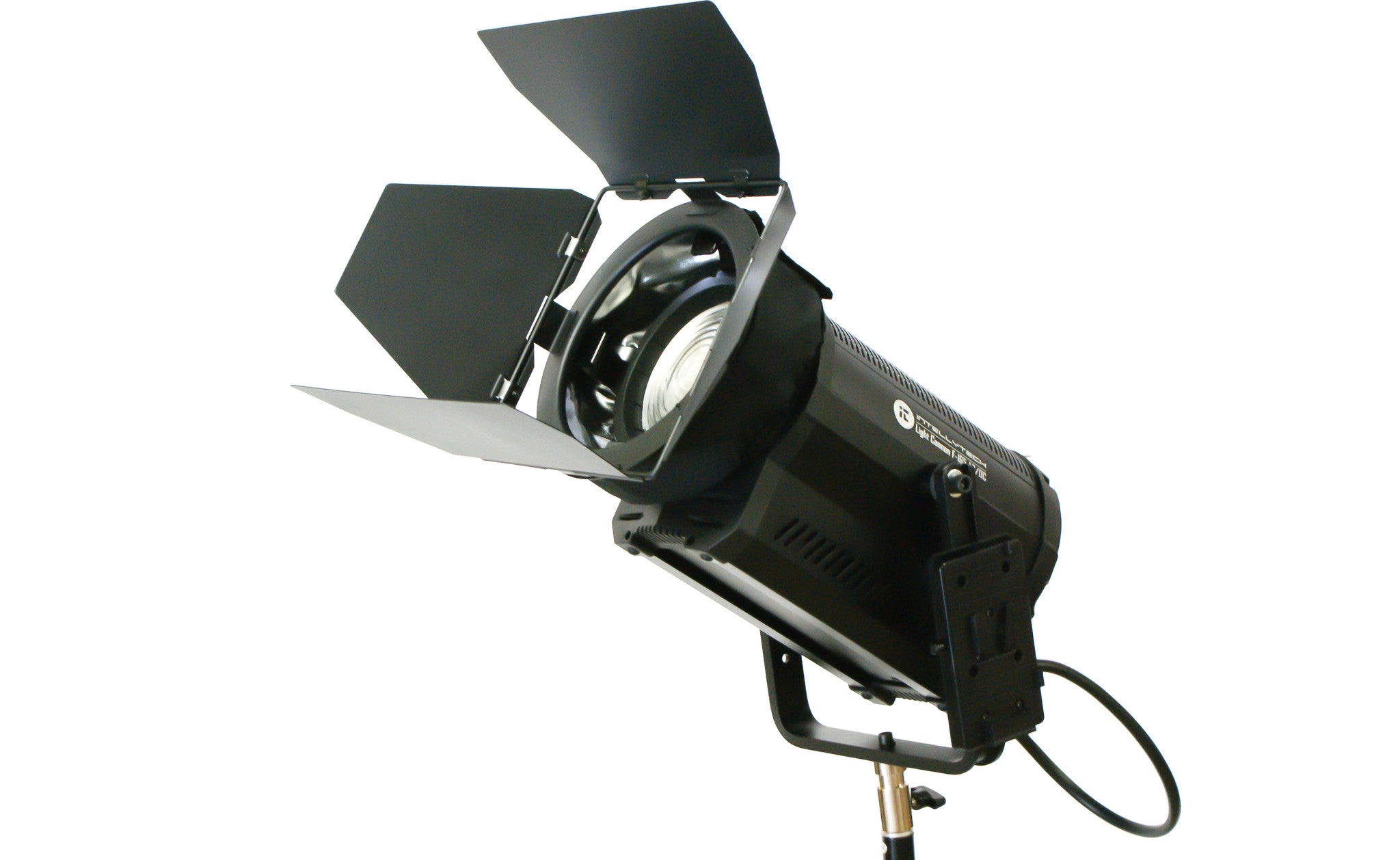

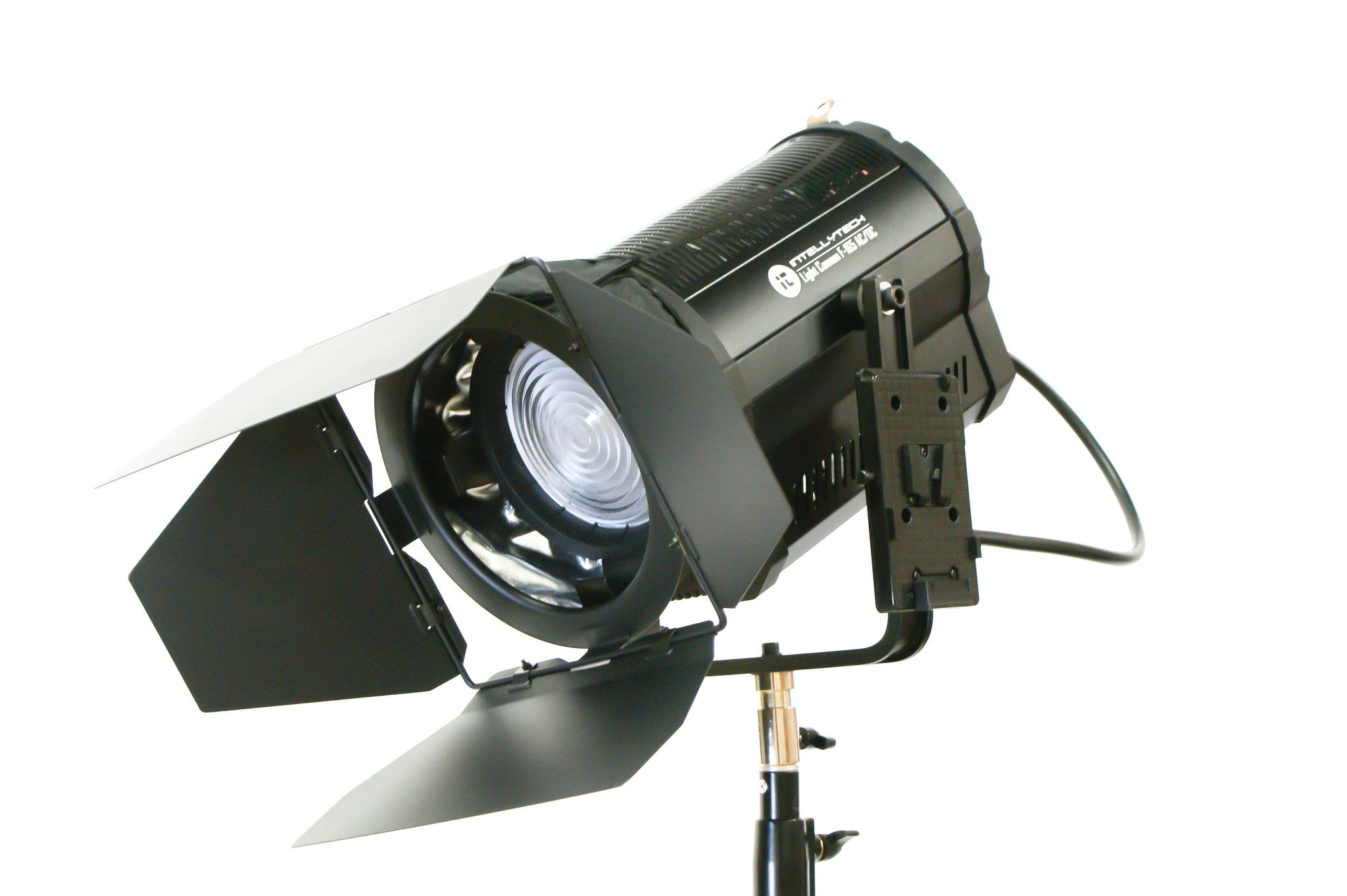

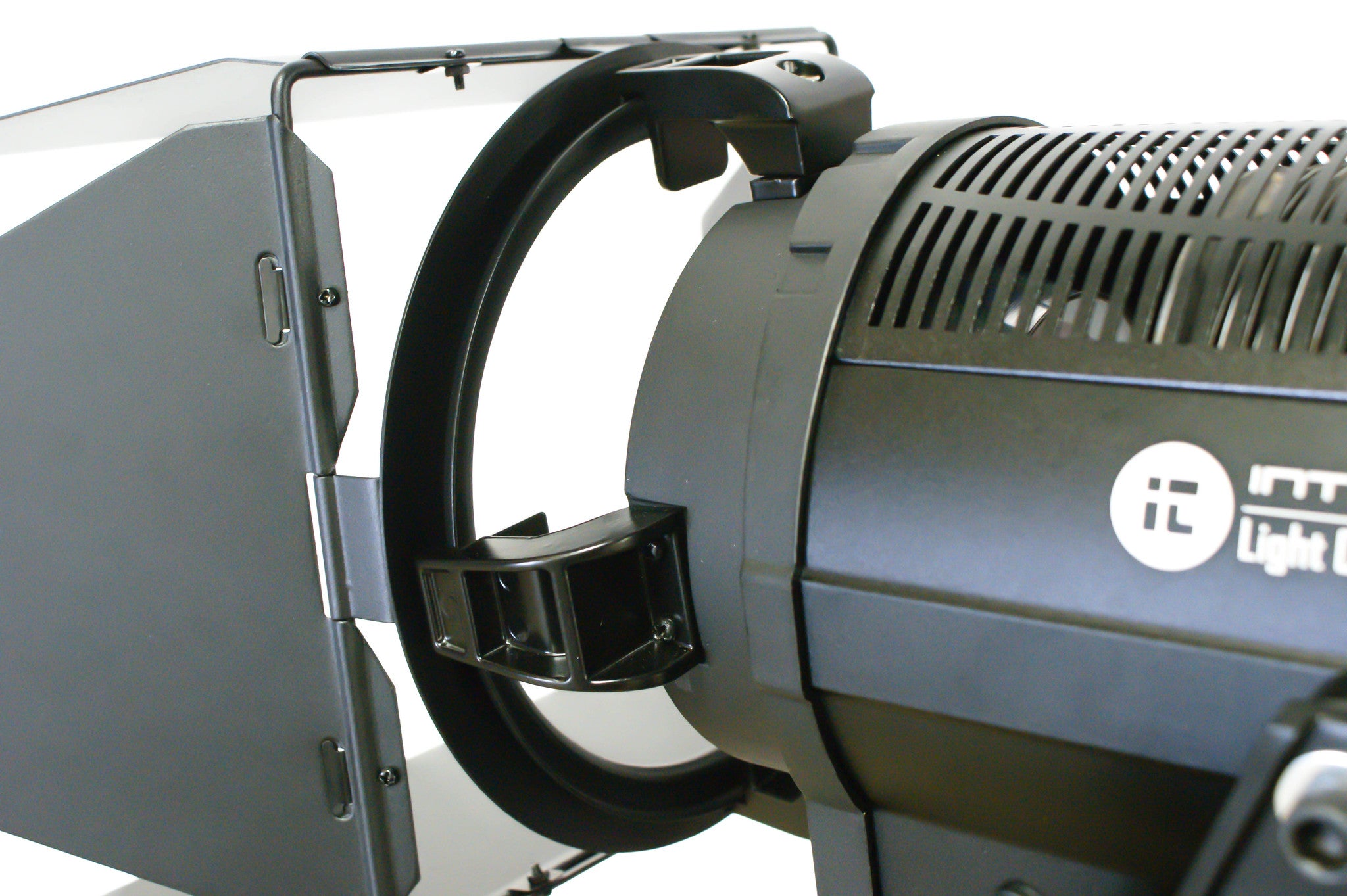

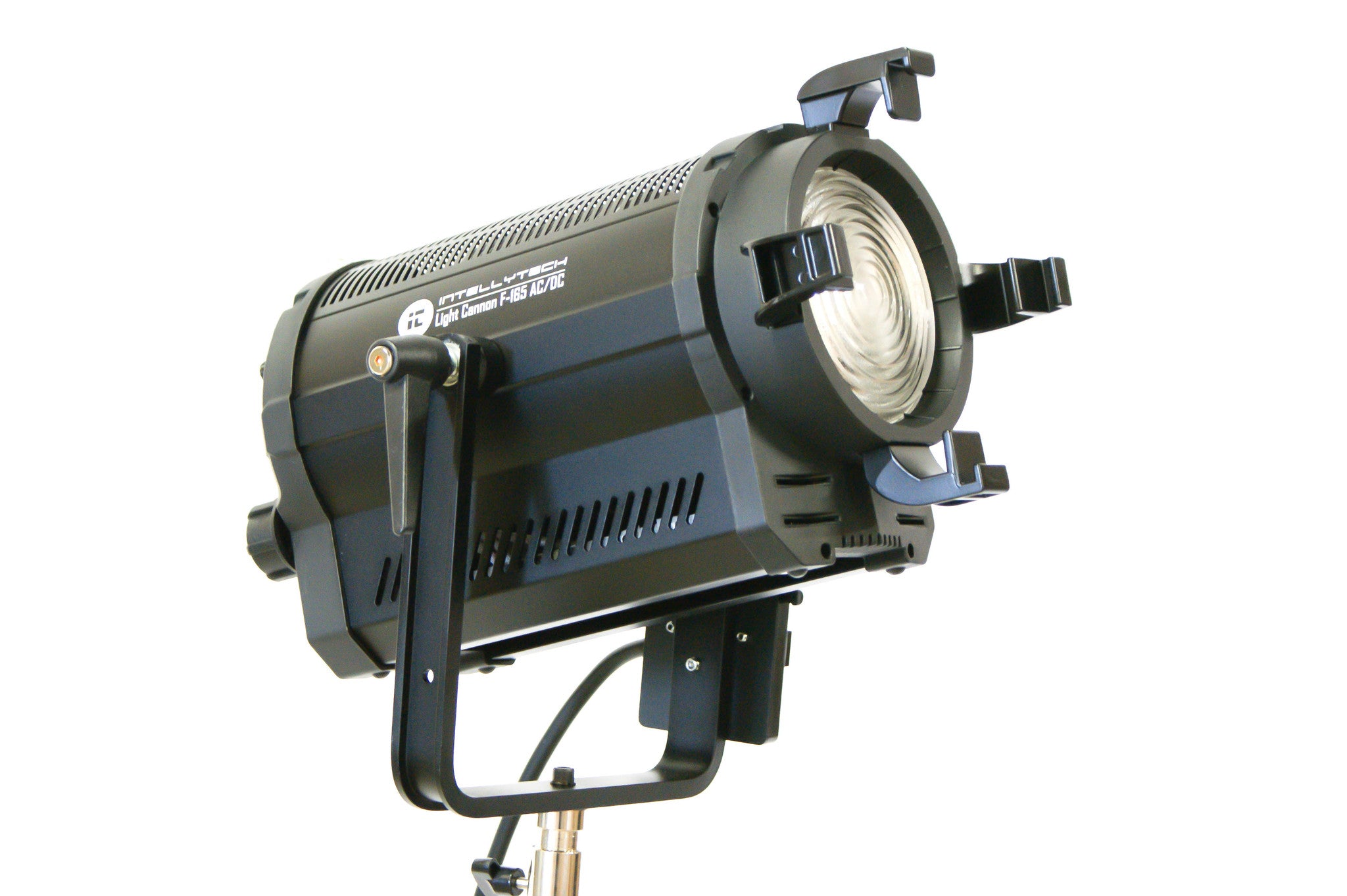

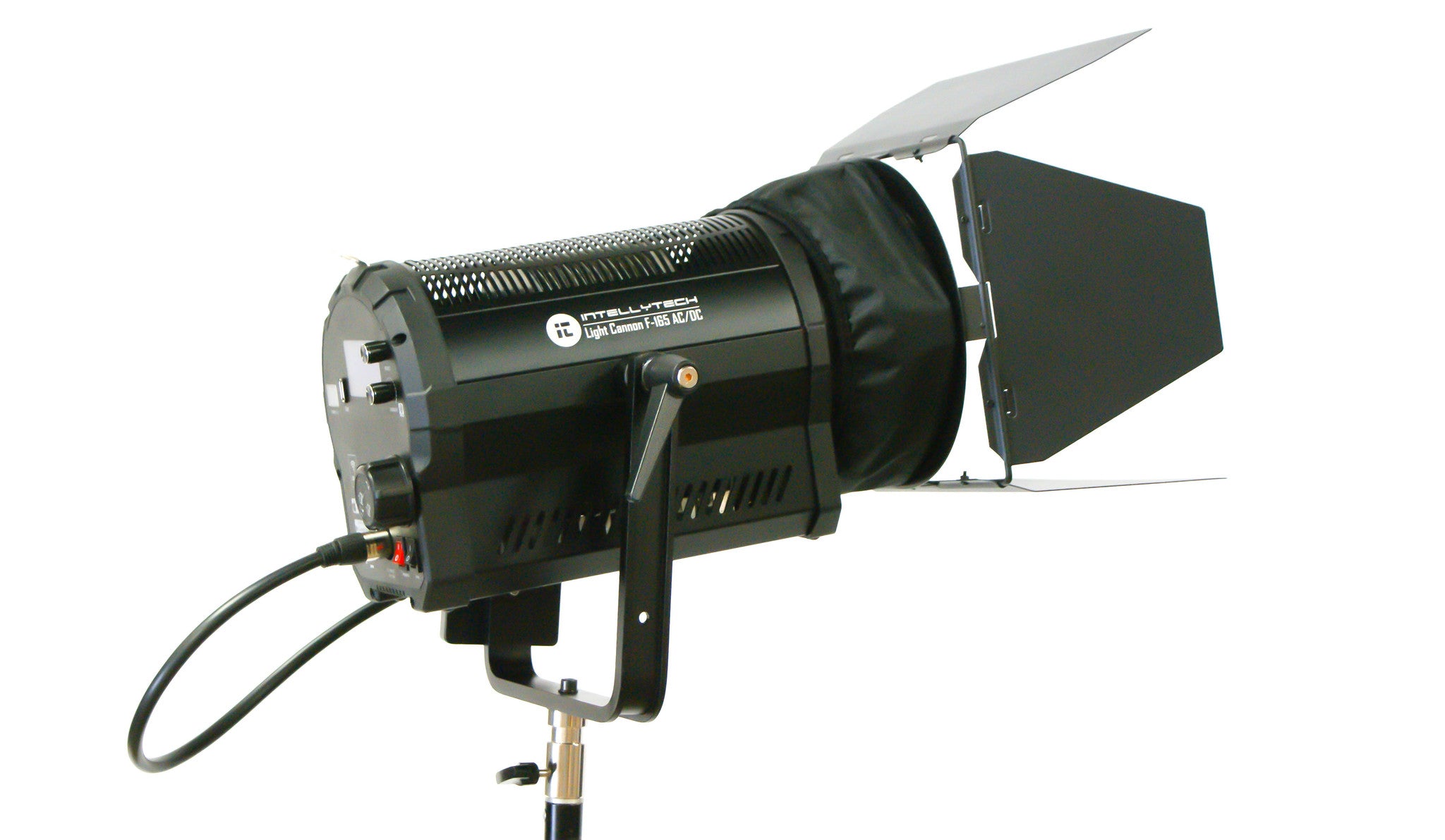

The F-165 Light Cannon AC/DC version adds a built-in battery option. Now choose to use the light with a V-Mount (or Gold Mount) battery or AC.  The F-165 AC/DC is the perfect light for those looking for lots of power in a compact and portable package. It provides the user with an impressive amount of light via its 165 Watt LED Output. The Light Cannon Series' unique design allows the light to be placed back 10, 20, 30, 40 feet back and beyond due to its amazingly long throw. It's actually equivalent to a 1,000-1250 Watt Tungsten light but remains completely cool and has considerably more features and controls. The F-165 provides the user with a high degree of control via the light's focusable fresnel lens and barn-door combination. The light can be transferable anywhere from 15 degrees to 50 degrees and the barn-doors allow you to further shape your light. It provides a powerful, high quality light output and creates beautiful color rated at 95-99 CRI. This unit is the ideal combination of classic Fresnel characteristics and all the advantages of the latest LED technology. Read more below the pictures.
Additional Info

Hollywood With A 1K

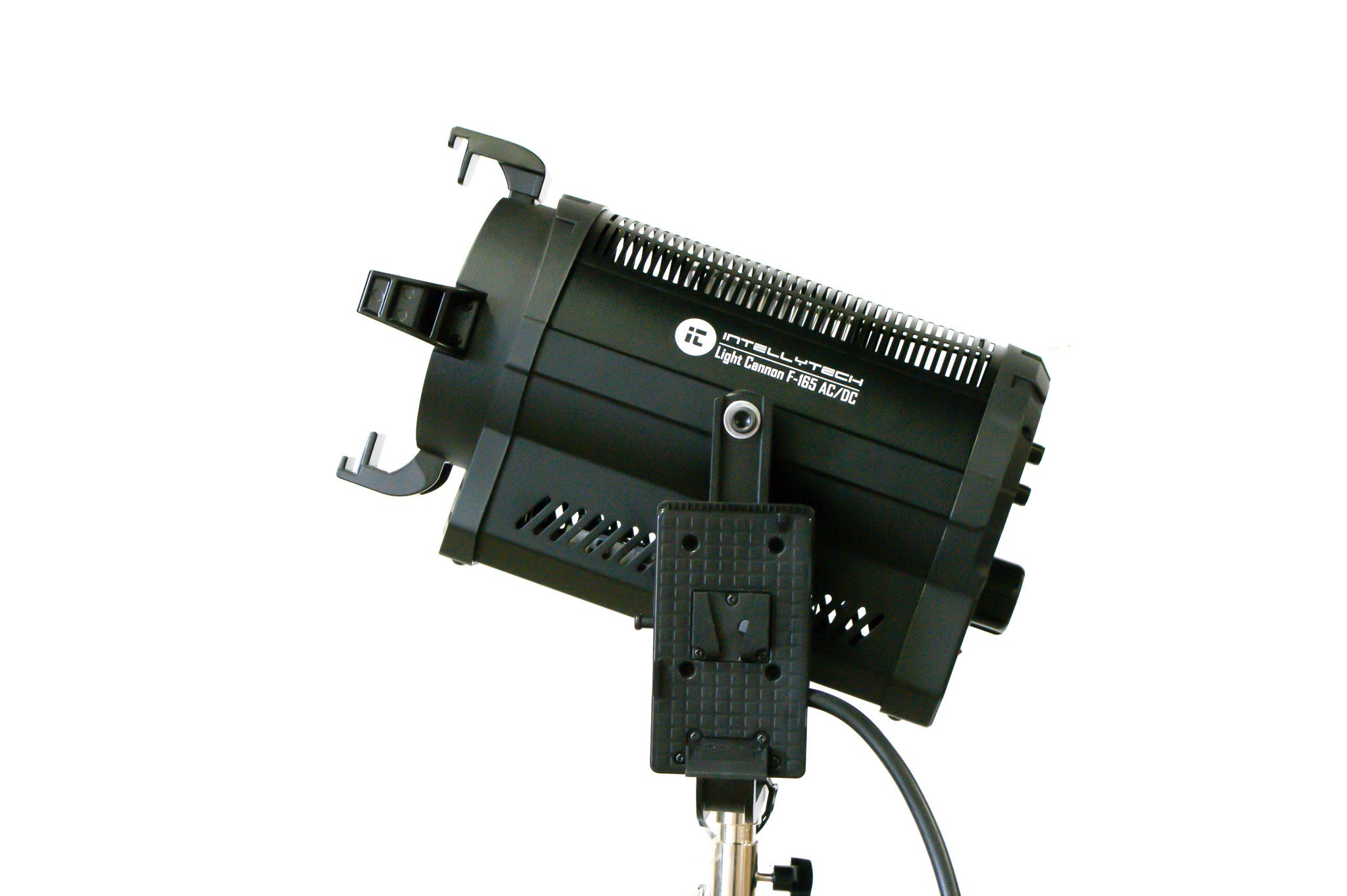

Built with a V-Mount or Gold Mount Battery Plate, the F-165 AC/DC allows you to have wireless power on an LED Light equivalent to a 1,000W Incandescent. Having both battery and AC power capabilities allow you to shoot in locations that were previously impossible to achieve.

Hybrid Cooling

The Light Cannon series have a fan that can be turned on or off by the flick of a switch. When on, the unit has 100% power and the fan is very quiet. When the fan is turned off, the unit is completely silent and the output is reduced by 50%. The LED life span also reaches up to 50'000+ hours of use equivalent to 15 years of day by day use / 10 hours a day.

Strong & Lightweight Metal Frame

The metal body housing is made using strong, lightweight, and attractive aluminum with an amazing fit and finish, made for years of use in a professional environment. The metal is similar to the look, finish and feel of an Apple computer. The high strength tilt lock provides extremely secure locking, eliminating movement and slippage and ensuring that the fixtures will stay where you put them.

Wifi Control

Control the Light Cannon via our Intellytech App. Works on both Android & iOS. This allows for use of a wire free set-up both in studio and in the field.

Digital Display

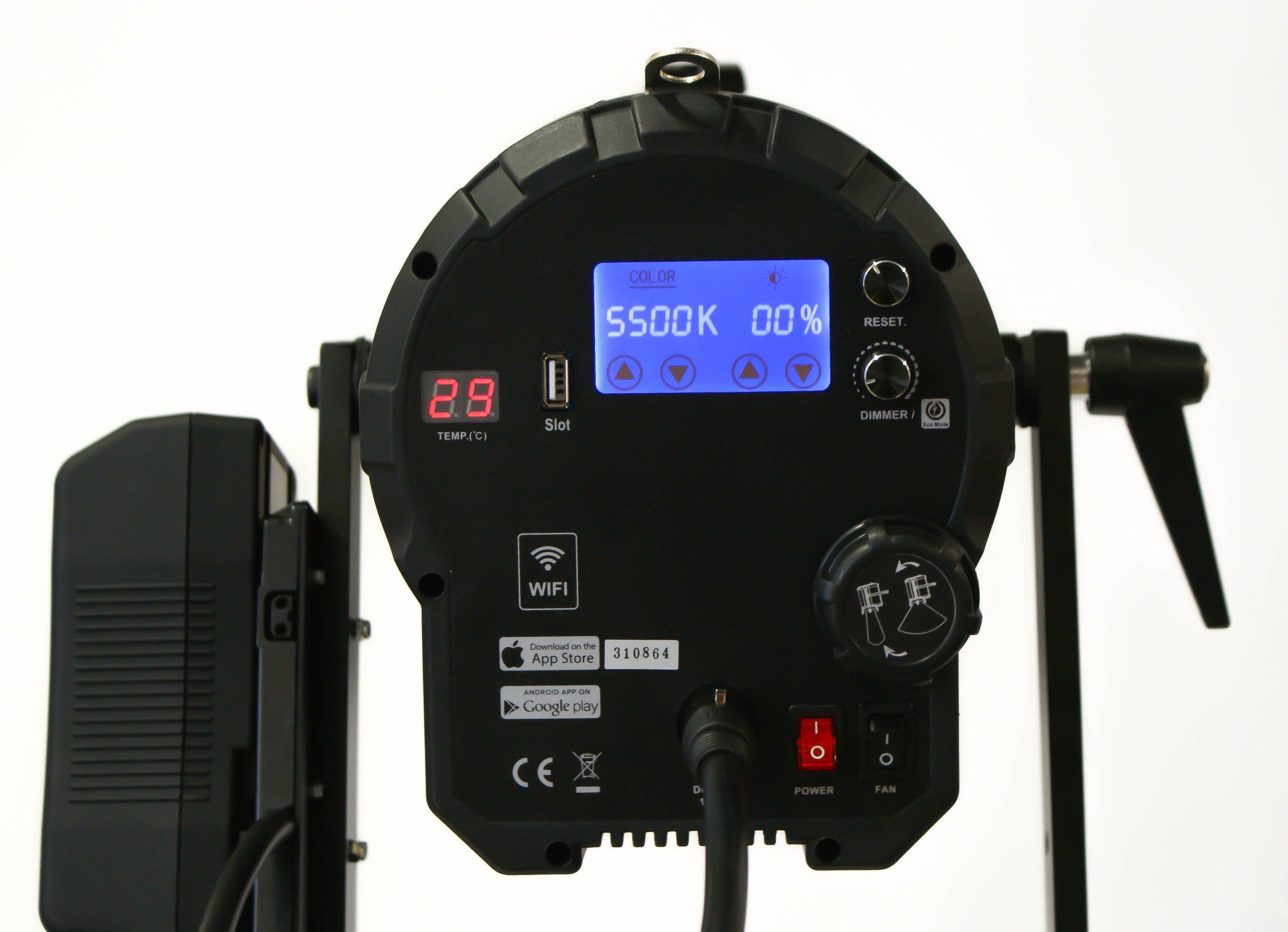

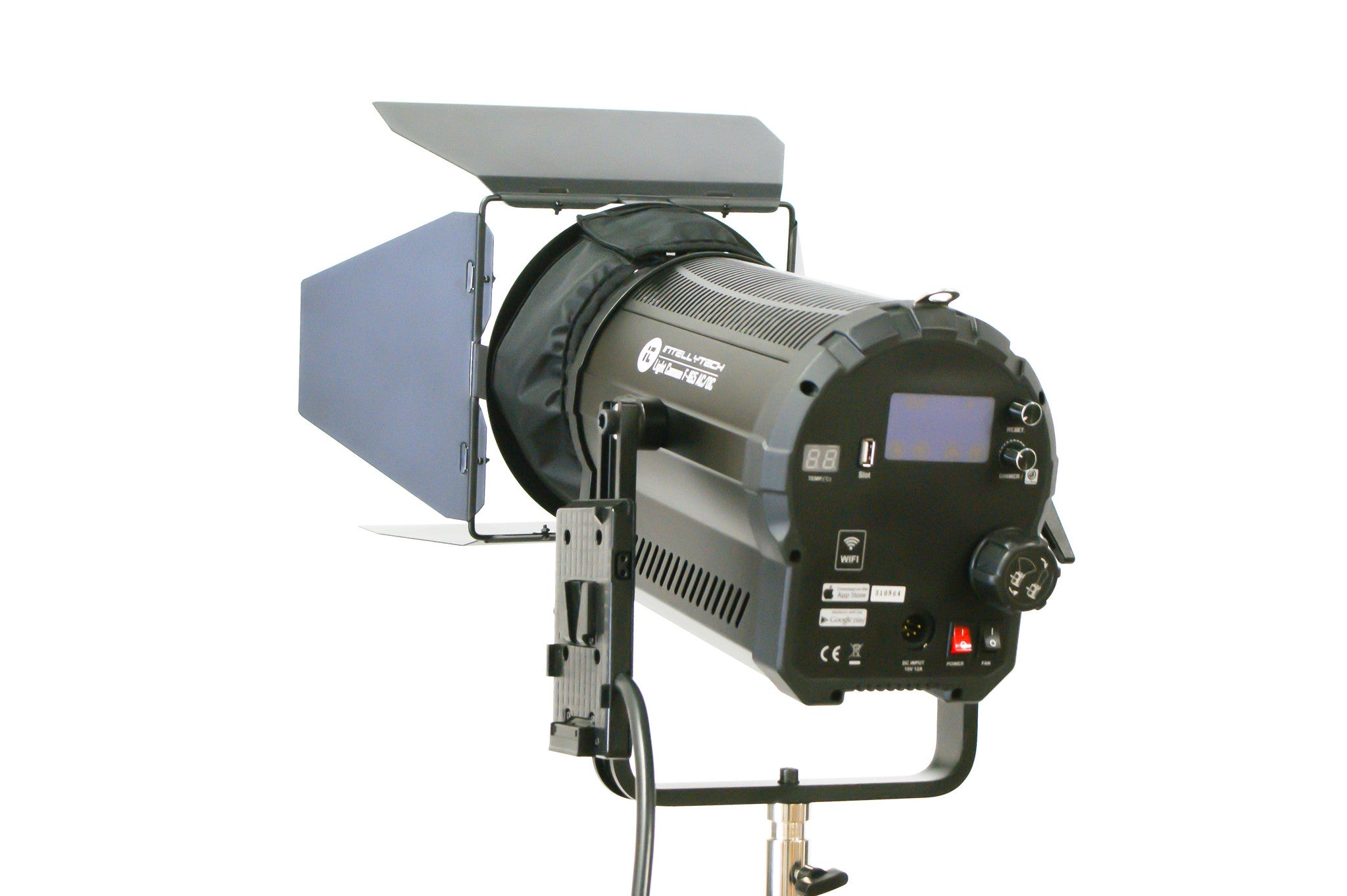

The F-165 Bi-Color AC/DC Light Cannon w/ Wifi features an LCD Touch-Screen providing the user with a high degree of control and plenty of information. Select the color and brightness level using the LCD screen or by using the control knobs.

High Output & CRI

Whether shooting in spot or flood mode, the F-165 Bi-Color provides the user with an extremely high output of 165 Watts. The Light Cannon Series are capable of filming large areas while generating no heat. They can be used outdoor's in daylight with impressive results. The light is rated at a CRI/TLCI of 95-99 throughout the wide color spectrum to render beautiful and accurate images.

*Shooting slow motion? No problem! The Light Cannon LED series are flicker free and tested at 3'000 fps. The voltage is universal and works from 110v-240v.


Key features:
- LED power: 165W
- 3,000k-8,000k Color Temperature with 95-99 CRI/TLCI Ratings
- Adjustable Beam Angle: Spot 15° - Flood 50°
- 0-100% Dimming

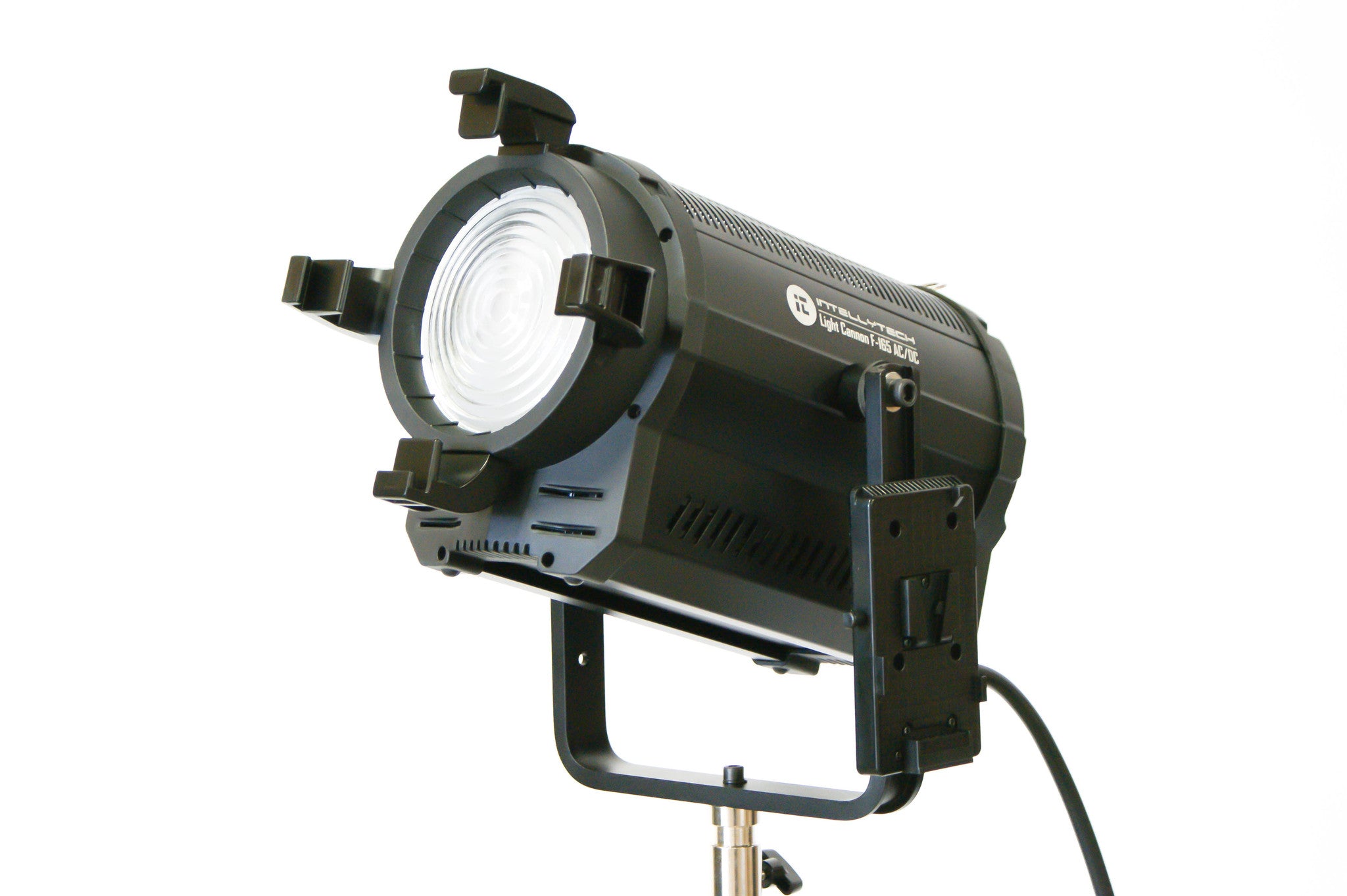

- 5" Glass Fresnel Lens
- Flicker Free @ High-Speed Shooting Rates
- High Efficiency Thermal Design
- Choose to have Fan On / Off
- 50'000+ LED Life
- Built-in Wifi for use on Android or iOS
- Mechanical Spot-Flood Mechanism

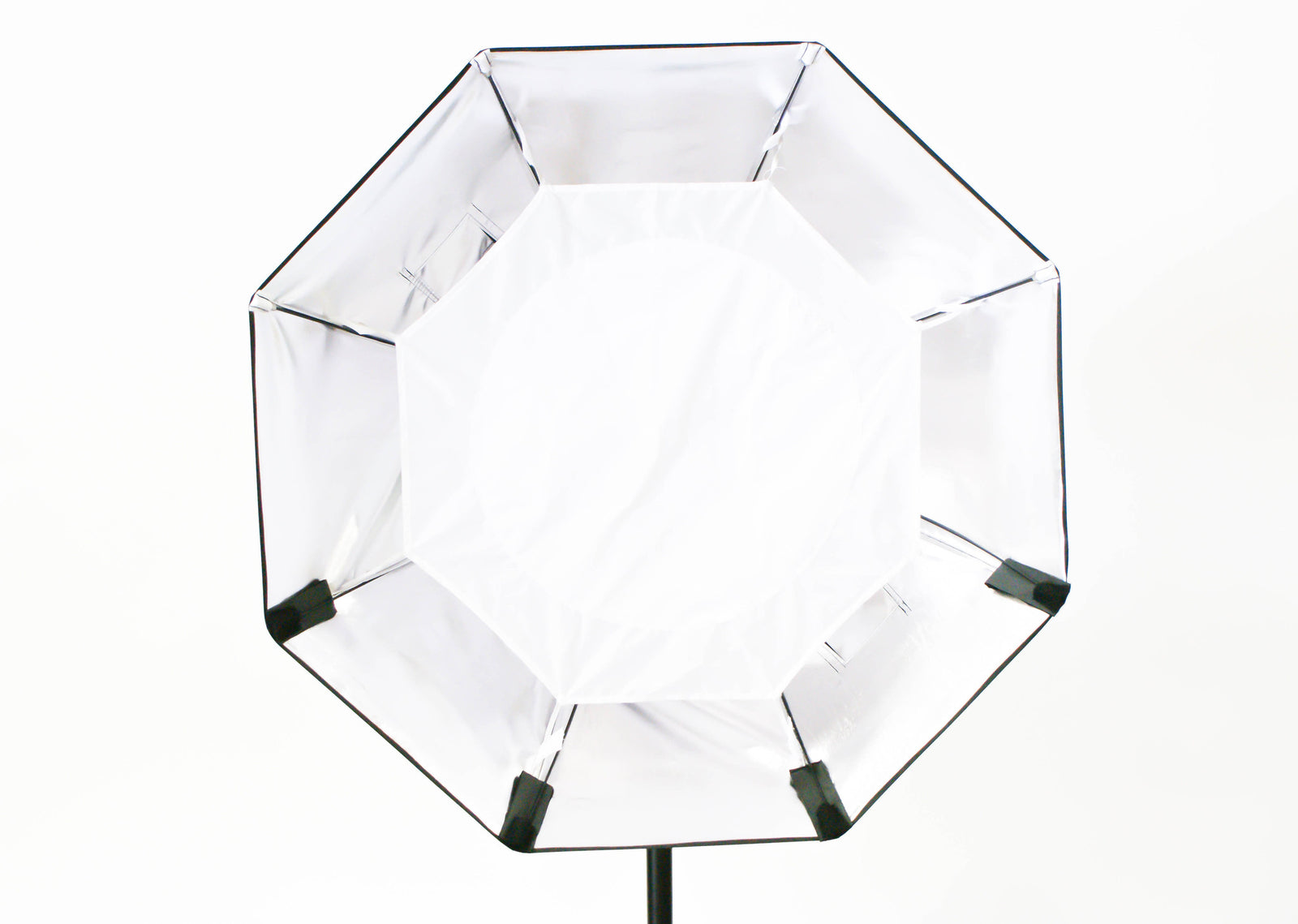

- Wide Array of Available Accessories
- Yoke Bar - Rotatable
- Sturdy Aluminum Housing
- Worldwide Voltage Compatible: AC 110V-240V 50 / 60 Hz ; DC 14.8V
- Weight: 10 pounds
- Dimensions: 12.75" length x 7" width x 8.5" height

*These ratings are taken when at 5,500k which is the brightest setting.



Spot (15 Degrees)

Flood (50 Degrees)


1 Meter

21,400 Lux / 1,990 FC

5,230Lux / 486 FC


6 Feet

8,850 Lux / 822 FC

1,560 Lux / 145 FC


9 Feet

4,030 Lux / 374 FC

781 Lux / 73 FC


12 Feet

2,300 Lux / 213 FC

464 Lux / 44 FC


source type led - fresnel
operation mode manual - light stand
power 165 watts
voltage DC 14.8V / AC 100-240V
color temperature 5500k Daylight
lens diameter 5 Inches
beam angle degree 15-50
number of LED -
DMX 512 controller yes
dimming range 100%-0%
battery mount -
mounting Standard 5/8" (16mm spigot)
power cable length 9.75 feet
power plug type U.S.
lamp dimensions (HxWxL) Inches 12.75" (length) x 7" (width) x 8.5" (height).
weight 10 pounds
material aluminum
color black
compliance CE
