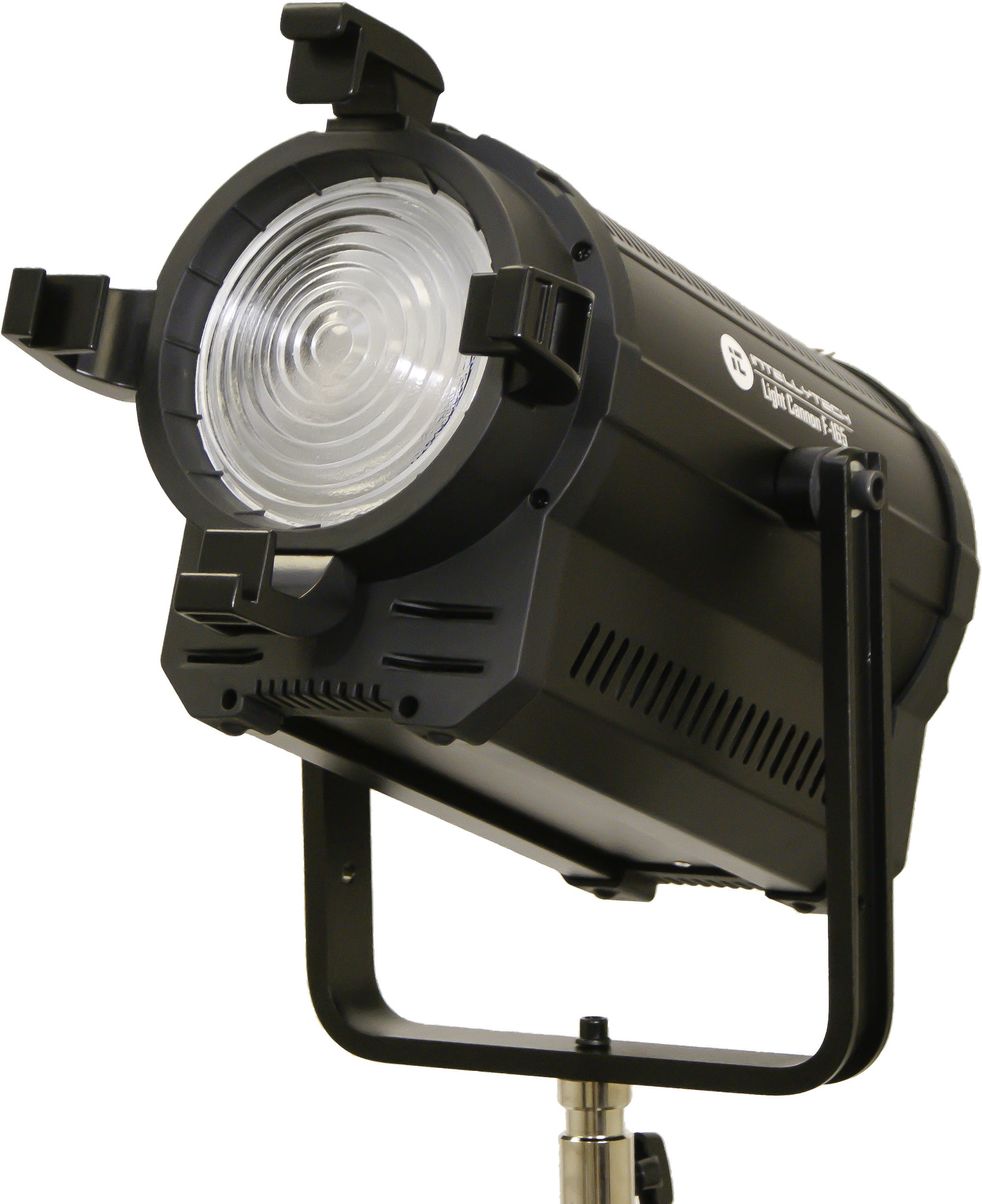

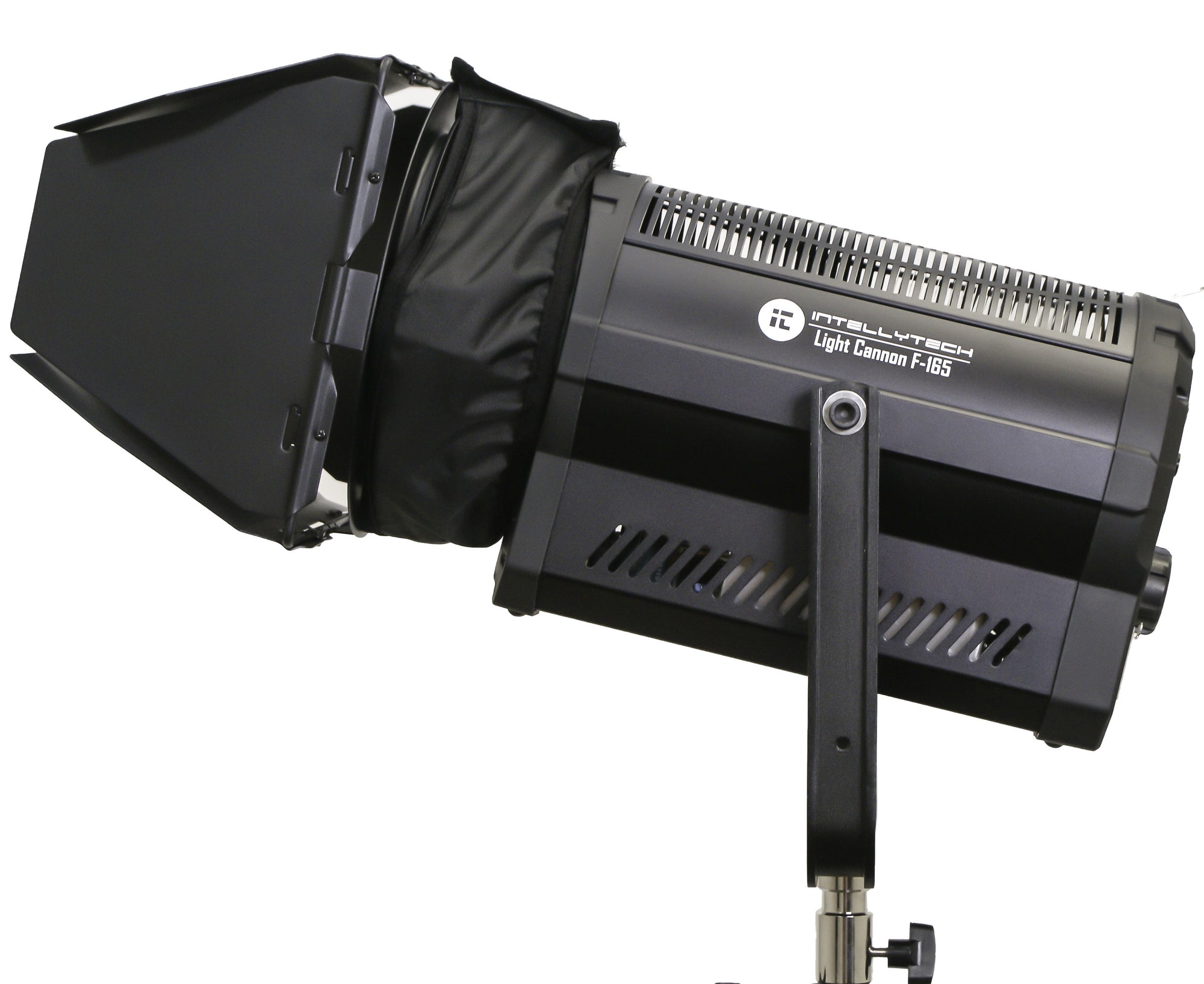

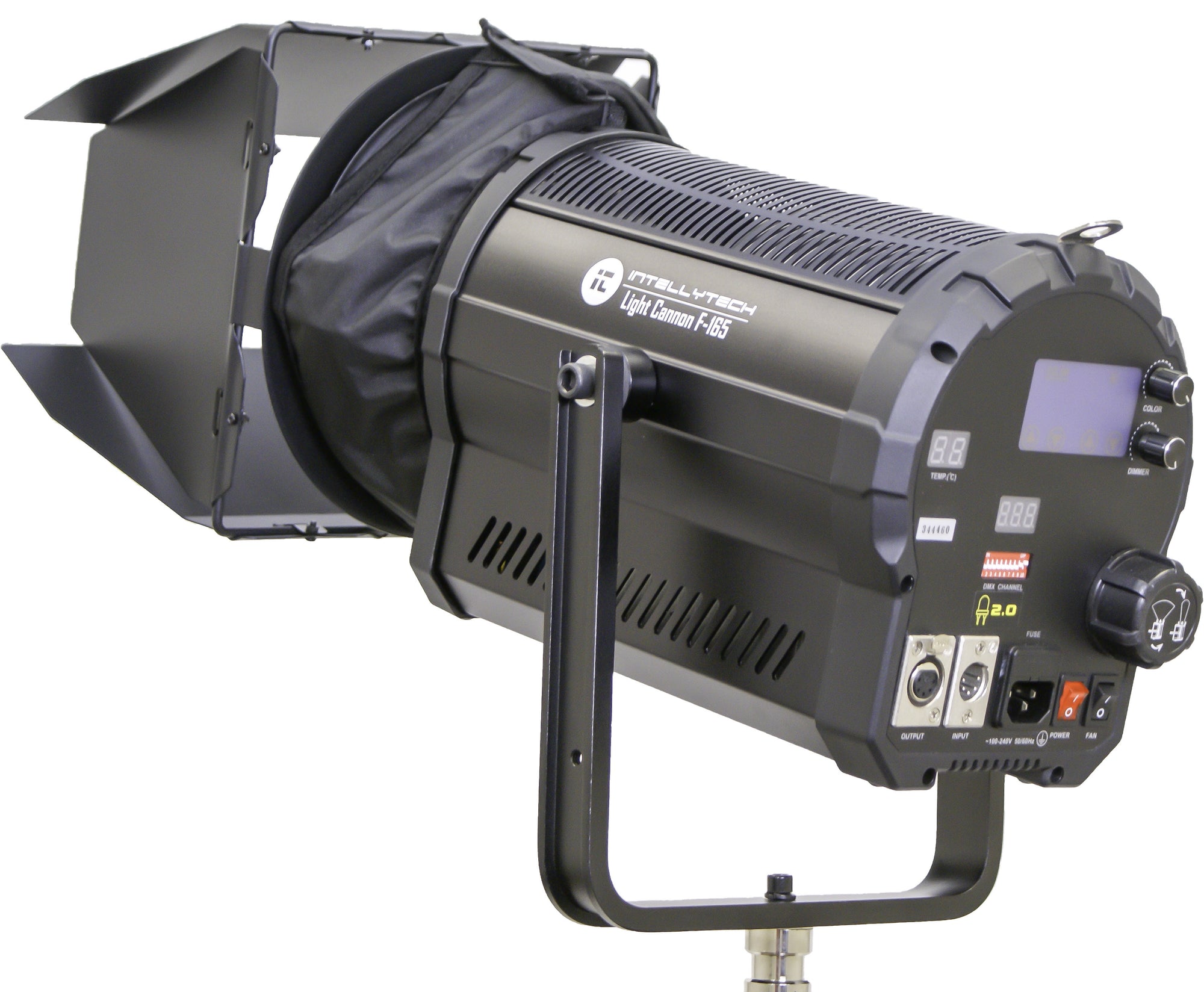

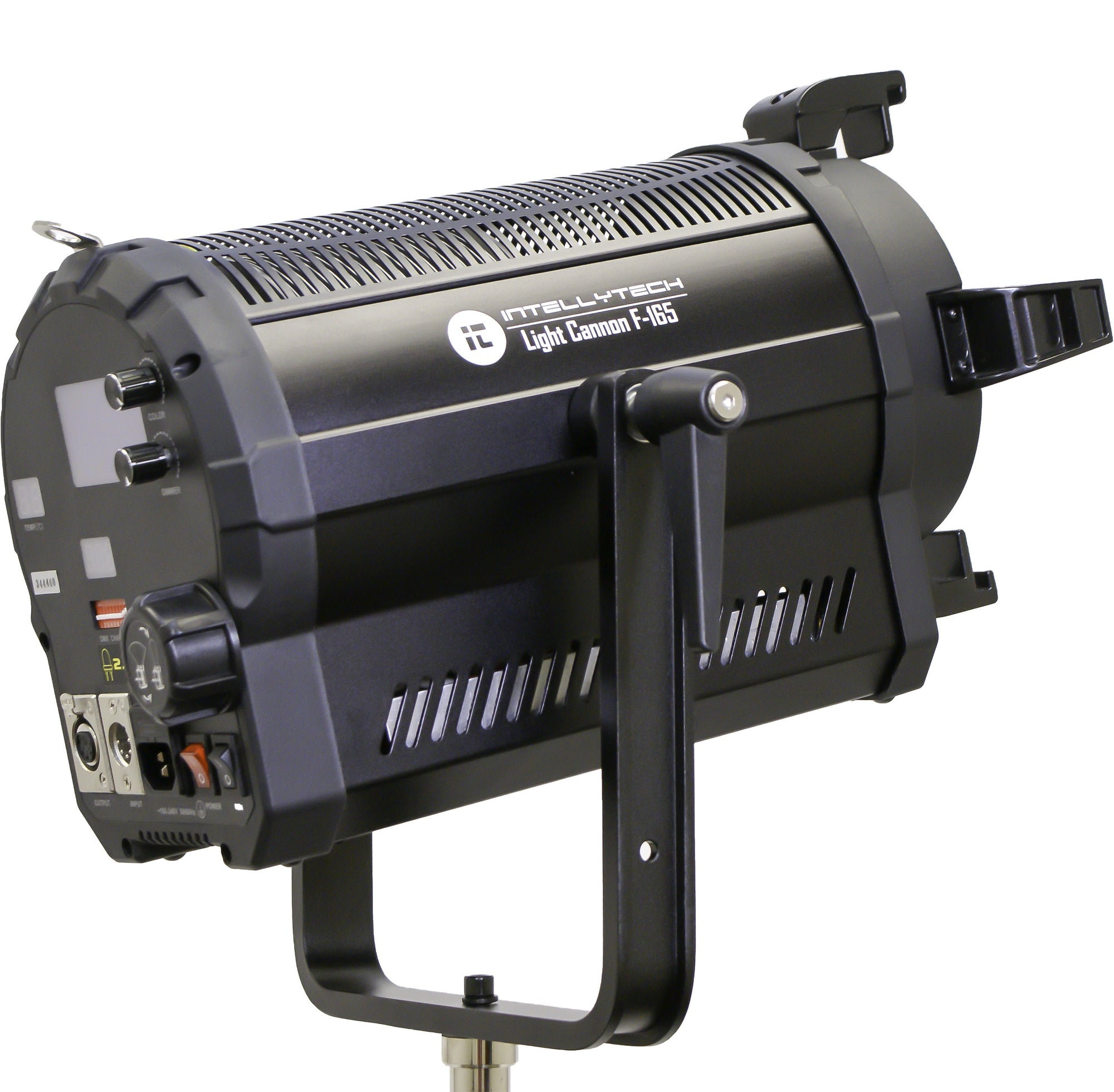

Light Cannon - F-165 Bi-Color - Portable, High Output 165W LED 5" Fresnel - W/ DMX


Hybrid Cooling

The Light Cannon series have a fan that can be turned on or off by the flick of a switch. When on, the unit has 100% power and the fan is very quiet. When the fan is turned off, the unit is completely silent and the output is reduced by 50%. The LED life span also reaches up to 50'000+ hours of use equivalent to 15 years of day by day use / 10 hours a day.

Strong & Lightweight Metal Frame

The metal body housing is made using stong, lightweight, and attractive aluminum with an amazing fit and finish, made for years of use in a professional environment. The metal is similar to the look, finish and feel of an Apple computer. The high strength tilt lock provides extremely secure locking, eliminating movement and slippage and ensuring that the fixtures will stay where you put them.

DMX Control

The Intellytech LED Fresnel Light Cannon are equipped with built in DMX 512 controller, allowing for the brightness and color temperature (on bi-color models) to be controlled remotely from a console making them perfect for TV studio installations, theaters, stages or conference rooms.

LCD Display

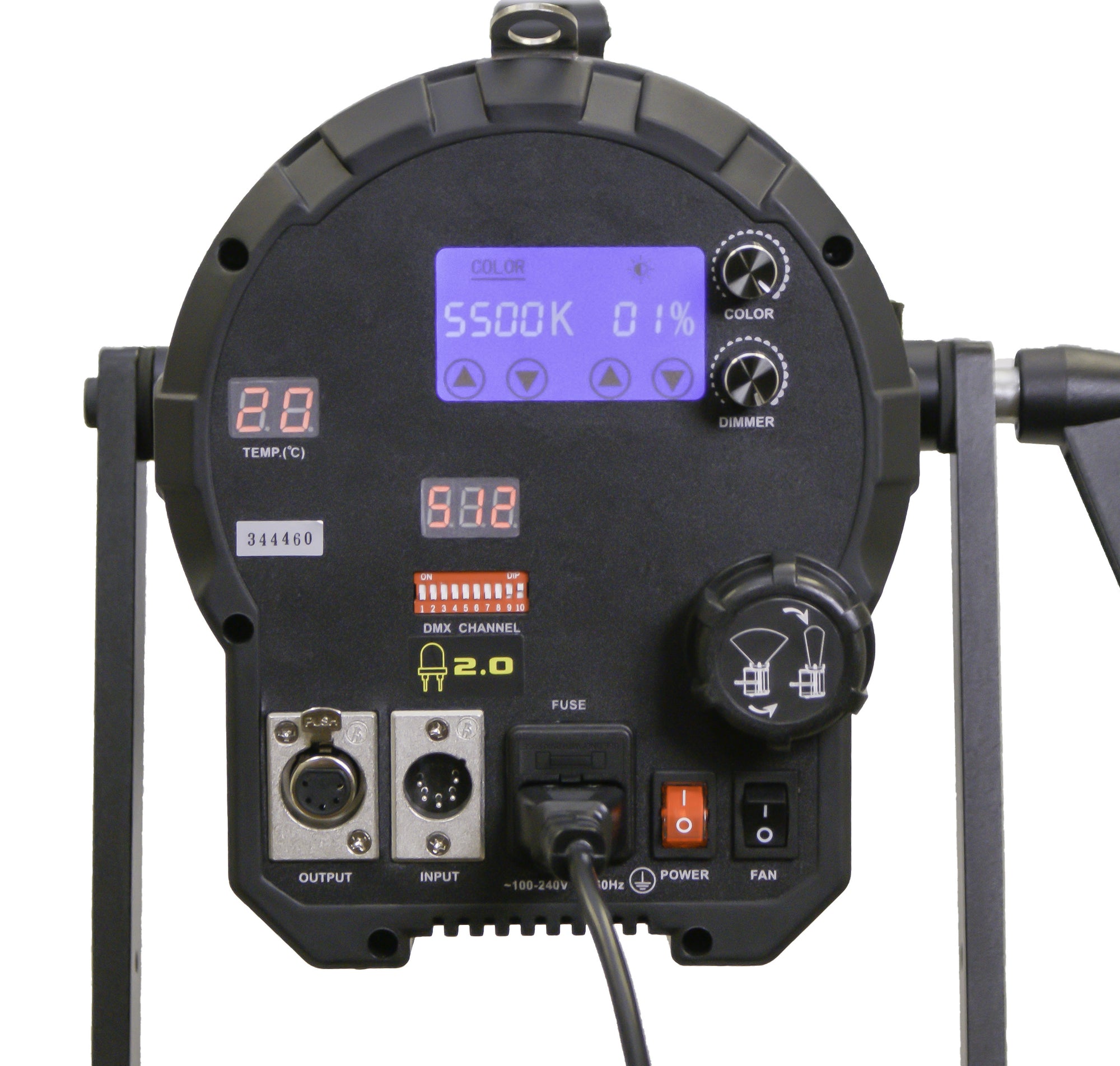

The Bi-Color Light Cannon's have a high-end, LCD Touch-Screen providing the user with a high degree of control and plenty of information. Select the color temperautre or brightness level using the LCD screen or by using the contorl knobs. The LCD provides the user with information regarding the the Brightness Level, Color Temperature, DMX Channel, and Interal Temperature.

High Output

Whether shooting in spot or flood mode, the F-165 provides the user with an extremely high output of 165 Watts. The Light Cannon Series are capabale of filming large areas. They can be used outdoor's in daylight with impressive results.

Ultra Wide Color Range & High CRI

The F-165 is a "fully tune-able" white light source, too, allowing you to match existing fixtures from a warm 3,000K to a blue 8,000K. The on-board controller allows manual intensity control from 0-100%. All of the functions can be controlled via DMX, an ideal feature for broadcast studios. On top of that the light is rated at a CRI of 92-95 to render beautiful and accurate colors on all ends of the spectrum



*Shooting slow motion? No problem! The Light Cannon LED series are flicker free and tested at 3'000 fps. The voltage is universal and works from 110v-240v.

Key features:
- LED power: 165W
- 3,000k-8,000k daylight color temperature
- adjustable beam angle spot 20° - flood 70°
- dimming 100% to 0% with no color shift
- high CRI 92-95+ RA: colors are rendered with high accuracy
- 5" lens diameter
- flicker free at high speed shooting rates.
- high efficiency thermal design
- Choose to have fan on or off
- 50'000+ rated LED life
- built-in DMX controller with XLR 5P connectors
- LCD Screen showing color temp and dimmer controls. (please note the single color versions don't have the blue LCD screen but have smaller digital displays instead)
- mechanical spot-flood mechanism
- wide array of accessories availabble
- yoke bar - rotatable
- sturdy aluminum housing for many years of use
- worldwide voltage compatible: AC 110V-240V 50 / 60 Hz ; DC 24V
- weight: 10 pounds
- dimensions: 12.75" length x 7" width x 8.5" height
*These ratings are taken when at 5,600k which is the brightest setting
20 Degrees 1 Meter / 16,700 Lux 6 Feet / 3,849 Lux 12 Feet / 953 Lux
70 Degrees 1 Meter / 4,950 Lux 6 Feet / 2,200 Lux 12 Feet / 359 Lux
source type led - fresnel
operation mode manual - light stand
power 165 watts
voltage DC 24V / AC 100-240V
color temperature Bi-Color 3000k-8000k and anywhere in-between
lens diameter 5 Inches
beam angle degree 20-70
number of LED -
DMX 512 controller yes
dimming range 100%-0%
battery mount -
mounting Standard 5/8" (16mm spigot)
power cable length 9.75 feet
power plug type U.S.
lamp dimensions (HxWxL) Inches 12.75" (length) x 7" (width) x 8.5" (height).
weight 10 pounds
material aluminum
color silver and black
compliance CE
Product Description
  • Item Number: 173000
  • 165 Watt, 5" Fresnel LED Light
  • Bi-Color - 3000k-8000k and anywhere in between
  • Choose to have fan on or off via switch. Very quiet with fan on and double the output. When fan is off, the output is reduced to 50% and is totally silent.
  • DMX Operational - Aluminum Frame
  • 20-70 Degree Capability
  • 12.75" (length) x 7" (width) x 8.5" (height). 10 pounds

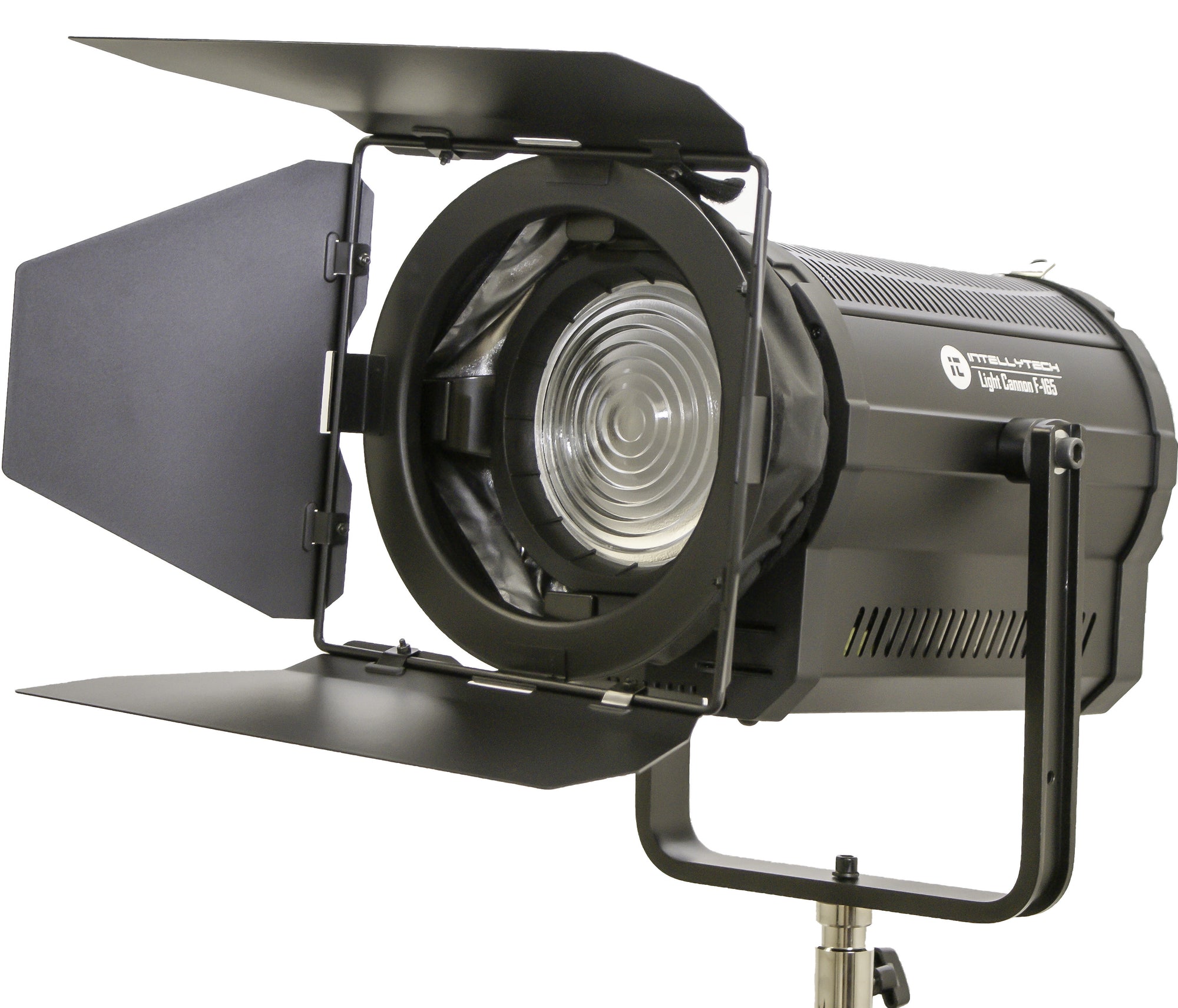

The F-165 Light Cannon is the perfect light for those looking for lots of power in a compact and portable package. It provides the user with an impressive amount of light via its 165 Watt LED Output. The Light Cannon Series' unique design allows the light to be placed back 10, 20, 30, 40 feet back and beyond due to its amazingly long throw. It's actually equivalent to a 1,650 Watt Quartz light but remains completely cool and has considerably more features and controls. The Light Cannon Bi-Color Series has a super wide color range from 3000k - 8000k making it perfect for today's high-end video cameras. The F-165 provides the user with a high degree of control via the light's focusable fresnel lens and barn-door combination. The light can be transferable anywhere from 20 degrees to 70 degrees and the barn-doors allow you to further shape your light. It provides a powerful, high quality light output and creates beautiful color rated at 95-99 CRI at various degrees in its 3,000-8000k range. This unit is the ideal combination of classic Fresnel characteristics and all the advantages of the latest LED technology. Read more below the pictures.
