Light Cannon - F-300 5500K - High Output 300W LED 7" Fresnel - W / DMX

Hybrid Cooling

The Light Cannon series have a fan that can be turned on or off by the flick of a switch. When on, the unit has 100% power and the fan is very quiet. When the fan is turned off, the unit is completely silent and the output is reduced by 50%. The LED life span also reaches up to 50'000+ hours of use equivalent to 15 years of day by day use / 10 hours a day.

Strong & Lightweight Metal Frame

The metal body housing is made using stong, lightweight, and attractive aluminum with an amazing fit and finish, made for years of use in a professional environment. The metal is similar to the look, finish and feel of an Apple computer. The high strength tilt lock provides extremely secure locking, eliminating movement and slippage and ensuring that the fixtures will stay where you put them.

DMX Control

Equipped with built in DMX 512 controller, allowing for the brightness and color temperature (on bi-color models) to be controlled remotely from a console making them perfect for TV studio installations, theaters, stages or conference rooms.

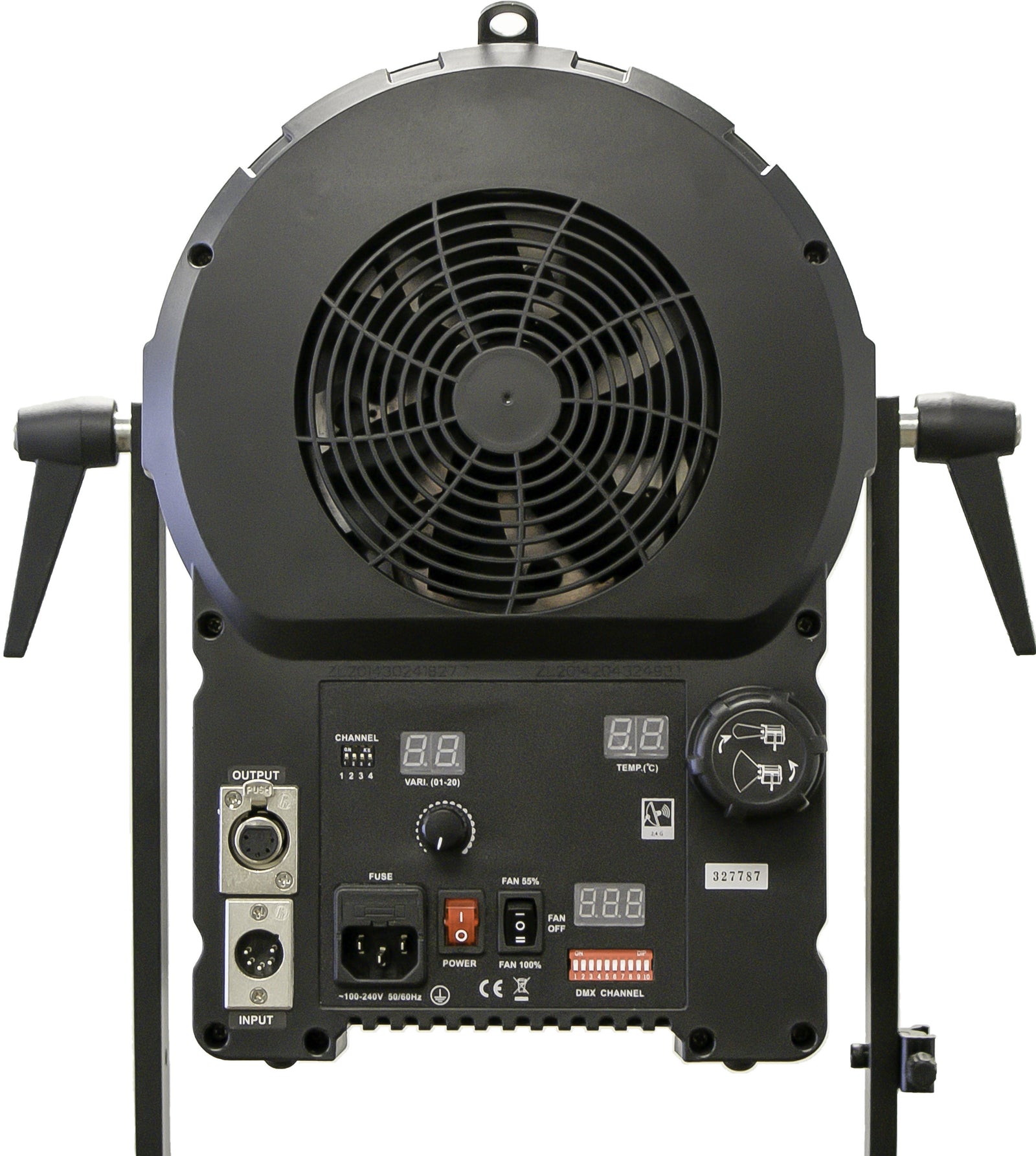

Digital Display

The single color Light Cannon's have 3 digital displays providing the user with the Brightness Level, DMX Channel, and Interal Temperature.

High Output & CRI

Whether shooting in spot or flood mode, the F-300 provides the user with an extremely high output of 300 Watts. The Light Cannon Series are capabale of filming large areas. They can be used outdoor's in daylight with impressive results. The light is rated at 95+ to render beautiful and accurate colors on all ends of the spectrum



*Shooting slow motion? No problem! The Light Cannon LED series are flicker free and tested at 3'000 fps. The voltage is universal and works from 110v-240v.


Key features:
- LED power: 300W
- 5600K daylight color temperature
- adjustable beam angle spot 15° - flood 50°
- dimming 100% to 0% with no color shift
- high CRI 95+ RA: colors are rendered with high accuracy
- 7" lens diameter
- flicker free at high speed shooting rates.
- high efficiency thermal design
- Choose to have fan on or off
- 50'000+ rated LED life
- built-in DMX controller with XLR 3P connectors
- LCD Screen showing color temp and dimmer controls.
- mechanical spot-flood mechanism
- wide array of accessories availabble
- yoke bar - rotatable
- sturdy aluminum housing for many of use
- worldwide voltage compatible: AC 110V-240V 50 / 60 Hz ; DC 24V
- weight: 23 pounds
- dimensions: 15.5" length x 8" width x 13" height

Output:

Distance

Spot (15 Degrees)

Flood (50 Degrees)

Color

1 Meter

41,000 Lux / 5,810 FC

7,230Lux / 672 FC

5500k

6 Feet

14,300Lux / 1,330 FC

3,020 Lux / 281 FC

5500k

9 Feet

7,190 Lux / 668 FC

1,690 Lux /157 FC

5500k

12 Feet

4,060Lux / 377 FC

953 Lux / 89 FC

5500k



Package Includes:
1 x Intellytech Light Cannon LED Fresnel 300W 5600K DMX
1 x metal barn-doors 4 leaf
1 x yoke bar with combo mount 5/8" & 1-1/4"
1 x power cable with USA plug

1 year warranty
source type led - fresnel
operation mode manual - light stand
power 300 watts
voltage DC 24V / AC 100-240V
color temperature 5600K Daylight
lens diameter 7 Inches
beam angle degree 20-70
number of LED -
DMX 512 controller yes
dimming range 100%-0%
battery mount -
mounting Standard 5/8"
power cable length 9.75 feet
power plug type U.S.
lamp head dimensions (HxWxL) mm 15.5" x 8" x 13"
weight 23 pounds
material aluminum
color silver and black
compliance CE































Product Description
  • Item Number: 173003
  • 300 Watt, 7" Fresnel LED Light
  • 5500k
  • Choose to have fan on or off via switch. Nearly 100% silent with fan on and double the output. When fan off 50% output.
  • DMX Operational - Aluminum Frame
  • 15-50 Degree Capability
  • 15.5" (length) x 8" (width) x 13" (height). 23 pounds

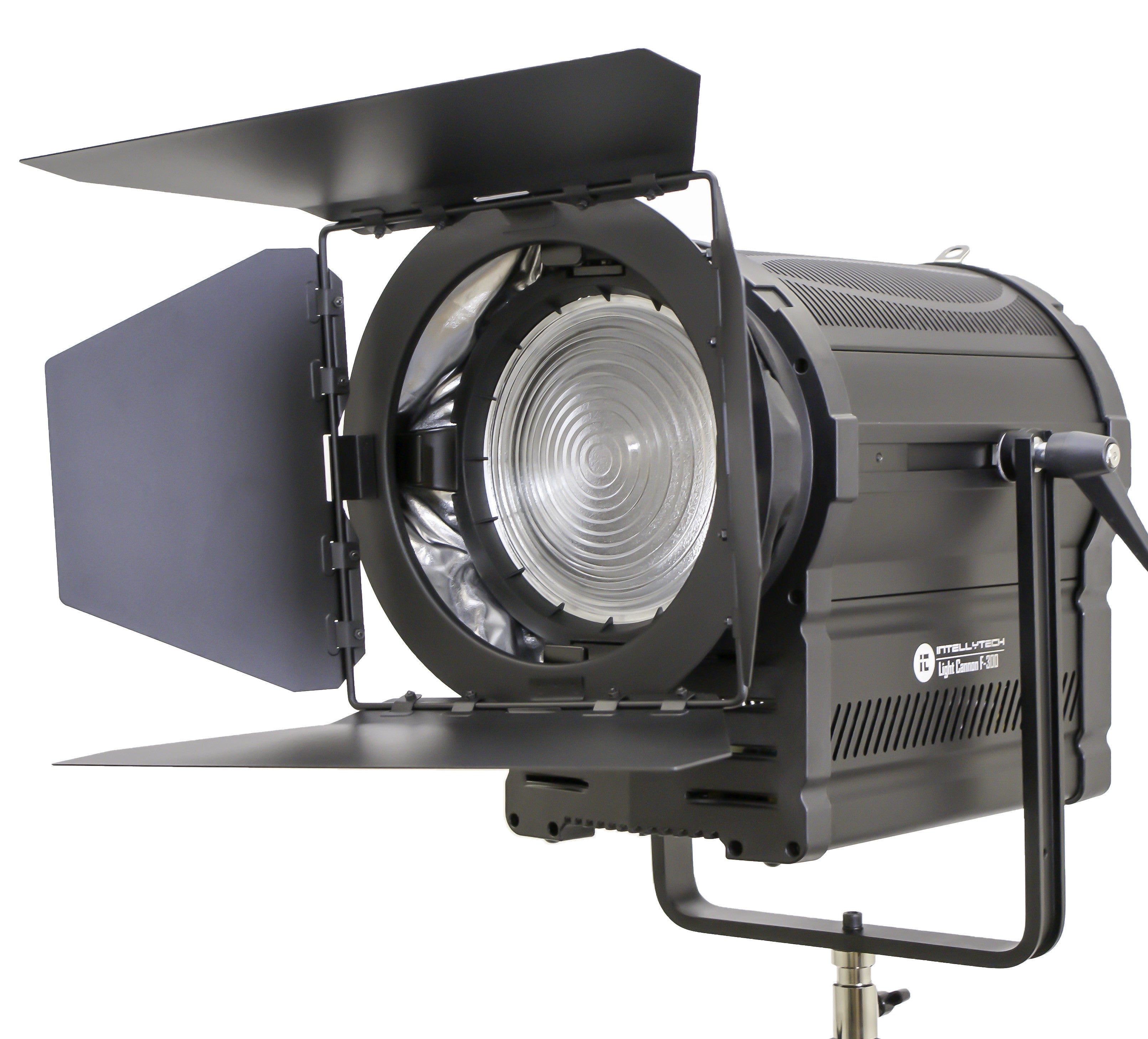

The F-300 Light Cannon provides the user with an immense amount of light via its 300 Watt LED Output. It's actually equivalent to a 2,000 Watt Tungsten light but remains completely cool and has considerably more features and controls.  The F-300 provides the user with a high degree of control via the light's focusable fresnel lens and barn-door combination. The light can be transferable anywhere from 15 degrees to 50 degrees and the barn-doors allow you to further shape your light. It provides a powerful, high quality light output and creates beautiful color rated at 95+ CRI. This unit is the ideal combination of classic Fresnel characteristics and all the advantages of the latest LED technology. Read more below the pictures.
$1,089.00
