Light Cannon - F-300 Bi-Color - High Output 300W LED 7" Fresnel - W/ DMX

Taxes and shipping calculated at checkout
SKU: 173002
Out of stock - Contact us to order on Back-Order
F-300 LED Fresnel Light Cannon - Bi-Color W/ DMX

Stock Notification

Get notified when this product is available again

F-300 LED Fresnel Light Cannon - Bi-Color W/ DMX

Light Cannon - F-300 Bi-Color - High Output 300W LED 7" Fresnel - W/ DMX



  • Item Number: 173002
  • 300 Watt, 7" Fresnel LED Light
  • Bi-Color - 3000k-8000k and anywhere in between
  • Choose to have fan on or off via switch. Nearly 100% silent with fan on and double the output. When fan off 50% output.
  • DMX Operational - Aluminum Frame
  • 15-50 Degree Capability
  • 15.5" (length) x 8" (width) x 13" (height). 23 pounds

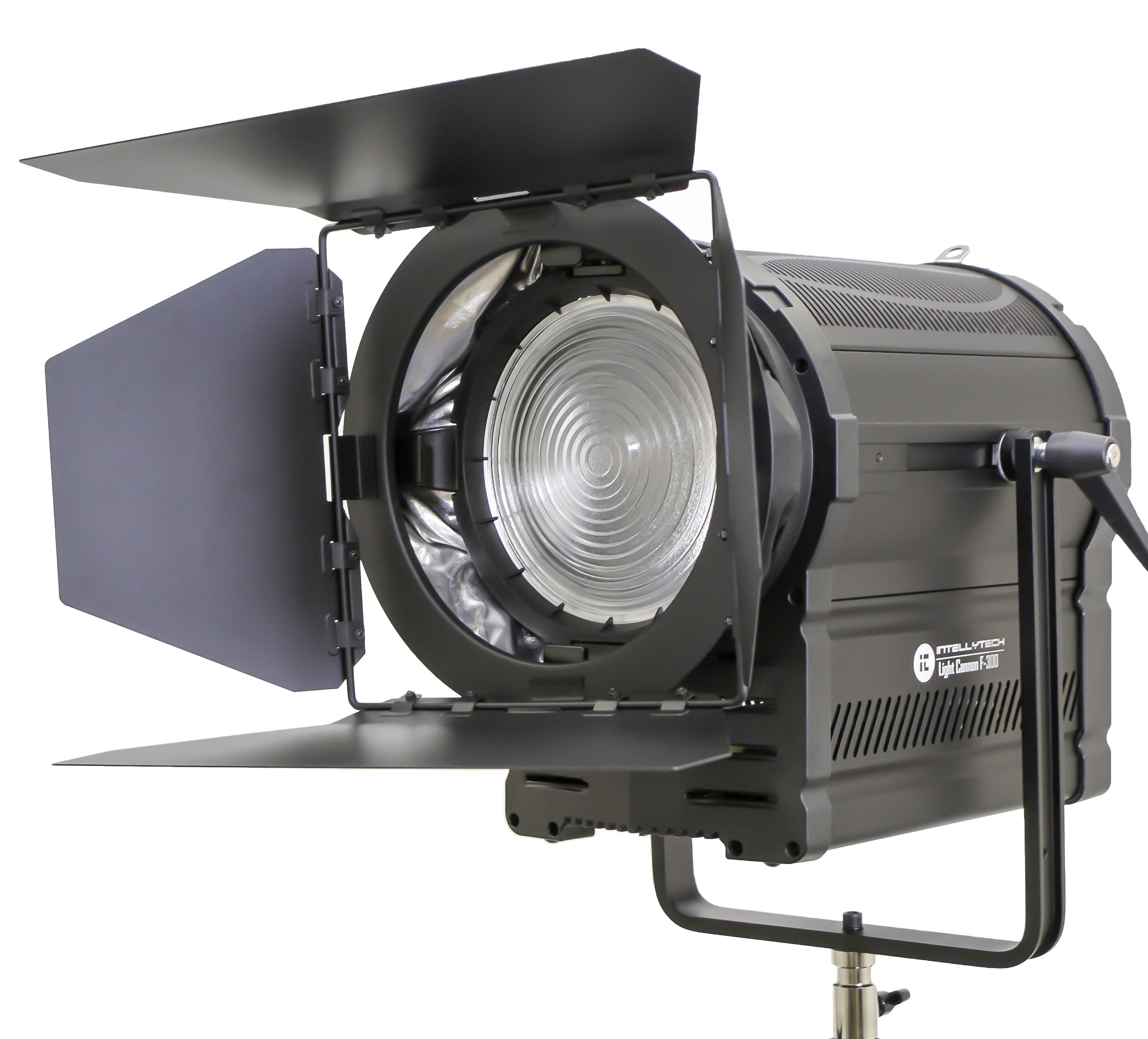

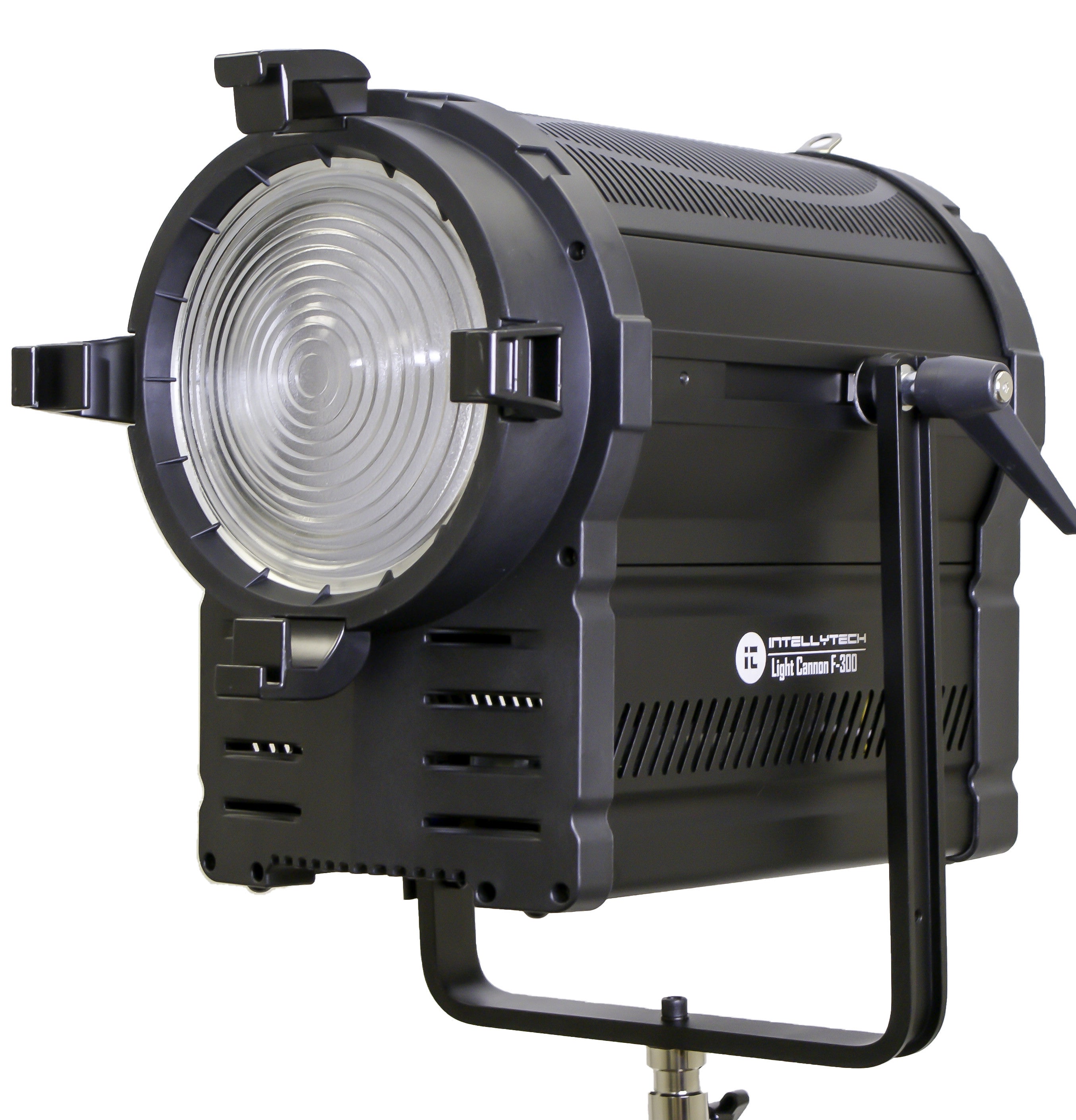

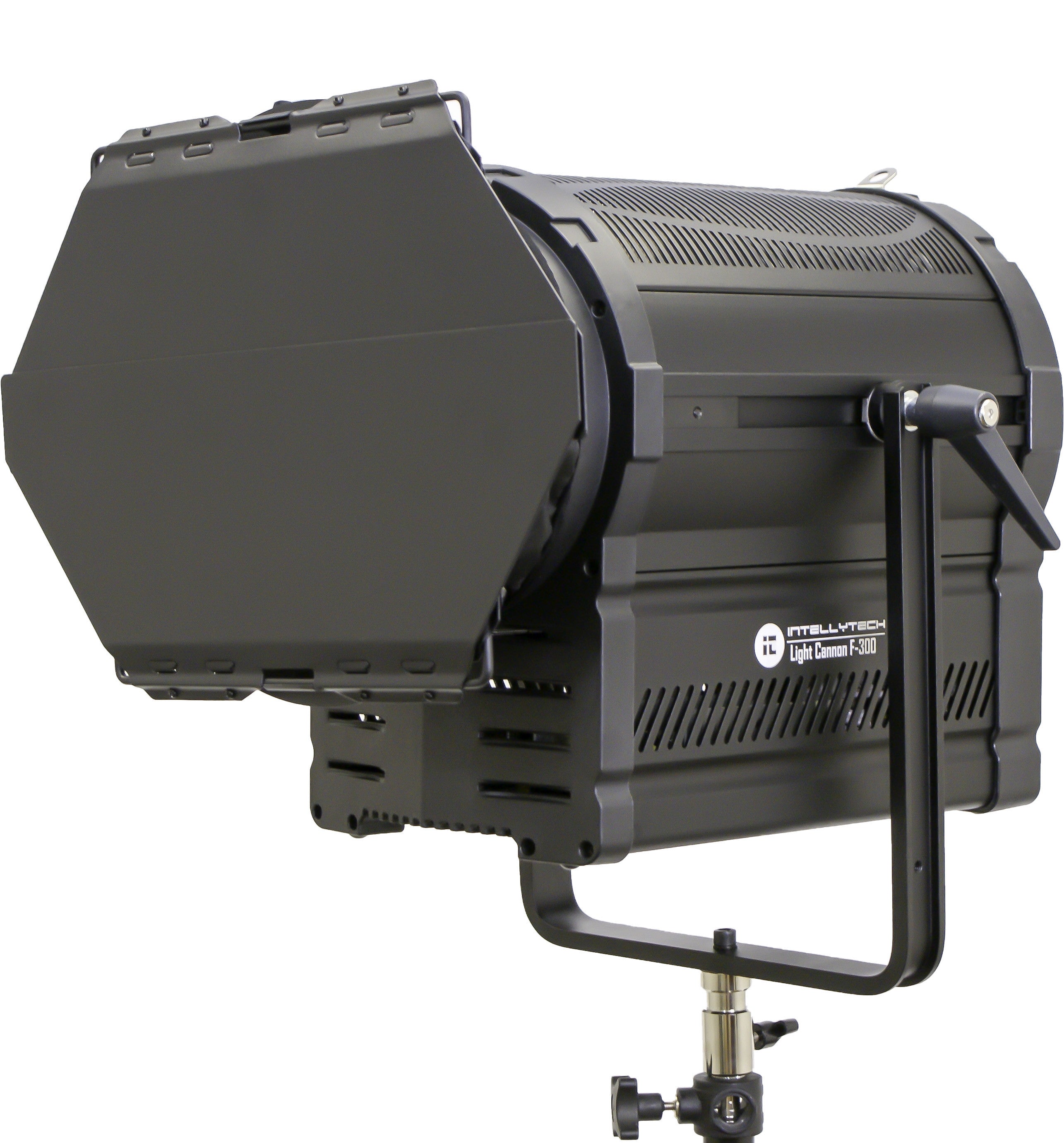

The F-300 Light Cannon provides the user with an immense amount of light via its 300 Watt LED Output. It's actually equivalent to a 2,000 Watt Tungsten light but remains completely cool and has considerably more features and controls. The Light Cannon Bi-Color Series has a super wide color range from 3000k - 8000k making it perfect for today's high-end video cameras. The F-300 provides the user with a high degree of control via the light's focusable fresnel lens and barn-door combination. The light can be transferable anywhere from 15 degrees to 50 degrees and the barn-doors allow you to further shape your light. It provides a powerful, high quality light output and creates beautiful color rated at 95+ CRI. This unit is the ideal combination of classic Fresnel characteristics and all the advantages of the latest LED technology.
Additional Info

Hybrid Cooling

The Light Cannon series have a fan that can be turned on or off by the flick of a switch. When on, the unit has 100% power and the fan is very quiet. When the fan is turned off, the unit is completely silent and the output is reduced by 50%. The LED life span also reaches up to 50'000+ hours of use equivalent to 15 years of day by day use / 10 hours a day.

Strong & Lightweight Metal Frame

The metal body housing is made using stong, lightweight, and attractive aluminum with an amazing fit and finish, made for years of use in a professional environment. The metal is similar to the look, finish and feel of an Apple computer. The high strength tilt lock provides extremely secure locking, eliminating movement and slippage and ensuring that the fixtures will stay where you put them.

DMX Control

Equipped with built in DMX 512 controller, allowing for the brightness and color temperature (on bi-color models) to be controlled remotely from a console making them perfect for TV studio installations, theaters, stages or conference rooms.

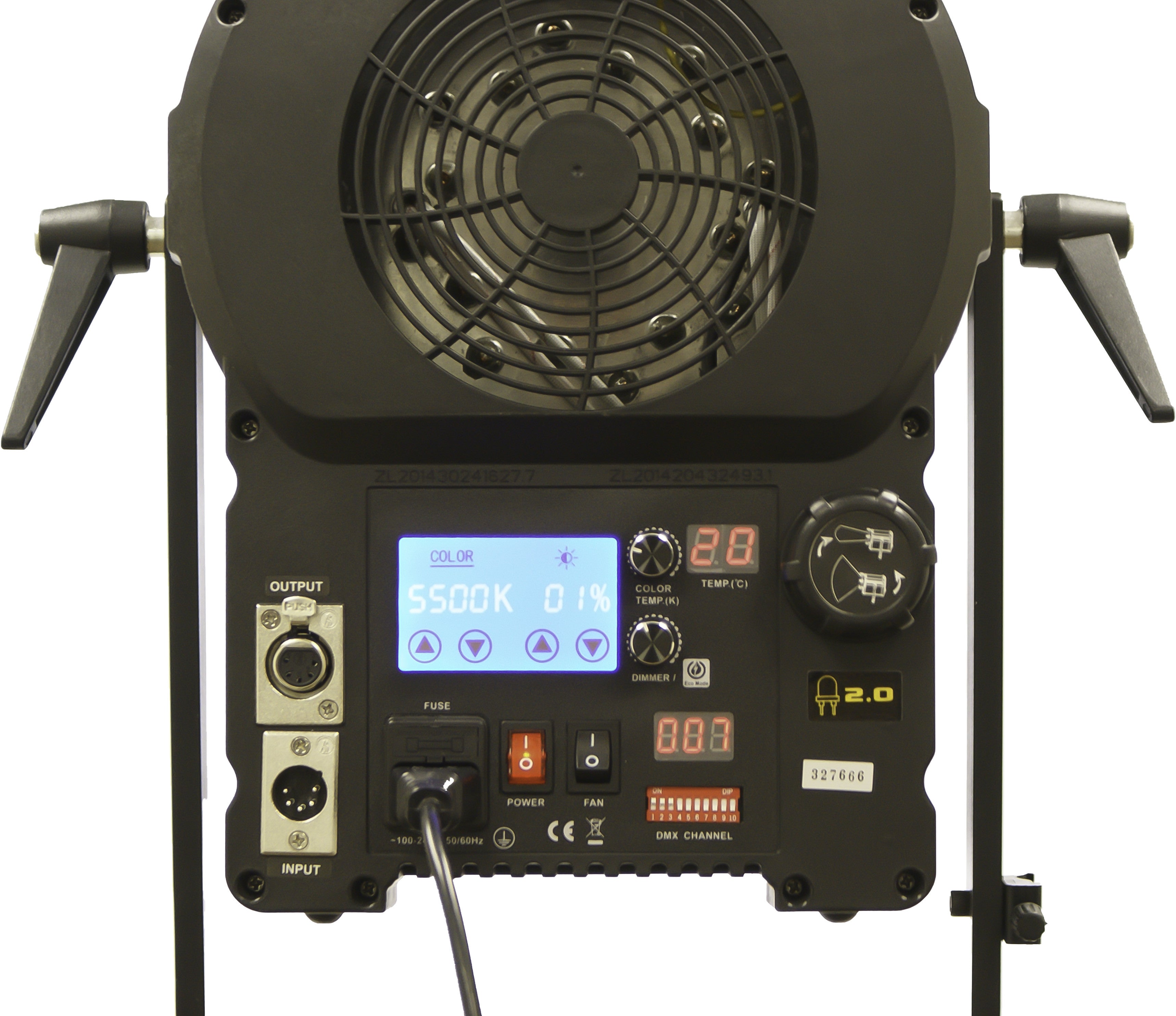

LCD Display

The Bi-Color Light Cannon's have a high-end, LCD Touch-Screen providing the user with a high degree of control and plenty of information. Select the color temperautre or brightness level using the LCD screen or by using the contorl knobs. The LCD provides the user with information regarding the the Brightness Level, Color Temperature, DMX Channel, and Interal Temperature.

High Output

Whether shooting in spot or flood mode, the F-300 provides the user with an extremely high output of 300 Watts. The Light Cannon Series are capabale of filming large areas. They can be used outdoor's in daylight with impressive results.

Ultra Wide Color Range & High CRI

The F-300 is a "fully tune-able" white light source, too, allowing you to match existing fixtures from a warm 3,000K to a blue 8,000K. The on-board controller allows manual intensity control from 0-100%. All of the functions can be controlled via DMX, an ideal feature for broadcast studios. On top of that the light is rated at a CRI of 95-99 to render beautiful and accurate colors on all ends of the spectrum


*Shooting slow motion? No problem! The Light Cannon LED series are flicker free and tested at 3'000 fps. The voltage is universal and works from 110v-240v.

Key features:
- LED power: 300W
- 3000k-8000k - Vast Color Range. Brightest at 5500k
- adjustable beam angle spot 20° - flood 70°
- dimming 100% to 0% with no color shift
- high CRI 95+ RA: colors are rendered with high accuracy
- 7" lens diameter
- flicker free at high speed shooting rates.
- high efficiency thermal design
- Choose to have fan on or off
- 50'000+ rated LED life
- built-in DMX controller with XLR 5P connectors
- LCD Screen showing color temp and dimmer controls.
- mechanical spot-flood mechanism
- wide array of accessories availabble
- yoke bar - rotatable
- sturdy aluminum housing for many of use
- worldwide voltage compatible: AC 110V-240V 50 / 60 Hz ; DC 24V
- weight: 23 pounds
- dimensions: 15.5" length x 8" width x 13" height
Output: *These ratings are taken when at 5,500k which is the brightest setting


Spot (15 Degrees)

Flood (50 Degrees)


1 Meter

37,400 Lux / 3,470 FC

9,500 Lux / 883 FC


6 Feet

11,400 Lux / 1,050 FC

3,010 Lux / 280 FC


9 Feet

5,680 Lux / 528 FC

1,610 Lux /150 FC


12 Feet

3,260Lux / 301 FC

942 Lux / 88 FC


Package Includes:
1 x Intellytech Light Cannon LED Fresnel 300W Bi-Color DMX
1 x metal barn-doors 4 leaf - on & off in seconds
1 x yoke bar with combo mount 5/8" & 1-1/4" (16mm spigot)
1 x power cable with USA plug
1 year warranty
source type led - fresnel
operation mode manual - light stand
power 300 watts
voltage DC 24V / AC 100-240V
color temperature Bi-Color - Adjustable from 3200K-5600K
lens diameter 7 Inches
beam angle degree 20-70
number of LED -
DMX 512 controller yes
dimming range 100%-0%
battery mount -
mounting Standard 5/8"
power cable length 9.75 feet
power plug type U.S.
lamp head dimensions (HxWxL) mm 15.5" x 8" x 13"
weight 23 pounds
material aluminum
color silver and black
compliance CE
