Light Cannon - F-485 5500k - High Output 485W LED 7" Fresnel - W/ DMX

Price
$1,499
Taxes and shipping calculated at checkout
SKU: 173005
Out of stock - Contact us to order on Back-Order
Light Cannon - F-485 5500k - High Output 485W LED 7" Fresnel - W/ DMX

Stock Notification

Get notified when this product is available again

Light Cannon - F-485 5500k - High Output 485W LED 7" Fresnel - W/ DMX

Light Cannon - F-485 5500k - High Output 485W LED 7" Fresnel - W/ DMX

Price
$1,499

PRODUCT INFORMATION

Description

**Please note that we have released an updated version of the F-485 called the Light Cannon Pro Daylight and Light Cannon Pro Bi Color II. The new models are significantly brighter, have a much improved build quality, and are packed with loads of new features. To see more about the new Light Cannon Pro models, click HERE.


  • Item Number: 173005
  •
  • 485 Watt, 7" Fresnel LED Light
  • 5500k Daylight
  • Choose to have fan on or off via switch. Run Unit at 100% Output while fan is completely off or run fan at 55% with 100% output for long run times and super low noise levels
  • DMX Operational - Aluminum Frame
  • 35-65 Degree Capability
  • 15.5" (length) x 8" (width) x 13" (height). 25 pounds
The F-485 Light Cannon is our most powerful Fresnel unit providing the user with an immense amount of light via its 485 Watt LED Output. It's actually equivalent to a 3,500 Watt Tungsten light but remains completely cool and has considerably more features and controls. The F-485 provides the user with a high degree of control via the light's focusable fresnel lens and barn-door combination. The light can be transferable anywhere from 35 degrees to 65 degrees and the barn-doors allow you to further shape your light. It provides a powerful, high quality light output and creates beautiful color rated at a 95 CRI/TLCI. This unit is the ideal combination of classic Fresnel characteristics and all the advantages of the latest LED technology. Read more below the pictures.
Additional Info

Hybrid Cooling

The Light Cannon series have a fan that can be turned on or off by the flick of a switch. Choose to have fan on or off via switch. Run Unit at 100% Output while fan is completely off or run fan at 55% with 100% output for long run times and super low noise levels. The LED life span also reaches up to 50'000+ hours of use equivalent to 15 years of day by day use / 10 hours a day.

Strong & Lightweight Metal Frame

The metal body housing is made using strong, lightweight, and attractive aluminum with an amazing fit and finish, made for years of use in a professional environment. The metal is similar to the look, finish and feel of an Apple computer. The high strength tilt lock provides extremely secure locking, eliminating movement and slippage and ensuring that the fixtures will stay where you put them.

DMX Control

Equipped with DMX, allowing for the brightness to be controlled remotely from a console making them perfect for TV studio installations, theaters, stages or conference rooms.

Digital Display

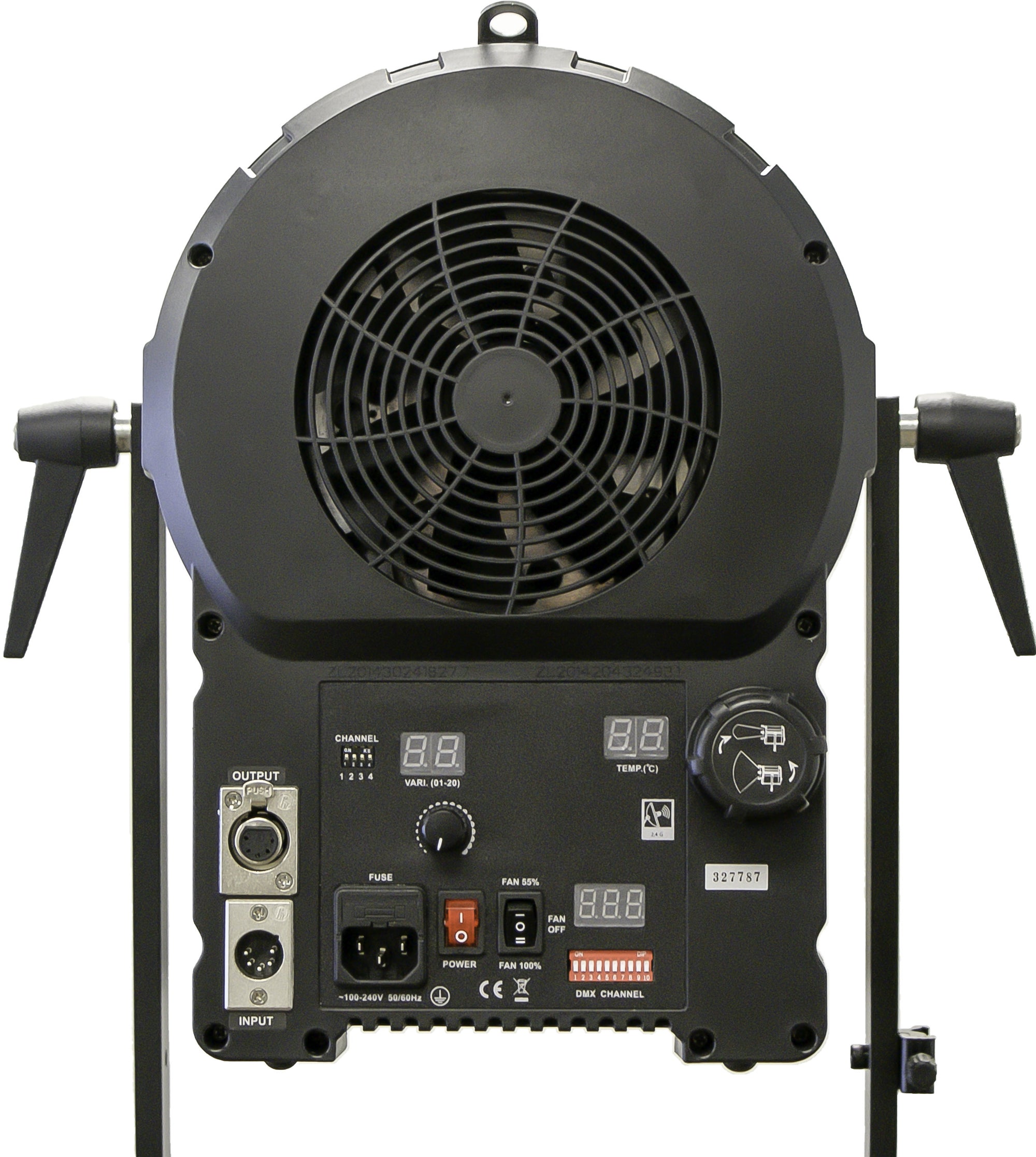

The single color Light Cannon's have 3 digital displays providing the user with the Brightness Level, DMX Channel, and Internal Temperature.

High Output & CRI

Whether shooting in spot or flood mode, the F-485 provides the user with an extremely high output of 485 Watts. The Light Cannon Series are capable of filming large areas while generating no heat. They can be used outdoor's in daylight with impressive results. The light is rated at a CRI/TLCI of 95+ to render beautiful and accurate images.

*Shooting slow motion? No problem! The Light Cannon LED series are flicker free and tested at 3'000 fps. The voltage is universal and works from 110v-240v.



Key features:
- LED power: 485W
- 5500k Daylight
- adjustable beam angle spot 15° - flood 50°
- dimming 100% to 0% with no color shift
- high CRI/TLCI 95+: colors are rendered with high accuracy
- 7" lens diameter
- flicker free at high speed shooting rates.
- high efficiency thermal design
- Choose to have fan on or off
- 50'000+ rated LED life
- built-in DMX controller with XLR 5P connectors
- Various digital displays showing Brightness Level (1-20), DMX Channel, and Internal Temperature)
- mechanical spot-flood mechanism
- wide array of accessories available
- yoke bar - rotatable
- sturdy aluminum housing for many of use
- worldwide voltage compatible: AC 110V-240V 50 / 60 Hz ; DC 24V
- weight: 25 pounds
- dimensions: 15.5" length x 8" width x 13" height

Photometrics
CRI/TLCI 95+
Output:

Distance

Spot (35 Degrees)

Flood (65 Degrees)

Color

1 Meter

50,700 Lux / 4,710 FC

16,800 Lux / 1,560 FC

5500k

6 Feet

15,100 Lux / 1,400 FC

4,540 Lux / 422 FC

5500k

9 Feet

8,150Lux / 757 FC

2,160 Lux /200 FC

5500k

12 Feet

4,240 Lux / 394 FC

1,440 Lux / 134 FC

5500k


Specs
Package Includes:
1 x Intellytech Light Cannon LED Fresnel 485W Daylight DMX
1 x metal barn-doors 4 leaf - on & off in seconds
1 x yoke bar with combo mount 5/8" & 1-1/4" (16mm spigot)
1 x power cable with USA plug

1 year warranty
source type led - fresnel
operation mode manual - light stand
power 485 watts
voltage DC 24V / AC 100-240V
color temperature 5600k Daylight
lens diameter 7 Inches
beam angle degree 20-70
number of LED -
DMX 512 controller yes
dimming range 100%-0%
battery mount -
mounting Standard 5/8"
power cable length 9.75 feet
power plug type U.S.
lamp head dimensions (HxWxL) mm 15.5" x 8" x 13"
weight 25 pounds
material aluminum
color black
compliance CE
