**Please note that we have released an updated version of the F-485 called the Light Cannon Pro Daylight and Light Cannon Pro Bi Color II. The new models are significantly brighter, have a much improved build quality, and are packed with loads of new features. To see more about the new Light Cannon Pro models, click HERE.

  • Item Number: 173004
  • 485 Watt, 7" Fresnel LED Light
  • Bi-Color - 3000k-8000k and anywhere in between
  • Choose to have fan on or off via switch. Run Unit at 100% Output while fan is completely off or run fan at 55% with 100% output for long run times and super low noise levels
  • DMX Operational - Aluminum Frame
  • 35-65 Degree Capability
  • 15.5" (length) x 8" (width) x 13" (height). 25 pounds

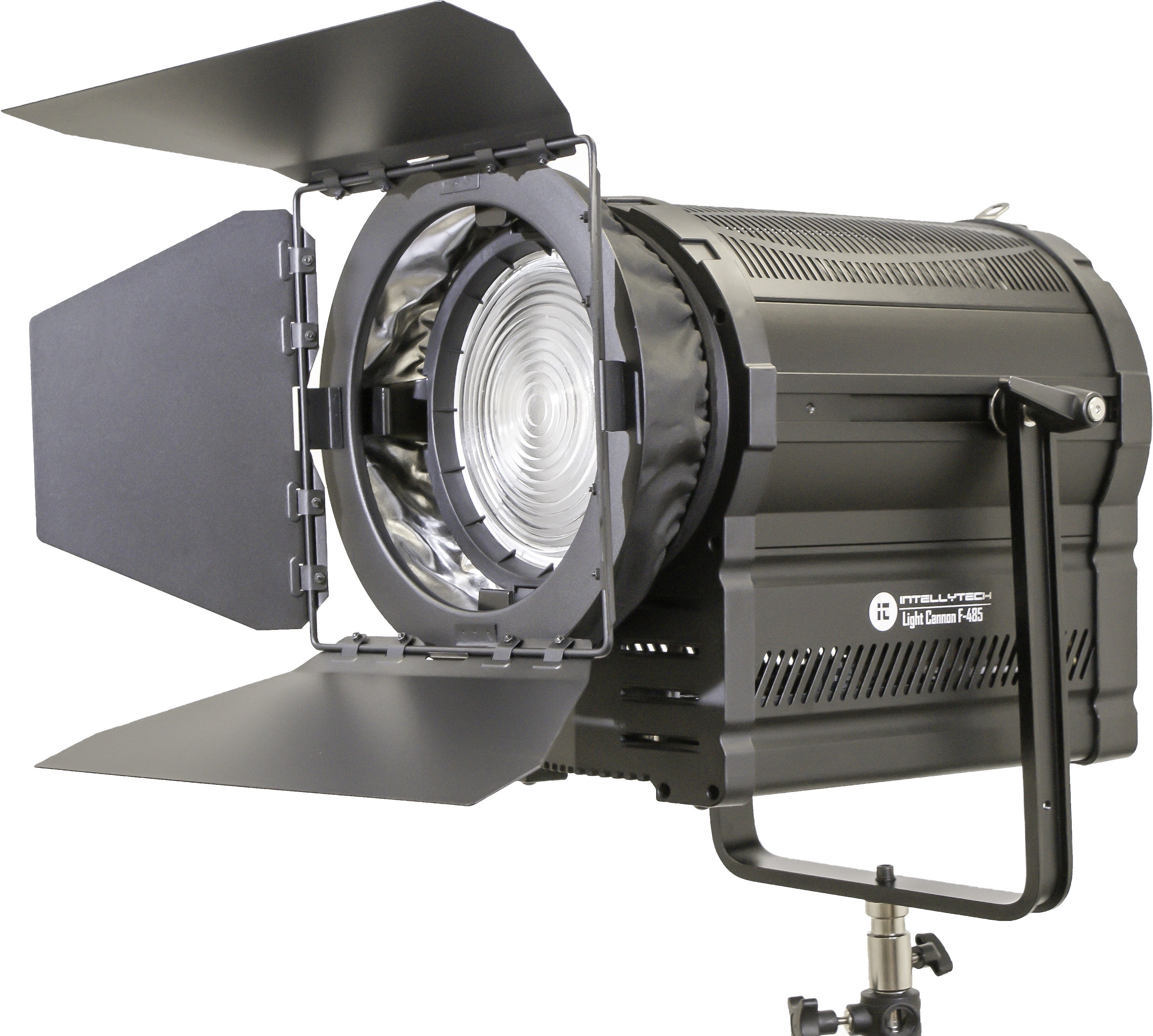

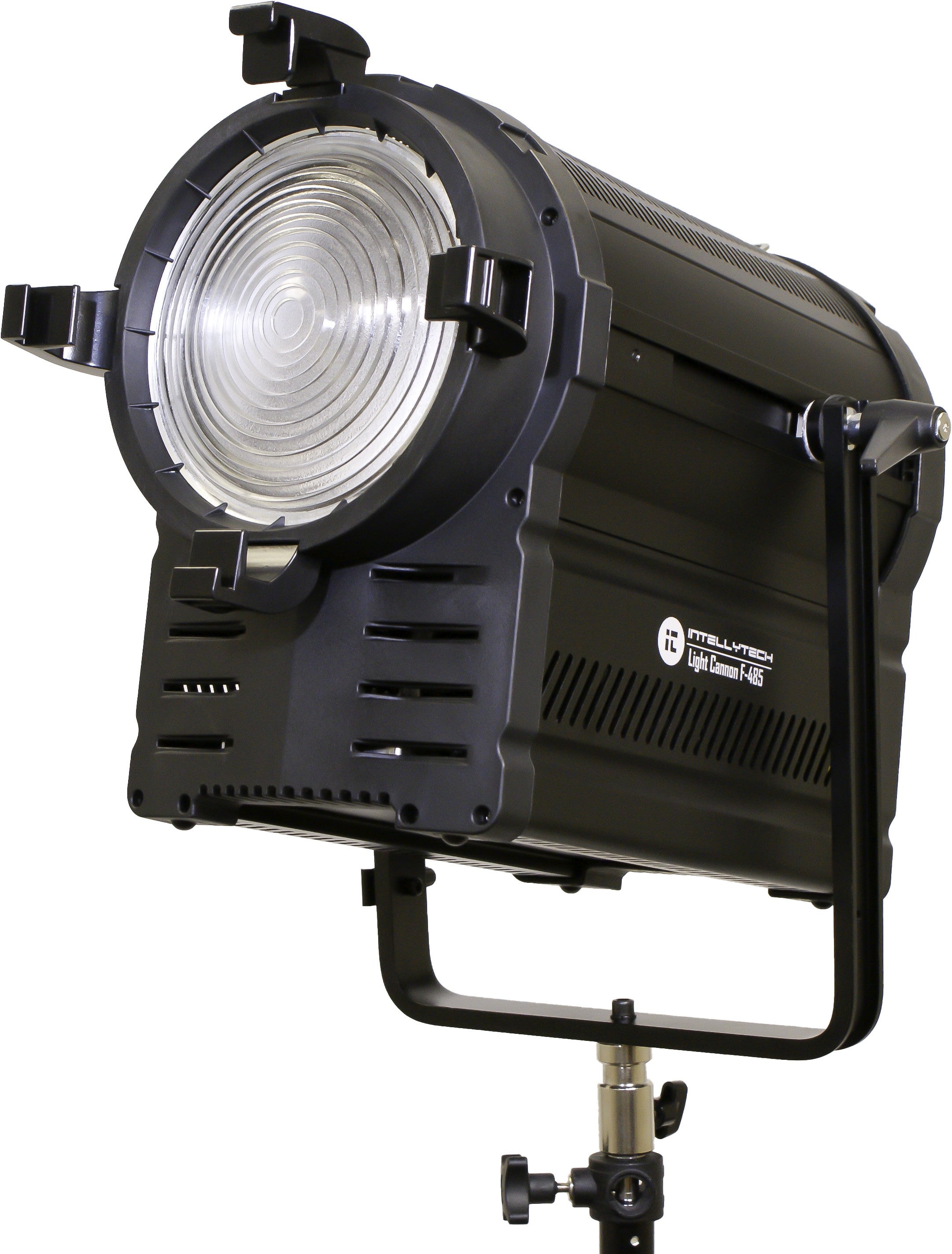

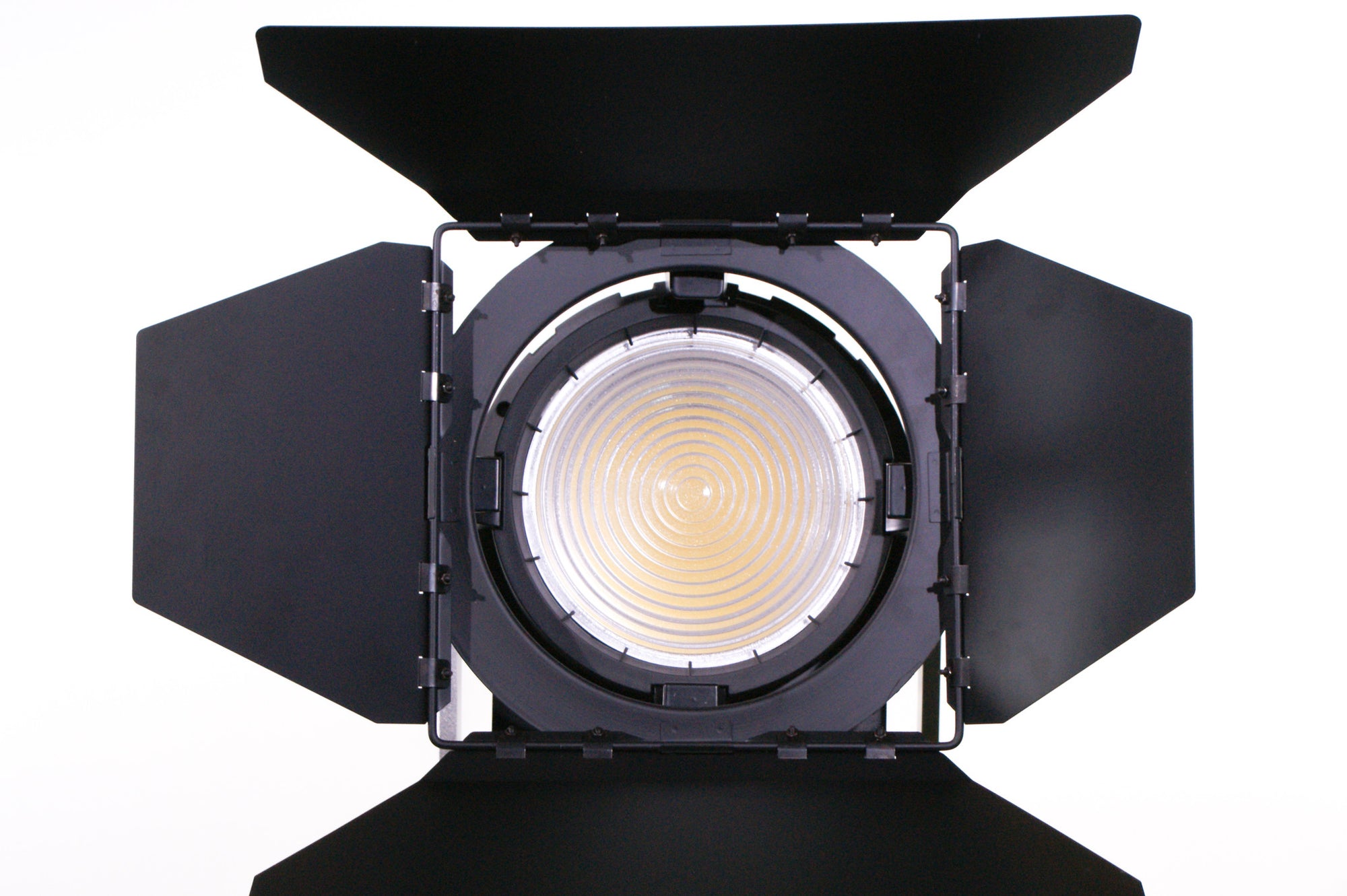

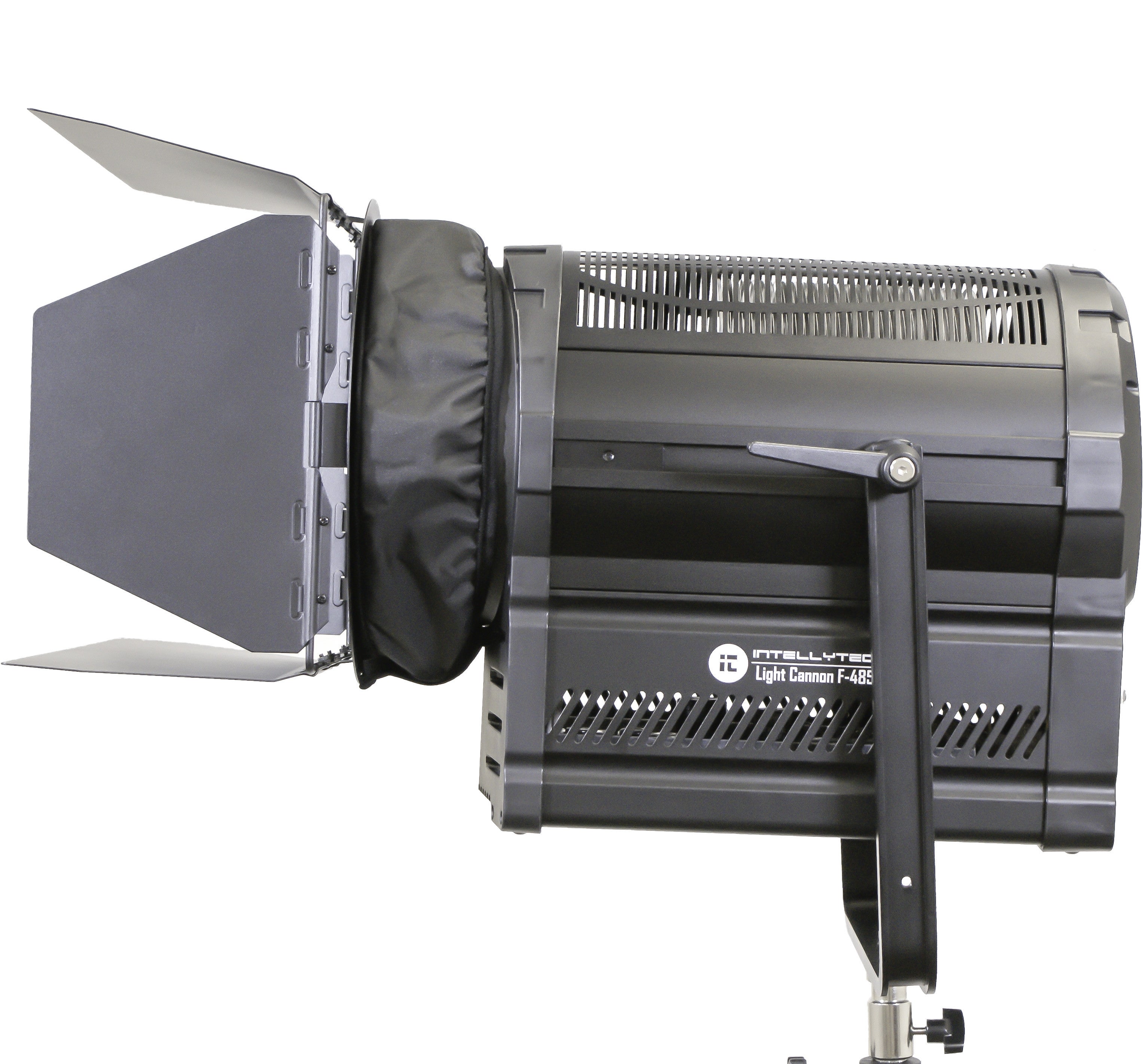

The F-485 Light Cannon is our most powerful Fresnel unit providing the user with an immense amount of light via its 485 Watt LED Output. It's actually equivalent to a 3,500 Watt Quartz light but remains completely cool and has considerably more features and controls. The Light Cannon Bi-Color Series has a super wide color range from 3000k - 8000k making it perfect for today's high-end video cameras. The F-485 provides the user with a high degree of control via the light's focusable fresnel lens and barn-door combination. The light can be transferable anywhere from 35 degrees to 65 degrees and the barn-doors allow you to further shape your light. It provides a powerful, high quality light output and creates beautiful color rated at 95-99 CRI/TLCI at various degrees in its 3,000-8000k range. This unit is the ideal combination of classic Fresnel characteristics and all the advantages of the latest LED technology. Read more below the pictures.
Additional Info

Hybrid Cooling

The Light Cannon series have a fan that can be turned on or off by the flick of a switch. Choose to have fan on or off via switch. Run Unit at 100% Output while fan is completely off or run fan at 55% with 100% output for long run times and super low noise levels. The LED life span also reaches up to 50'000+ hours of use equivalent to 15 years of day by day use / 10 hours a day.

Strong & Lightweight Metal Frame

The metal body housing is made using strong, lightweight, and attractive aluminum with an amazing fit and finish, made for years of use in a professional environment. The metal is similar to the look, finish and feel of an Apple computer. The high strength tilt lock provides extremely secure locking, eliminating movement and slippage and ensuring that the fixtures will stay where you put them.

DMX Control

Equipped with built in DMX 512 controller, allowing for the brightness and color temperature (on bi-color models) to be controlled remotely from a console making them perfect for TV studio installations, theaters, stages or conference rooms.

LCD Display

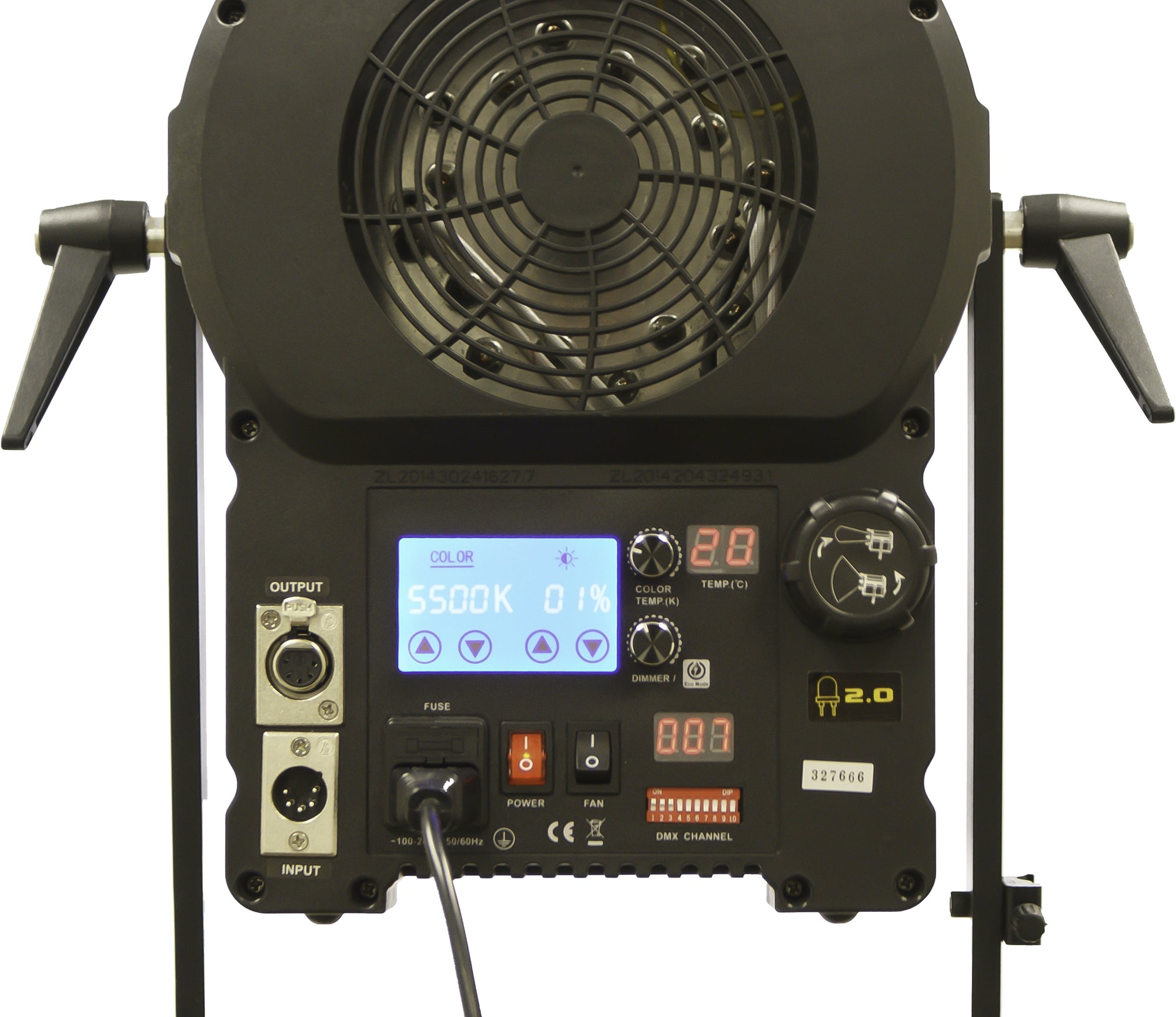

The Bi-Color Light Cannon's have a high-end, LCD Touch-Screen providing the user with a high degree of control and plenty of information. Select the color temperature or brightness level using the LCD screen or by using the control knobs. The LCD provides the user with information regarding the the Brightness Level, Color Temperature, DMX Channel, and Internal Temperature.

High Output

Whether shooting in spot or flood mode, the F-485 provides the user with an extremely high output of 485 Watts. The Light Cannon Series are capable of filming large areas. They can be used outdoor's in daylight with impressive results.

Ultra Wide Color Range & High CRI

The F-485 is a "fully tune-able" white light source, too, allowing you to match existing fixtures from a warm 3,000K to a blue 8,000K. The on-board controller allows manual intensity control from 0-100%. All of the functions can be controlled via DMX, an ideal feature for broadcast studios. On top of that the light is rated at a CRI of 95-99 to render beautiful and accurate colors on all ends of the spectrum


*Shooting slow motion? No problem! The Light Cannon LED series are flicker free and tested at 3'000 fps. The voltage is universal and works from 110v-240v.

Key features:
- LED power: 485W
- 3000k-8000k - Vast Color Range. Brightest at 5500k
- adjustable beam angle spot 15° - flood 50°
- dimming 100% to 0% with no color shift
- high CRI 95-99+ RA: colors are rendered with high accuracy
- 7" lens diameter
- flicker free at high speed shooting rates.
- high efficiency thermal design
- Choose to have fan on or off
- 50'000+ rated LED life
- built-in DMX controller with XLR 5P connectors
- LCD Screen showing color temp and dimmer controls.
- mechanical spot-flood mechanism
- wide array of accessories available
- yoke bar - rotatable
- sturdy aluminum housing for many of use
- worldwide voltage compatible: AC 110V-240V 50 / 60 Hz ; DC 24V
- weight: 25 pounds
- dimensions: 15.5" length x 8" width x 13" height
Output: *These ratings are taken when at 5,500k which is the brightest setting


Spot (35 Degrees)

Flood (65 Degrees)


1 Meter

44,200 Lux / 4,110 FC

12,400 Lux / 1,160 FC


6 Feet

13,900 Lux / 1,280 FC

3,700 Lux / 355 FC


9 Feet

6,640 Lux / 625 FC

1,860 Lux /173 FC


12 Feet

3,950 Lux / 367 FC

1,220 Lux / 114 FC


Package Includes:
1 x Intellytech Light Cannon LED Fresnel 485W Bi-Color DMX
1 x metal barn-doors 4 leaf - on & off in seconds
1 x yoke bar with combo mount 5/8" & 1-1/4" (16mm spigot)
1 x power cable with USA plug
1 year warranty
source type led - fresnel
operation mode manual - light stand
power 485 watts
voltage DC 24V / AC 100-240V
color temperature Bi-Color 3,000--8,000 Kelvin
lens diameter 7 Inches
beam angle degree 35-65
number of LED -
DMX 512 controller yes
dimming range 100%-0%
battery mount -
mounting Standard 5/8"
power cable length 9.75 feet
power plug type U.S.
lamp head dimensions (HxWxL) mm 15.5" x 8" x 13"
weight 25 pounds
material aluminum
color silver and black
compliance CE
