LiteCloth LC-120 - 1'x3' Foldable LED Mat Kit

**We now have a newer 2.0 LiteCloth Series. Please view it by clicking HERE.

Item Numbers: 178007 (V-Mount) 178008 (Gold Mount)

U.S. Patent No. 10,734,441

Overview - The LC-120 is a 120 Watt, 1x3 LED Mat that folds down to a 12"x12" square. This unique design allows the user to create, broad, bright, natural looking light that can be setup fast and travel small.

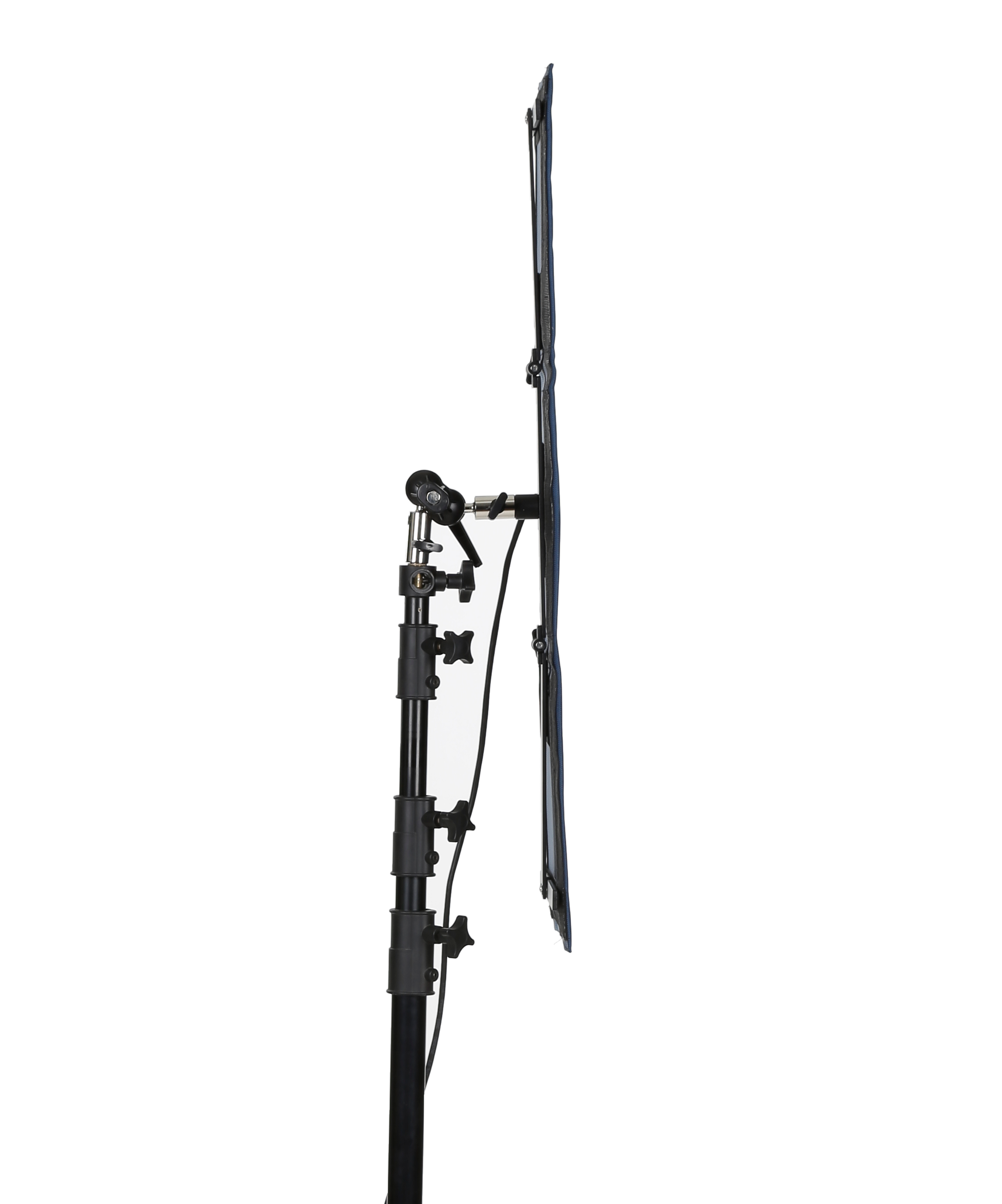

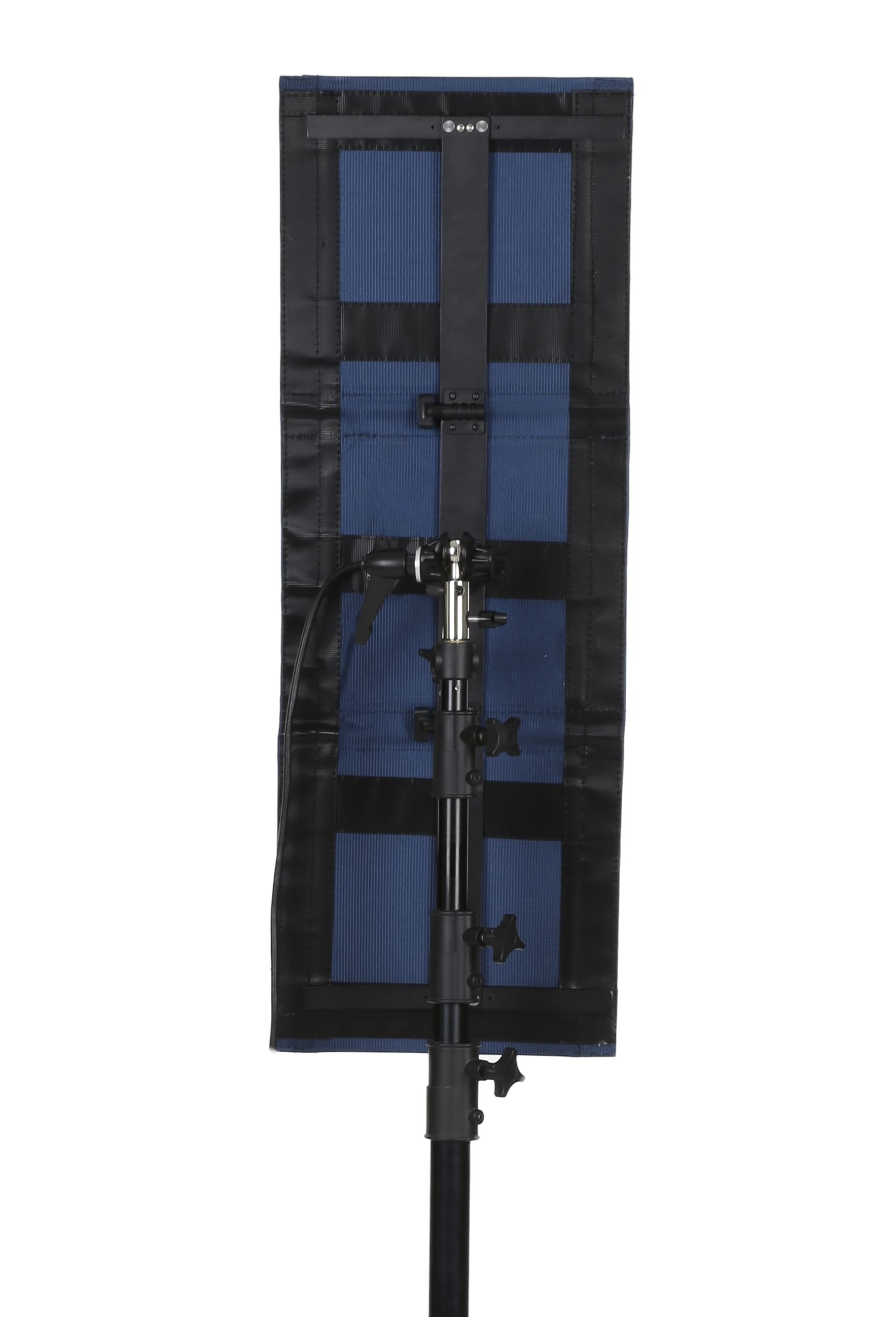

Directional Bracket- The included Mount & Bracket allow the user to direct and point the mat itself, allowing the light to act as a modifier. Think of it has barn-doors or a flag built into the light. This unique feature allows the user to shape and direct the light exactly where they want it. At times this unit can be used as a directional 1x1 or 1x2, or as a broad 1x3 depending on the position the mat and bracket are set to. The rotatable stud allows the user to position the LC-120 in both vertical and horizontal shooting positions.

Tremendous Output - Reaching 120 Watts, the LC-120 is equivalent to a 1,200 Watt Tungsten Soft Light. Even without using the including softbox, the LC-120 creates a vast spread that will wrap around your subject.

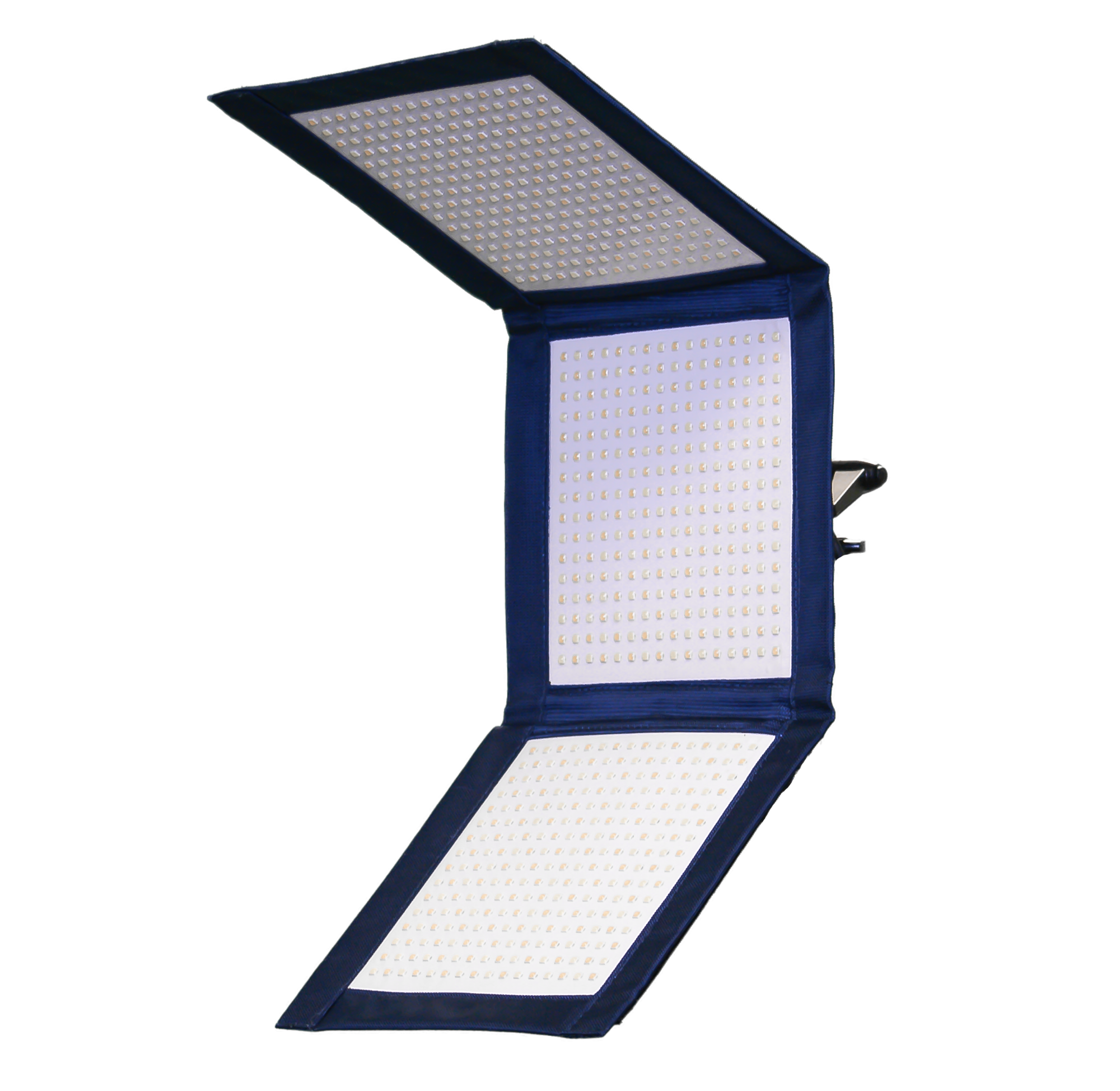

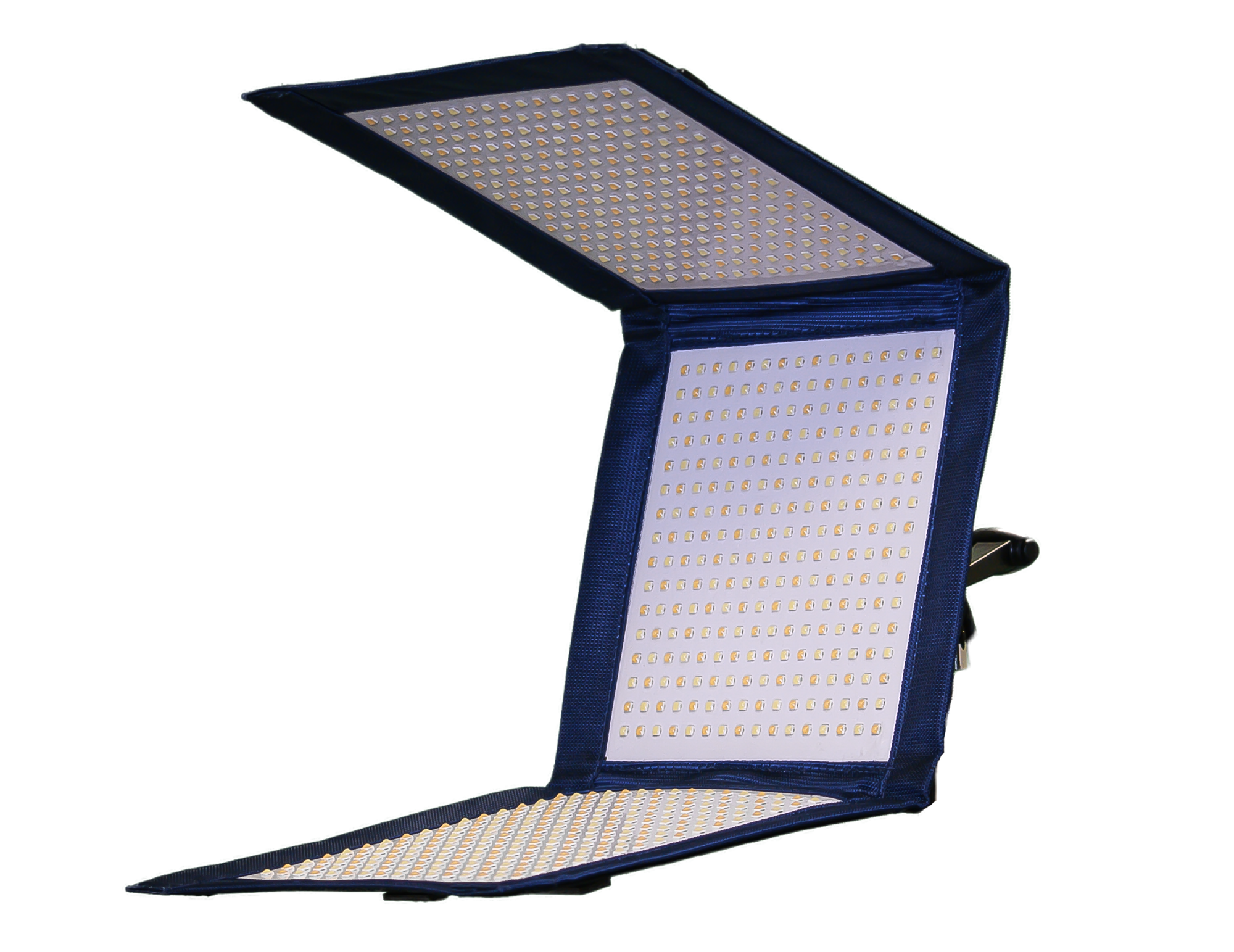

Folding DesignThe LC-120 has a firm backing behind the Mat, but can also fold down at its collapsible cross sections.  This unique form factor allows for the light to be mounted in seconds without the need for a giant metal frame or x-bracket. In addition, users can now travel with a 1'x3' Light Kit that takes up less space than a conventional 1'x1' panel.

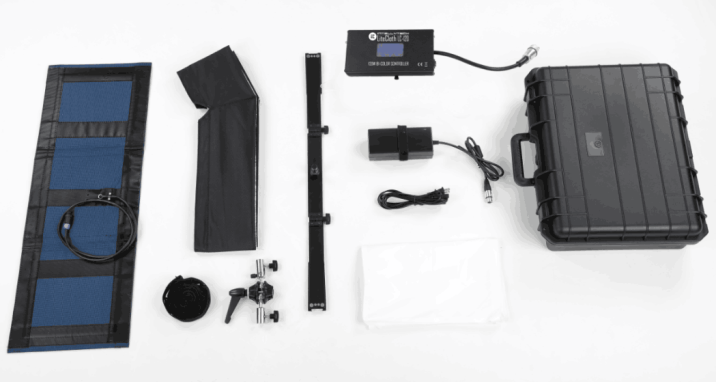

Sold as a Complete Kit Including:

  • 1x3 LiteCloth

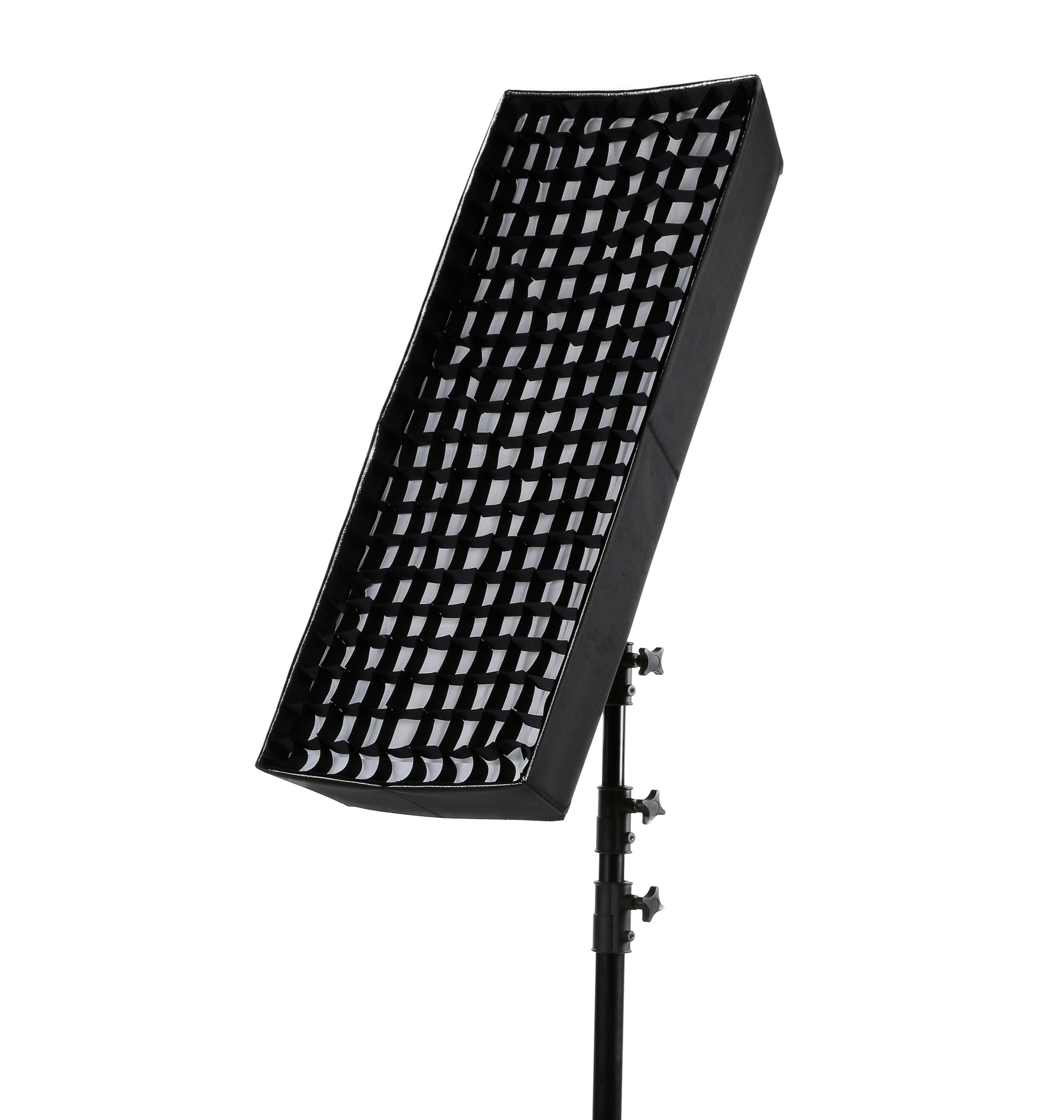

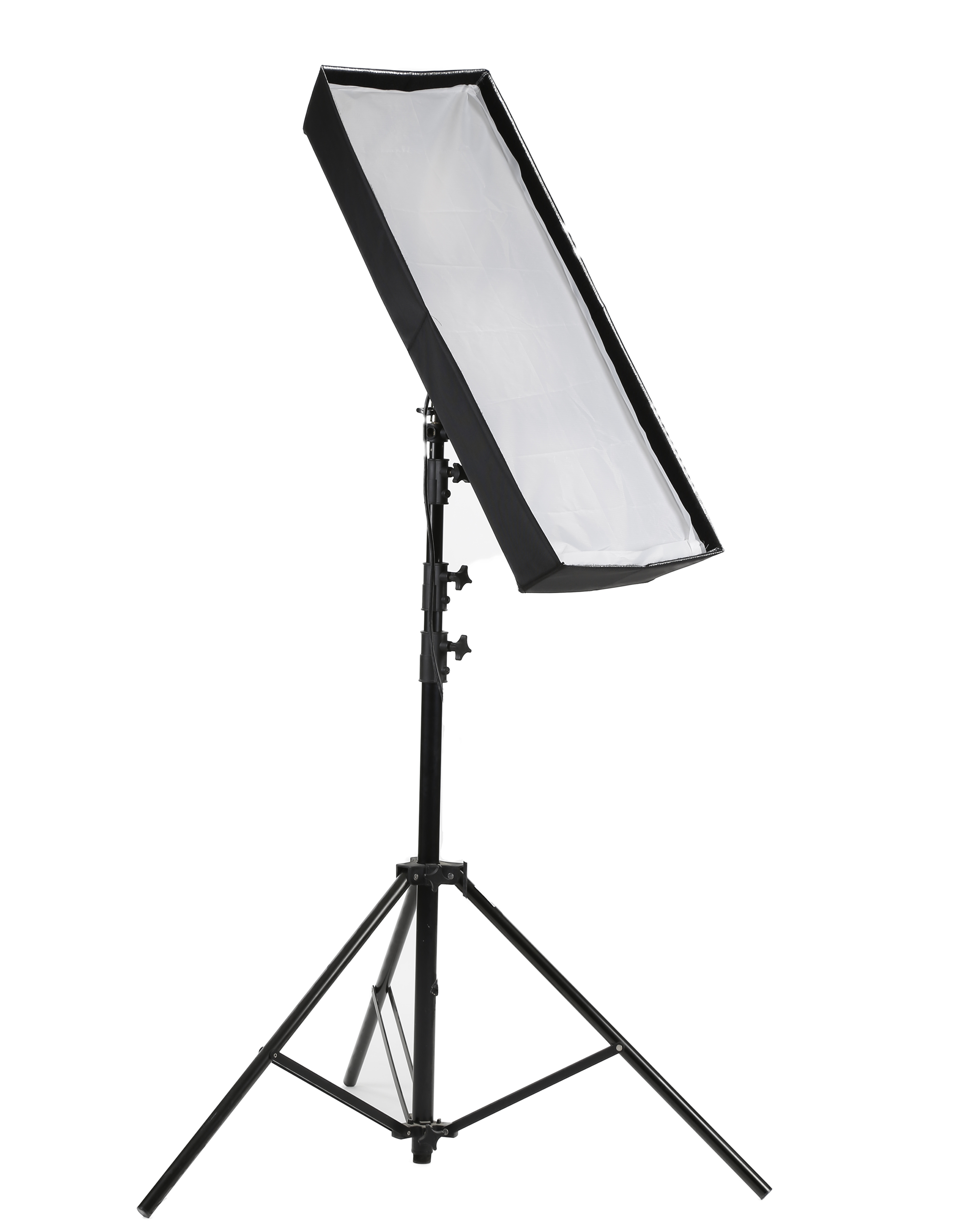

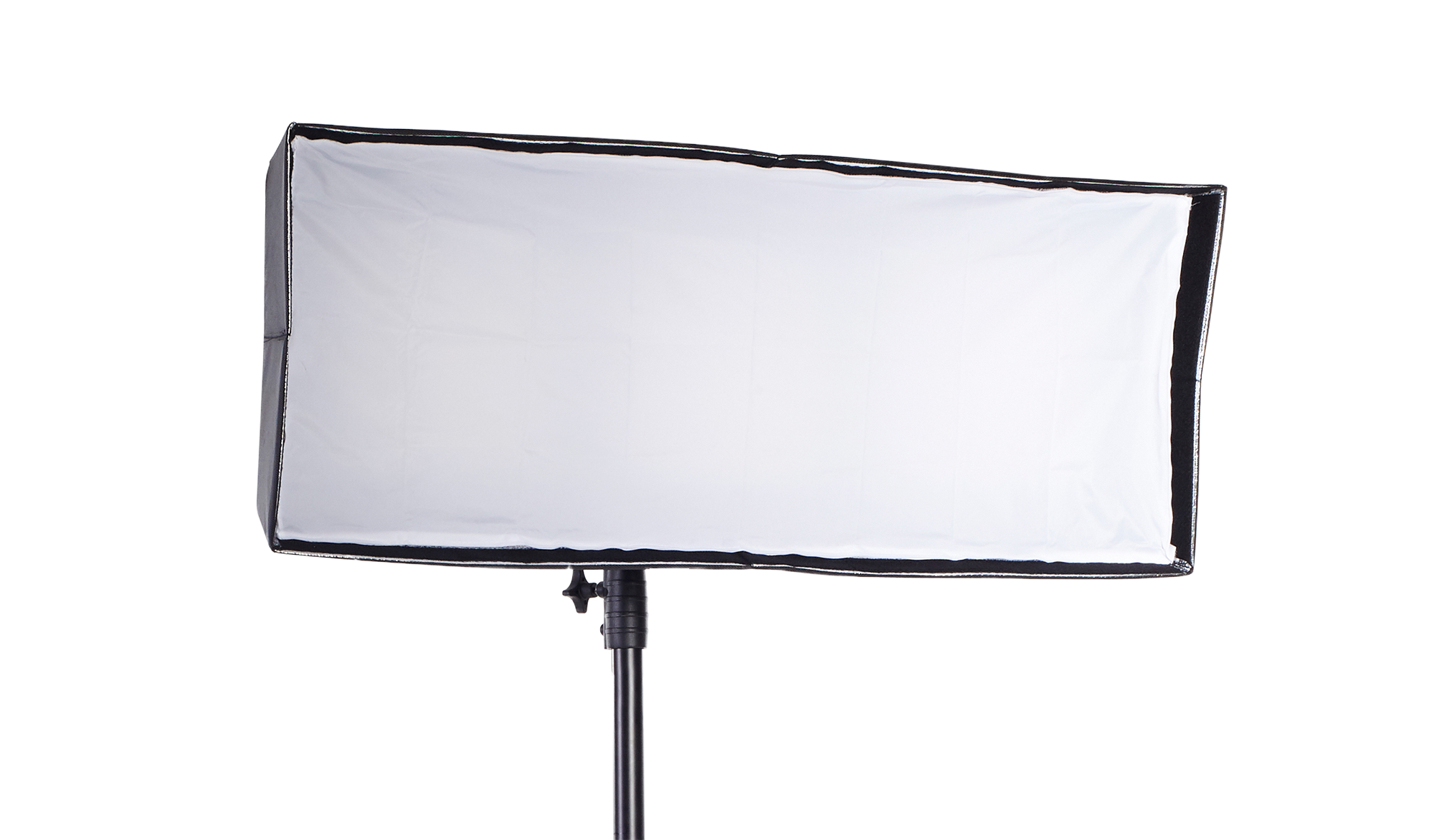

  • Softbox w/ Diffuser & Grid
  • Mounting bracket

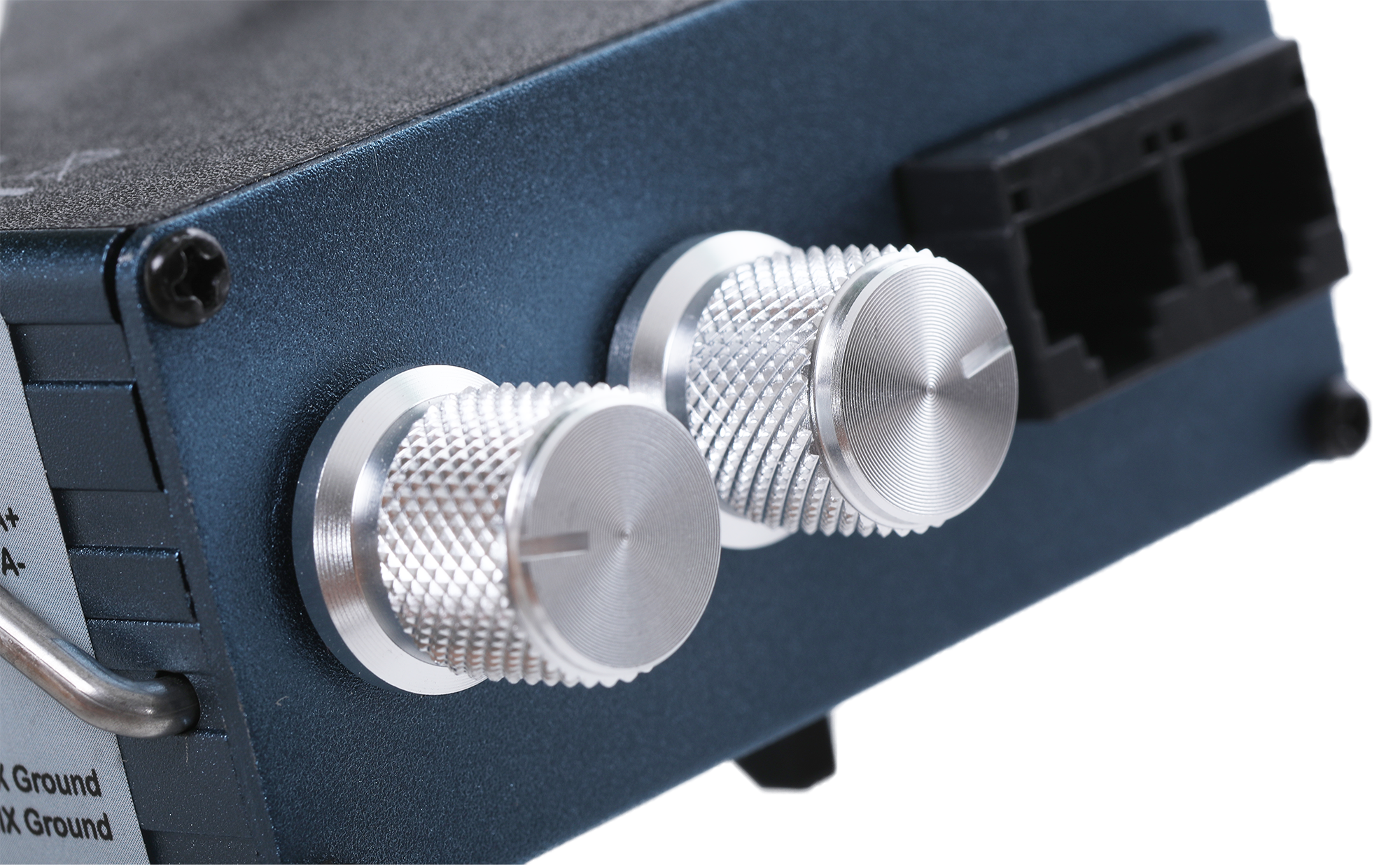

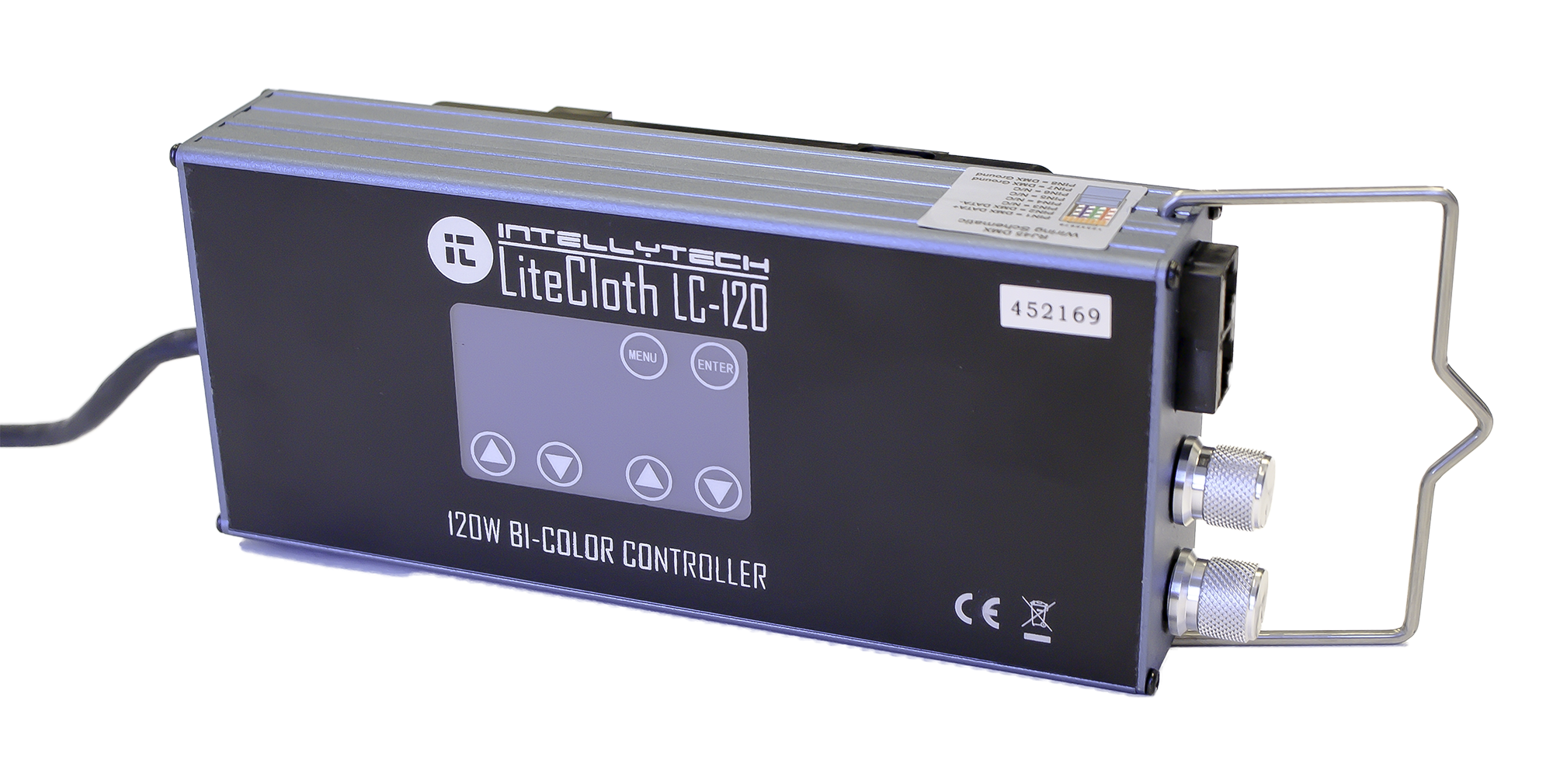

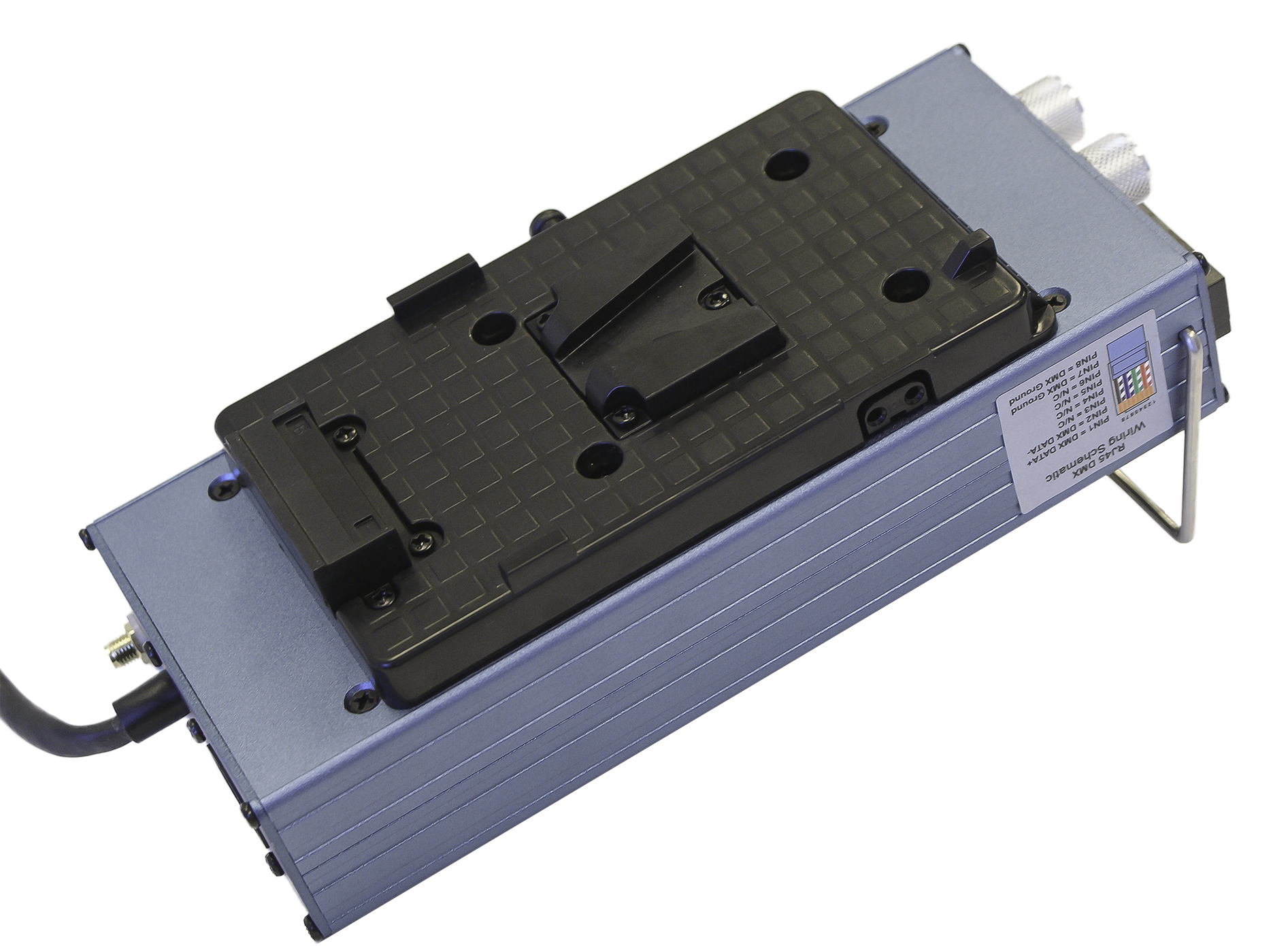

  • Controller (Ballast) w/ attached battery plate (v-mount or gold mount)
  • AC
  • U.S. Power Cables
  • Carrying case. The entire kit fits into the carrying case measuring in at just 18"x16"x4.5".

Accurate CRI and TLCI Ratings:

Color Temperature CRI  TLCI
3,000k 97 98
5,600k 95 96
10,000k 94 93

Output Ratings: **The LC-120 produces broad, natural light as if shooting through a silk or softbox. The output measured directly in the center of the light will be as bright as the output measured on the edge of the light.

Distance Mixed Color Temp. 3,000k 10,000k
3 Feet 4,050 Lux / 376 FC 3,400 Lux / 316 FC 4,050 Lux / 377 FC
6 Feet 1,100 Lux / 102 FC 860 Lux / 80 FC 990 Lux / 92 FC
9 Feet 490 Lux / 46 FC 440 Lux / 41 FC 460 Lux / 43 FC
