LiteCloth LC-160 - 2'x2' Foldable LED Mat Kit

**We now have a newer 2.0 LiteCloth Series. Please view it by clicking HERE.


Item Numbers: 178000 (V-Mount), 178001 (Gold Mount)

U.S. Patent No. 10,734,441

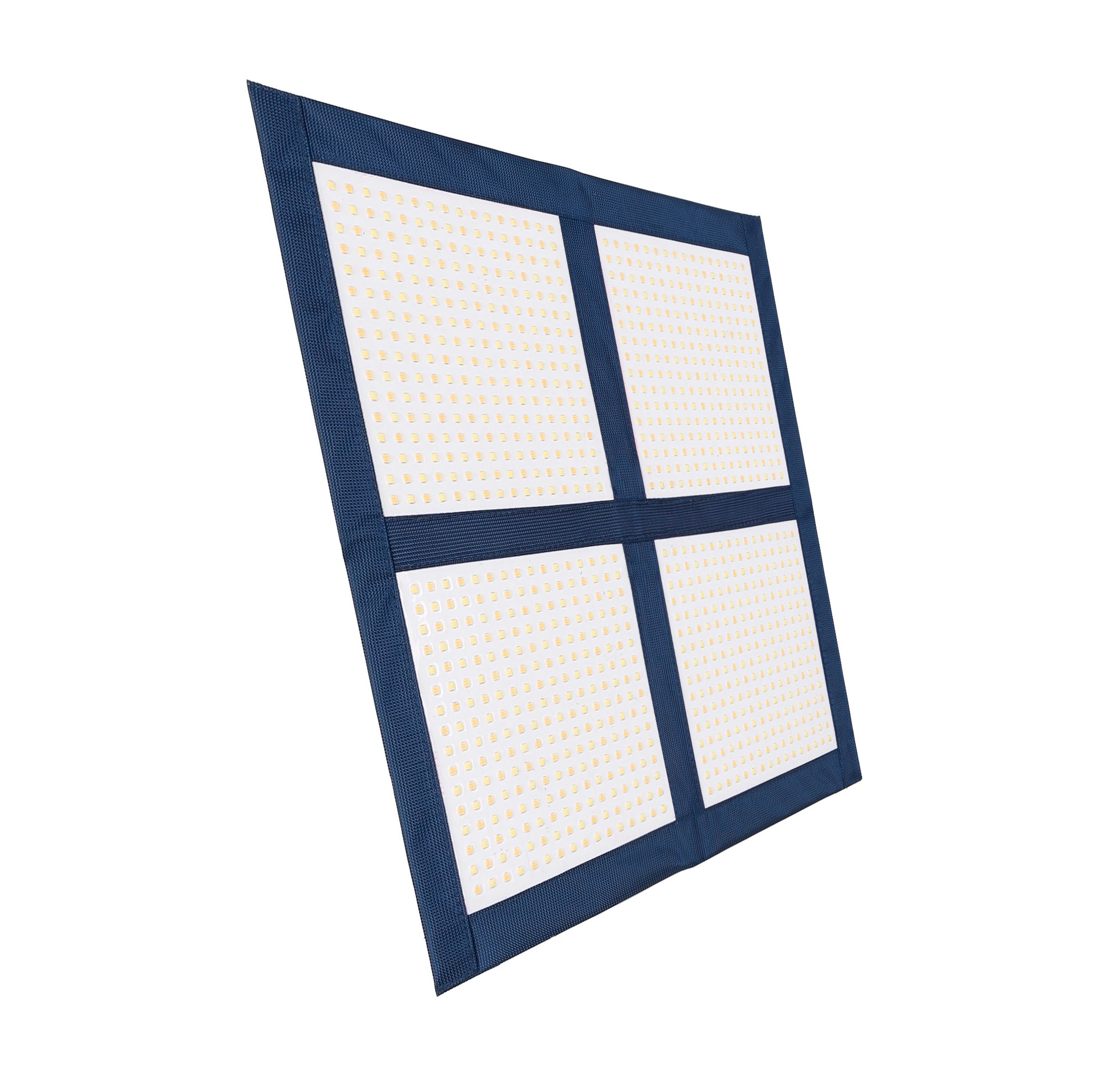

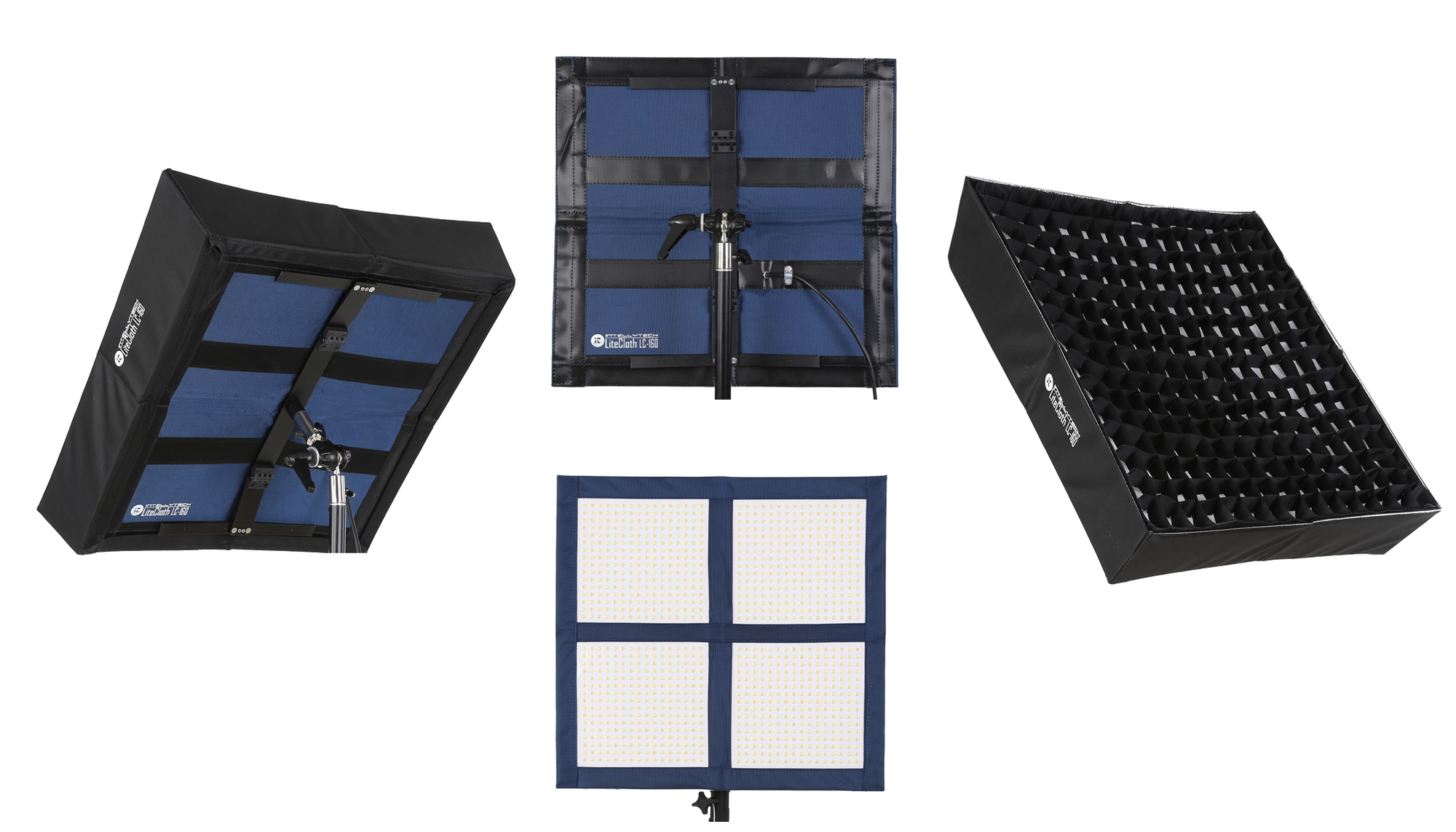

Overview - The LC-160 is a 160 Watt, 22"x22" LED Mat (2'x2' W/ included softbox) that folds down to a 12"x12" square. This unique design allows the user to create, broad, bright, natural looking light that can be setup fast and travel small.

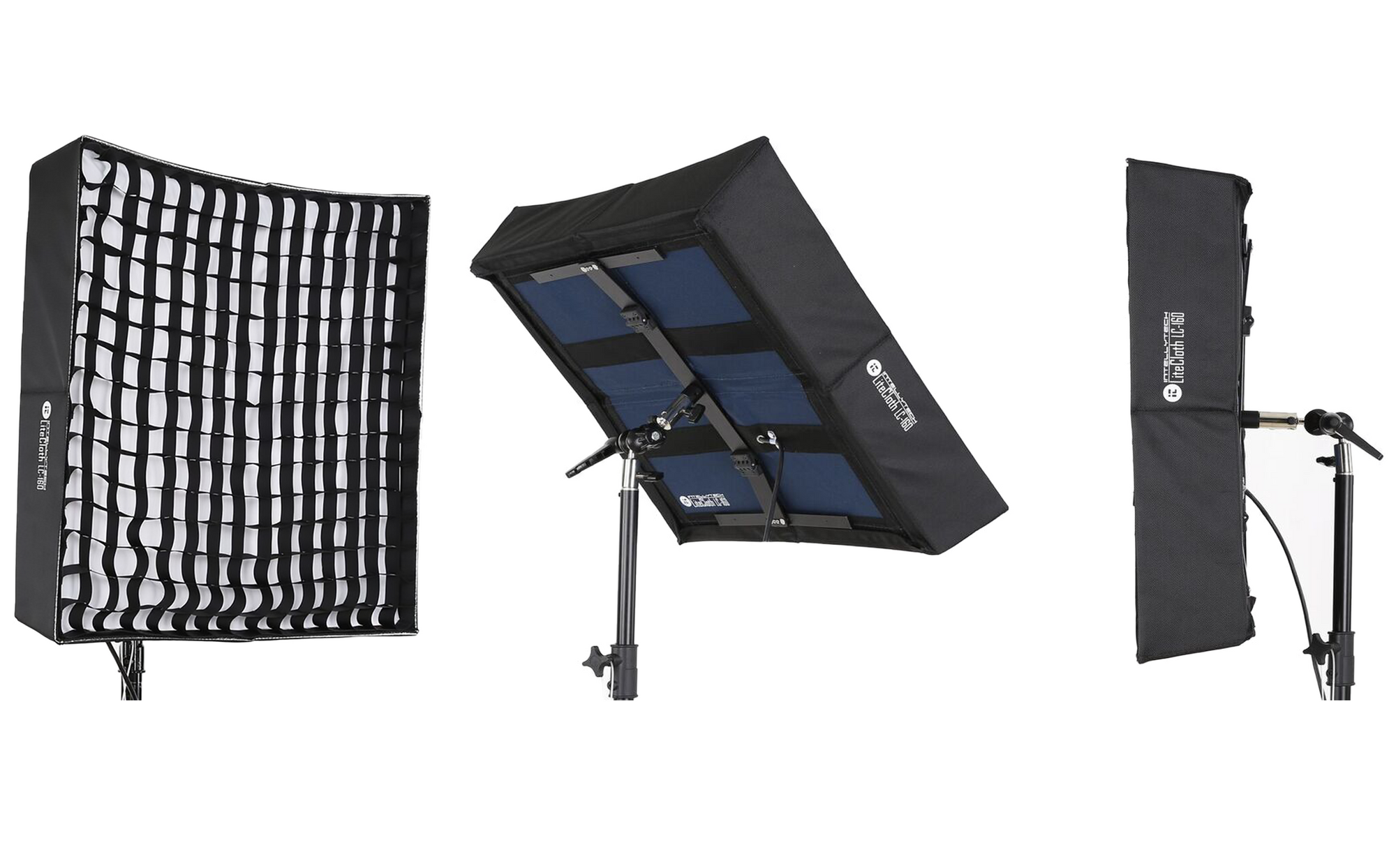

Sold as a Complete Kit - including a softbox, diffuser, grid, mounting bracket, controller w/ attached battery plate (v-mount or gold mount), AC, and carrying case. The entire kit fits into the carrying case measuring in at just 18"x16"x4.5".

Tremendous Output - Reaching 160 Watts, the LC-160 is equivalent to a 1,500 Watt Tungsten Soft Light. Even without using the including softbox, the LC-160 creates a vast spread that will wrap around your subject.

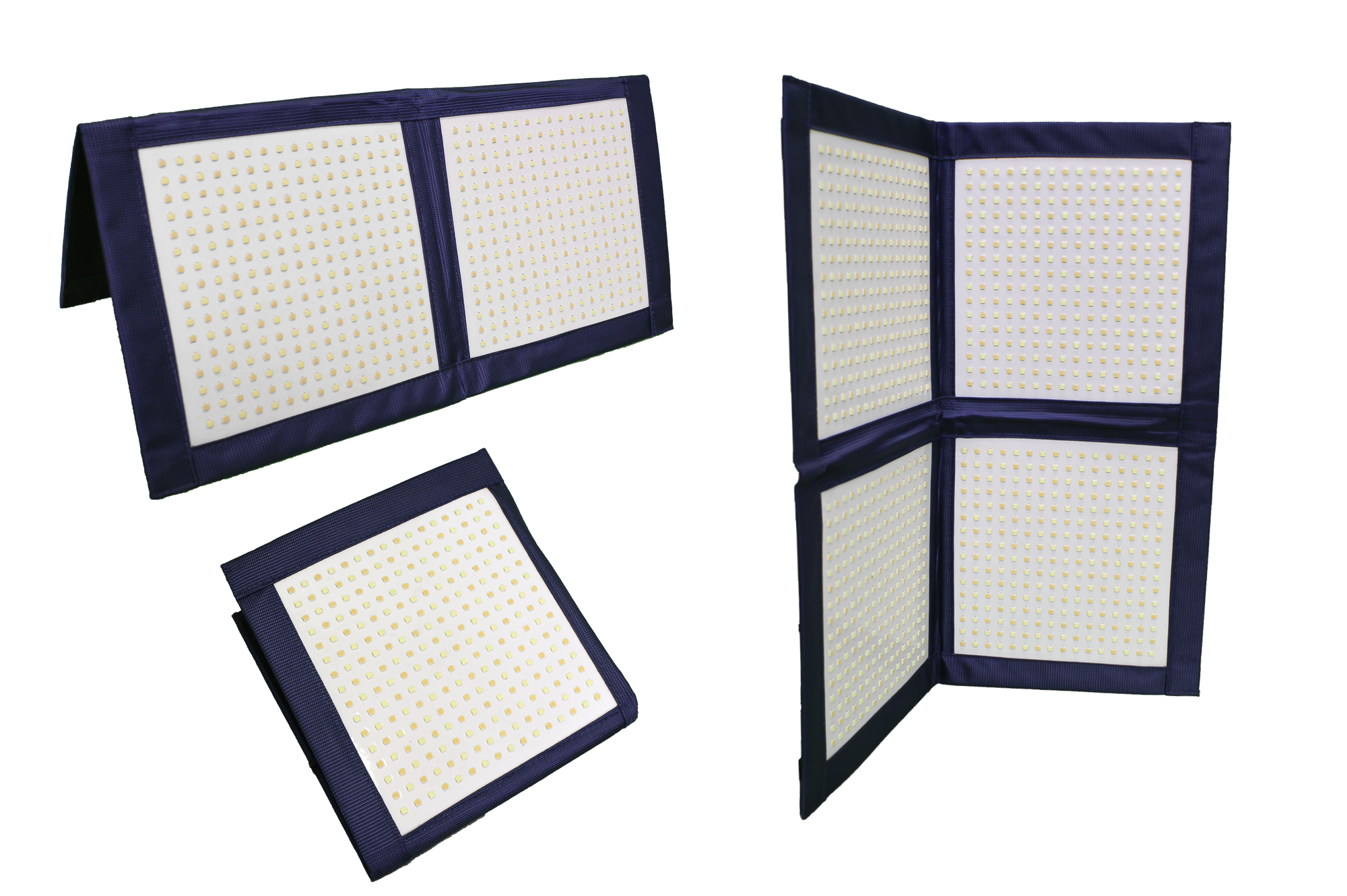

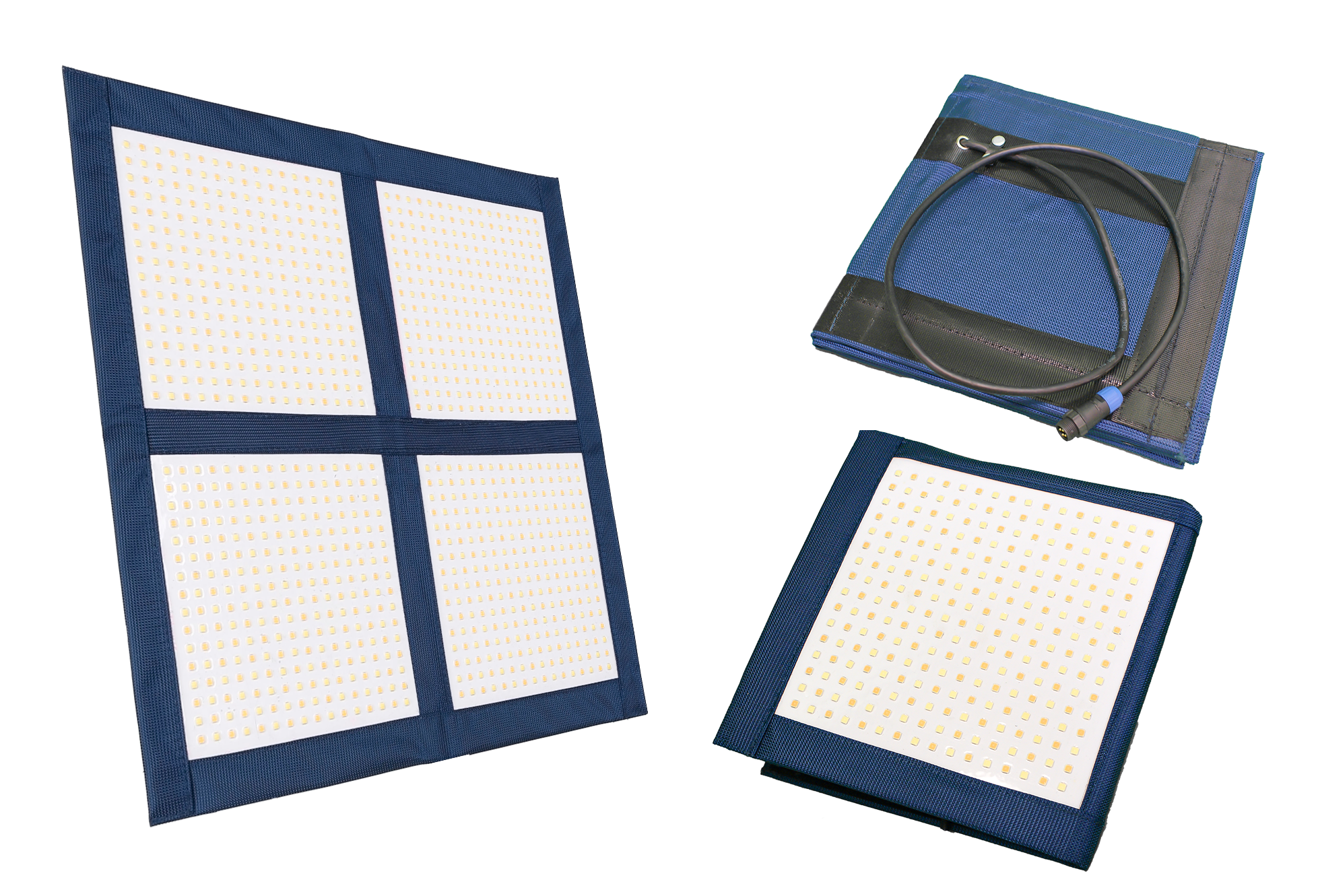

Folding DesignThe LC-160 has a firm backing behind the Mat, but can also fold down at its collapsible cross sections.  This unique form factor allows for the light to be mounted in seconds without the need for a giant metal frame or x-bracket. In addition, users can now travel with a 2'x2' Light Kit that takes up less space than a conventional 1'x1' panel.

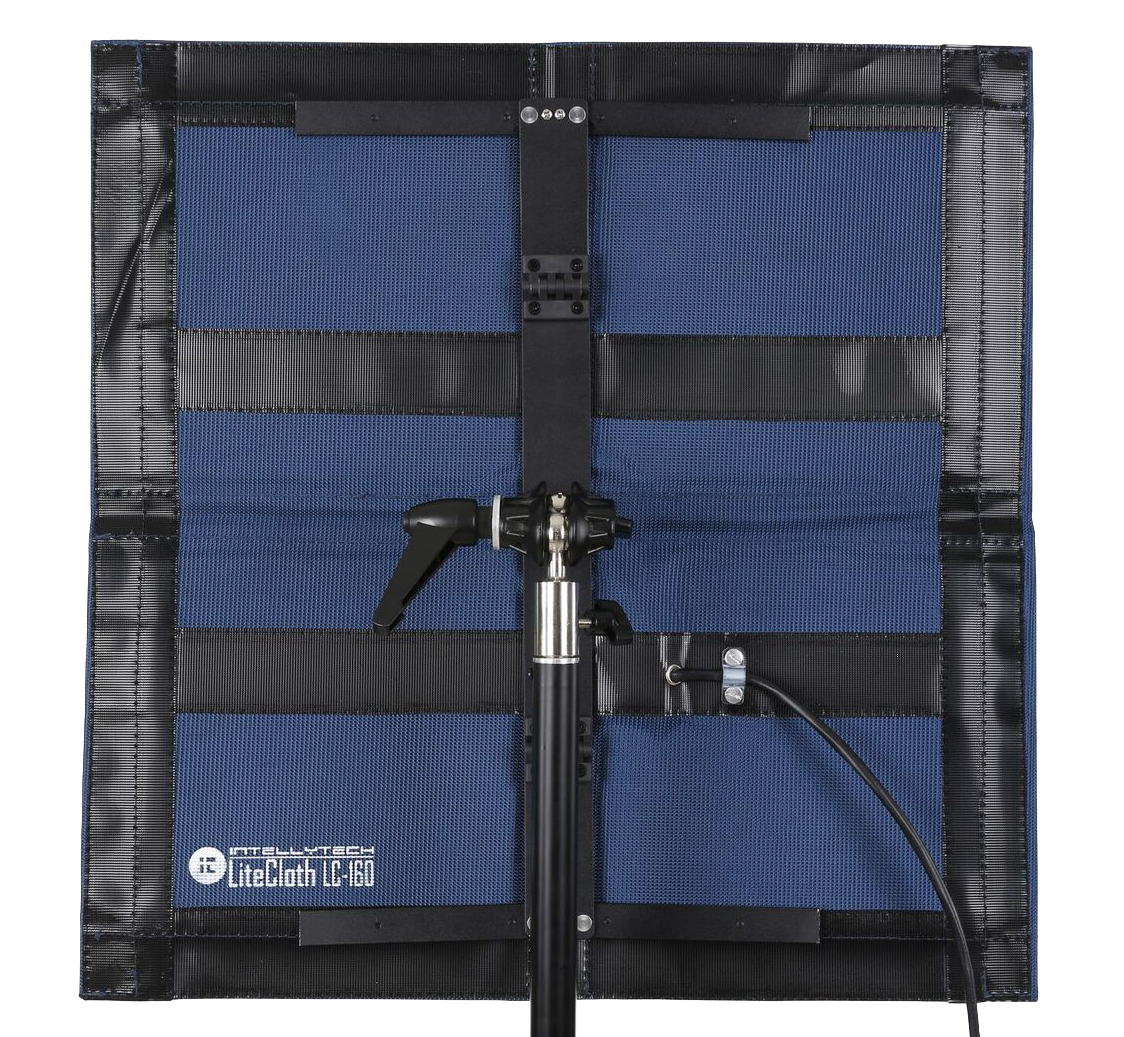

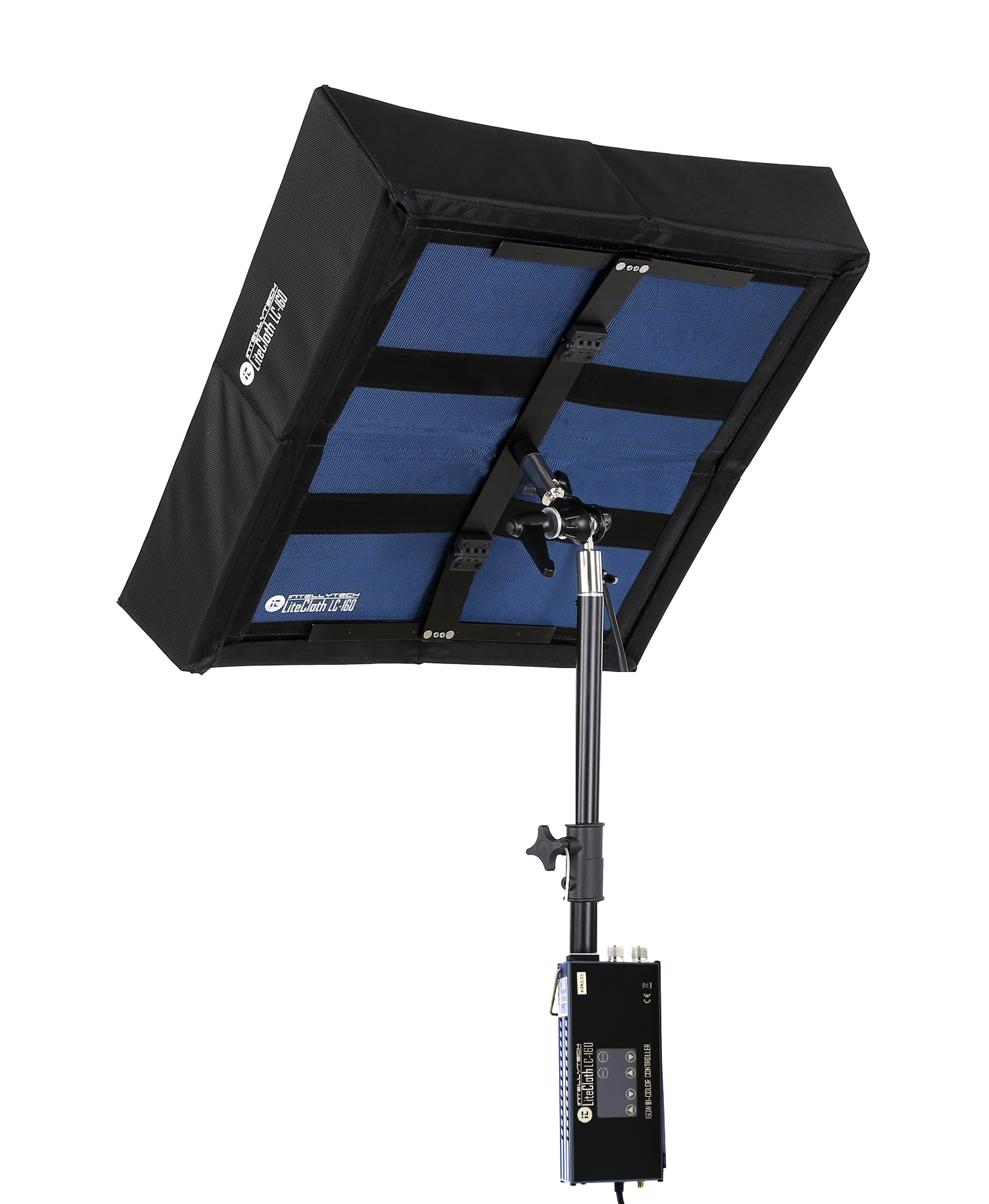

Quick & Intuitive Mount - The included Mount securely attaches to the rear of the Mat via a special high-strength Velcro. It attaches in seconds and is extremely secure. Like the Mat, the Mount also folds down allowing it to pack easily into the carrying case.

Accurate CRI and TLCI Ratings:

Color Temperature CRI  TLCI
3,000k 97 98
5,600k 95 96
10,000k 94 93


Additional Info

Immense Color Range with High Accuracy - Set the LC-160 anywhere from 3,000K-10,000K with excellent color rendition (CRI/TLCI 95+). On top of having greater creative control, this vast color range also gives the user close to 100% output from 3,500k-9,500k. All of the Bi-Color LED's are always on throughout this range, eliminating the worry for output loss on a bi-color fixture.

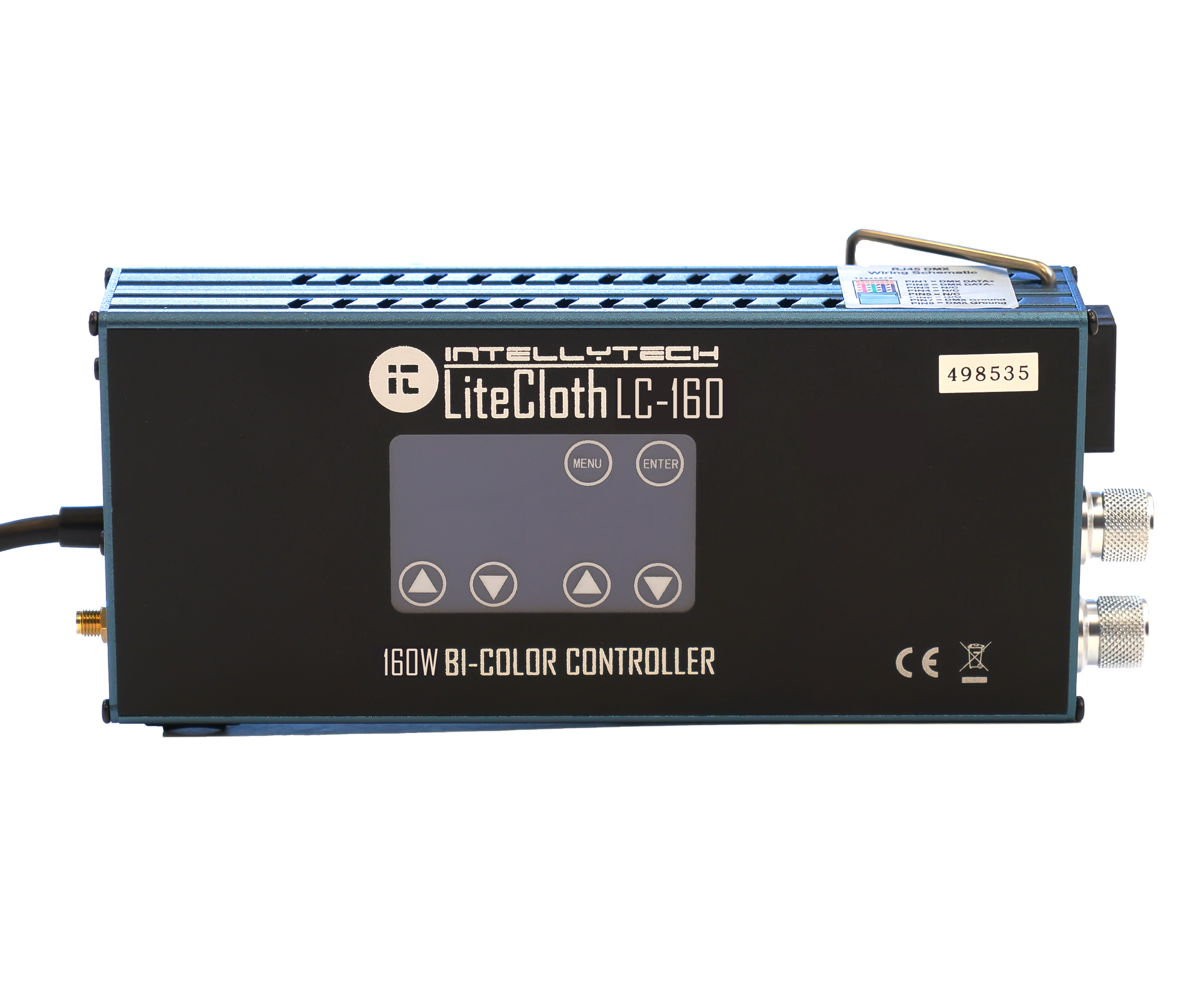

Select your color or brightness level (0-100%) via the touch screen or knobs.

Wireless Control - An optional Wireless Controller can control up to 100 LC-160's individually or simultaneously for $59.

DMX Ready - The LC-160 can be controlled via DMX (512) for those looking to setup inside of a studio. The user can control both brightness and output either via a 512 DMX controller or via the optional Wireless Controller.

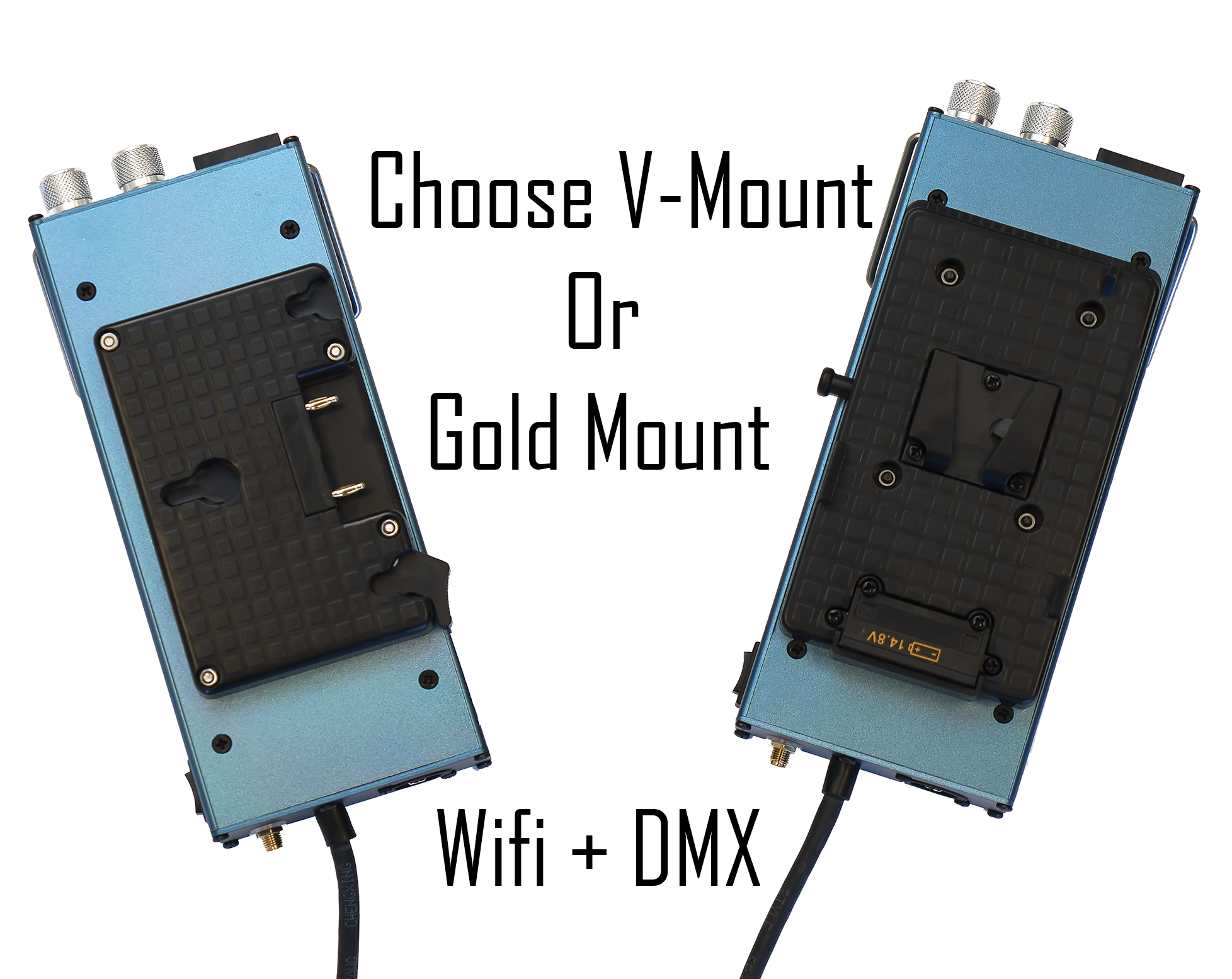

Power Options - Power the light via AC or battery. Choose either V-Mount or Gold Mount battery plate.


Output Ratings: **The LC-160 produces broad, natural light as if shooting through a silk or softbox. The output measured directly in the center of the light will be as bright as the output measured on the edge of the light.

Distance Mixed Color Temp. 3,000k 10,000k
3 Feet 5,725 Lux / 532 FC 4,500 Lux / 418 FC 5,250 Lux / 488 FC
6 Feet 1,510 Lux / 140 FC 1,230 Lux / 114 1,470 Lux / 137 FC
9 Feet 772 Lux / 72 FC 656 Lux / 61 FC 722 Lux / 67 FC


Accurate CRI and TLCI Ratings:

Color Temperature CRI  TLCI
3,000k 97 98
5,600k 95 96
10,000k 94 93


  • 22"x22" LED Mat (2'x2' W/ Softbox Attached)
  • Softbox W/ Diffuser & Grid
  • Mounting Bracket
  • Controller W/ V-Mount OR Gold Mount Battery Plate (choose one)
  • AC Adapter
  • Case
  • Power Cables.
