LiteCloth LC-160RGBW II - 2'x2' Foldable LED Mat Kit

**We now have a newer 2.0 LiteCloth Series. Please view it by clicking HERE.

Item Numbers: 178041 (V-Mount), 178042 (Gold Mount). U.S. Patent No. 10,734,441

The new LC-160RGBW II now offers more control by adding on Hue, Saturation and Intensity controls as well as 20 new effects. Additionally the II is also 10-15% brighter than the first generation LC-160RGBW.

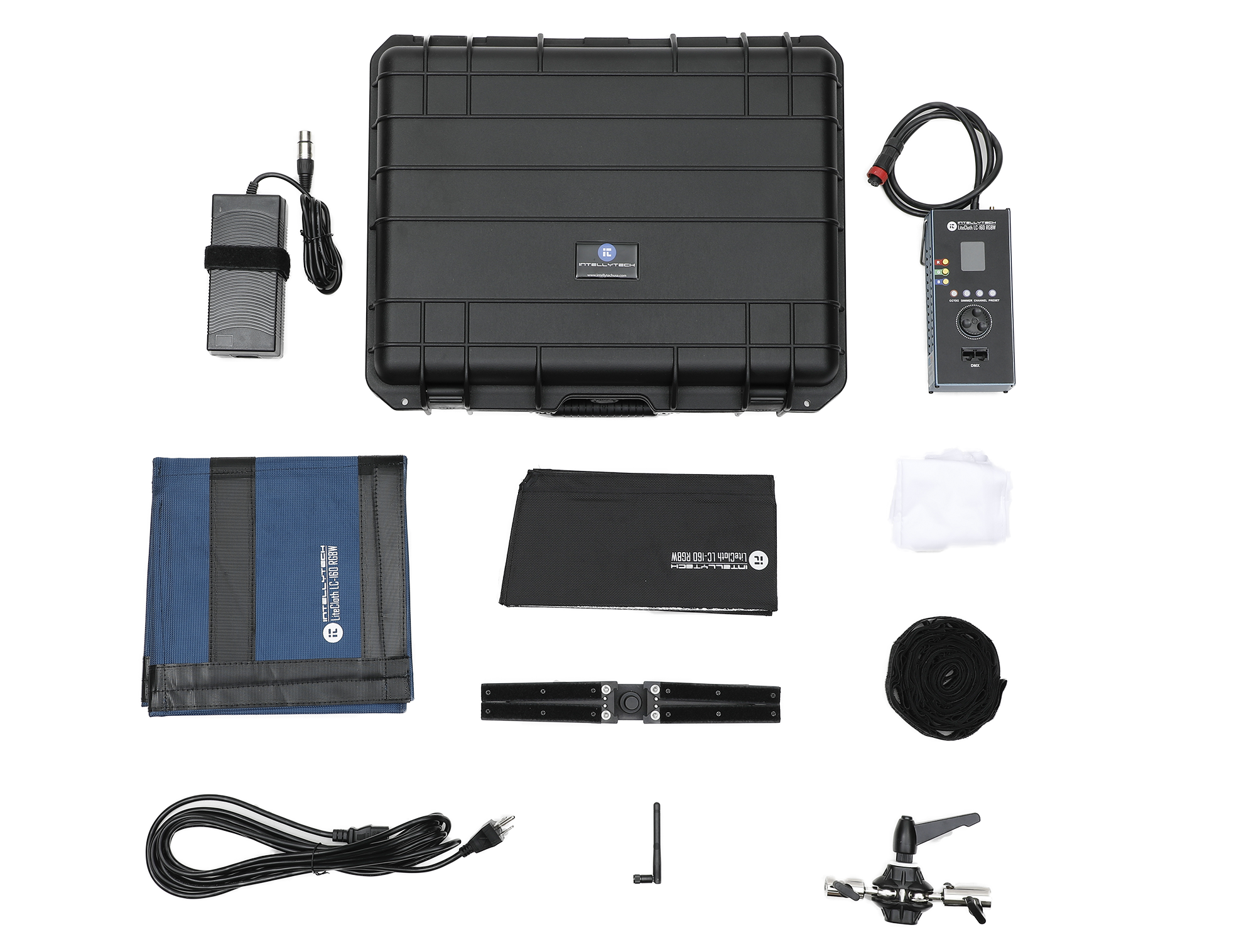

LiteCloth LC-160RGBW II Kit Includes:

  • 2x2 Foldable LED Mat

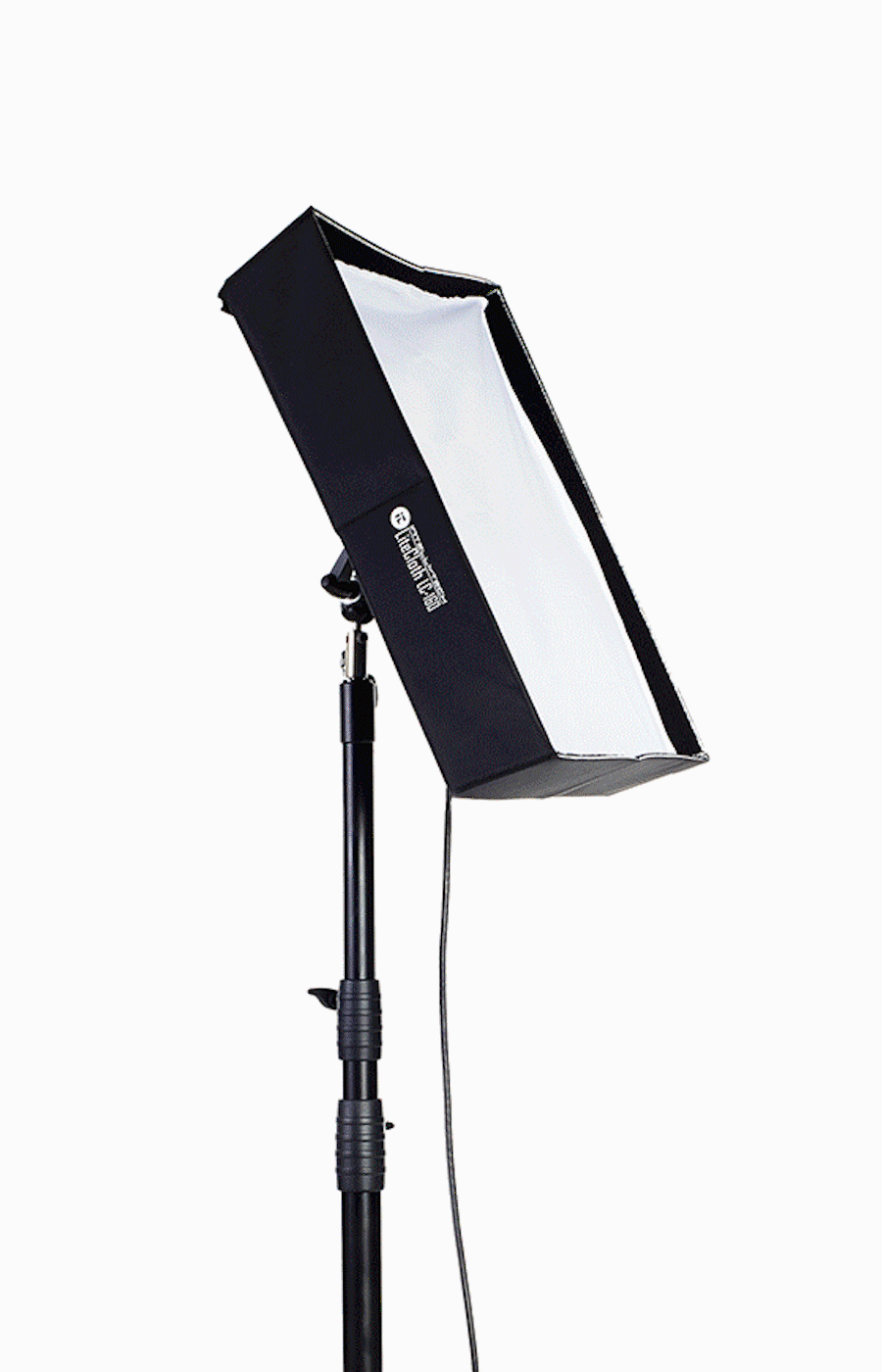

  • Softbox
  • Diffuser
  • Grid
  • Mounting Bracket
  • Updated Ballast (Controller) with Attached Battery Plate
  • AC Adapter (Universal)
  • Power Cable
  • Carrying Case
  • Limited 1-Year Warranty

Accurate CRI and TLCI Ratings:

Color Temperature CRI  TLCI
3,000k 97 98
5,600k 95 96
10,000k 94 93


Distance Mixed Color Temp. 3,000k 10,000k
3 Feet 3,350 Lux / 311 FC 3,240 Lux / 301 FC 3,729 Lux / 347 FC
6 Feet 999 Lux / 93 FC 935 Lux / 87 FC 992 Lux / 92 FC
9 Feet 471 Lux / 44 FC 463 Lux / 43 FC 471 Lux / 44 FC

List of Built-In Effects:

  • Police Lights
  • Ambulance
  • Fire Truck
  • Lightning 1
  • Lightning 2
  • HSI Demo (Slow)
  • HSI Demo (Fast)
  • TV Screen
  • Candle
  • Paparazzi
  • Strobe
  • High/Low Beam
  • Double Flash (Hazard)
  • Red Flash
  • Green Flash
  • Blue Flash
  • Party 1
  • Party 2

Overview - The LC-160RGBW II is a 160 Watt, 22"x22" LED Mat (2'x2' W/ included softbox) that folds down to a 12"x12" square. This unique design allows the user to create, broad, bright, natural looking light that can be setup fast and travel small.

Sold as a Complete Kit - Including a softbox, diffuser, grid, mounting bracket, controller w/ attached battery plate (v-mount or gold mount), AC, and carrying case. The entire kit fits into the hard carrying case measuring in at just 18"x16"x4.5".

Tremendous Output - Reaching 160 Watts, the LC-160RGBW II is equivalent to a 1,200 Watt Tungsten Soft Light. Even without using the including softbox, the LC-160 creates a vast spread that will wrap around your subject.

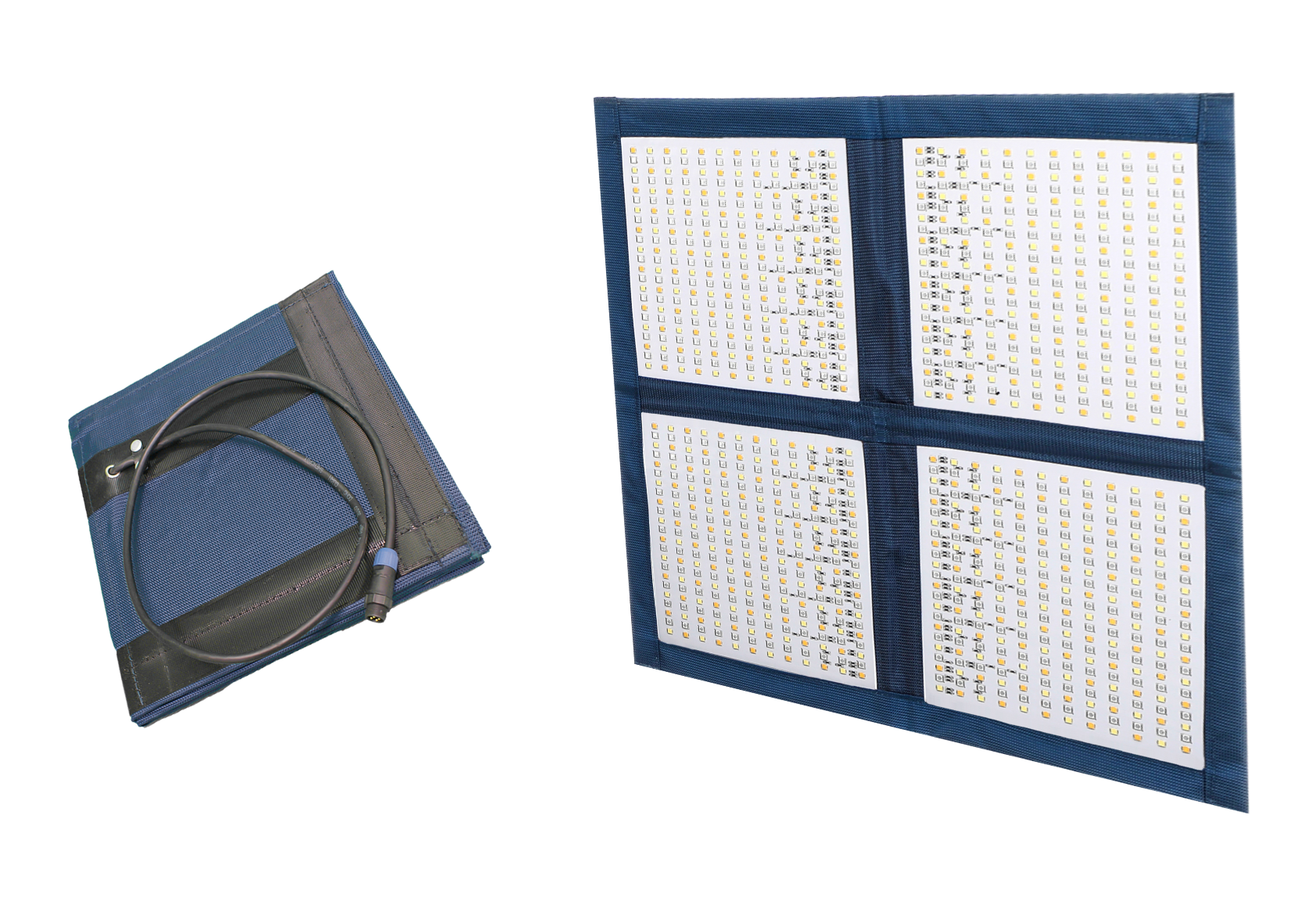

Folding Design  The LC-160RGBW II has a firm backing behind the Mat, but can also fold down at its collapsible cross sections.  This unique form factor allows for the light to be mounted in seconds without the need for a giant metal frame or x-bracket. In addition, users can now travel with a 2'x2' Light Kit that takes up less space than a conventional 1'x1' panel.

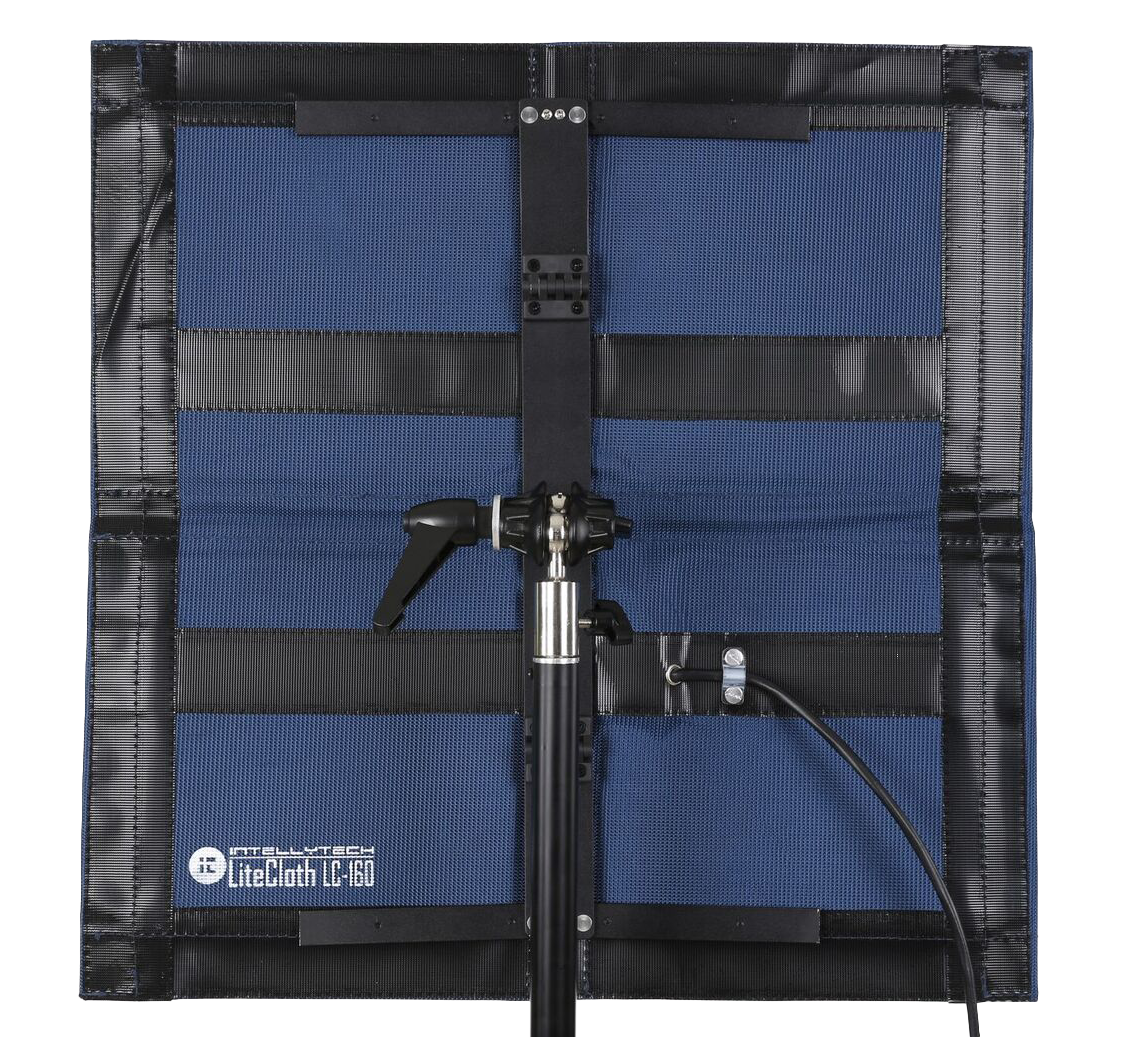

Quick & Intuitive Mount - The included Mount securely attaches to the rear of the Mat via a special high-strength Velcro. It attaches in seconds and is extremely secure. Like the Mat, the Mount also folds down allowing it to pack easily into the carrying case.

Immense Color Range with High Accuracy - Set the LC-160 anywhere from 3,000K-10,000K with excellent color rendition (CRI/TLCI 95+). On top of having greater creative control, this vast color range also gives the user close to 100% output from 3,500k-9,500k. All of the Bi-Color LED's are always on throughout this range, eliminating the worry for output loss on a bi-color fixture.

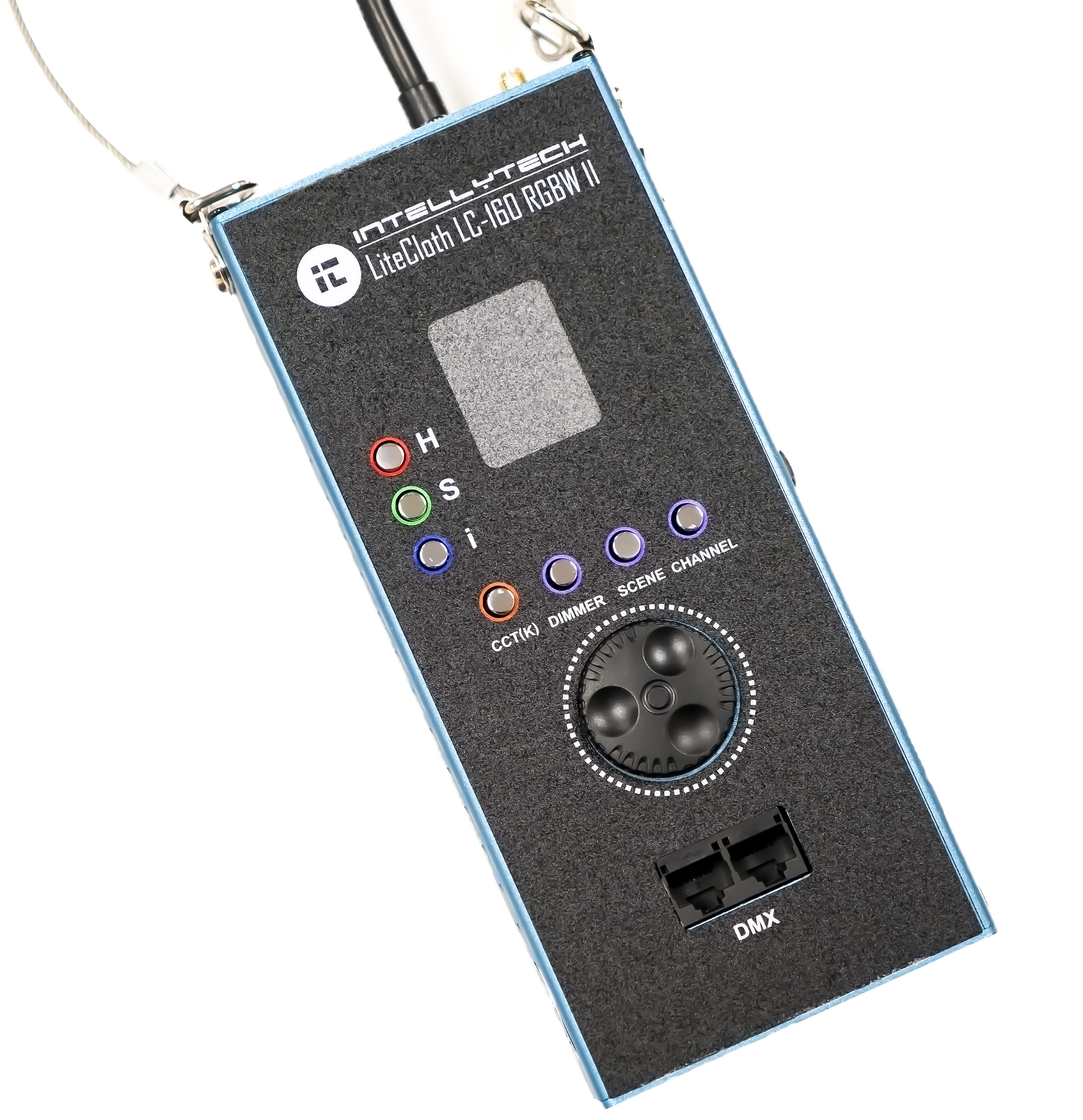

Select your color or brightness level (0-100%) via the touch screen or knob.

Wireless Control - An optional Wireless Controller (LC-WR3 II) can control up to 100 LC-160's individually or simultaneously for $99.

DMX Ready - The LC-160 can be controlled via DMX (512) for those looking to setup inside of a studio. The user can control both brightness and output either via a 512 DMX controller or via the optional Wireless Controller.

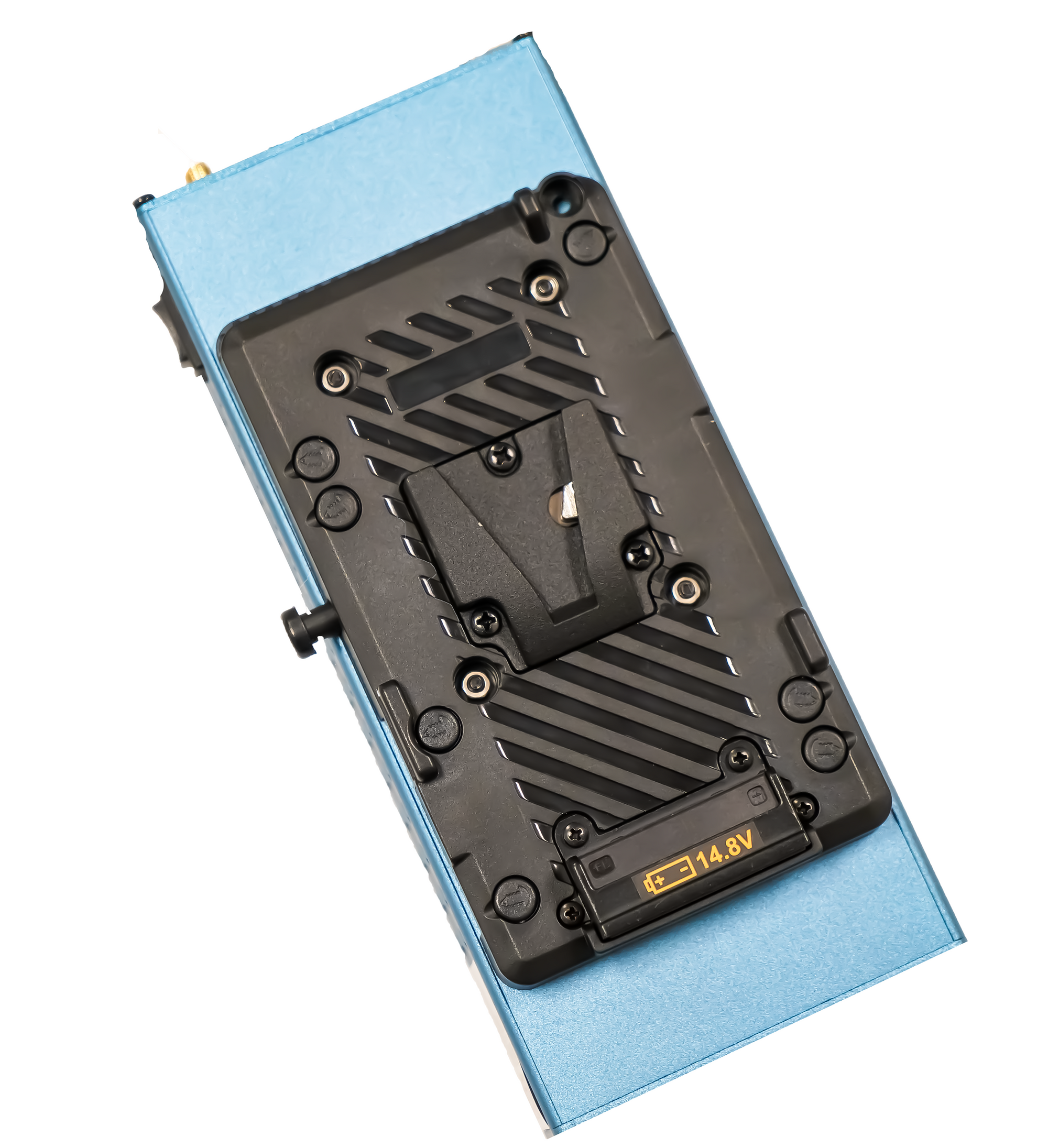

Power Options - Power the light via AC or battery. Choose either V-Mount or Gold Mount battery plate.
