Rugged Series Kit - 4 x 190Wh Series Battery + Quad Charger. Anton Bauer Gold Mount / V-Mount

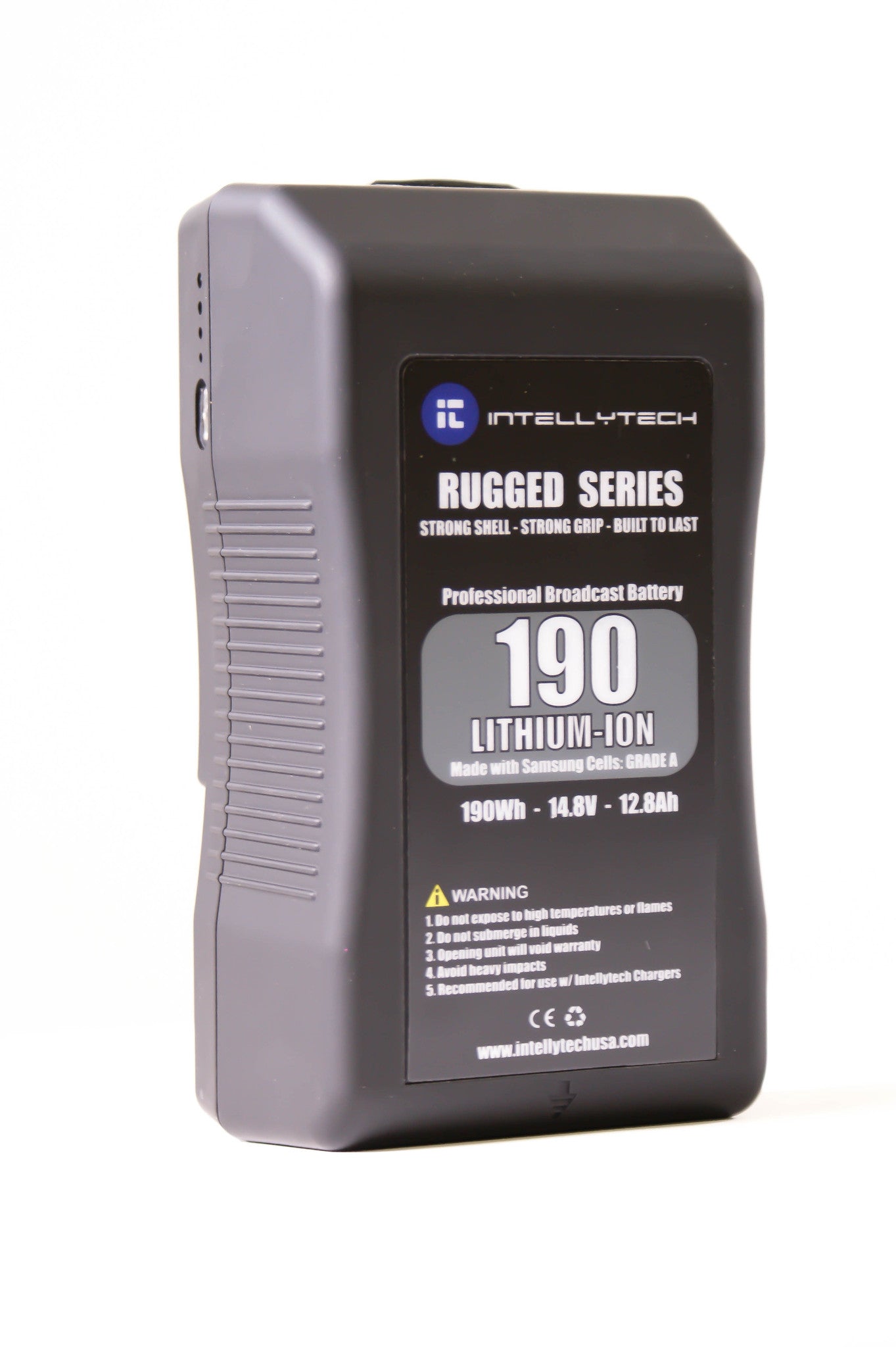

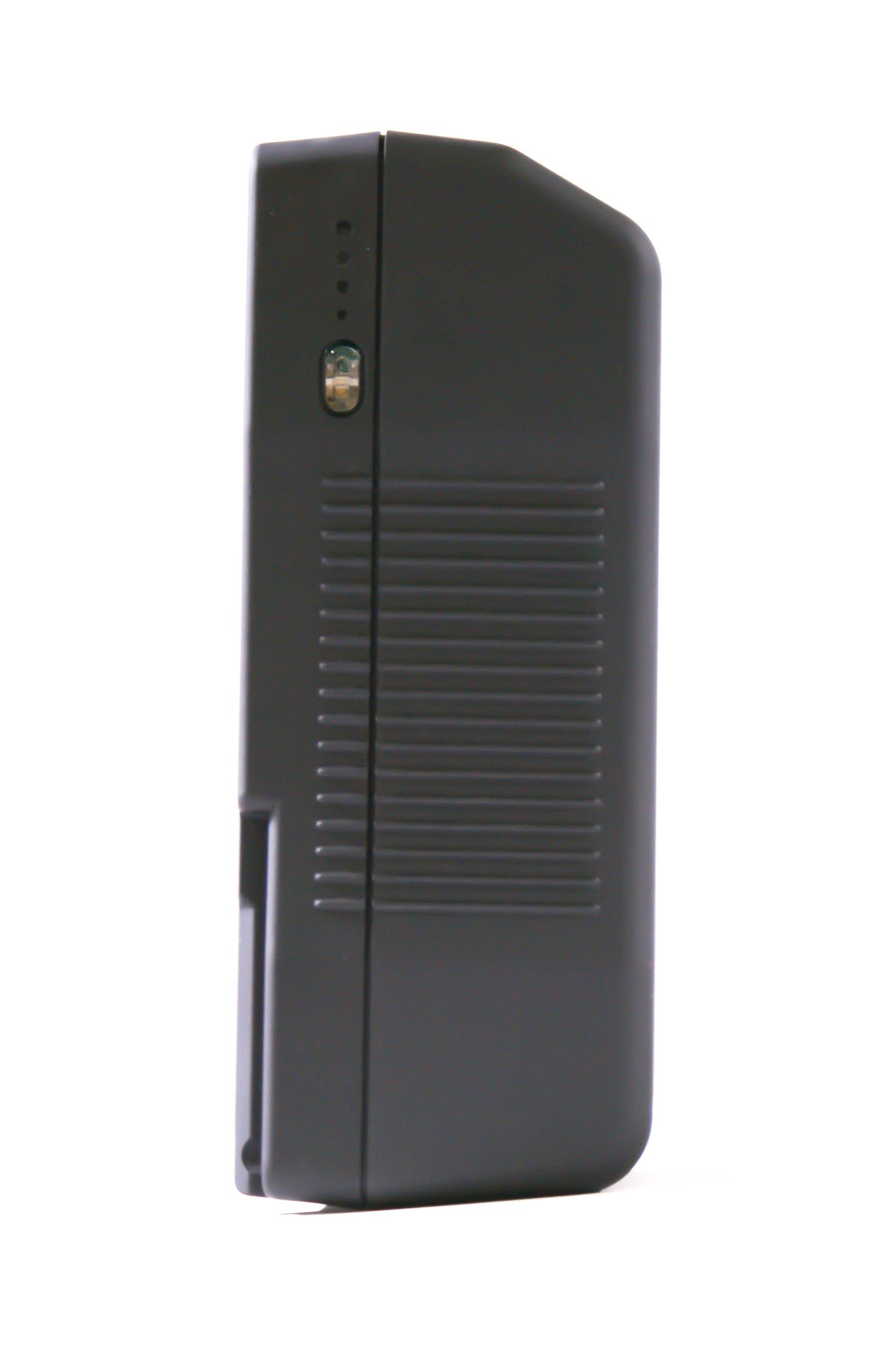

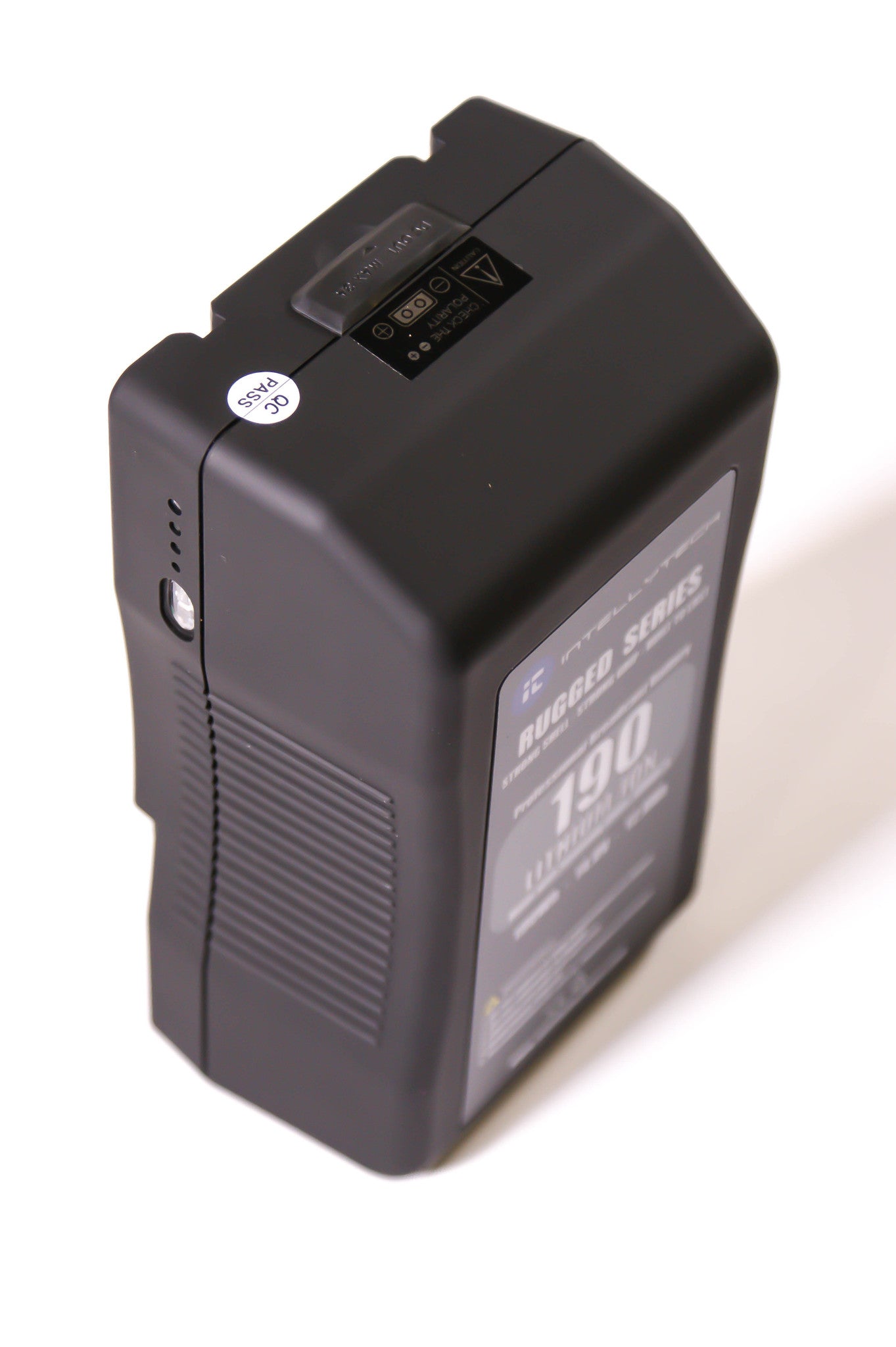

The 190Wh Rugged Series is the second largest battery in the line-up. It is a medium/large sized battery for jobs needing a good amount of power. When you hold the battery in your hand, it's clear that it is a solid, quality product. The Rugged Series strong shell is made with a protective, rubber-like coating making it impact resistant. This protects the interior connections and cell's while also providing the user with a firm grip. The battery is built with Grade A, Samsung Lithium Ion Cells assuring a long, robust life without any memory-effect. A 4 segment LED gauge is located on the side confirming the remaining battery life by the push of a button.

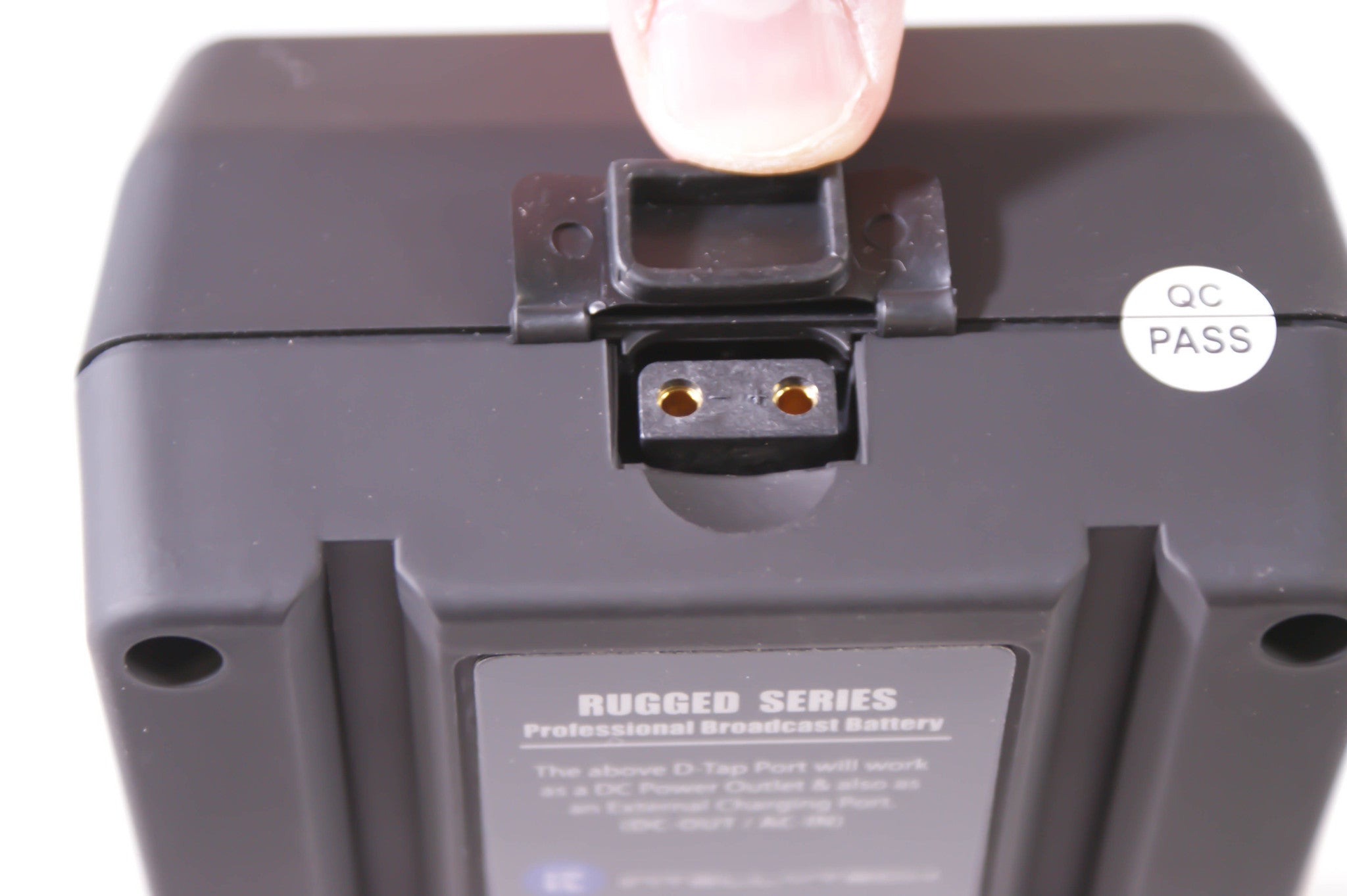

A D-Tap / P-Tap power output port is located on the top of the battery allowing the user to power a second source up to 50 watts. The D-Tap / P-Tap operates at a 14.8V nominal voltage and is electronically and independently protected against shorts and overload.

Rugged Series, Strong Shell, Strong Grip, Built to Last.

Specifications:

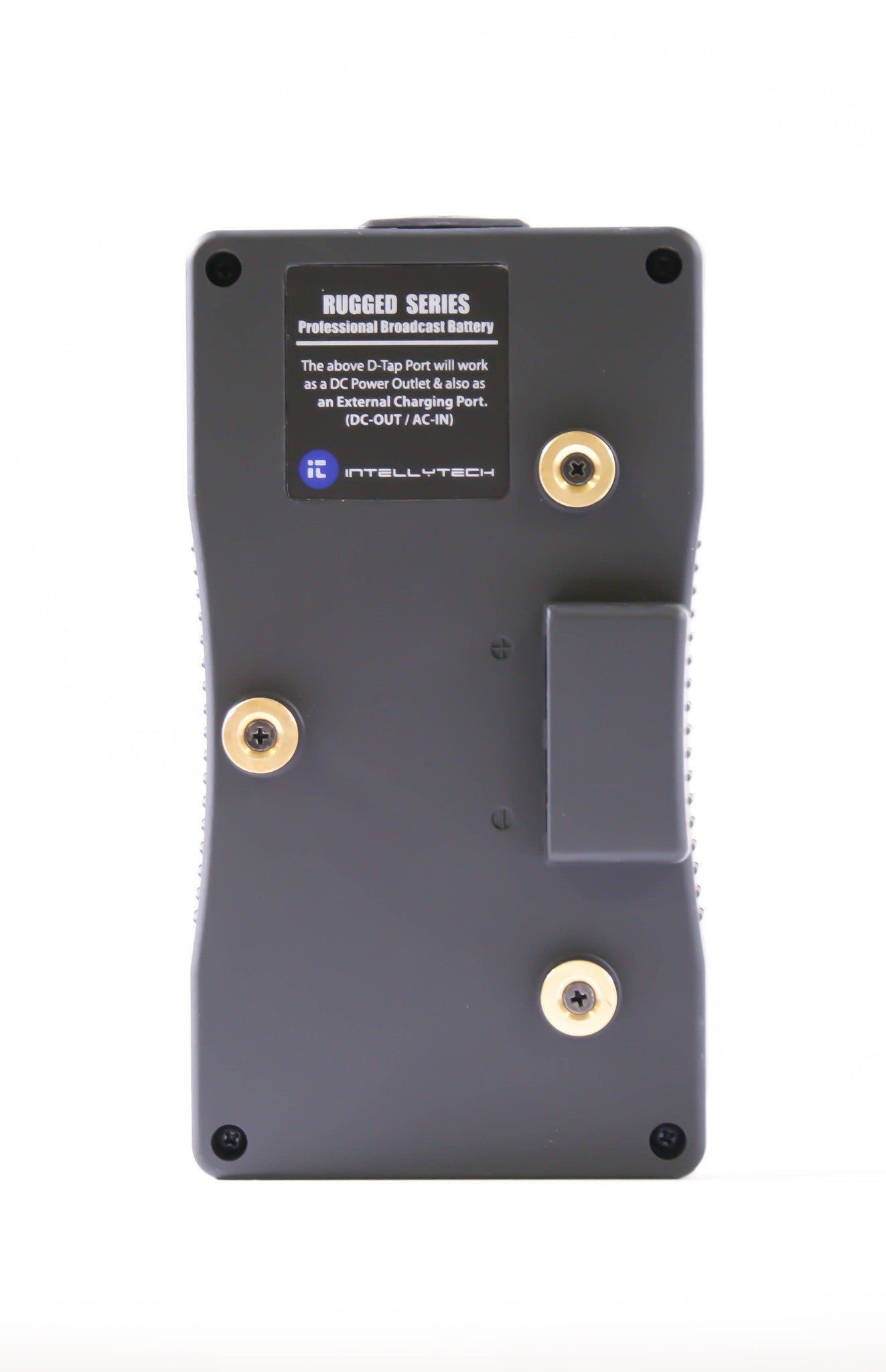

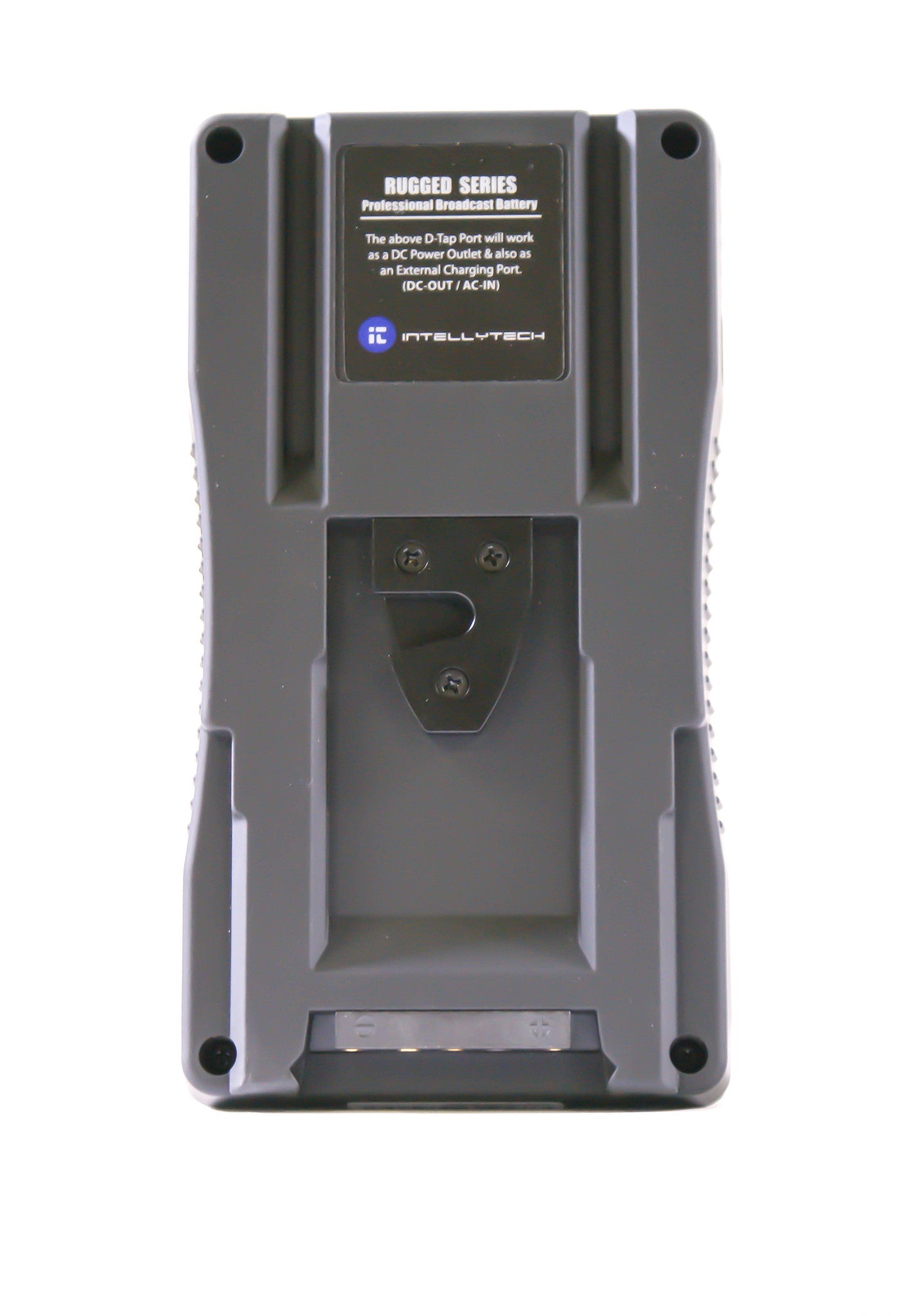

Mount: Anton Bauer Gold Mount or  V-Mount

Watt Hour: 190Wh (14.8V), Full voltage : 16.8+/-0.1 V

Working Temp: -30C - +60C. Charging Temp: 0C-40C

Size: 6.25 x 3.1 x 2.5 Inches

Weight: 2.9 Pounds

Warranty: 18 Months



Run Times:

30 Watt camera - Approximately 6.25-6.5 Hours

45 Watt Camera - Approx. 6-6.25 Hours

50 Watt LED Light - Approx. 5.5-5.75 Hours

100 Watt LED Light - Approx. 2.9

Rugged Series, Strong Shell, Strong Grip, Built to Last.

Product Description

The Rugged Series Kit includes four 190Wh Batteries and our 4 Channel Charger (choose Anton Bauer or V-Mount).

This kit includes:

(4) - 190Wh Rugged Series Batteries


(1) - Quad Quick Charger with integral 60 Watt camera power station

(1) - US 120V AC Cord (220v Available on request)


(1) - 4 Pin XLR power supply cord included.



*This kit saves you over 10% compared to our individual prices!



About the Quad Charger:

The Intellytech IT-4X Quad Charge is the perfect companion for our Rugged Series batteries along with many other battery brands. Users will notice the super slim design compared to other Quad chargers on the market making it a great for traveling. The unit charges batteries at a rate 50% faster than most chargers. The charger also features indicator lights to give more feedback to the user while charging. This can also be used as an AC Adapter to power other products up to 15V.

 *Available in Anton Bauer or V-Mount. Just select below on the right hand side.

Specifications:

Input: AC 100V-240V 50HZ-60HZ

Output: One Battery = DC 16.8V/4A  / Two Batteries = DC 16.8V/3A / Adapter = 15V/4.5A

Dimensions: 10"(length) x 6.5" (height) x 4.75" (width)  / 6 Pounds

Indicators: Features 5 indicators, one for each battery. Shows red while charging and green when fully charged. Also features Adapter indicator.

Includes: AC power cord and XLR Power Cord for Adapter use.





Mount
$1,599.00
