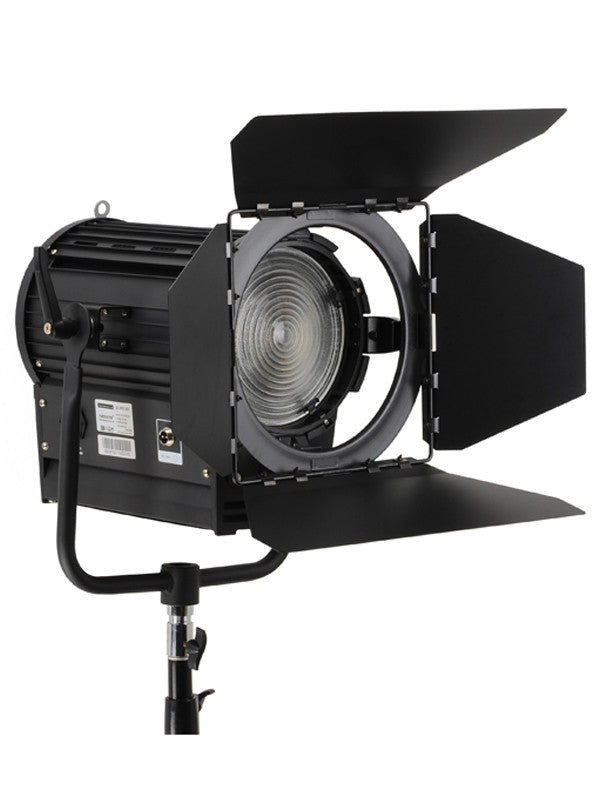

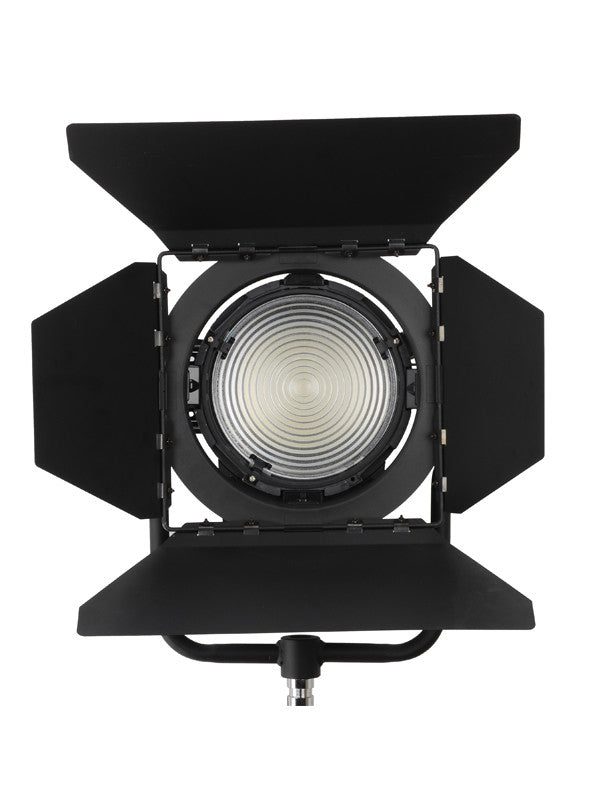

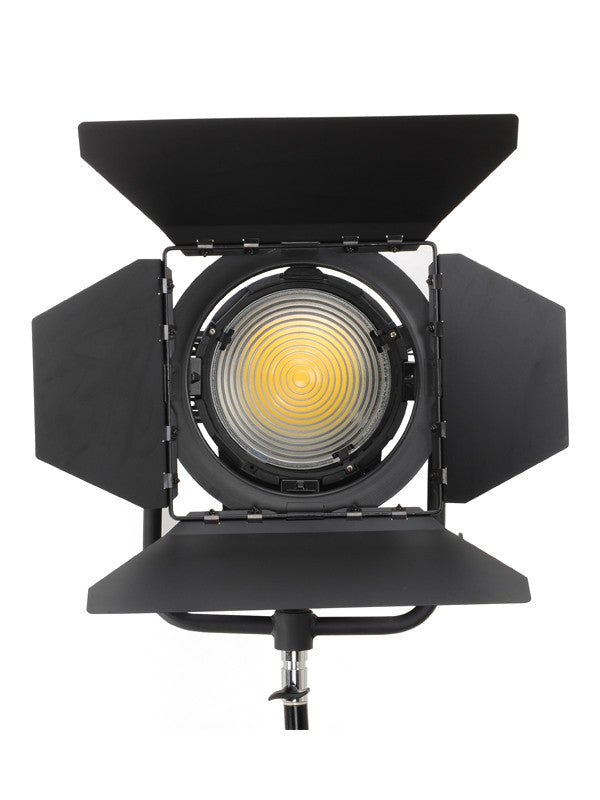

F-100 Bi-Color Junior LED 7" Fresnel 100W - W/ DMX

The fixtures have been designed on the same body chassis as traditional tungsten Junior series with consideration for the accessories users may already own from the incandescent models. Barndoors, scrim kits, filter frames, softboxes or snoots all can be used with the new Junior LED fixtures.

     The units are manufactured using the latest MASM technology (multi array surface mount) and adopt high quality and precise 3 layers optical elements for a clean and crisp beam spread.
     The Junior LED Fresnel fixtures are totally silent as no fans are used to cool down the LED; instead, a smart thermal cooling heat sink design with sealed gas is used like with high end computers. No fan means no noise coming from the fixture and virtually no maintenance is needed. The LED life span also reaches up to 50'000+ hours of use equivalent to 15 years of day by day use / 10 hours a day.
     The full metal body housing is made using a series of light weight aluminum extrusions with aluminum corrosion resistant castings and steel parts ensuring a sturdy and robust construction for years to use in a professional environment.
     The Intellytech LED Fresnel's are equipped with built in DMX 512 controller with single, master & slave functions, allowing for the brightness and color temperature to be controlled remotely from a console making them perfect for TV studio installations, theaters, stages or conference rooms.
     The lights run with low power consumption, allowing it to run on battery power, ideal for professional videographers, filmmakers and broadcast productions. To do this requires a battery converter which converts 14.8W batteries to 24V DC power.
     Shooting slow motion? No problem! The Junior LED series are flicker free and tested at 3'000 fps.
     The voltage is universal capable from 90v-240v.
Key features:
- LED power: 100W
- 3200k-5600K tungsten to daylight adjustable color temperature
- adjustable beam angle spot 15° - flood 60°
- dimming 100% to 0% with no color shift
- high CRI 92+ RA: colors are rendered with high accuracy
- 7" lens diameter
- flicker free at high speed shooting rates.
- high efficiency thermal design
- passive cooling: no fans, no noise, no maintenance.
- 50'000+ rated LED life
- built-in DMX controller with XLR 3P connectors
- digital display for brightness and DMX address.
- mechanical spot-flood mechanism
- cross-compatible with tungsten Junior Fresnel 2000W accessories.
- yoke bar with combo mount (spigot 16mm receiver & 28mm pin)
- sturdy aluminum housing for many years to use
- worldwide voltage compatible: AC 90V-240V 50 / 60 Hz ; DC 24V
- weight: 13.8 pounds
- dimensions: 9.5" length x 11" height x 10" width
Package Includes:
1 x Intellytech Junior 7" LED Fresnel 100W Bi-Color 3200k-5600K and anywhere in between - DMX
1 x metal barn-doors 4 leaf
1 x yoke bar with combo mount 5/8" & 1-1/4"
1 x power cable 7m with USA plug
1 year warranty
source type led - fresnel
operation mode manual - light stand
power 100 watts
voltage DC 24V / AC 100-240V
color temperature Bi-Color - Adjustable from 3200K-5600K
lens diameter 7 Inches
barndoor holder size 9.6 inches
filter holder size 229 mm
beam angle degree 15-60
illuminance - spot mode 2m: 9200lx | 3m: 4100lx | 4m: 2400lx
illuminance - flood mode 2m: 3500lx | 3m: 1600lx | 4m: 950lx
number of LED -
DMX 512 controller yes
dimming range 100%-0%
battery mount -
mounting combo: 16mm receiver & 28mm pin
power cable length 9.75 feet
power plug type CEE 7/7
lamp head dimensions (HxWxL) mm 520 x 330 x 400
weight 13.8 pounds
material aluminum
color black
compliance CE


Product Description
  • 100 Watt, 7" Fresnel LED Light
  • Bi-Color: 3200k-5600k and anywhere in between
  • Fanless - Completely Silent
  • DMX Operational - Aluminum Frame
  • 15-60 Degree Capability
The Junior LED Fresnel's series provides a powerful, high quality and high 93+ CRI light that looks great with today's digital cameras. They are the ideal combination of classic Fresnel characteristics and all the advantages of LED technology. Read more below the pictures.
