Item Number: 173023 (Daylight)

Immense Control Made Easy

The Pocket Cannon provides the user with all of the tools necessary to shape light with surgical precision and has the output to back it up.

  • Control the lights spread via the Focus Knob from 20-50 degrees with the Glass Lens attached & 60-160 degrees with the Lens removed. The Lens can be added or removed in seconds.
  • The included, removable, slotted Barn-Doors simply slide on and off via hand and allow the user to further sculpt the light.
  • Uses 1 Solid, Single-Source LED allowing you to truly cut and shape the light.

Big Output. Small Package

With the Glass Lens attached the Pocket Cannon is capable of producing direct, bright light equivalent to 400W-500W Hot Lights. The Pocket Cannon consumes only 30 Watts of power, however, the powerful LED combined with the pronounced, Glass Lens makes this unit brighter than most other LED's consuming more than 60 Watts of power.

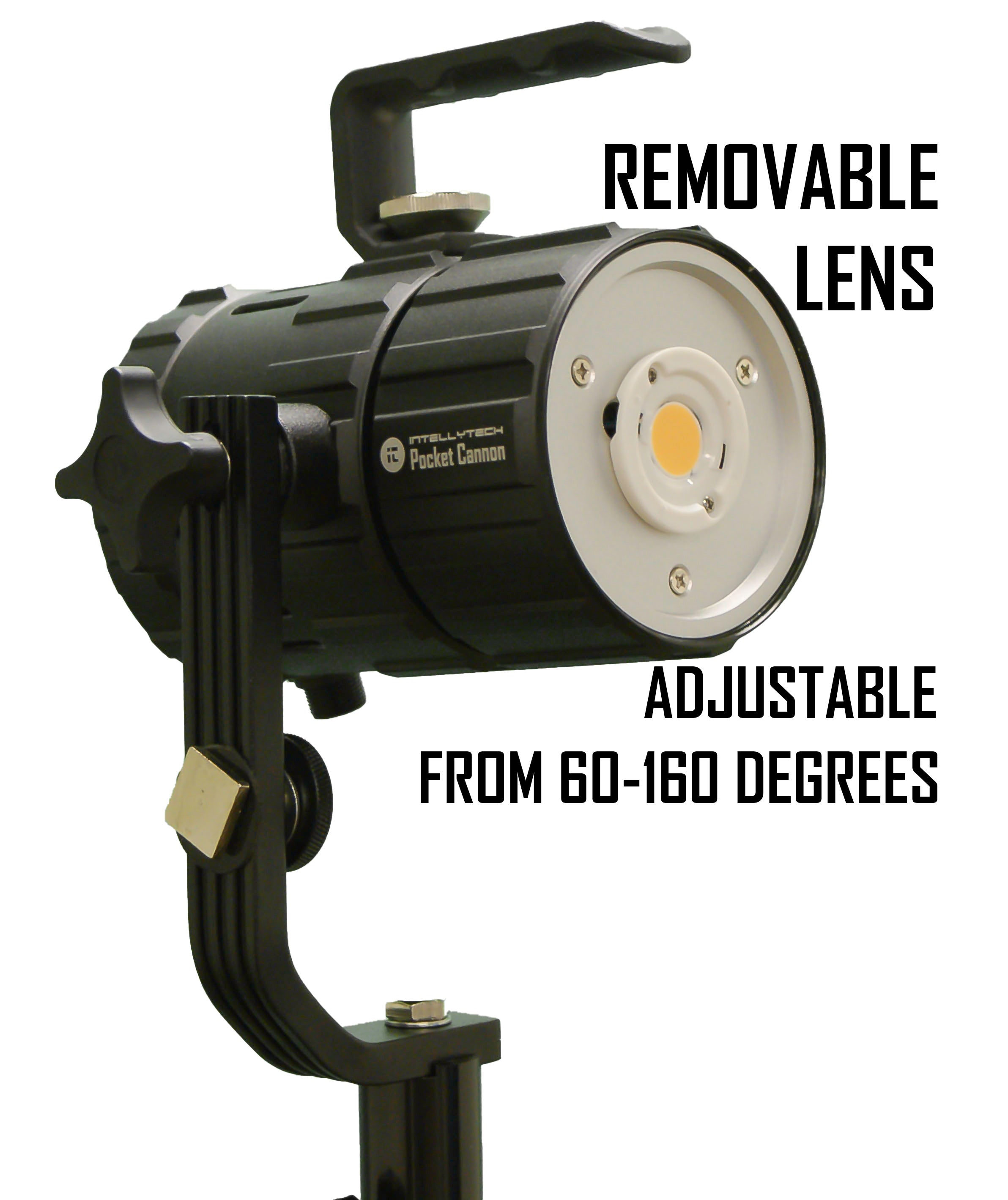

With the Lens removed, the Pocket Cannon can cover a vast area from 60-160 Degrees.

Additional Info

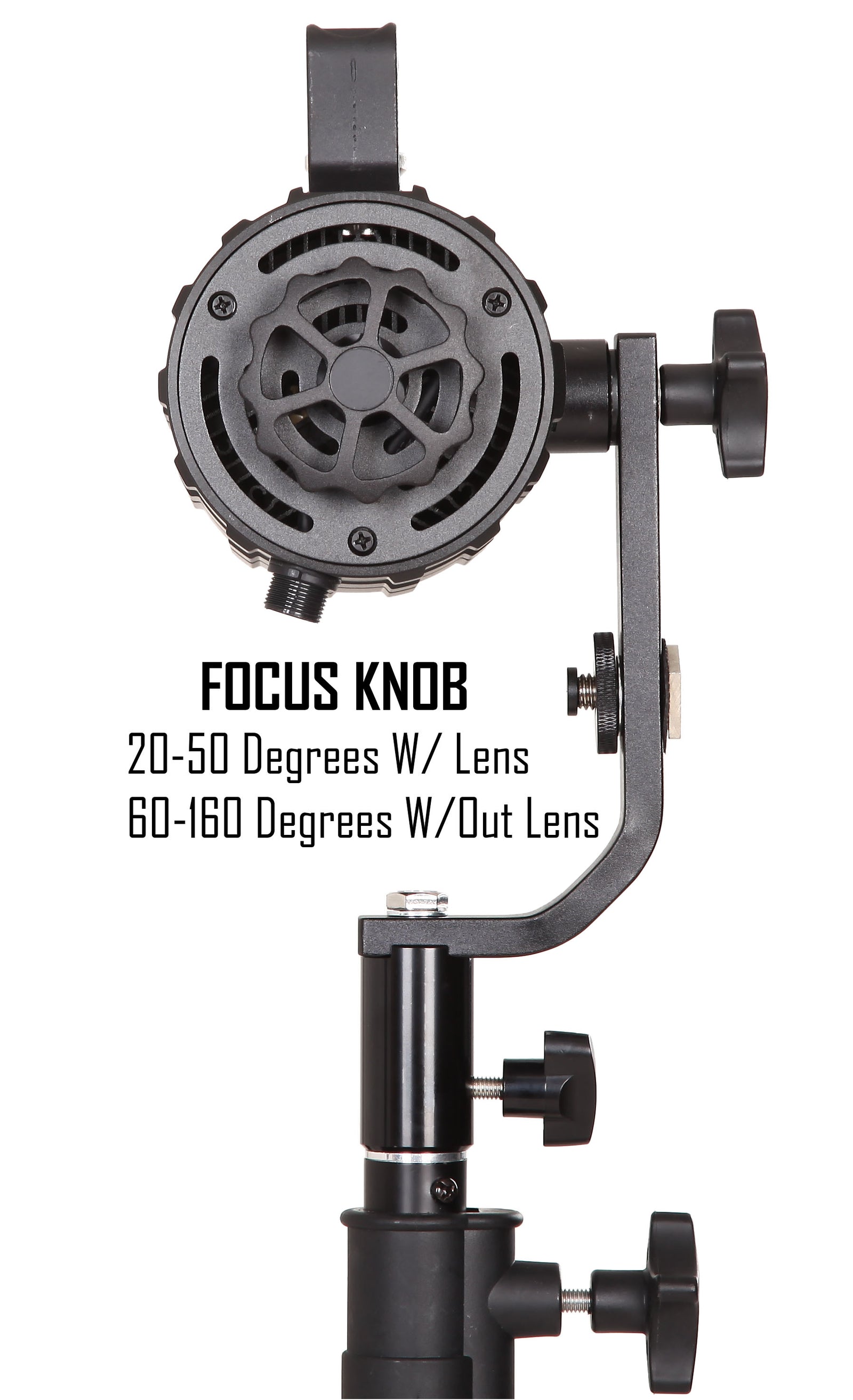

The Pocket Cannon is focusable from 20-160 degrees via the knob (located on the rear of the housing). When the Glass Lens is attached the unit can focus from 20-50 Degrees for bright, direct light. When the Lens is removed the unit can focus from 60-160 Degrees to create a soft, wide reaching cast.

Passive Cooling

The Pocket Cannon is fanless, making it completely silent. The light is cooled via the built-in heat sink.

Metal & Adjustable Frame

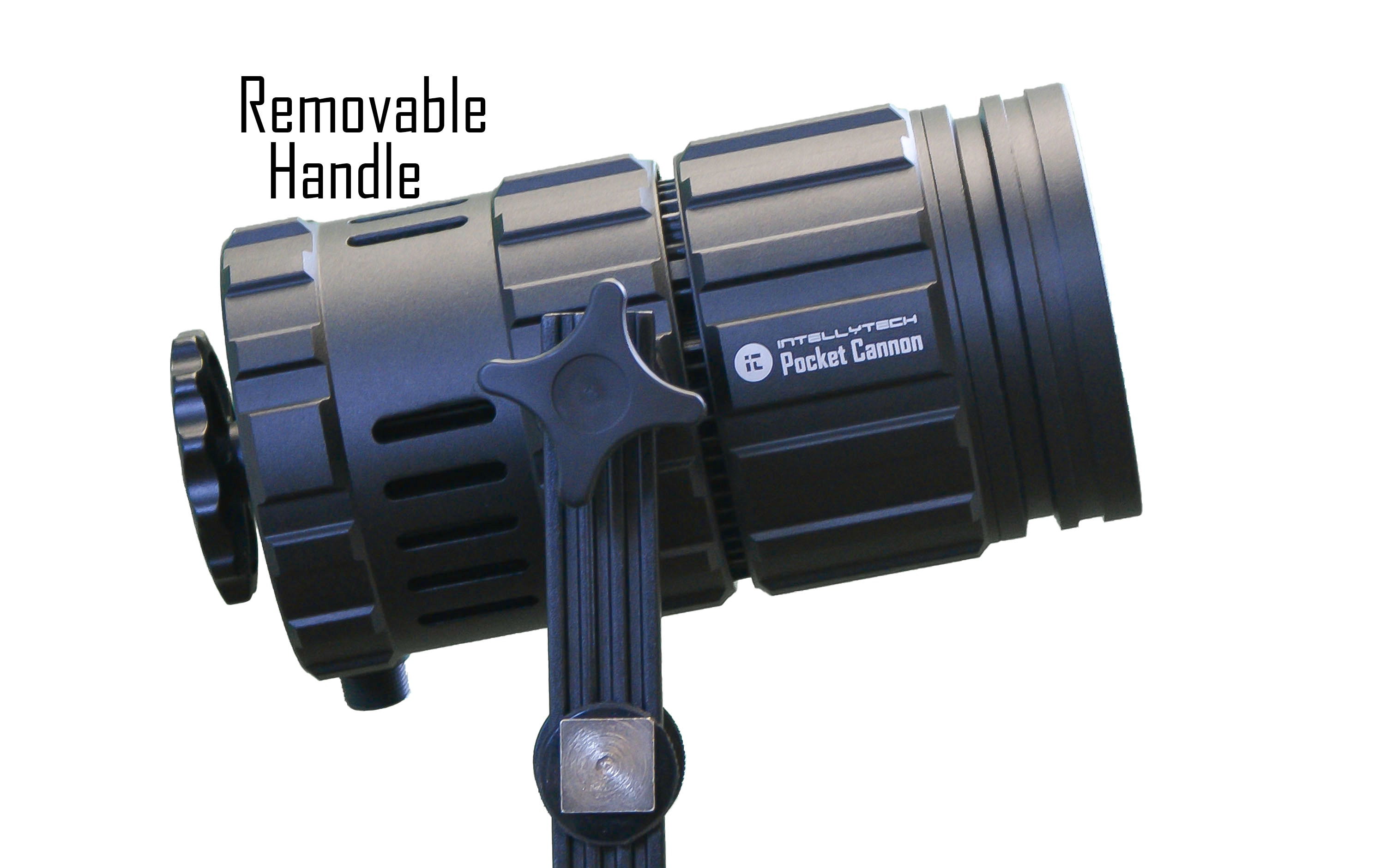

The metal body housing is made using strong, lightweight, and attractive aluminum with an amazing fit and finish, made for years of use in a professional environment. Both the Handle and Yoke can be removed by hand for increased portability and different mounting options.

Variety of Power Options

Power the Pocket Cannon via AC or DC out of the box (all accessories needed are included). Each Pocket Cannon includes a Universal 100-240V AC Adapter, V-Mount Battery Plate, and Sony NP-F (L-Series) to V-Mount battery converter. For Gold Mount users, choose to add a Gold Mount to V-Mount Adapter Plate at a discounted rate of $40.

External Dimmer & Battery Plate System

The Pocket Cannon has an external Controller allowing the user to change dimmer levels or swap batteries without taking the light down from a stand. The external Controller also provides a lower center of gravity when mounted below the light.

For users wanting to have the light and Controller mounted together, that can also be done by sliding the Controller onto the light's yoke.

High Output & CRI

Whether shooting in spot or flood mode, the Pocket Cannon provides the user with a high level of output for such a small, portable fixture. To help increase the light's output, the Pocket Cannon is fitted with a super thick Glass Lens, greatly amplifying the light. Both the Tungsten and Daylight Pocket Cannon's produce a CRI/TLCI of 97+.

*Shooting slow motion? No problem! The Light Cannon LED series are flicker free and tested at 3'000 fps. The voltage is universal and works from 100v-240v.


Sold as a Kit:

  • External Controller W/ V-Mount Battery Plate
  • NP-F / V-Mount Battery Converter
  • Barn-Doors
  • AC Adapter
  • Molded Carrying Case to perfectly hold everything included in the kit.

Variety of Light Modifiers Available in Affordable Kit

Snoot, Honeycomb Grid, Light Globe, Orange Yellow, Blue, Diffused Filters, and Softbox are available as a kit for only $149!


Daylight: CRI/TLCI of 97+

Distance Spot (20 Degrees) Flood (50 Degrees) Color
1 Meter 7,743 Lux / 719 FC 2,860 Lux / 226 FC 5600k
2 Meters 2,050 Lux / 191 FC 731 Lux /  68 FC 5600k
3 Meters 920 Lux / 86 FC 349 Lux / 32 FC 5600k
4 Meters 398 Lux / 37 FC 152 Lux / 14 FC 5600k

Tungsten: CRI/TLCI of 97+

Distance Spot (20 Degrees) Flood (50 Degrees) Color
1 Meter 7,040 Lux / 654 FC 2,430Lux / 226 FC 3200k
2 Meters 1,800Lux / 167 FC 606 Lux / 56 FC 3200k
3 Meters 749Lux / 70 FC 292Lux / 27 FC 3200k
5 Meters 333 Lux / 31 FC 130 Lux / 12 FC 3200k
